ICE FLOW UM 360
ICE FLOW UM 360
Liquid Cooling
Hybrid Cooling System - Copper base + aluminum radiator for enhanced heat dissipation
Smart LCD Display - 2.73" 320*320 resolution for real-time hardware monitoring
Multi-Platform Support - Compatible with Intel LGA115X/1700/1851 and AMD AM4/AM5 sockets
Low-Noise Pump - Adjustable 1800-3000 RPM speed with ≤35dBA noise level
High-Efficiency ARGB Fans - 80CF max airflow, 4.0mmH2O pressure, dual lighting control (5V3PIN/12V4PIN)
270W TDP Capacity - Optimized for high-end processors

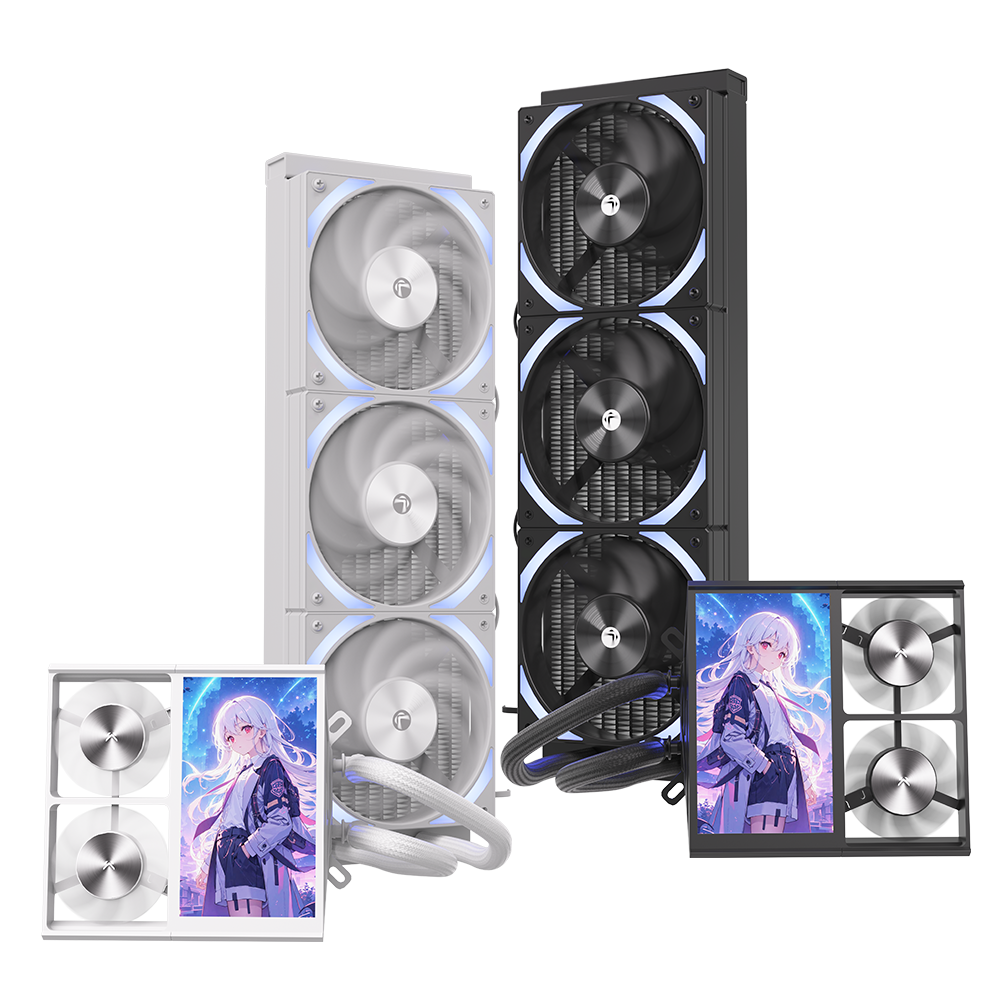

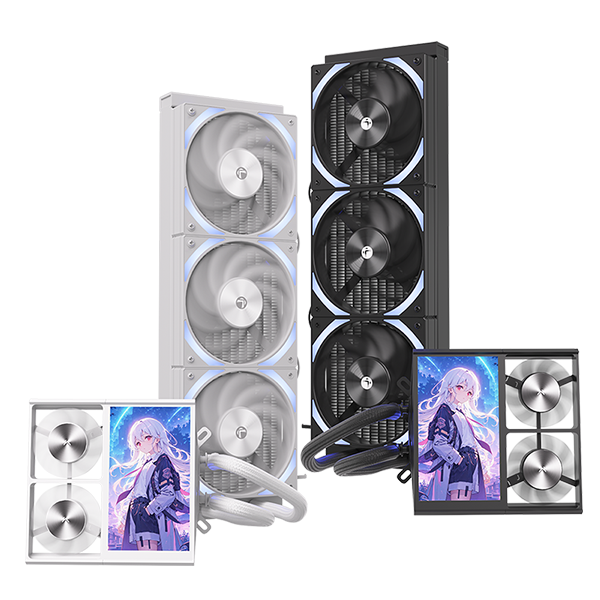

Color

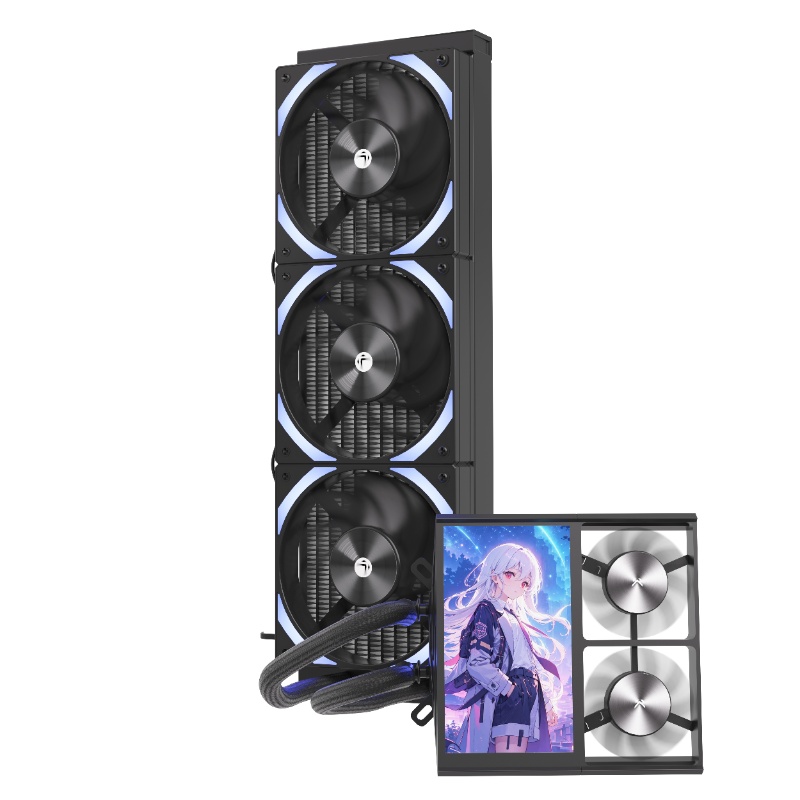

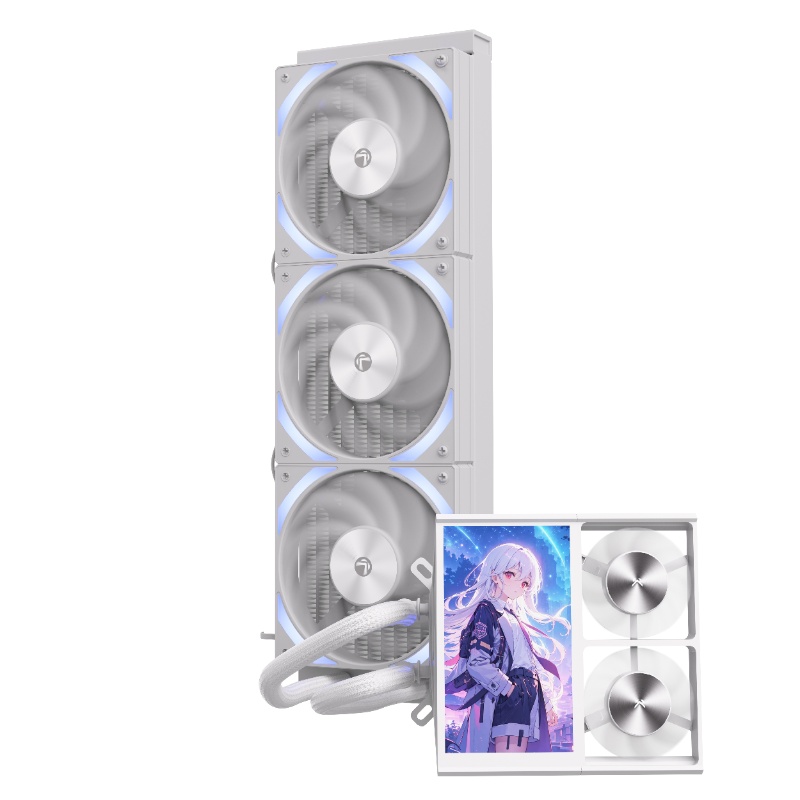

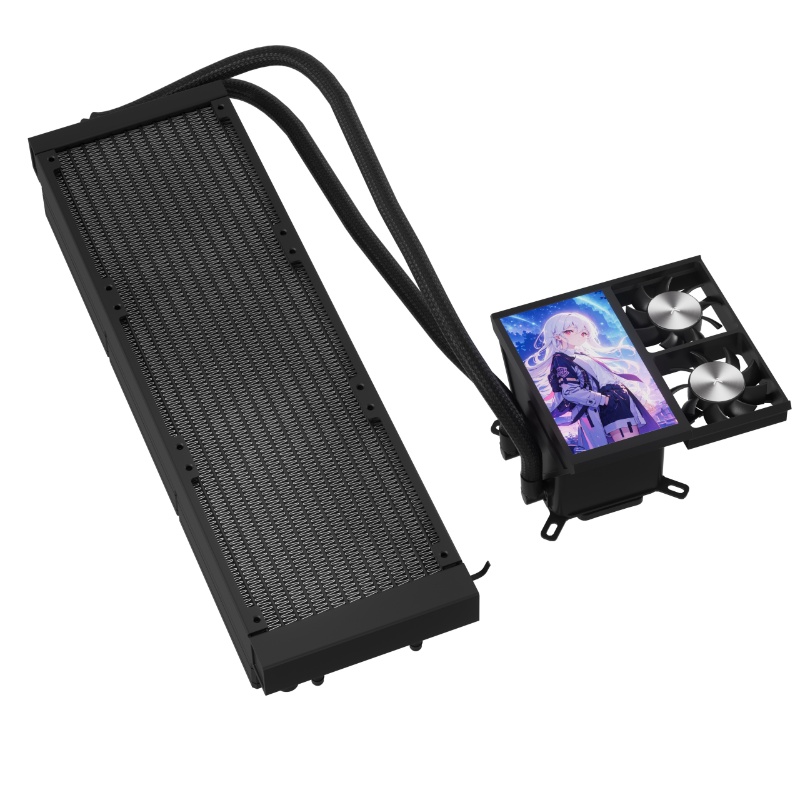

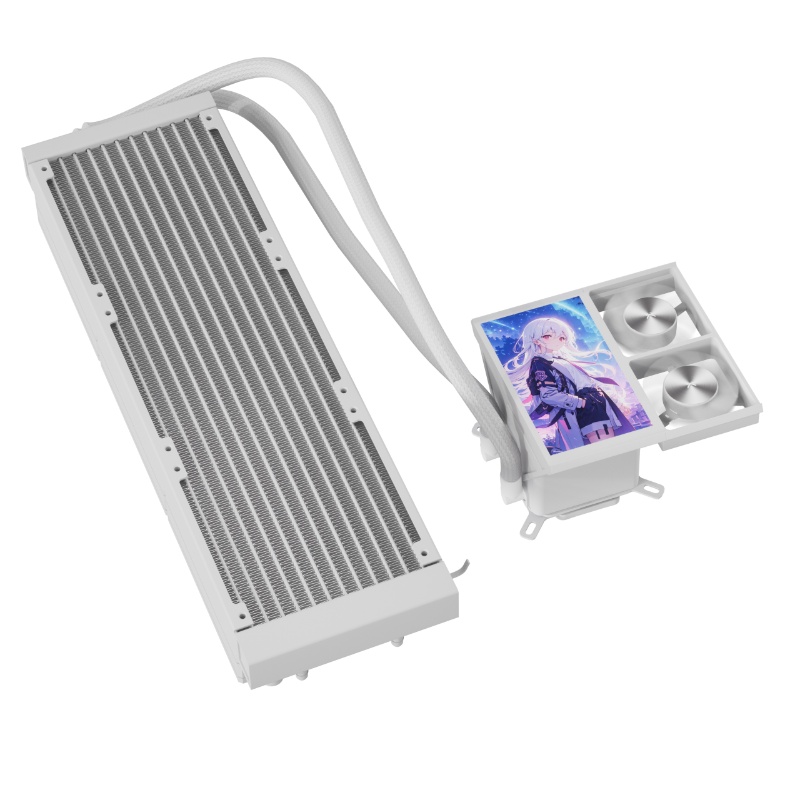

ICE FLOW UM 360
Liquid Cooler

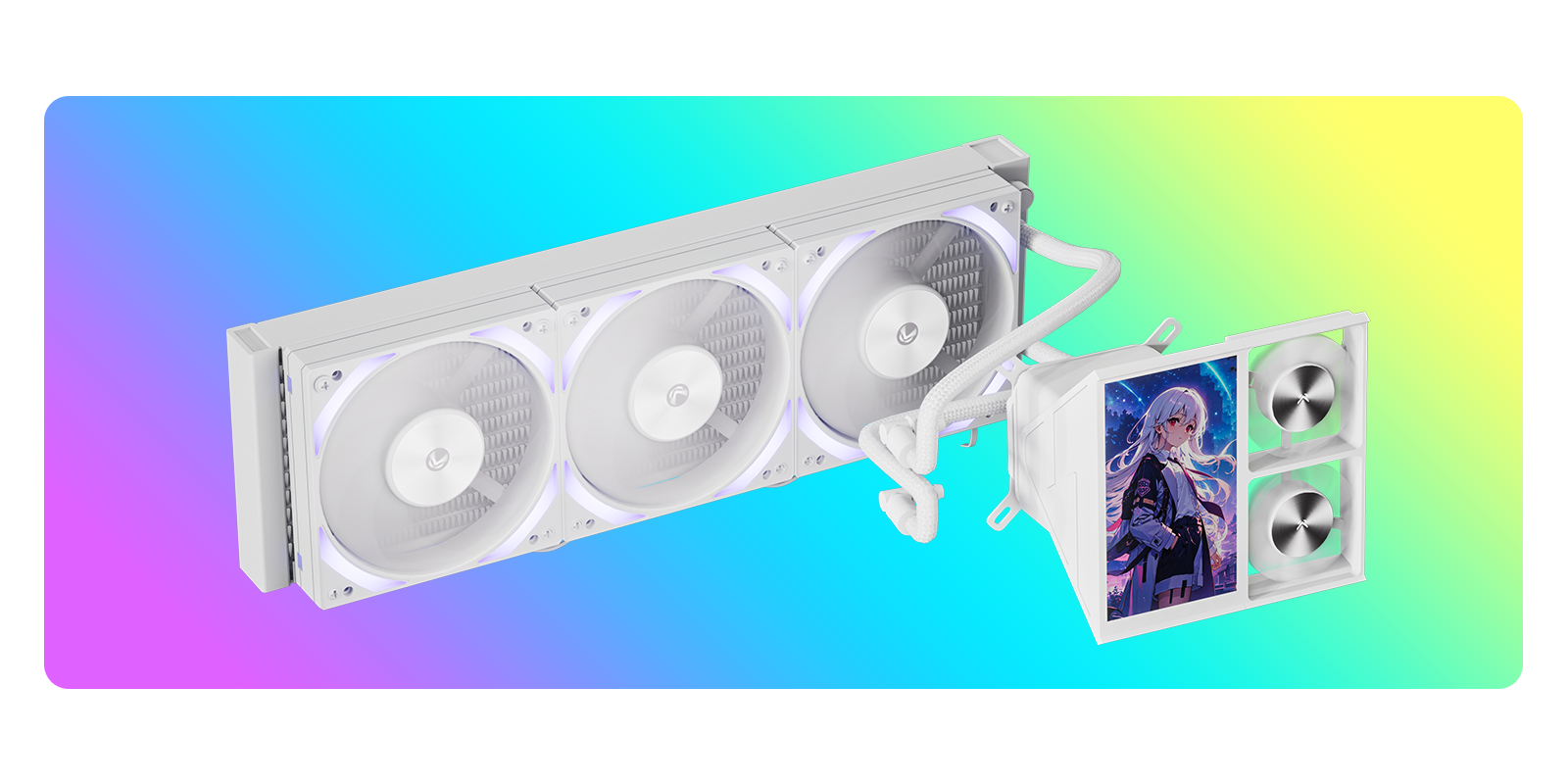

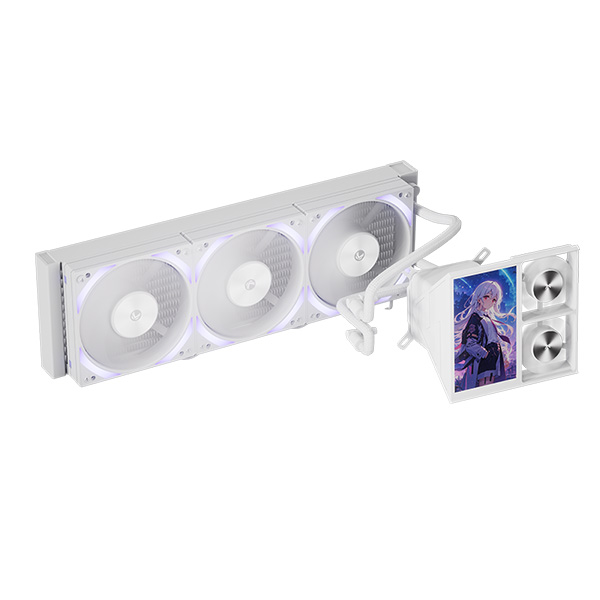

ICE FLOW UM 360

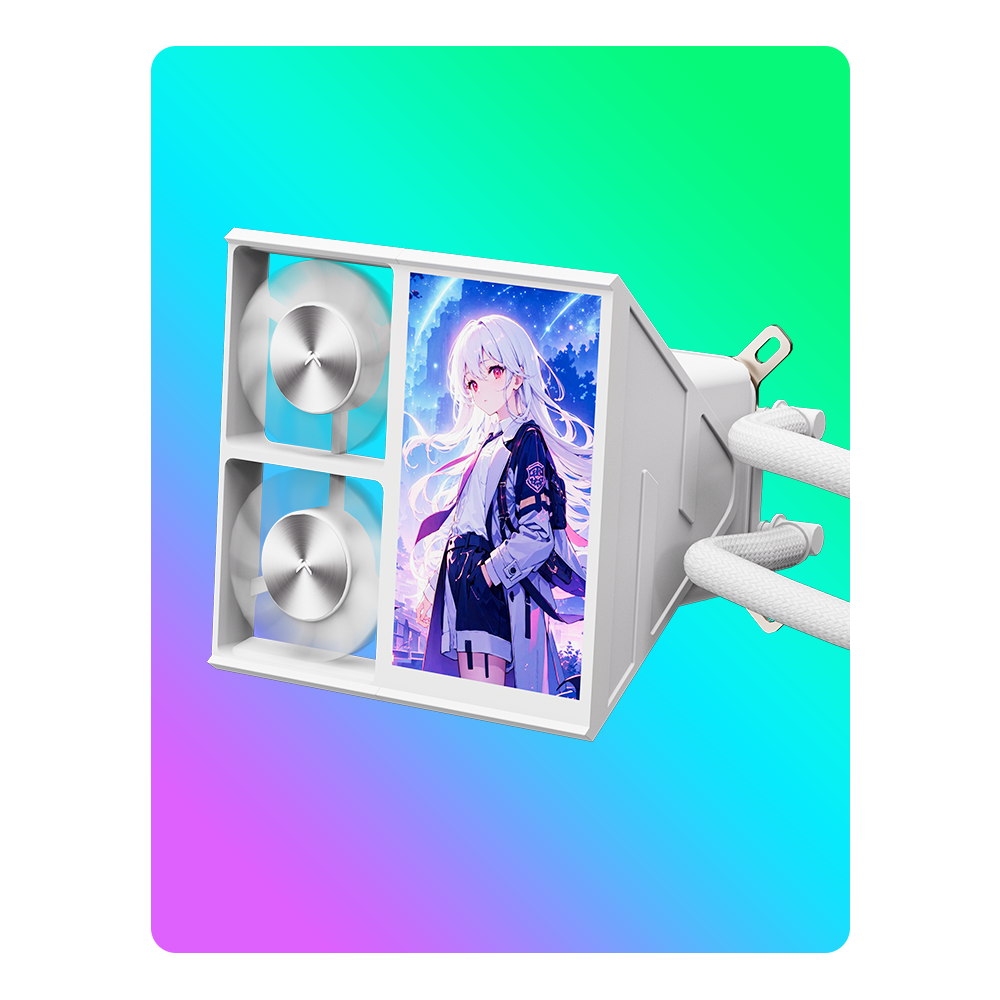

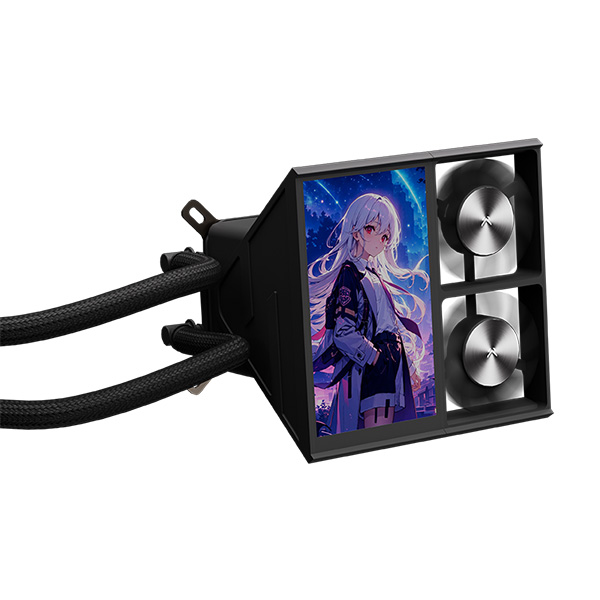

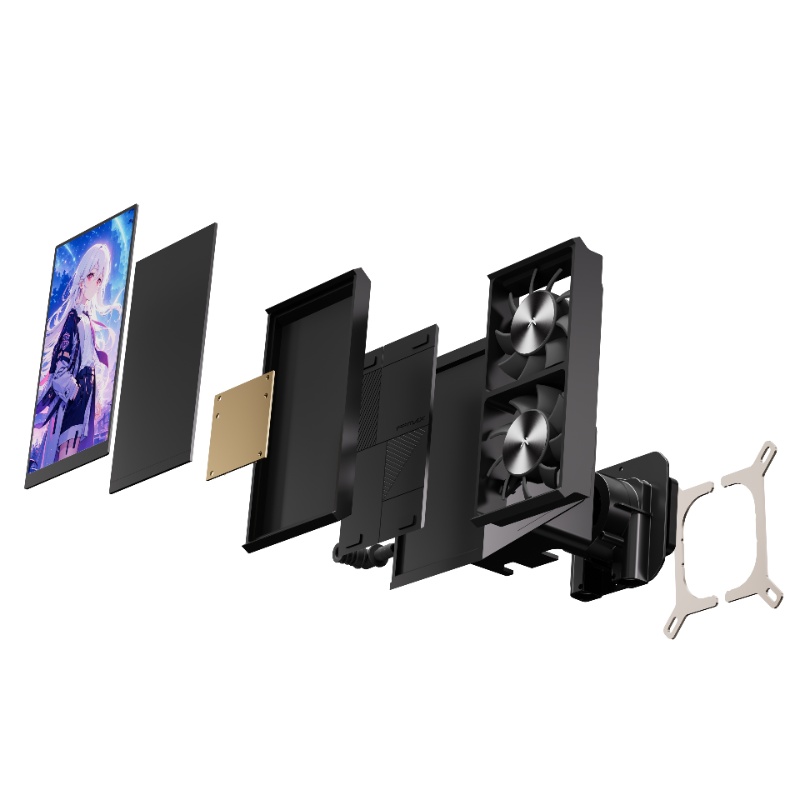

The water block features a built-in display and dedicated cooling fans for memory modules, combining visual interactivity with enhanced thermal performance.

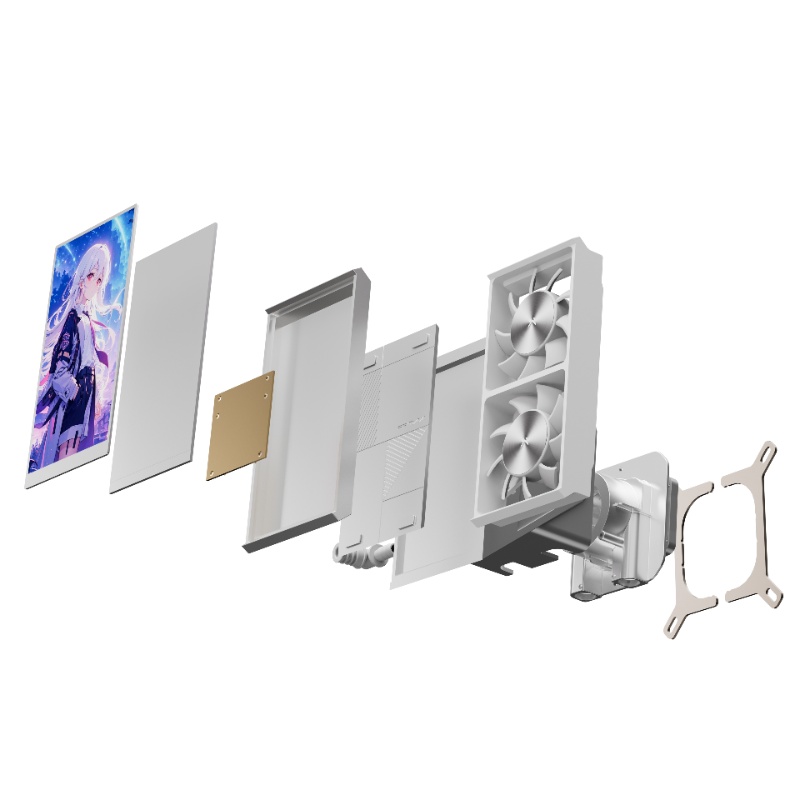

Durable construction with braided tubing and low-evaporation polymer ensures long-lasting performance.
2.73″ HD Square Screen
320×320 LCD, crystal clear visuals at a glance. Designed for liquid cooling blocks — monitor temperatures or showcase custom graphics, all at your fingertips.
PWM Intelligent Control Support
Supports PWM (Pulse Width Modulation) intelligent control, automatically adjusting fan speed based on system temperature to ensure efficient cooling and low-noise operation.

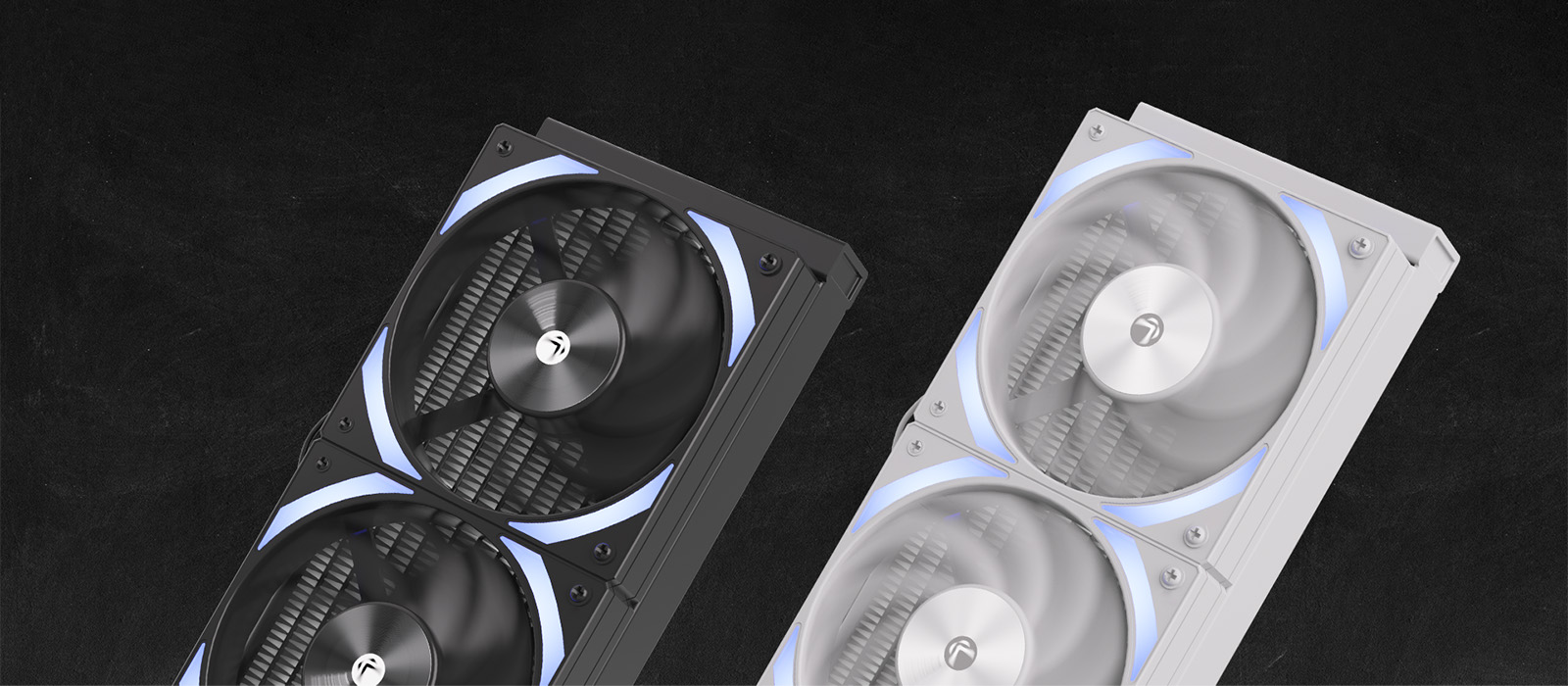

High-Performance Silent Fan
Designed for high efficiency and low noise
It optimizes cooling performance while maintaining quiet operation, achieving a balance between efficiency and equipment aesthetics.

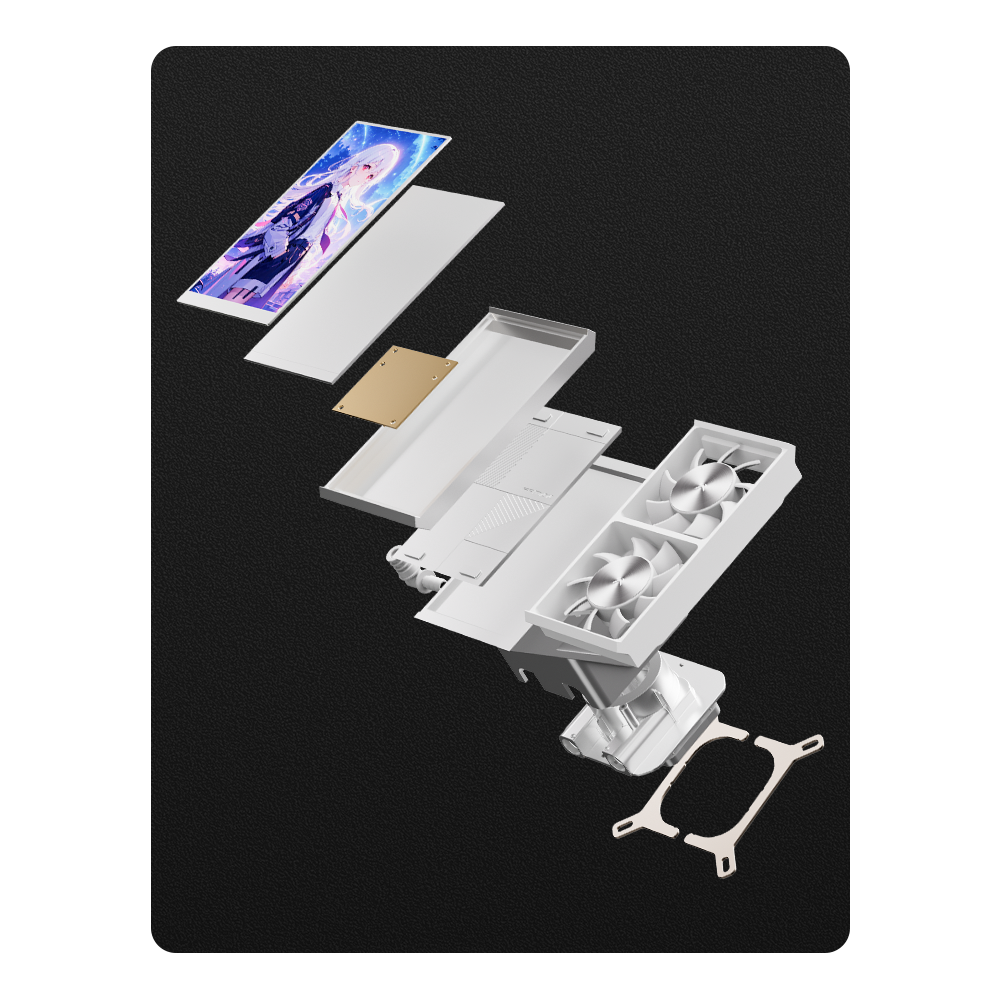

High TDP Support
The copper base paired with an aluminum radiator efficiently handles up to 270W TDP, ensuring stable operation for high-performance hardware.
Technical Spec
Model | ICE FLOW UM 360 |
Base Material | Copper |
Radiator Material | Aluminum |
Screen | 2.73 320*320 LCD (Control Center) |
Tube | Rubber Hose |
Compatibility | Intel: LGA115X/1200/1700/1851/20XX |
AMD: AM4/AM5 | |
Radiator Size | 397*120*27mm |
Pump Block Size | 69.68*134.25*86mm |
Pump Voltage | 12V |
Pump Connector | 4pin |
Pump Speed | 1800±300-3000±10% |
Pump Noise | ≤35dBA |
Fan Material | PBT+PC |
Fan Air Flow | 80CF (MAX) |
Fan Air Pressure | 4.0mmH2O (MAX) |
Fan speed | 800-2150±10% |
Fan Noise | ≤35dBA |
Fan Lighting | ARGB |
Fan Voltage | 12V |
Fan Connector Type | 5V3PIN/12V4PIN |
TDP | 270W |
