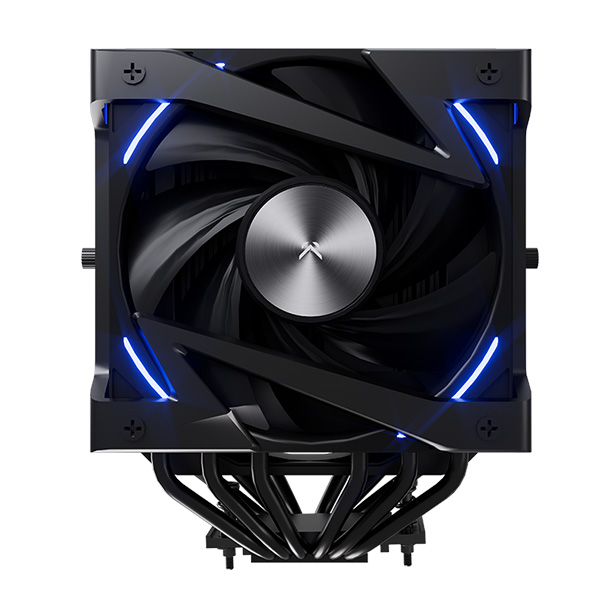

Z650PDI
Z650PDI
The Pinnacle of Performance and Aesthetics
Engineered for enthusiasts, the FPMAX Z650 PDI perfectly bridges the gap between hardcore thermal performance and futuristic design. The top-integrated high-definition PDI interactive screen transforms real-time system monitoring into a visual centerpiece, moving beyond the ordinary internal look of standard chassis.

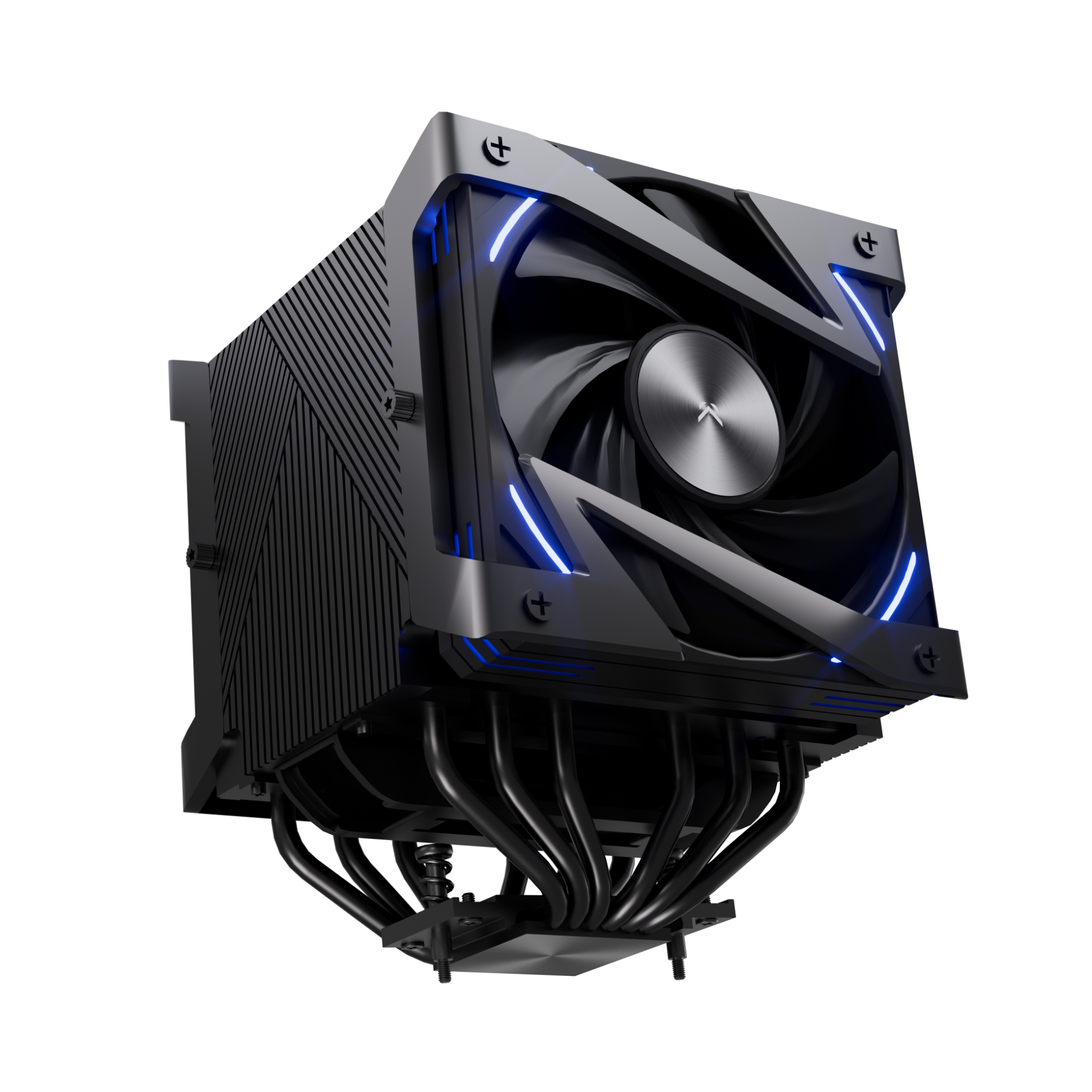

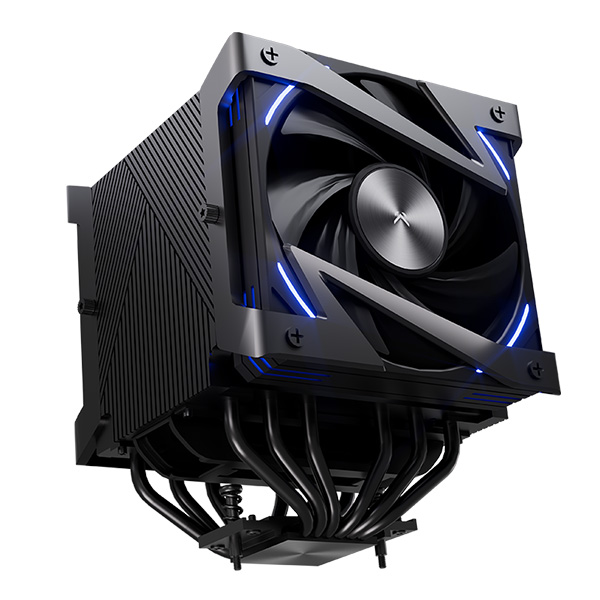

With a formidable 265W TDP cooling capacity, the Z650 PDI utilizes six 6mm premium heat pipes paired with a soldered copper base to ensure rapid heat dissipation. Whether you are tackling extreme gaming or high-intensity content creation, it provides a stable, low-temperature environment for your flagship processor.
While delivering powerful cooling, we prioritize the user experience. The built-in 120mm PWM smart-speed fan dynamically balances airflow and noise, maintaining a calm and quiet operation even at a full load of 2000 RPM. With a golden 155mm height design and universal platform compatibility, the installation process is as seamless as it is efficient.
Color

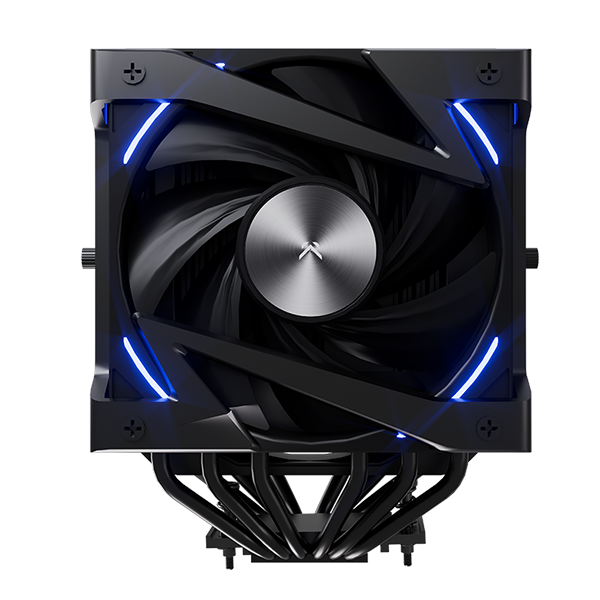

Z650PDI
Air Cooler

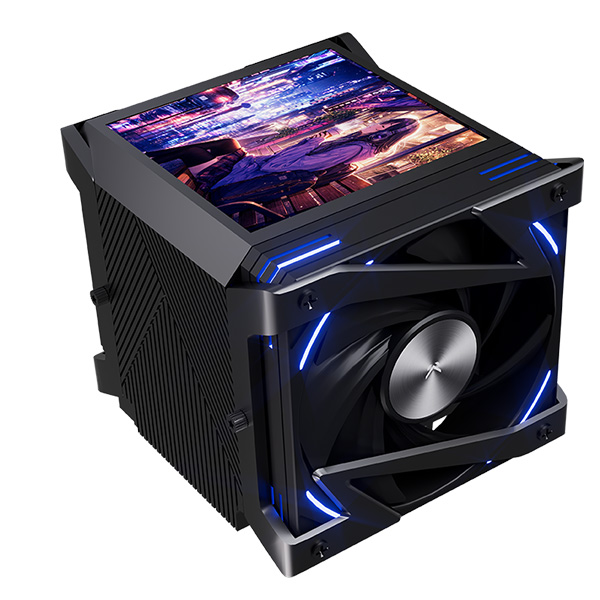

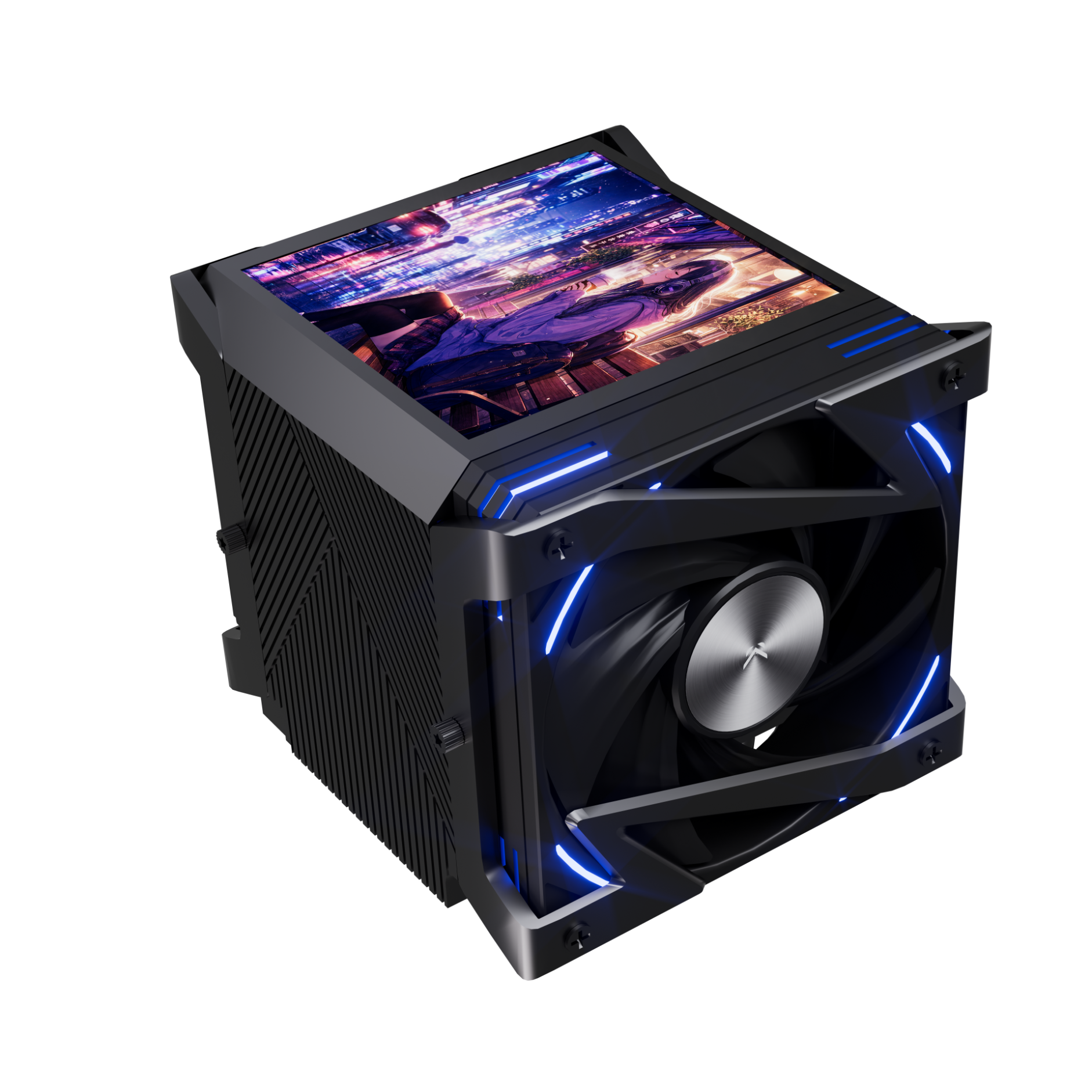

Top-Mounted Interactive Display
Features a PDI digital/graphic screen for real-time system monitoring, delivering a tech-forward visual aesthetic to your chassis.
Excellent Compatibility
A compact 155mm height limit ensures a perfect fit for most mainstream cases, with full support for Intel (17XX/1200/115X/1851) and AMD (AM5/AM4) platforms.
PWM Intelligent Control Support
Supports PWM (Pulse Width Modulation) intelligent control, automatically adjusting fan speed based on system temperature to ensure efficient cooling and low-noise operation.

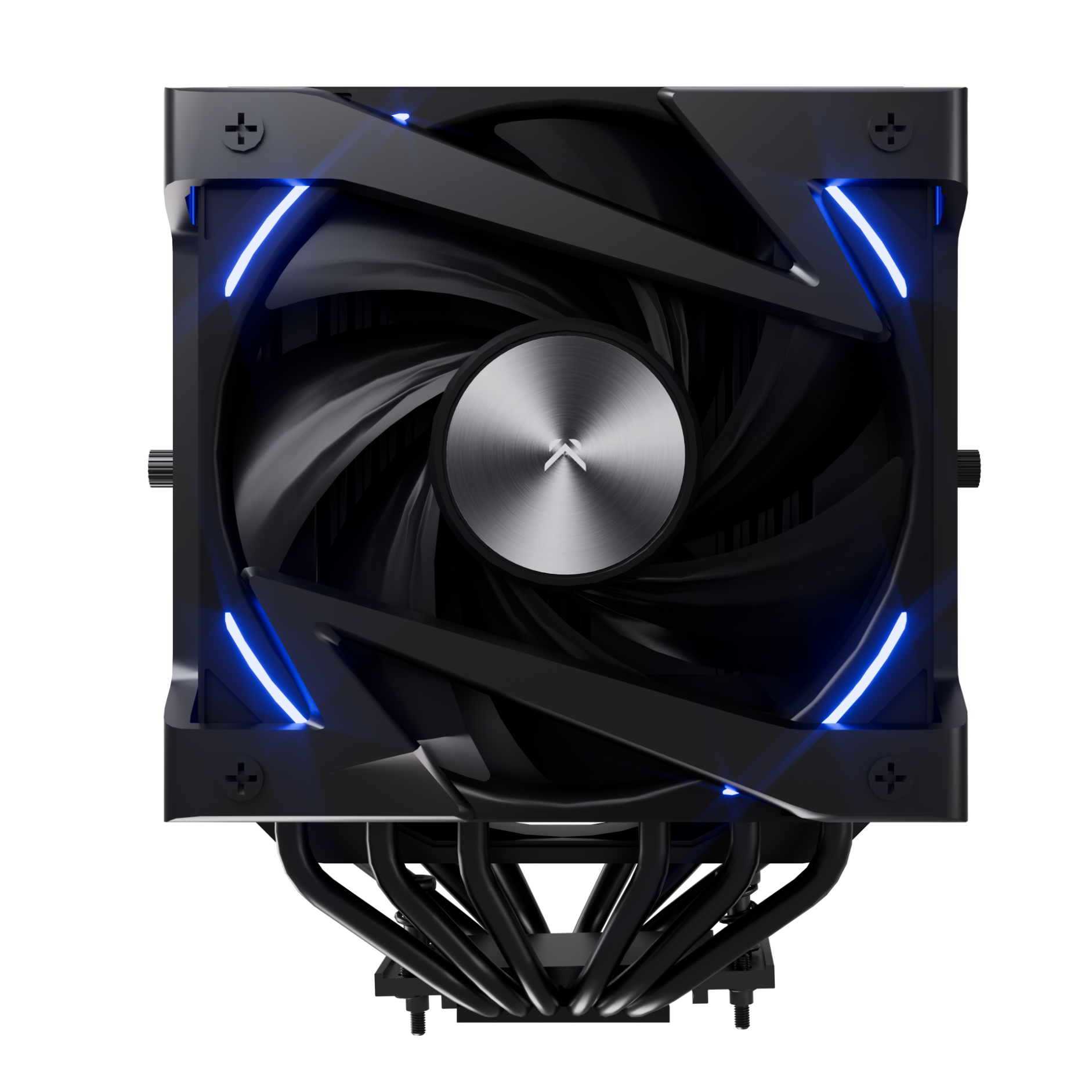

High-Performance Silent Fan
Designed for high efficiency and low noise
It optimizes cooling performance while maintaining quiet operation, achieving a balance between efficiency and equipment aesthetics.
Extreme Cooling Performance

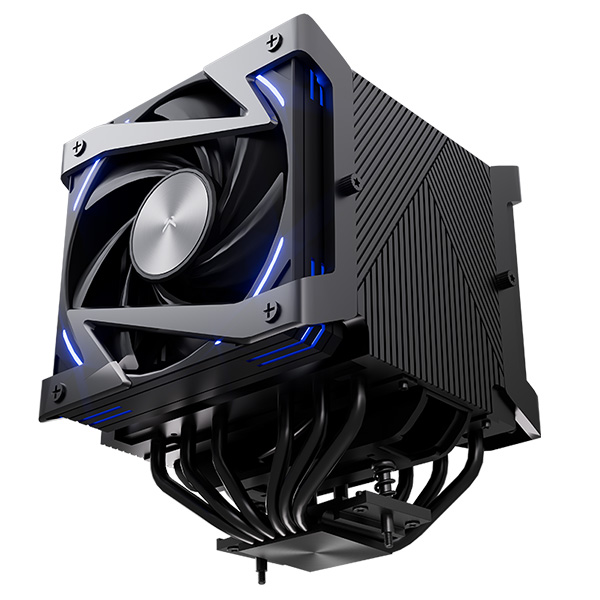

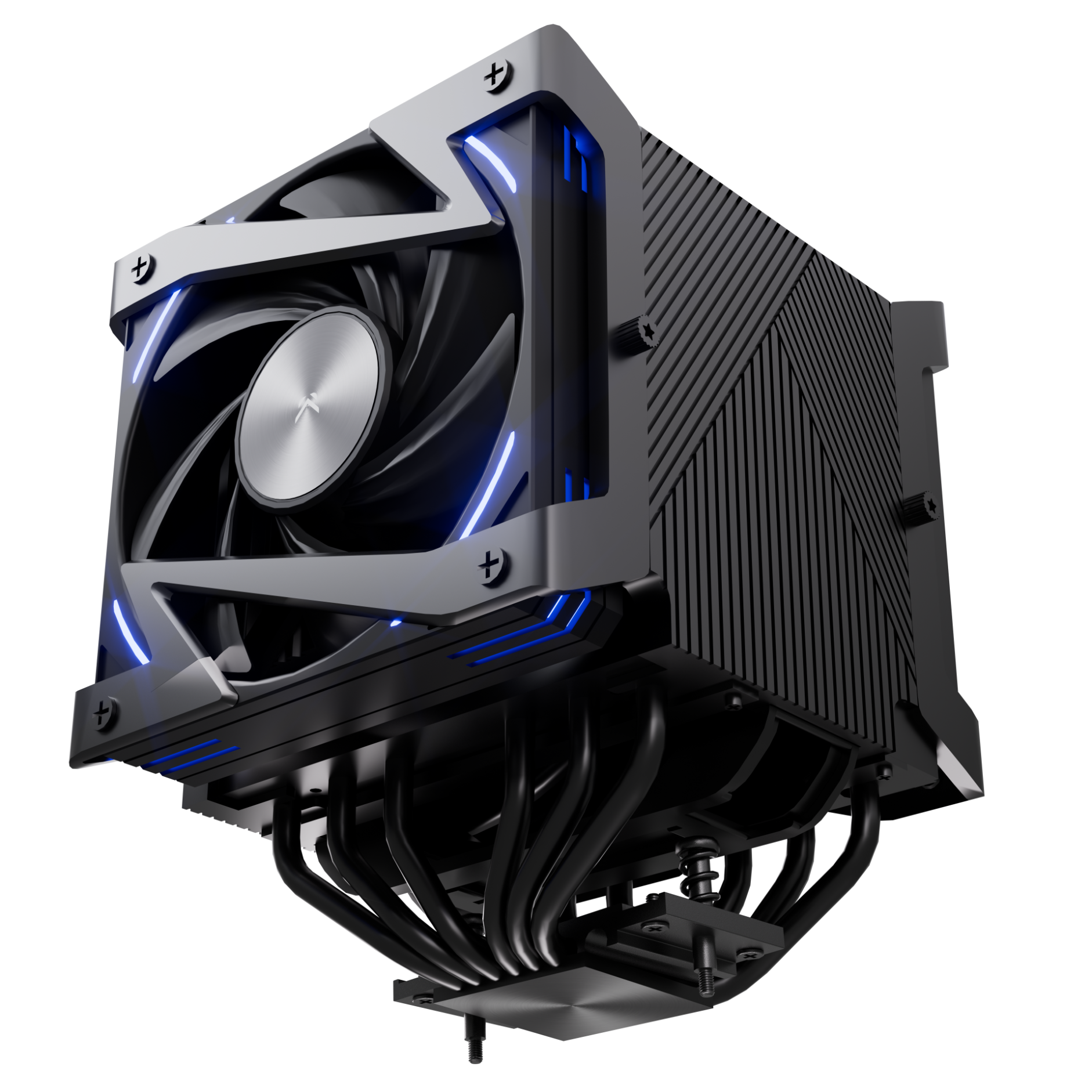

Boasts a 265W TDP capacity, utilizing six 6mm high-performance heat pipes and a soldered copper base process to easily tame high-end processors.
Technical Spec
Model | Z650PDI |
Base Material | Copper |
Radiator Material | Aluminum |
Fin Technology | Finned Tube Process |

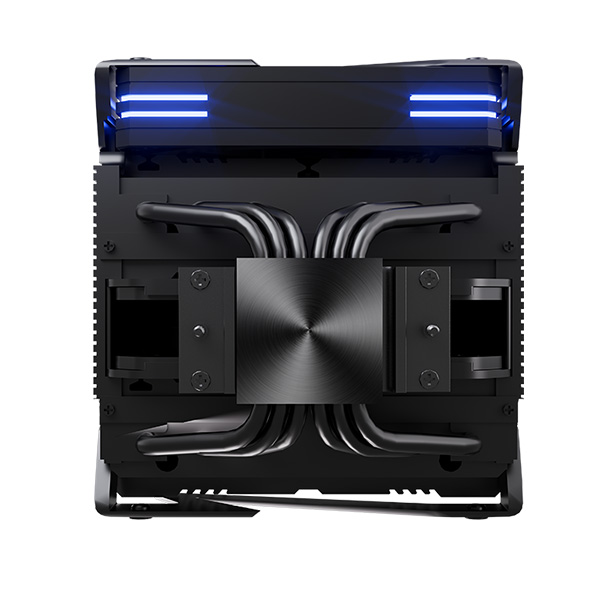

Base Technology | Soldered Copper Base |
Compatibility | Intel: LGA115X/1200/17XX/1851 |
AMD: AM4/AM5 | |
Radiator Size | 141x132x163.5mm |
Fan Dimensions | 120x120x25 mm |
Pipe Qty | 6 |
Pipe Dimension | 6mm |
Height Limit | 155mm |
Connector Type | PWM 4-pin |
Bearing Type | Hydraulic Bearing |
Air Pressure / Flow | 1.82 mmH20/48.55 CFM |
Fan Speed | 500-2000±10%RPM |
Fan Speed | ≤37.5dBA |
Fan Voltage | 12V |
Fan frame color | Black |
TDP | 265W |
