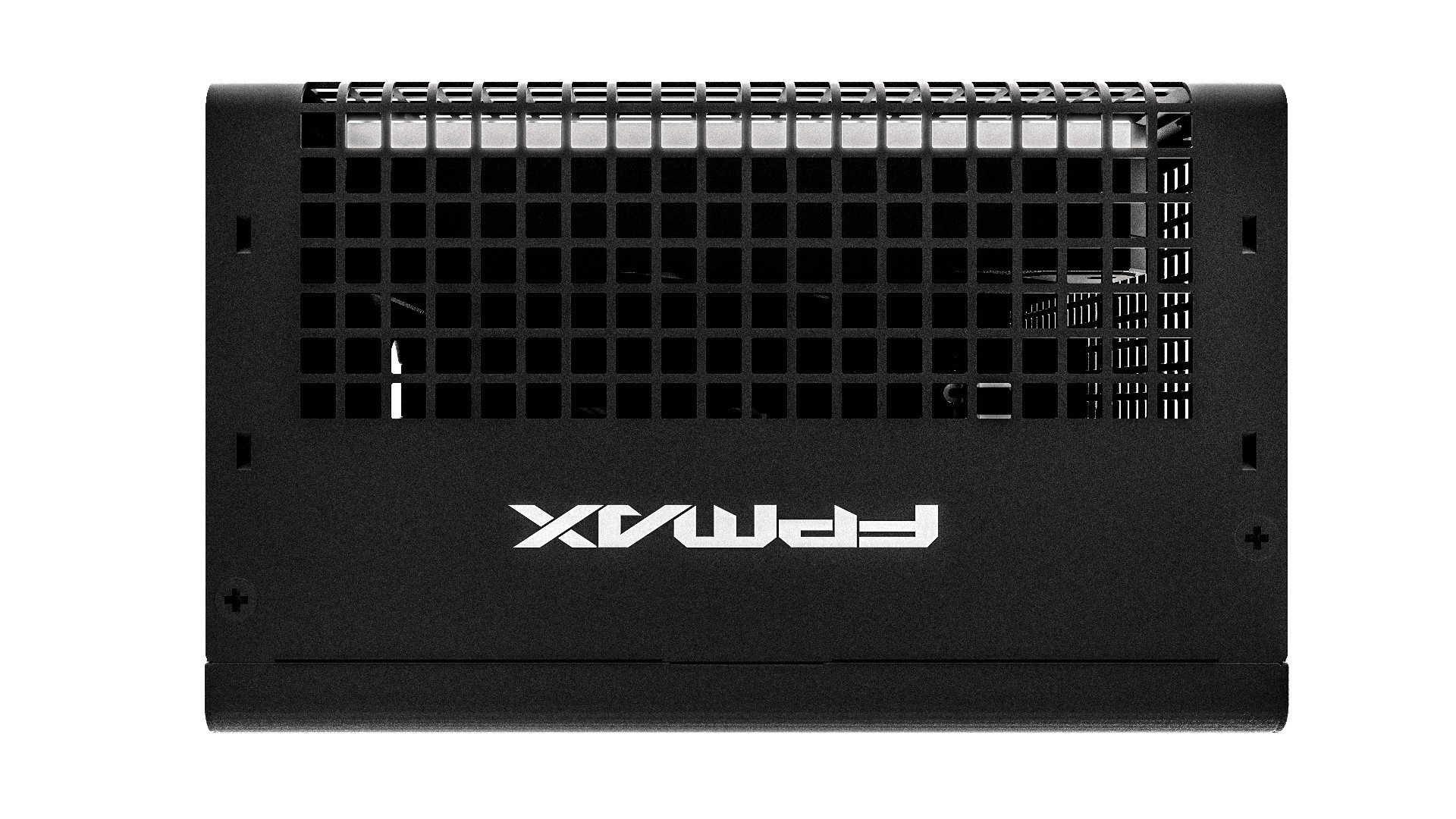

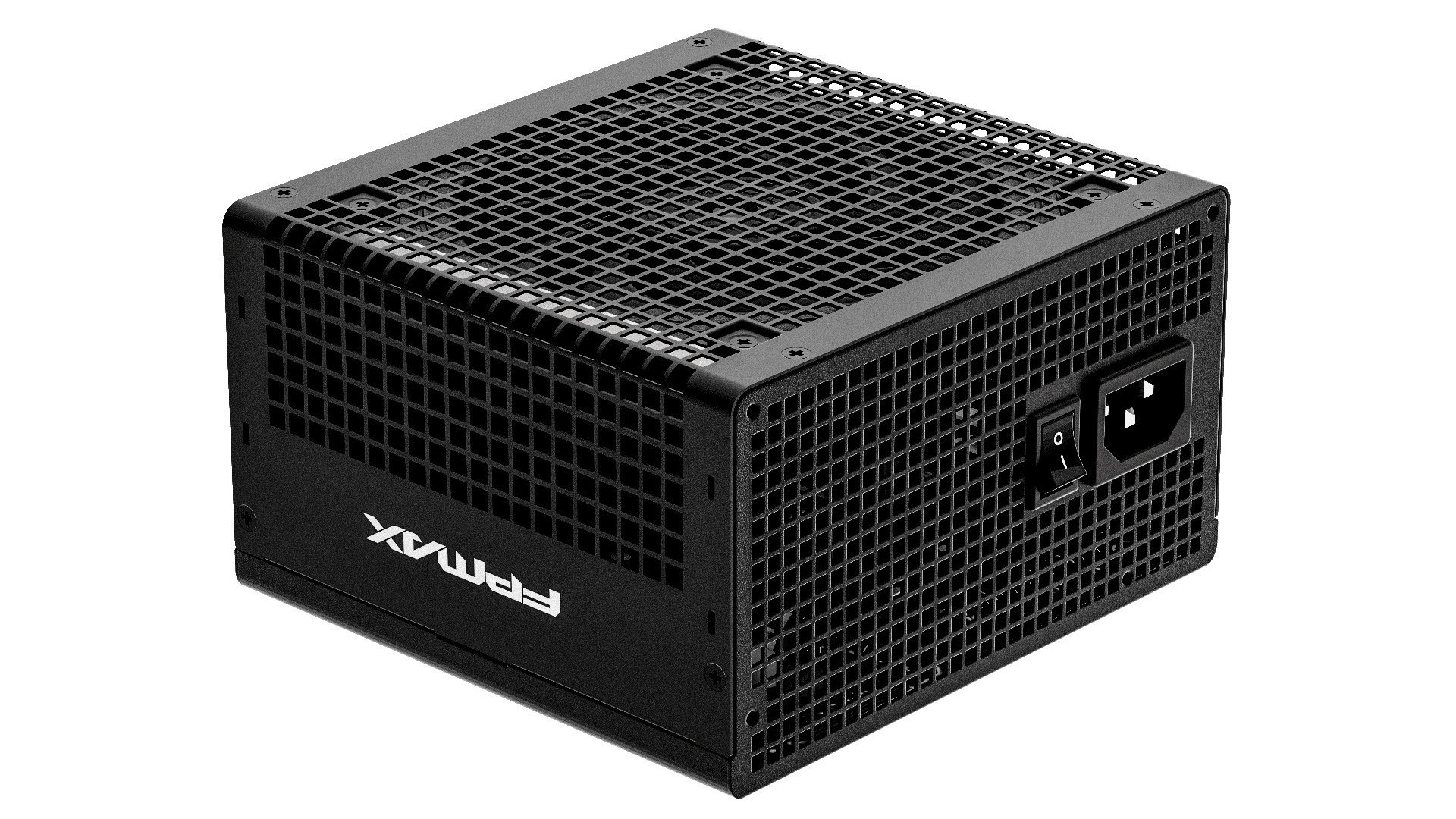

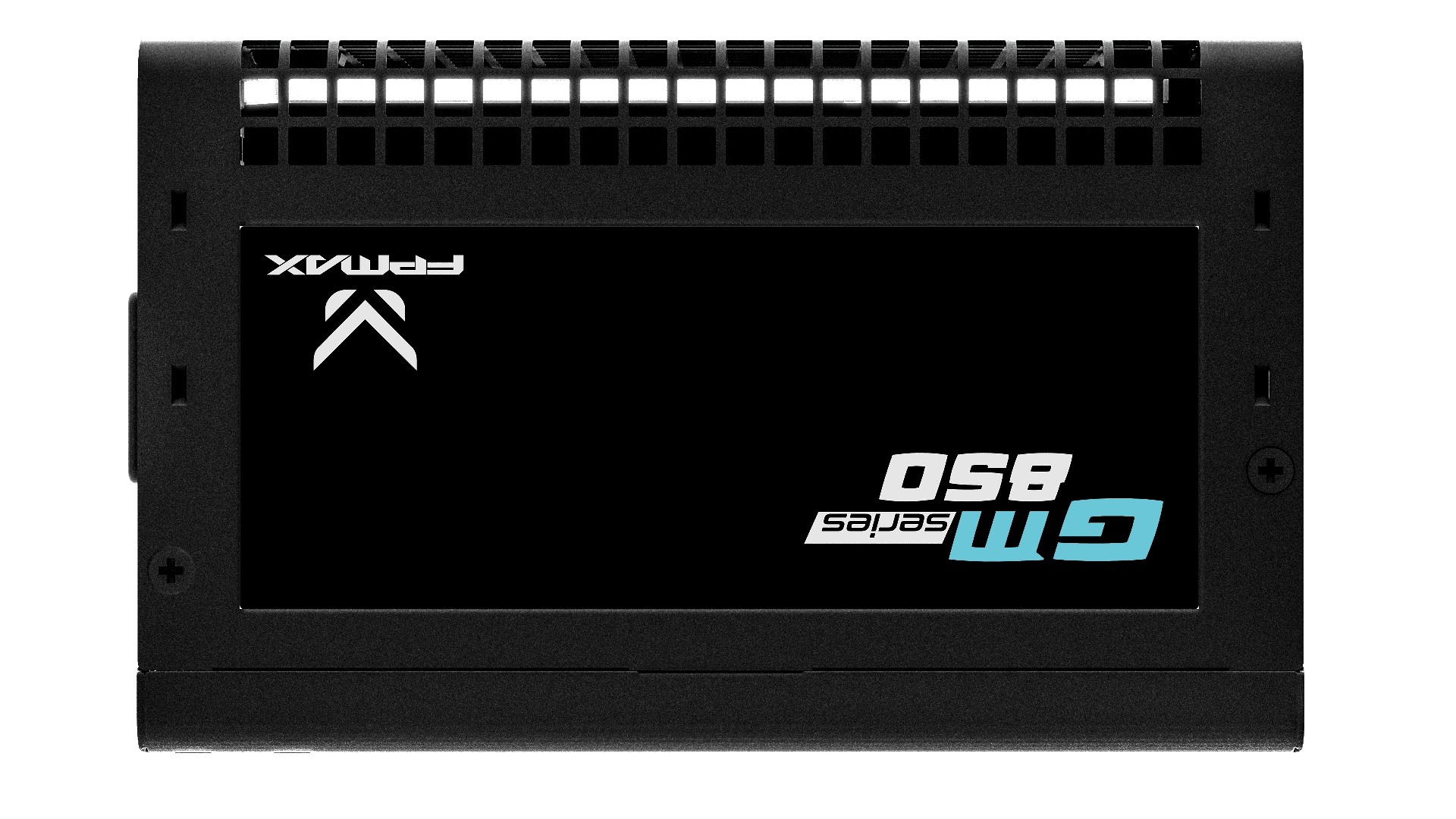

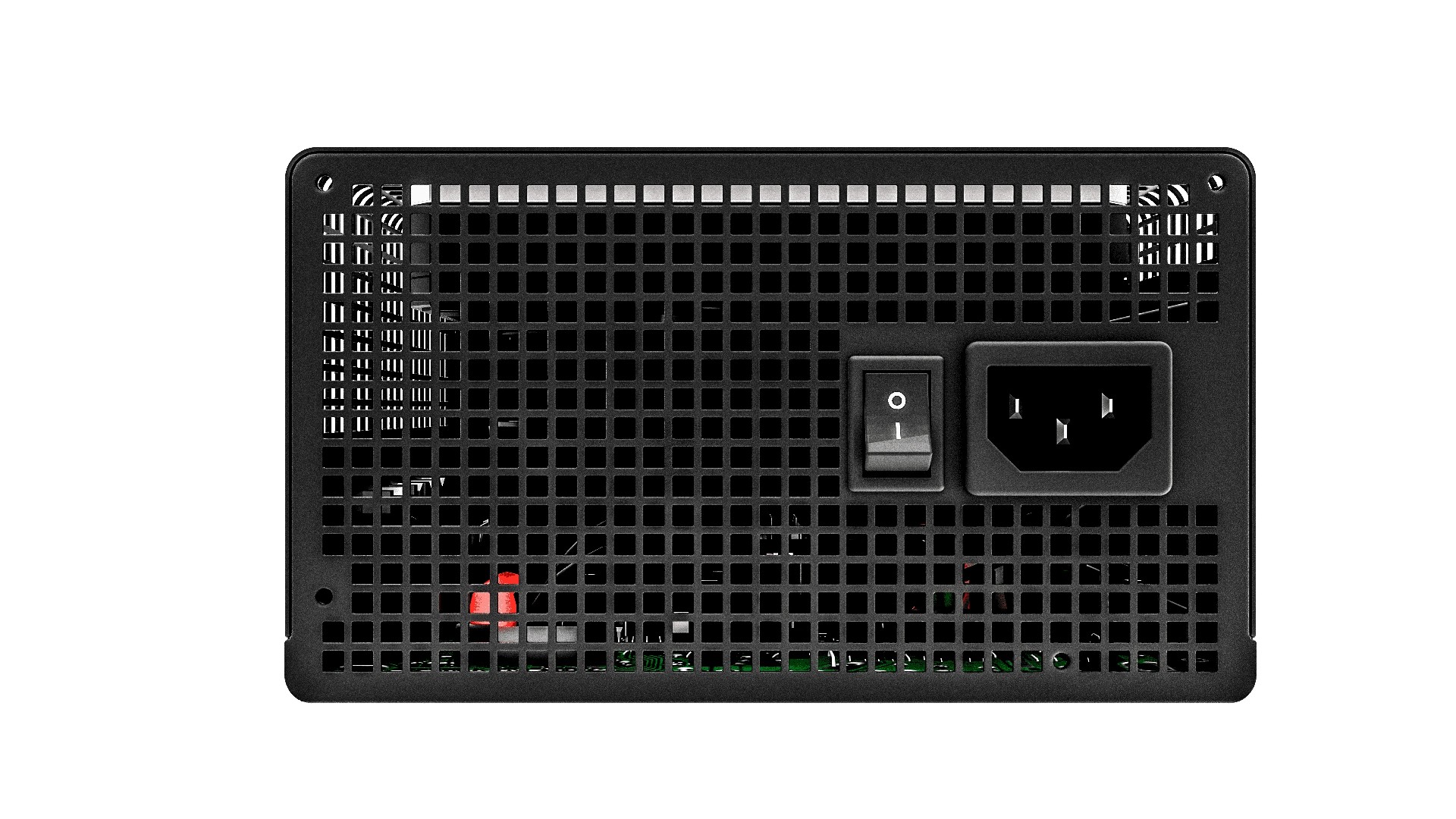

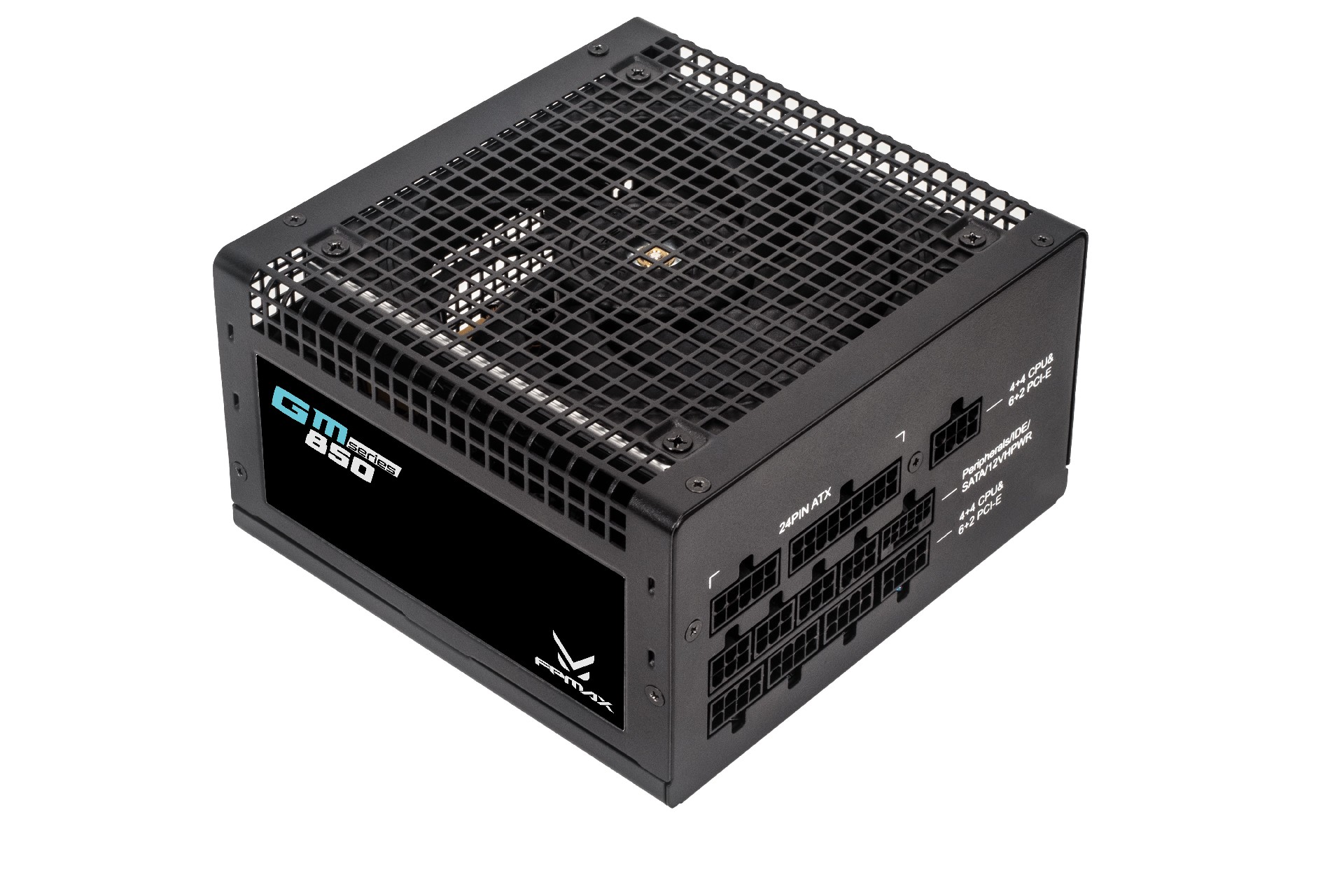

GM 850W

GAMING POWER SUPPLY

Advanced alloy exterior design witch brushed aluminum craftsmanship, combining quality and aesthet-ics; compliant with ATX 3.0 design standards, supporting PCle 5.1; achieving an 80 Plus Gold efficiency rating with the use of all-Japanese capacitors, ensuring the stable operation of every component, and providing safety to extend product lifespan; externally modular cables for convenient, quick, and efficient assembly; suitable for high-performance PC systems.

Color

GM 850W

GM 850W

FOX series power supply 80plus gold certification, all Japanese capacitors, maintain stable operation of equipment and extend product life.

Peak Performance Minimal Waste

Harness the proven efficiency of 80 PLUS Gold certification—delivering up to 90% energy conversion for maximum power and minimum heat.'s future

Engineered for Endurance

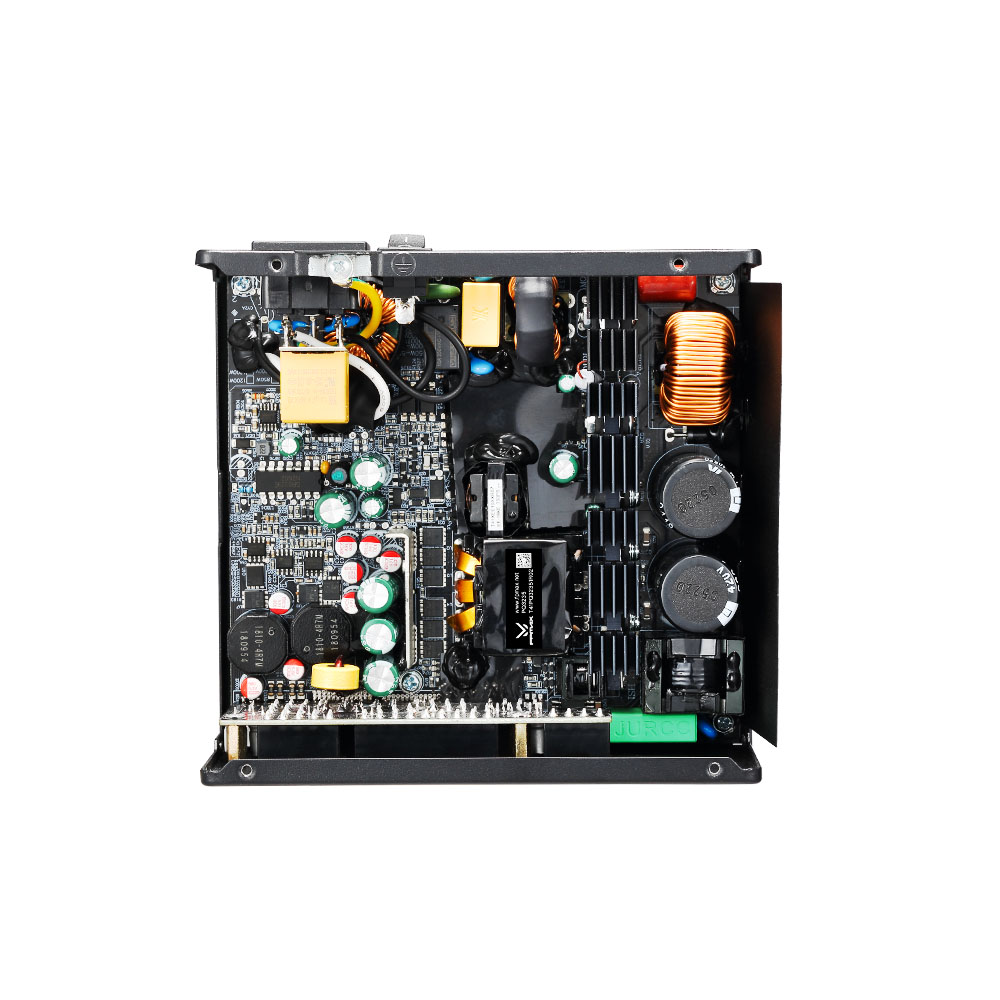

Featuring 105°C Japanese capacitors for superior stability and a longer lifespan, even under heavy loads.

GM 850W Engineered for Excellence

Harness 80 PLUS Gold efficiency, cooled by a silent FDB fan, and built with durable Japanese capacitors in a premium aluminum chassis. Fully modular for a clean, custom build. This is intelligent power, perfected.

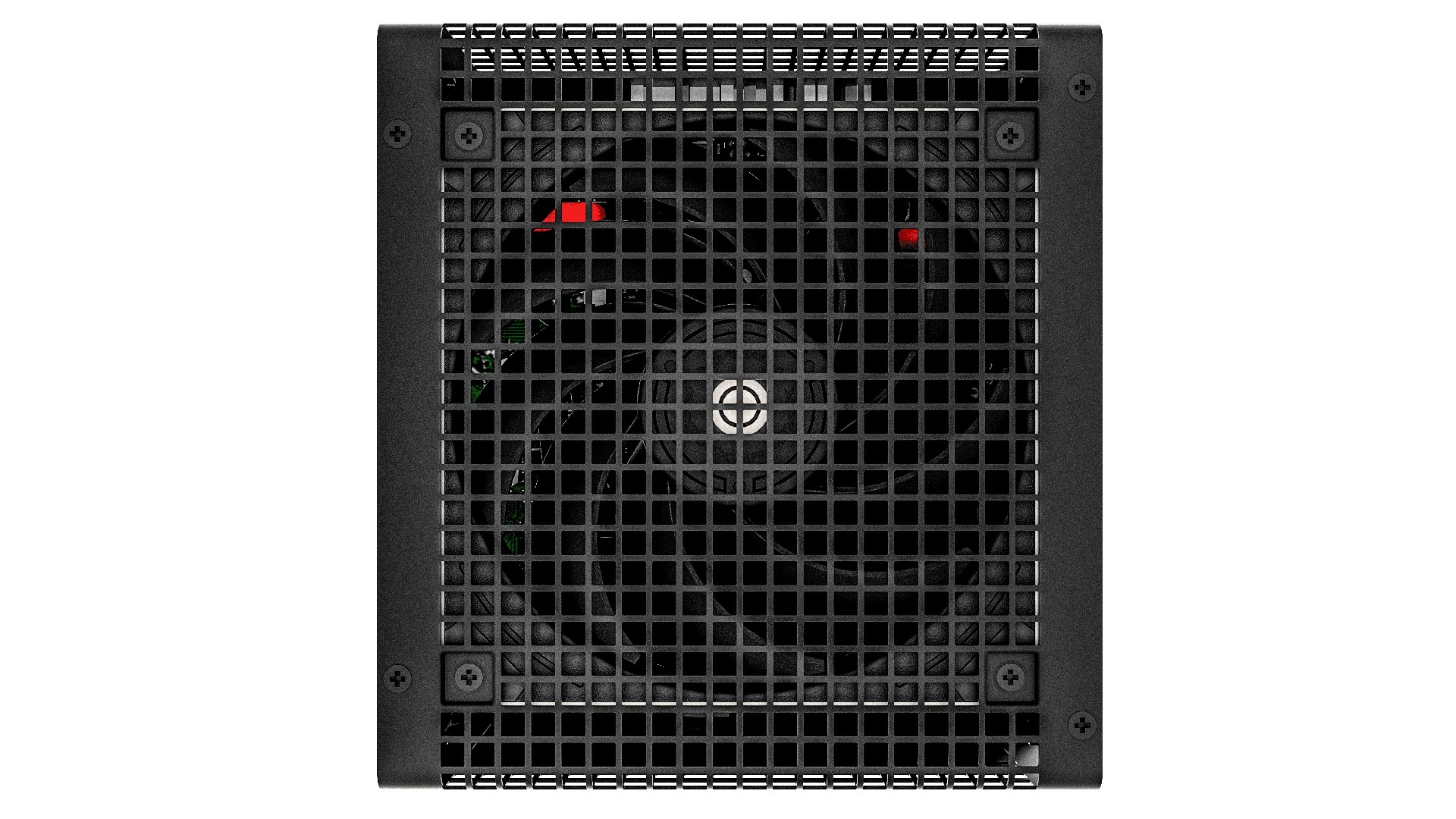

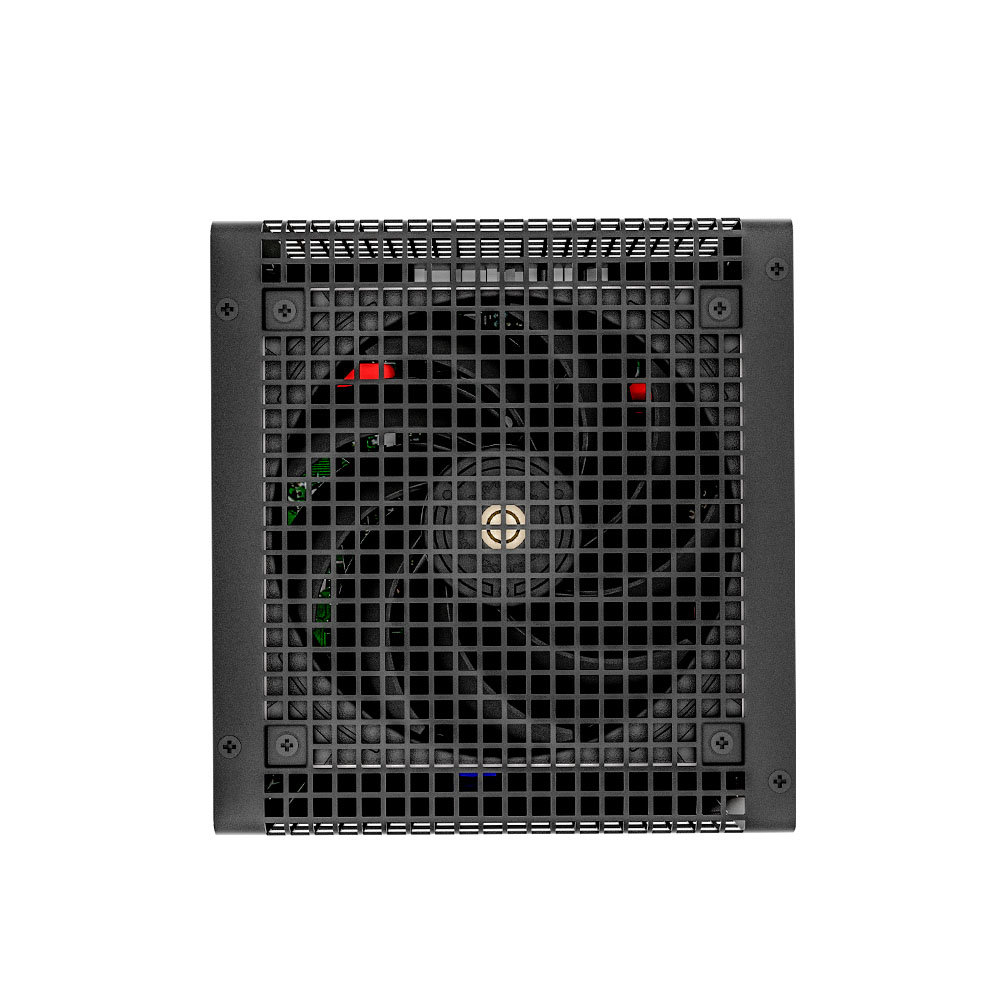

Silent Mastery

Equipped with a 12cm FDB fan, it delivers efficient cooling while operating at whisper-quiet noise levels. An intelligent fan-stop mode ensures zero noise during low loads, offering you a truly silent operation.

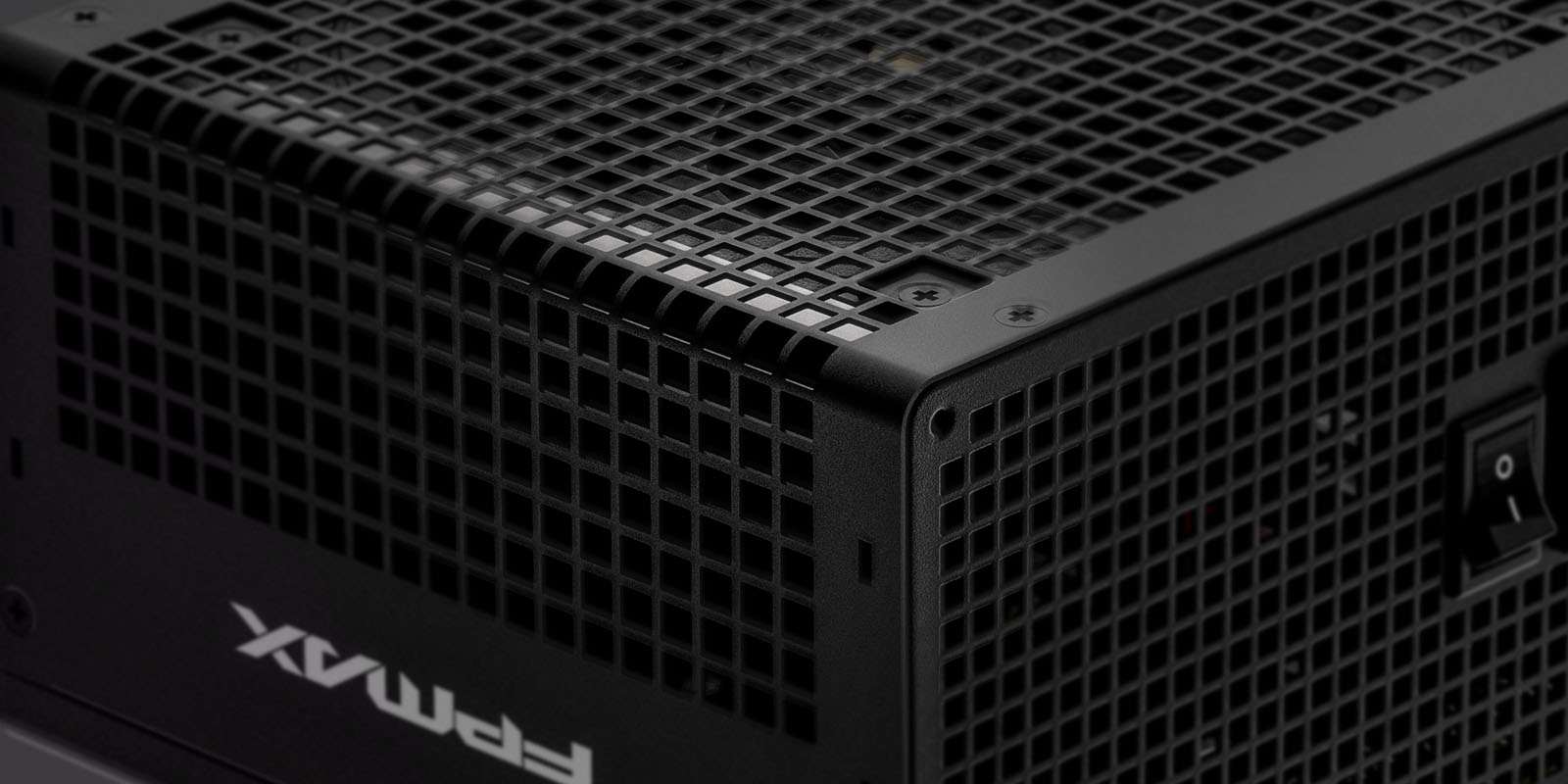

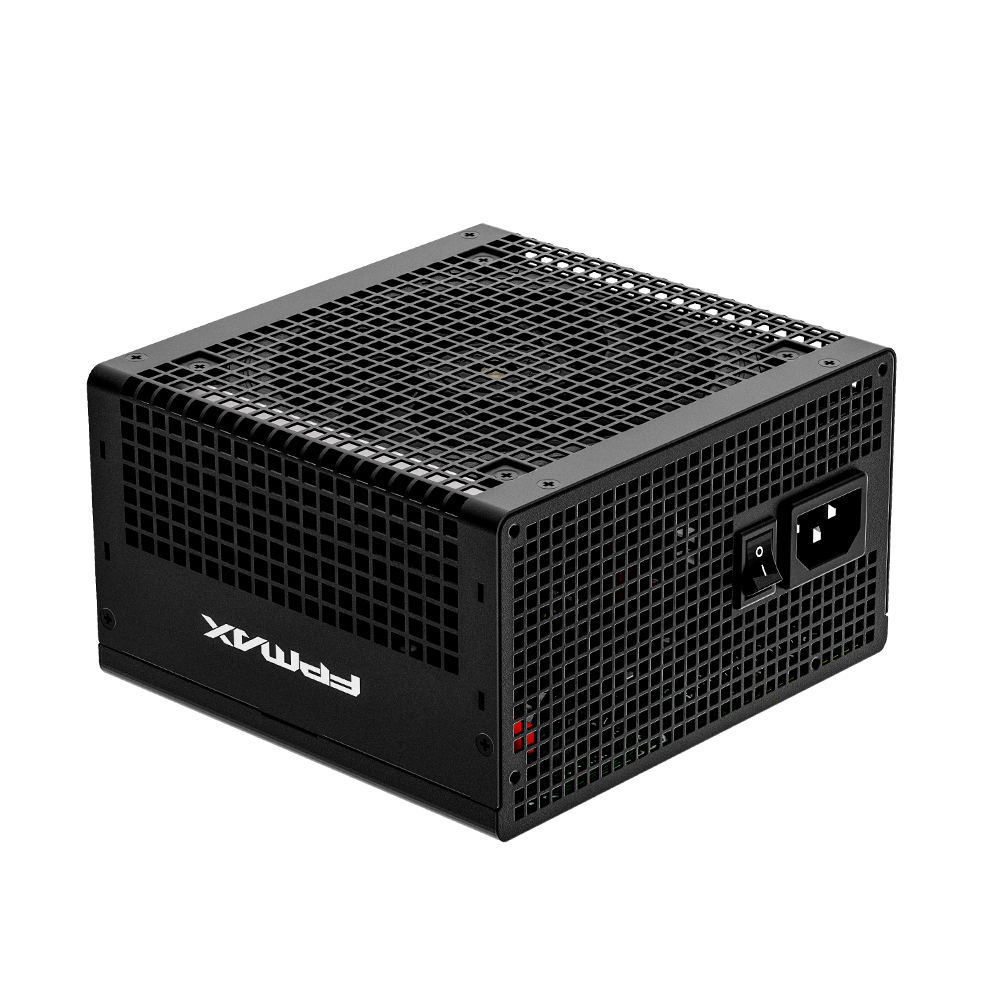

The Mark of Premium

Crafted from high-quality aluminum, the casing is not only premium and durable but also acts as a massive heatsink. Its superior thermal conductivity helps dissipate internal heat, enhancing the long-term stability and lifespan of the PSU.

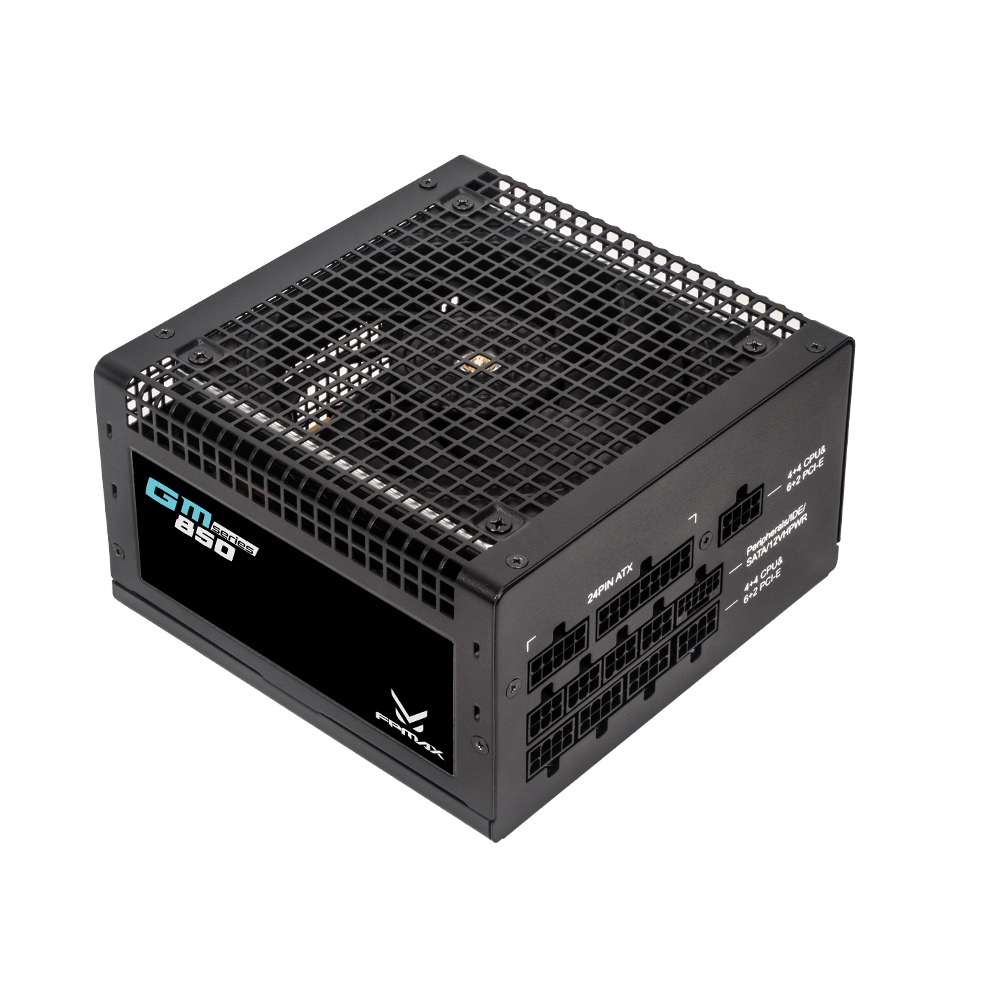

No Clutter Just Power

The fully modular design allows you to connect only the cables you need. Eliminate clutter for optimal airflow and build a clean, professional-looking PC that reflects your standards.

Multiple circuit protection

Use over-voltage protection(OVP), under-voltage protection(UVP), over-power protection(OPP) and short-circuit protection(SCP) to cope with various problems.

Over Voltage Protection

Under Voltage Protection

Over Power Protection

Short Circuit Protection

ATX20+4

4+4 PIN

PIC-E 6+2

PIC-E 12+4

PIC-E5.1

SATA

MOLEX

Technical Spec

Model NO	GM 850W
Product Dimensions(W x L x H)	340133225mm
Efficiency Certification	80 Plus Gold 115V
Fan Size	120mm
Fan Bearing	Hydro Bearing
Topology	Active PFC+LLC
Capacitors	Japanese Capacitor/105°
Power Good Signal	100-500 ms

Conversion Efficiency	≥90% Under Typical Load(50% Loading)
Protection	OVP、UVP、OPP、SCP
Operation Temperature	0 ℃ to 50 ℃
Authentication	CCC、CE
Erp Regulation	ErP 2013
Environmental Protection Label	RoHS
MTBF	100,000 hrs minimum (at 25 ℃)
EAN	GM-850W : 6973574161238
