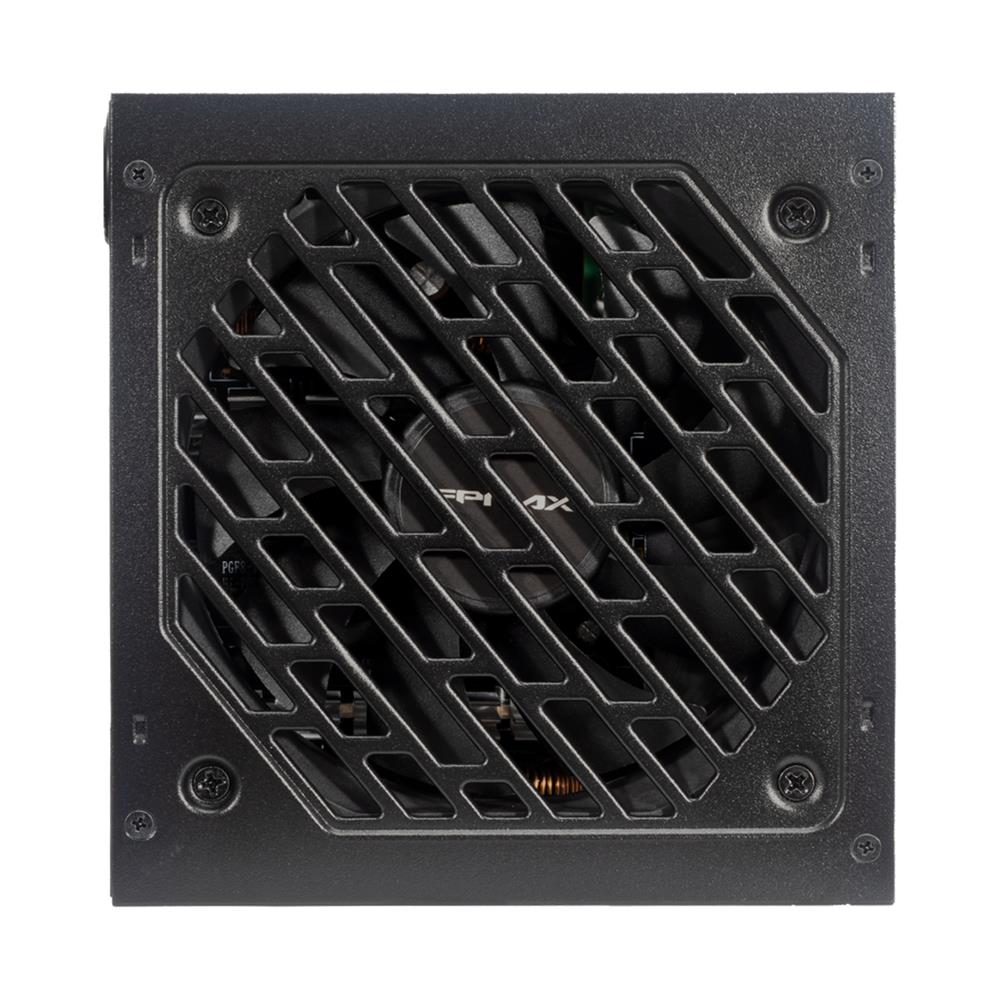

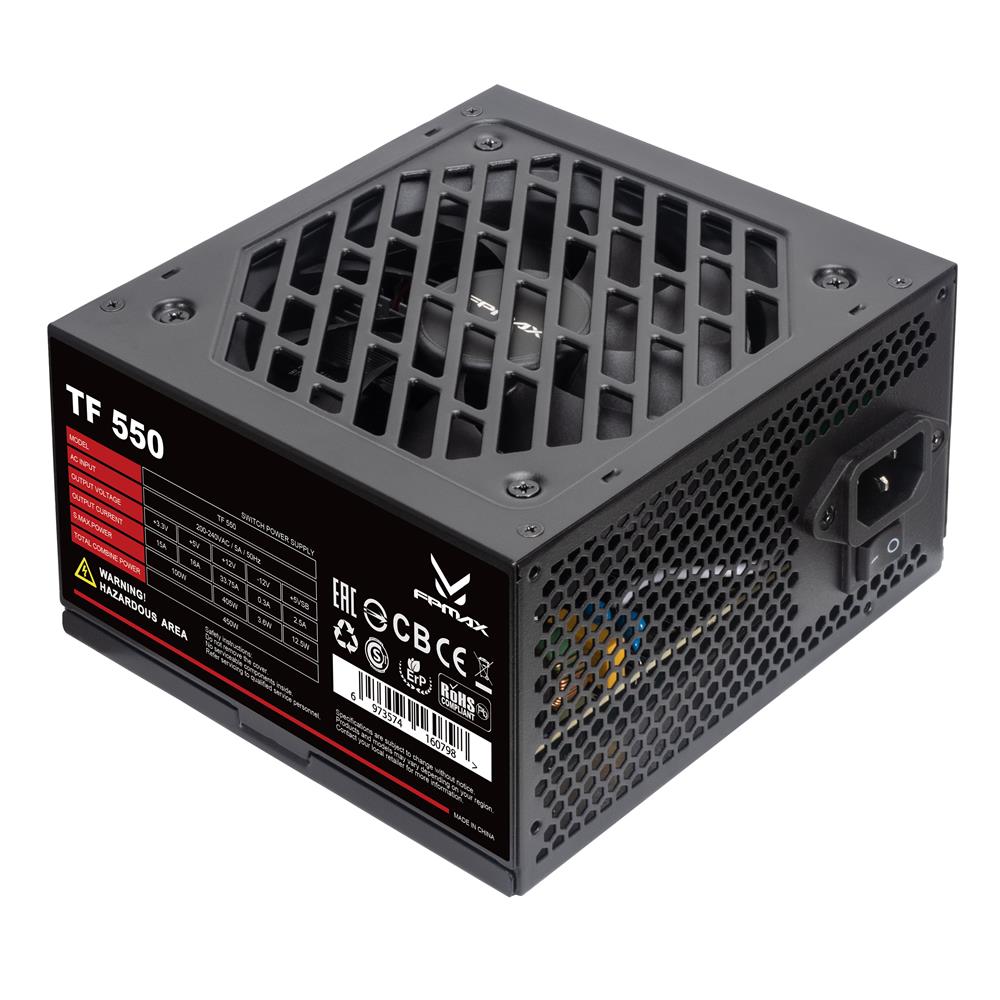

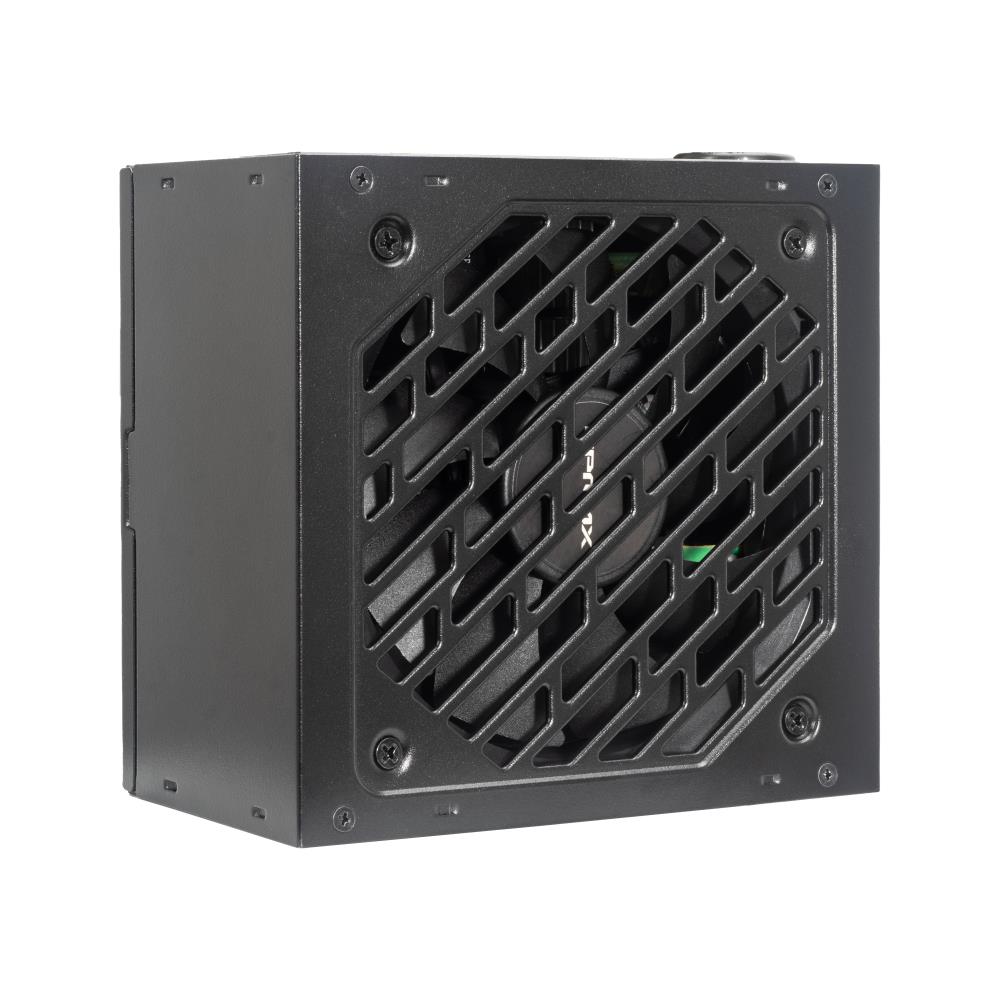

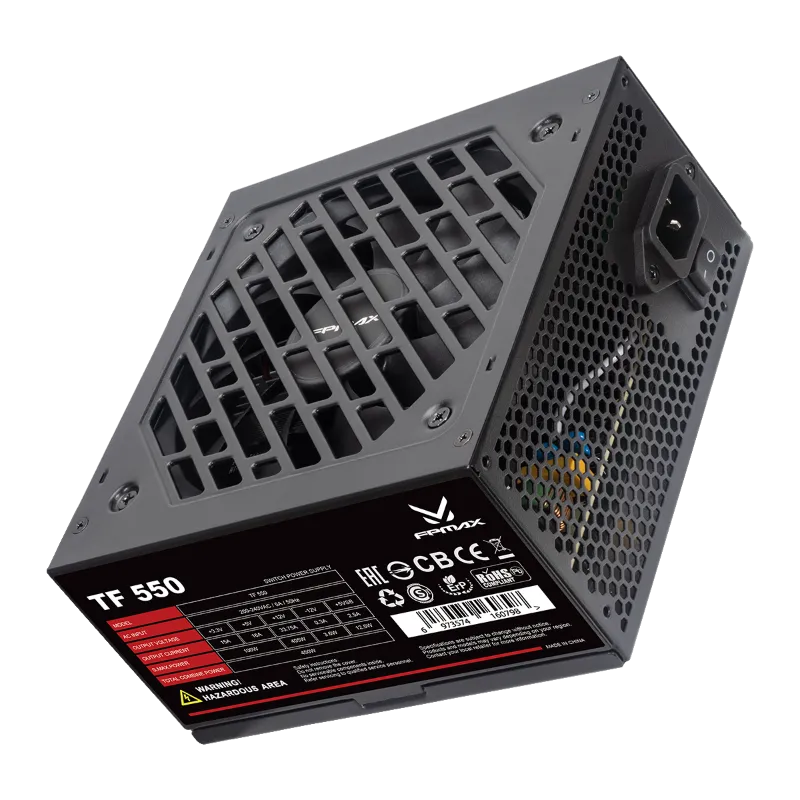

TF 550

GAMING POWER SUPPLY

Adopts the Intel ATX 12V standard design, offering full compatibility with both Intel and AMD CPUs.

Comprehensive built-in protection mechanisms safeguard computer hardware effectively, including:
SCP (Short-Circuit Protection), OVP (Over-Voltage Protection), UVP (Under-Voltage Protection), OPP (Over-Power Protection).

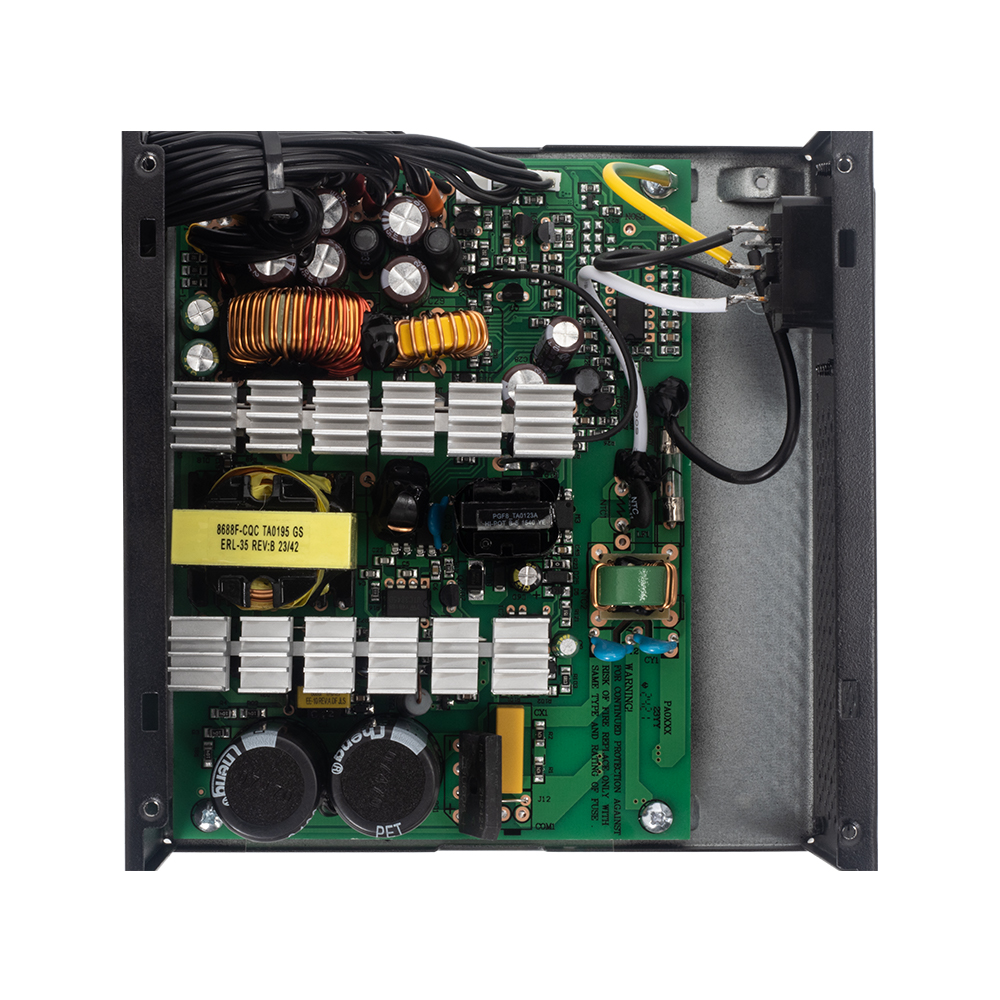

Equipped with multi-LCR multiple filters to deliver stable, clean power output, boosting the performance and extending the service life of all PC hardware components.

Color

TF 550

TF 550

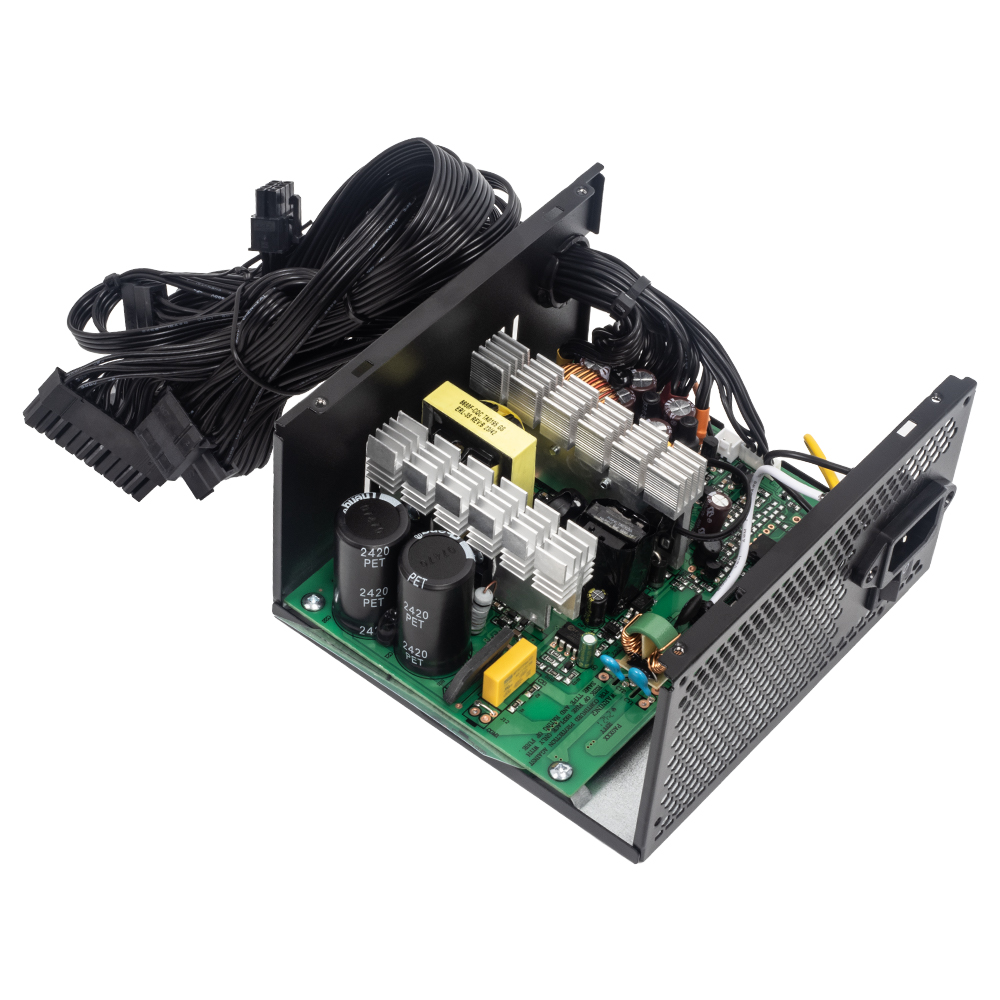

The TF series power supply achieves standard efficiency levels and is equipped with Chinese capacitors to ensure the stable operation of every component, guaranteeing product safety and longevity.

High-Quality Power Supply

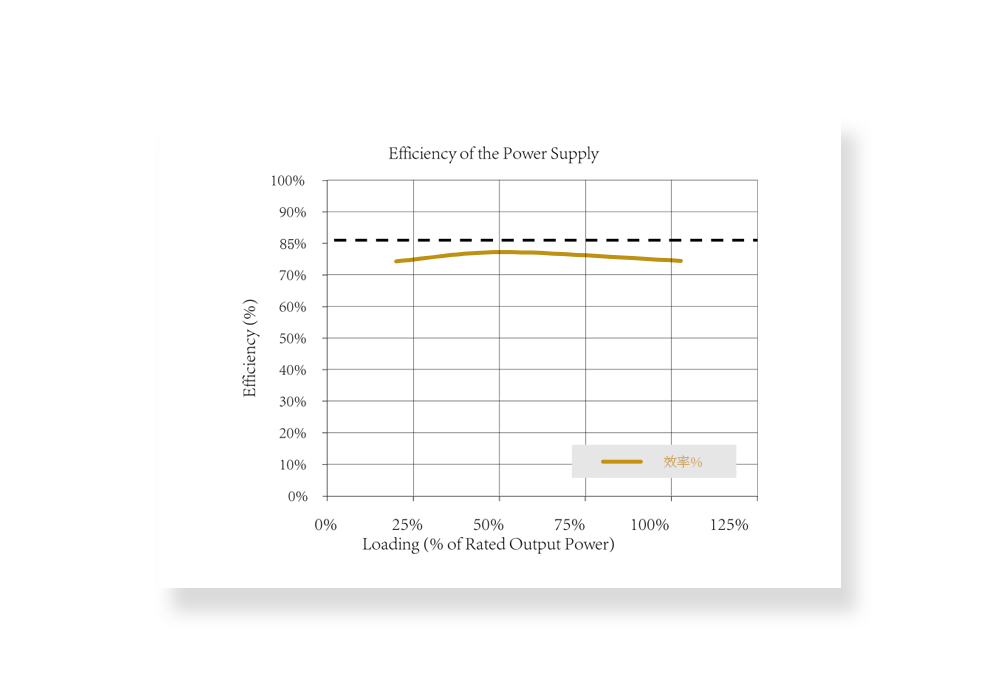

TF Series Efficiency Standard: Standard efficiency level, 78% efficiency at 50% load.

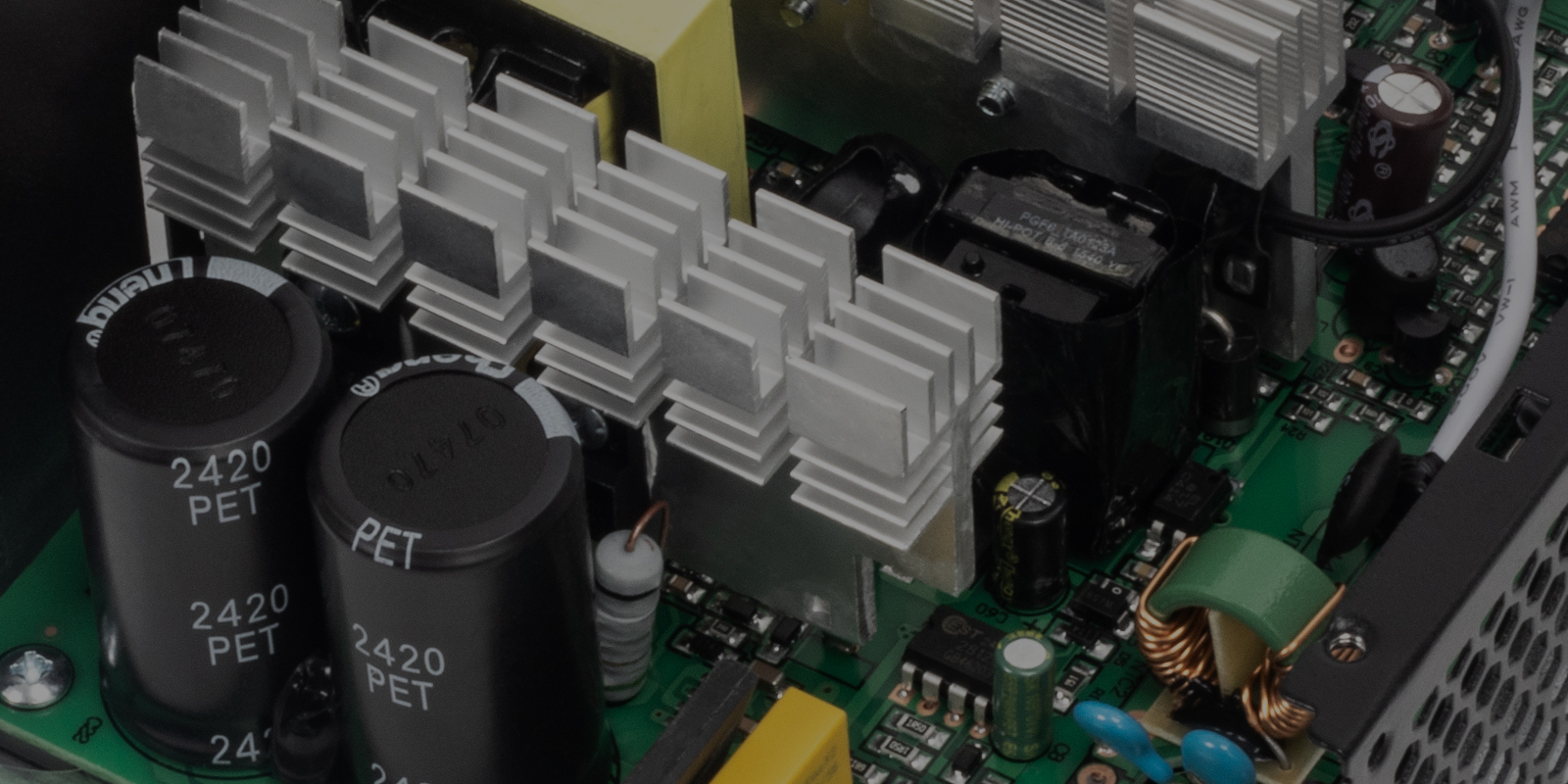

Main Capacitors: Chinese capacitors, capable of withstanding temperatures up to 105°C.

TF Series Standard Efficiency Power Supply

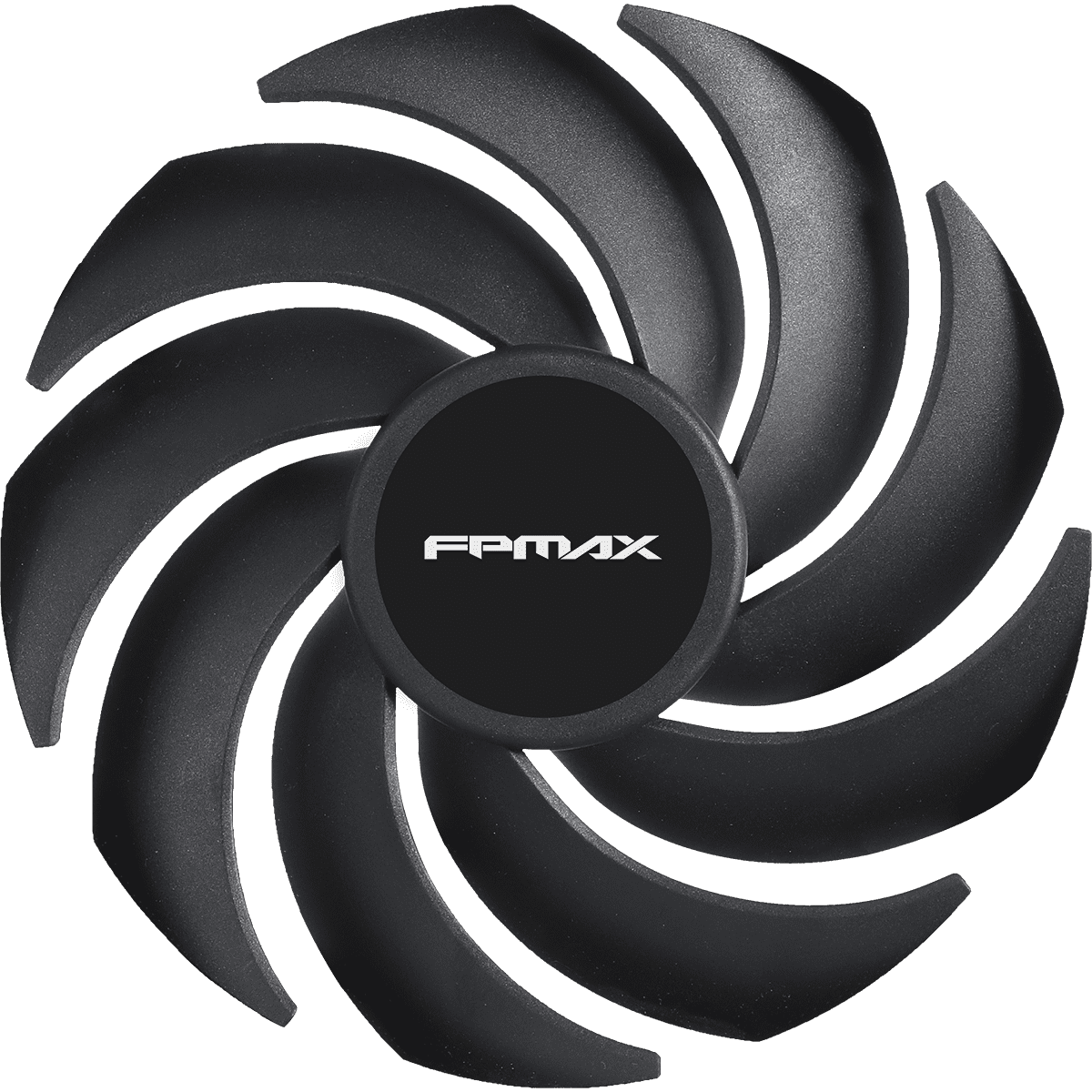

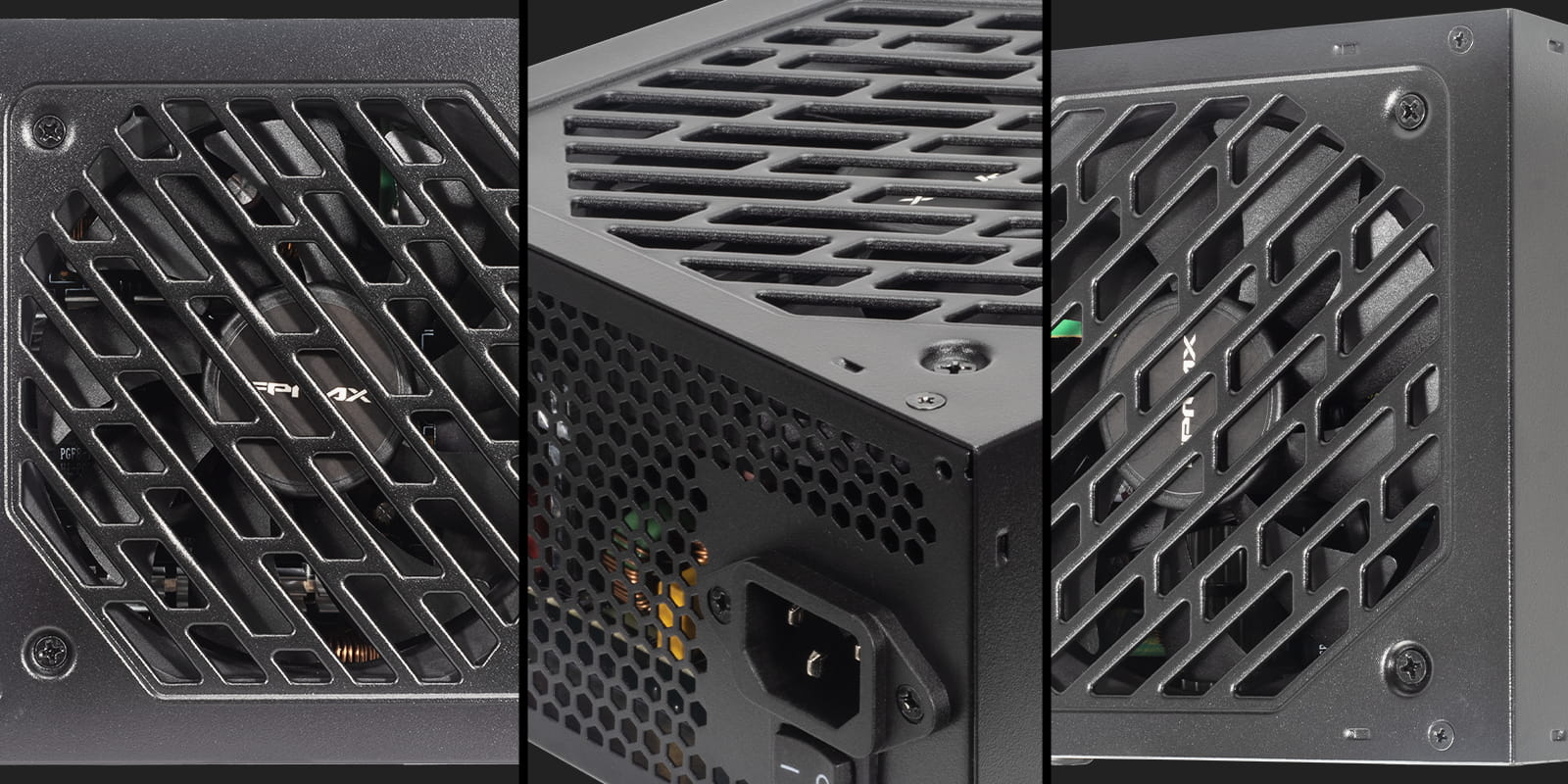

Low noise fan

The fan uses hydraulic bearings to reduce friction and vibration, reducing noise and lengthening life.

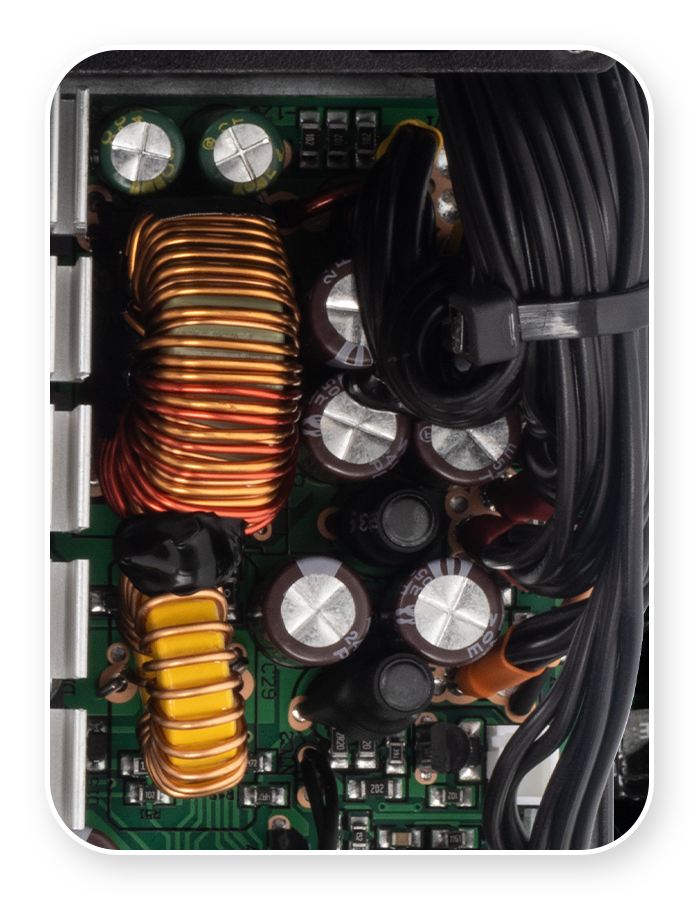

Complies with INTEL RIPPLE Specifications

The power supply strictly adheres to Intel Ripple specifications, ensuring stable voltage output for your device

Not only does it optimize system performance, but it also extends the lifespan of your equipment

It ensures stable operation of your device under any load conditions

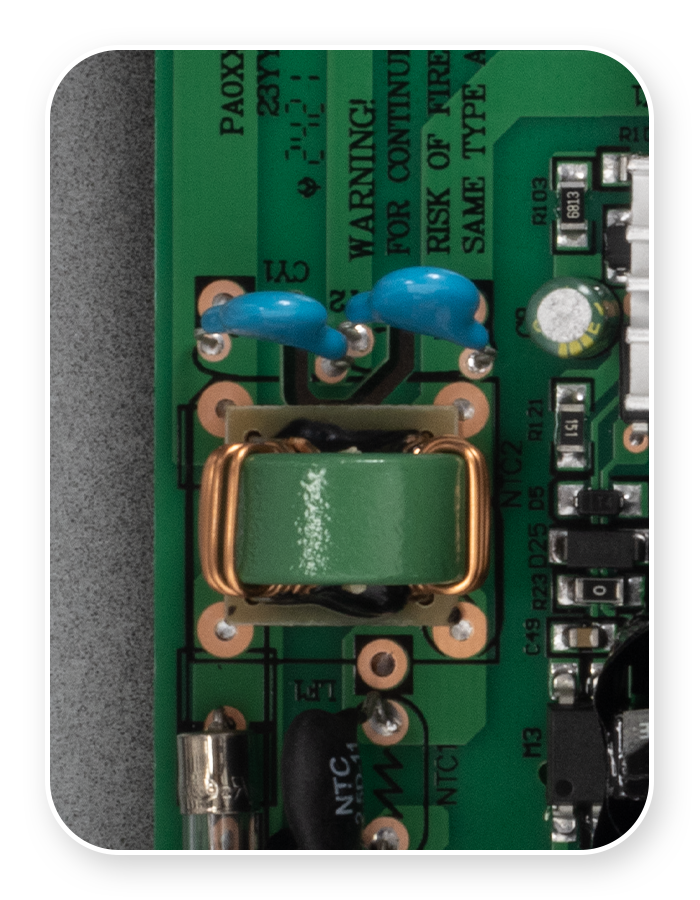

EMI Components

Uses high-efficiency EMI components to suppress noise and radiation

Minimizing interference and enhancing stability

Multiple circuit protection

Use over-voltage protection(OVP), under-voltage protection(UVP), over-power protection(OPP) and short-circuit protection(SCP) to cope with various problems.

Over Voltage Protection

Under Voltage Protection

Over Power Protection

Short Circuit Protection

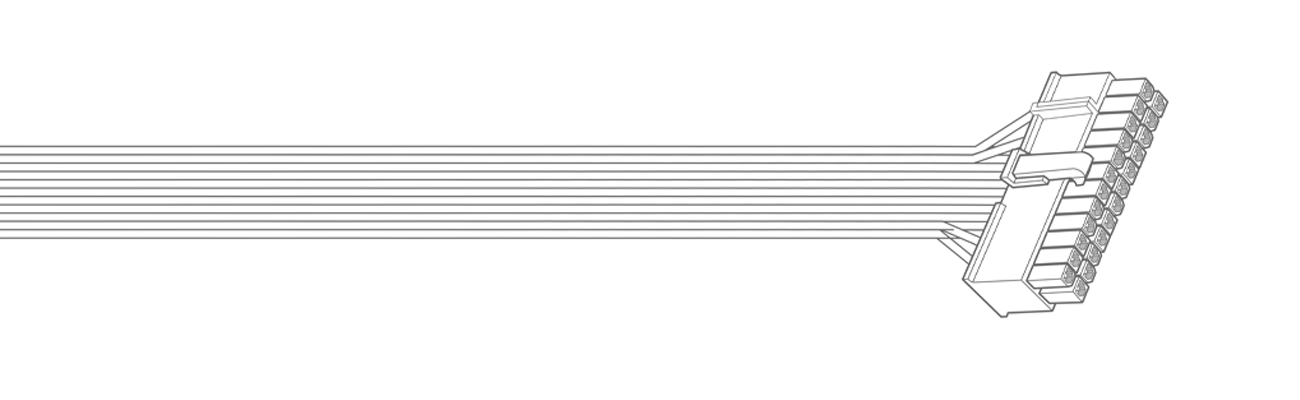

ATX20+4

4+4 PIN

PIC-E 6+2

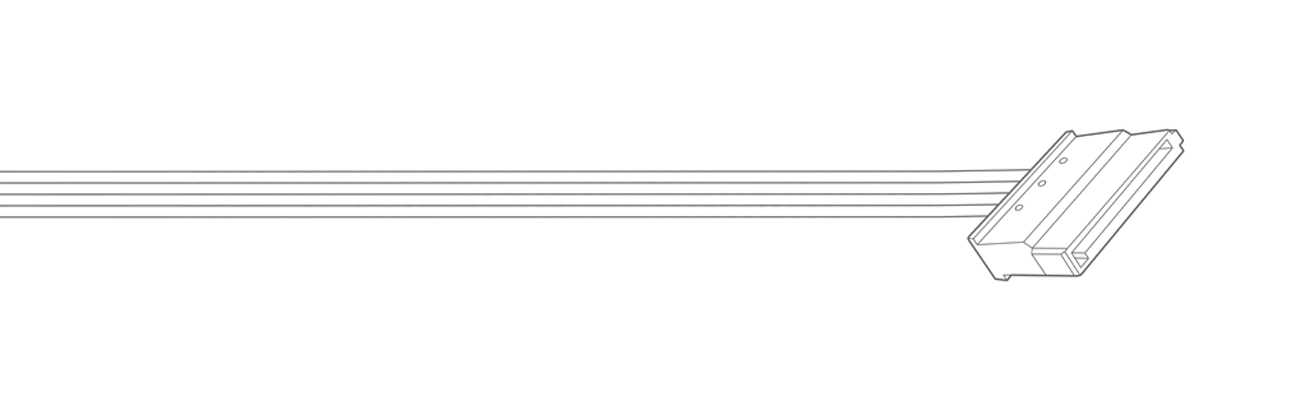

SATA

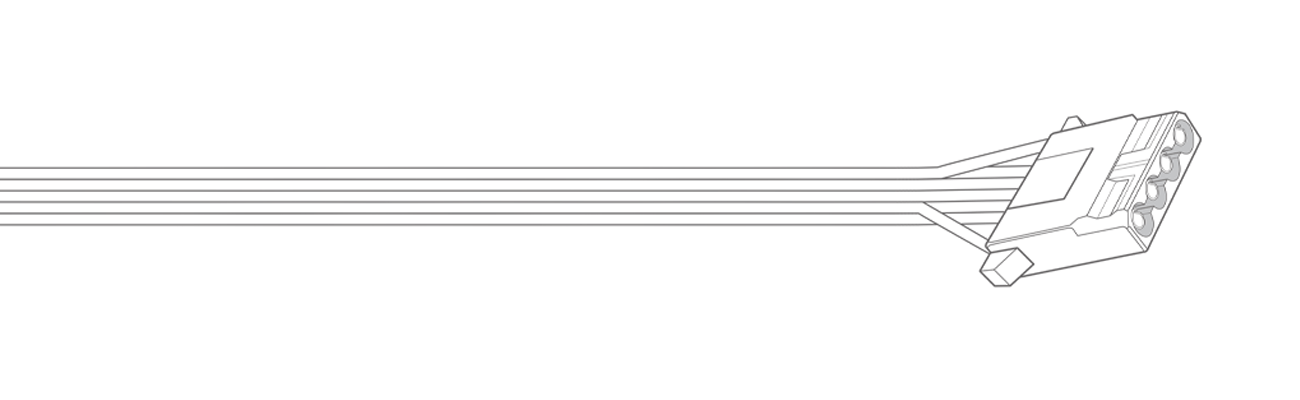

MOLEX

Technical Spec

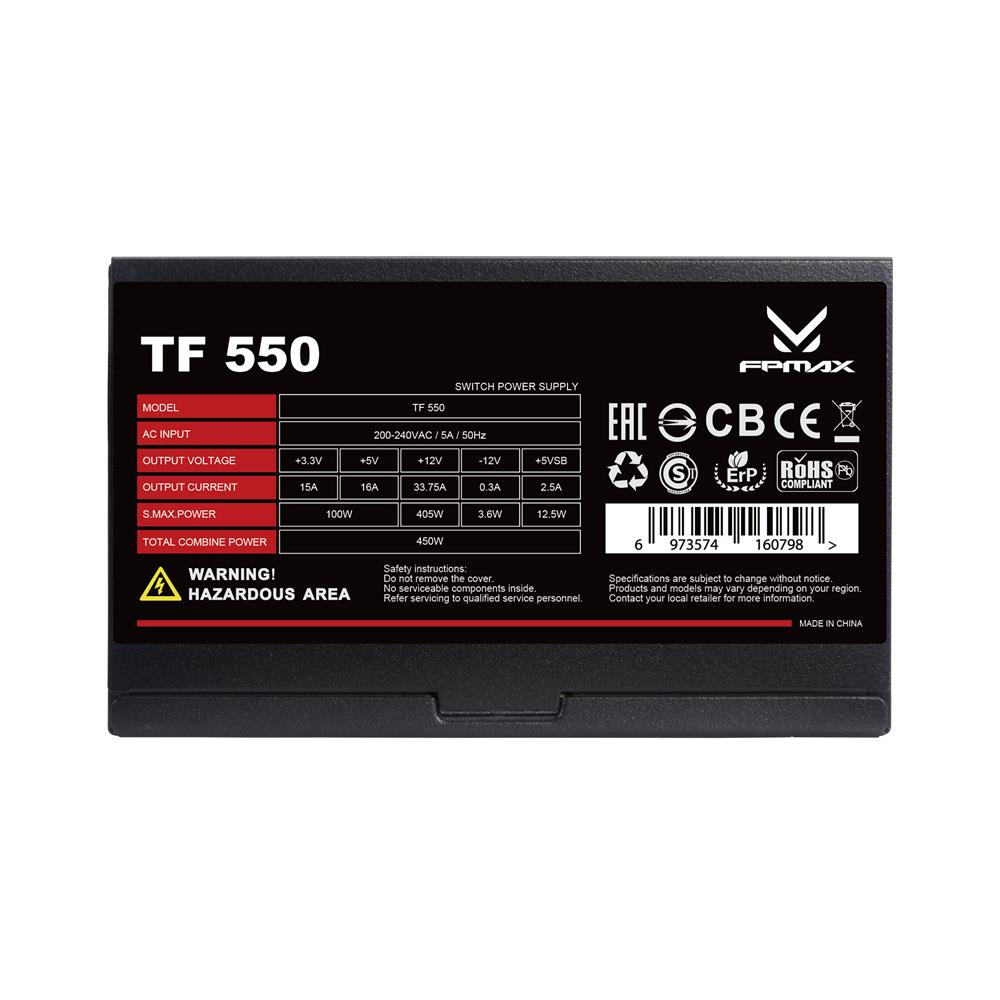

Model NO	TF 550
Ac Input	AC200-240V / 5A / 50Hz
Product Dimensions(L x W x H)	14015086mm
Efficiency Certification	Non
Fan Size	120mm
Fan Bearing	Hydro Bearing
Topology	Double tube forward
Capacitors	chinese top level class/105°
Power Good Signal	100-500 ms
Hold Up Time	≥16ms

Conversion Efficiency	≥78% Under Typical Load(50% Loading)
Protection	OVP、UVP、OPP、SCP
Operation Temperature	0 ℃ to 50 ℃
Authentication	CE
Erp Regulation	Non
Environmental Protection Label	RoHS
MTBF	100,000 hrs minimum (at 25 ℃)
EAN	TF 550 : 6973574160798
