Cortex Dynamic
Cortex Dynamic

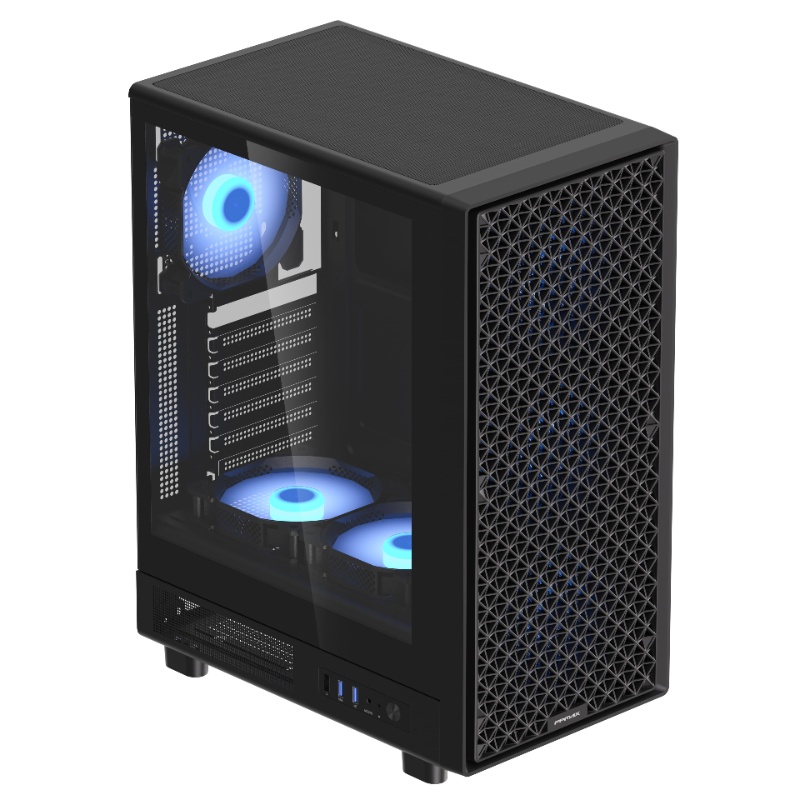

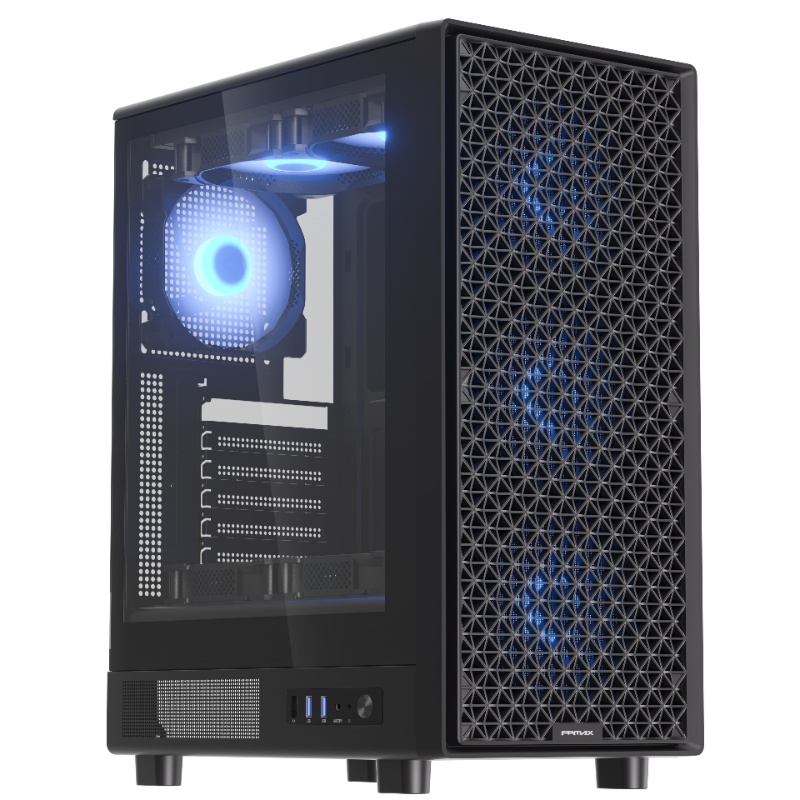

Mid Tower Case
Unmatched Heat Dissipation Performance: Our excellent heat dissipation design, ensures superior airflow and cooling performance, keeping your components running at optimal temperatures.
Sleek and Customizable Aesthetics: Available in black or white colors, our product lets you choose a color that matches your style and preference.
Exceptional Durability: Crafted from a thick 0.5mm SPCC steel plate, our product not only provides exceptional durability but also adds a touch of elegance to your setup.
Efficient Heat Dissipation System: The multi-directional heat dissipation and three-dimensional heat dissipation system guarantee efficient cooling from all directions.
Ample Storage Space: With support to 2 SSDs/2HDDs, our product provides ample space for all your storage needs.
Experience unrivaled cooling performance, and hassle-free maintenance with our product.
Color
Cortex Dynamic
Cortex Dynamic
Ensuring an exhilarating gaming experience with
exceptional airflow performance Sleek panel design
Showcasing quality and style.

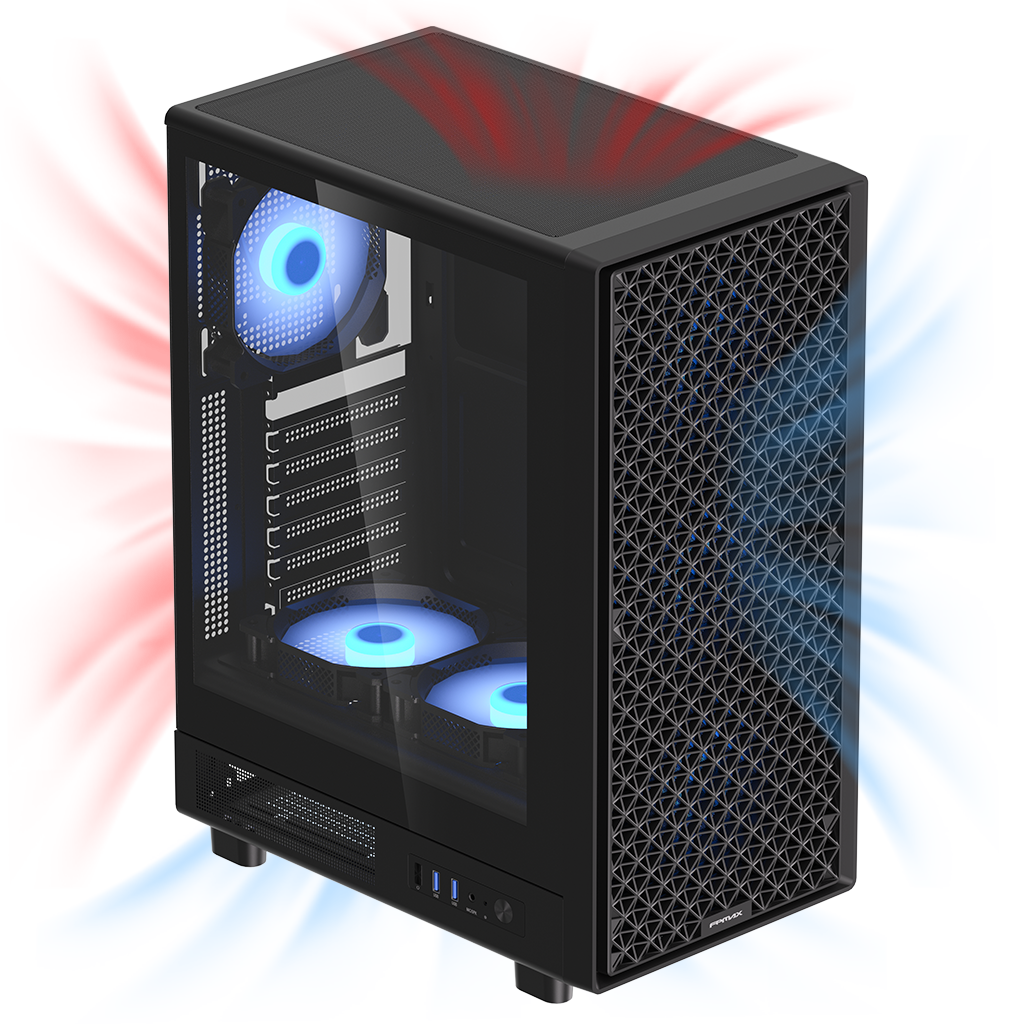

3D heat dissipation duct
Innovative design, breaking tradition!
Carefully crafted airflow channels ensure rapid and efficient heat dissipation.

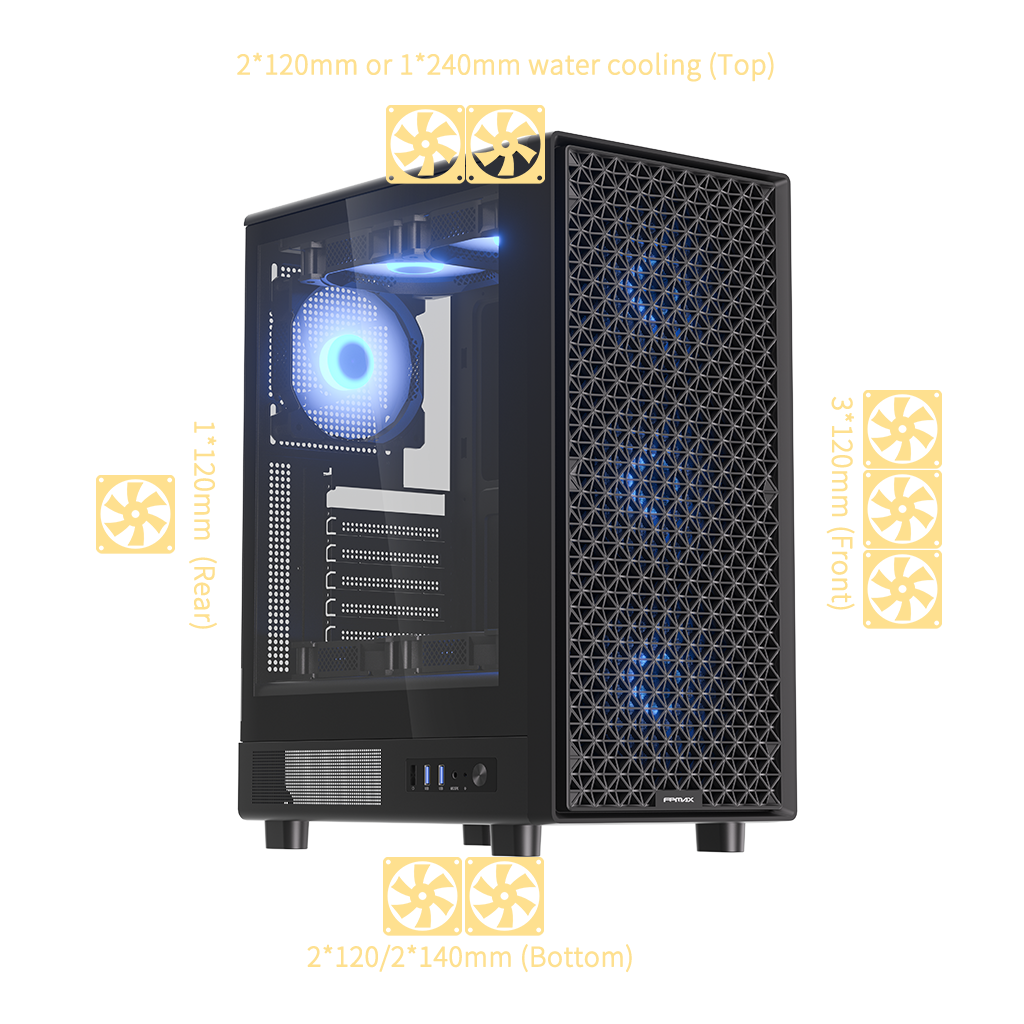

Multi-fan, efficient heat dissipation
Professional design, airflow covers the heating hardware
Guides internal heat out quickly
Radiators
240 water-cooling (Top)
Fans
1*120mm (Rear)

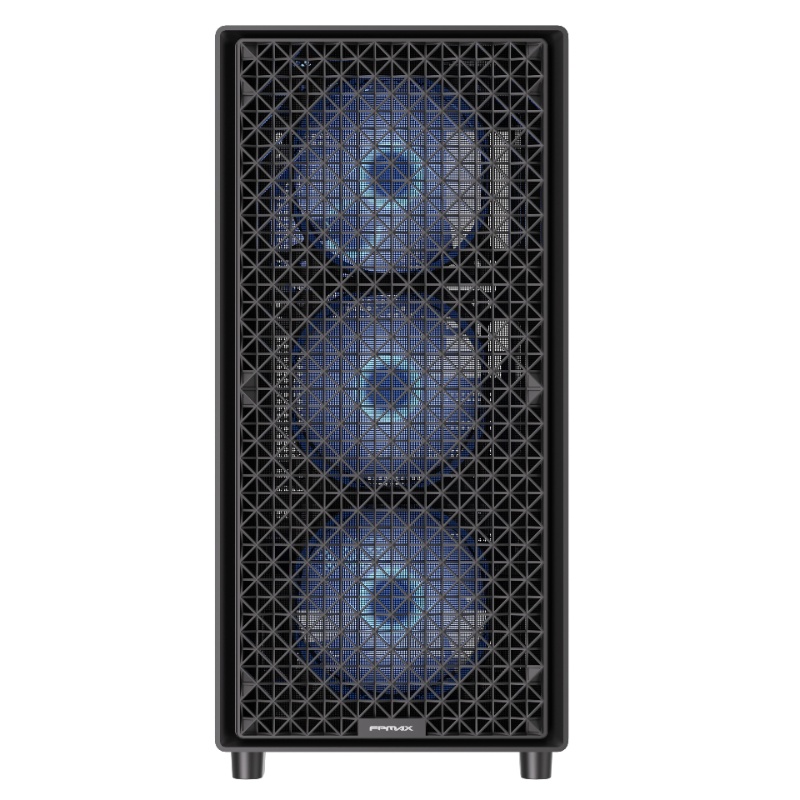

3*120mm (Front)
2*120mm/2*140mm (Bottom)
2*120mm (Top)

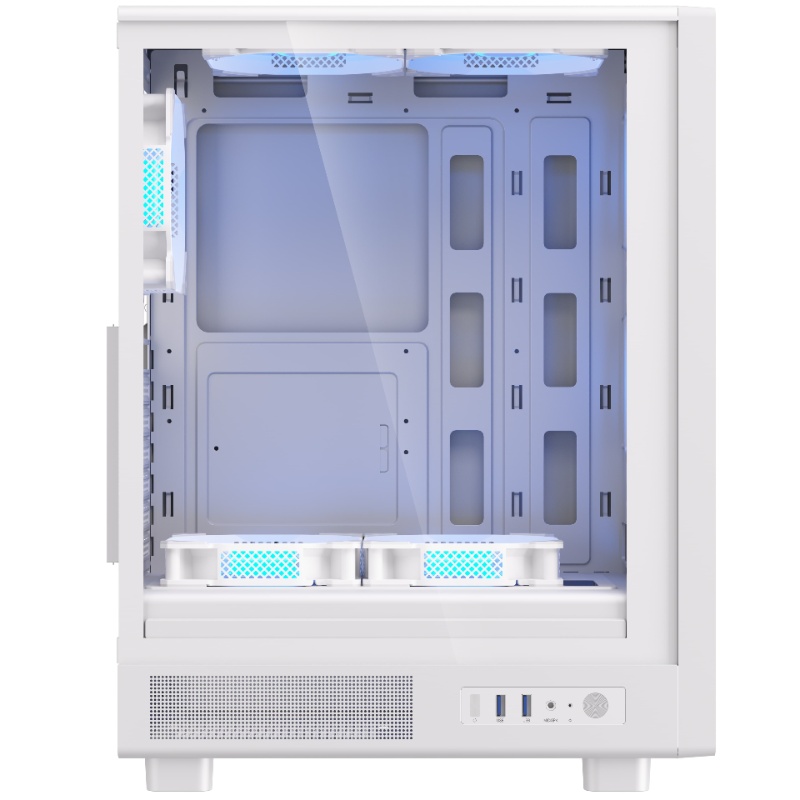

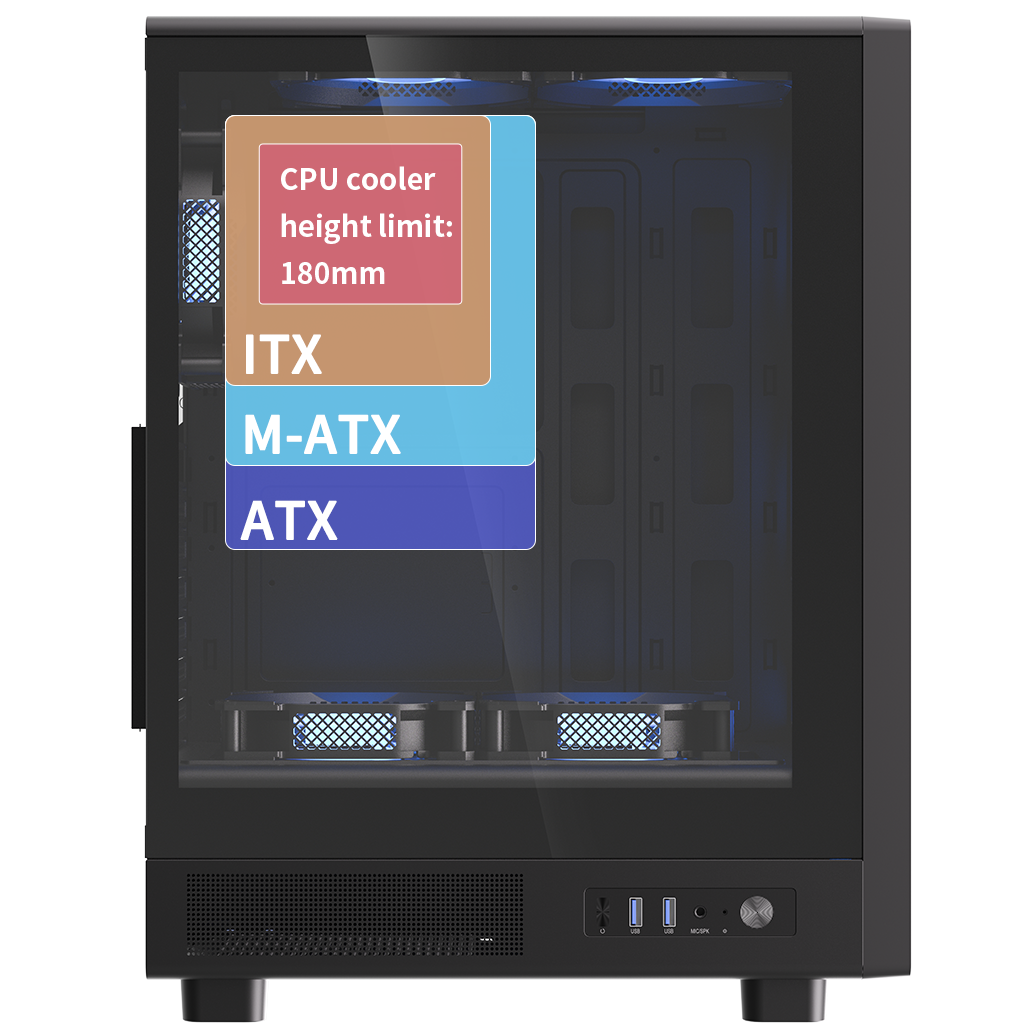

Large internal space
Supports multiple motherboard sizes ATX/M-ATX/Mini-ITX
CPU heat sink height limit 180mm
Chassis support for personalisation

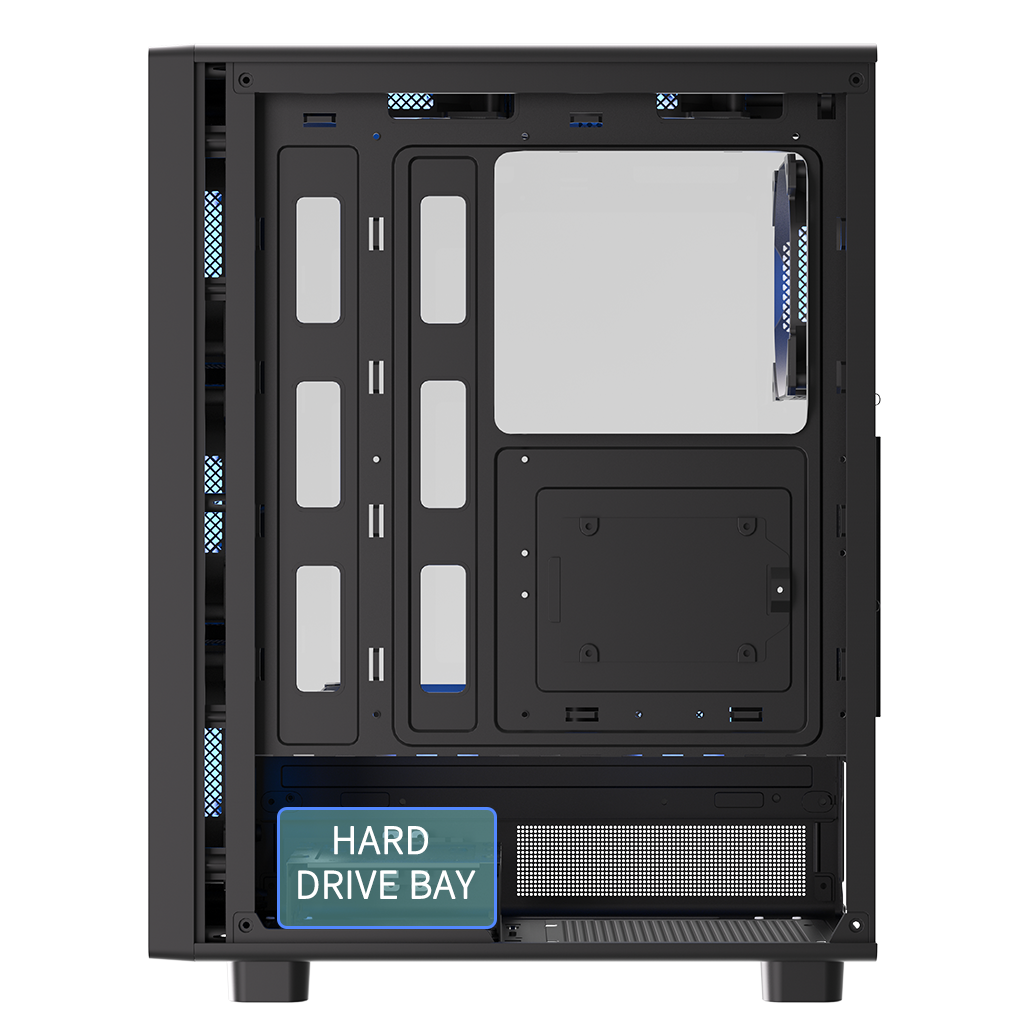

Multiple hard drive locations available
7 hard drive bays available

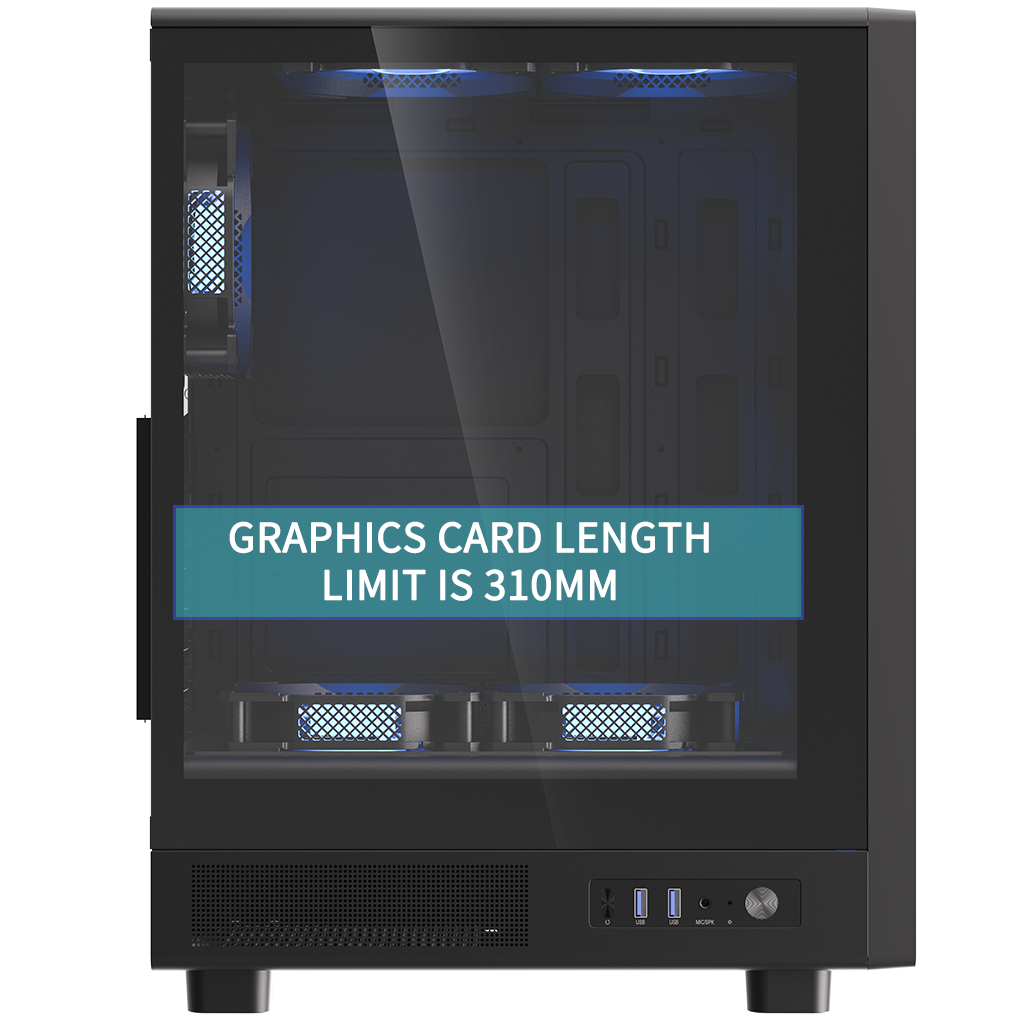

Large enough space for the length of the graphics card
Graphics card length limit is 310mm

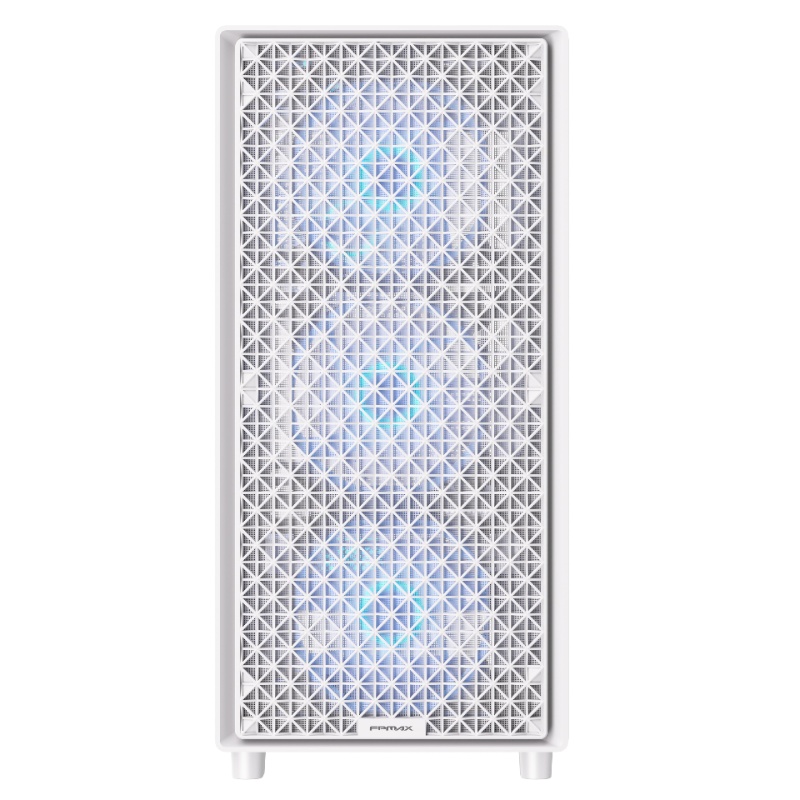

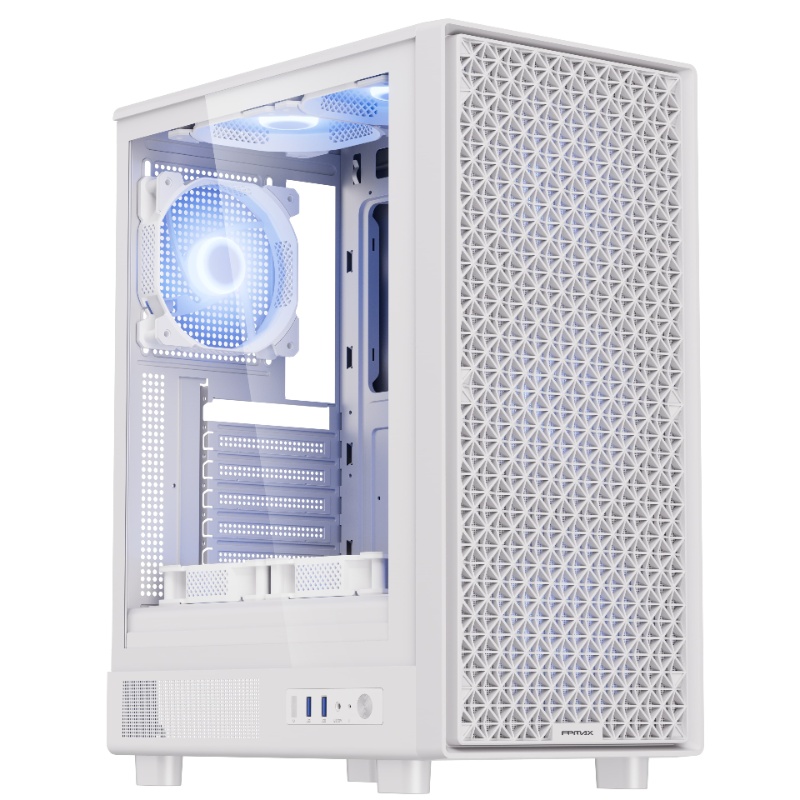

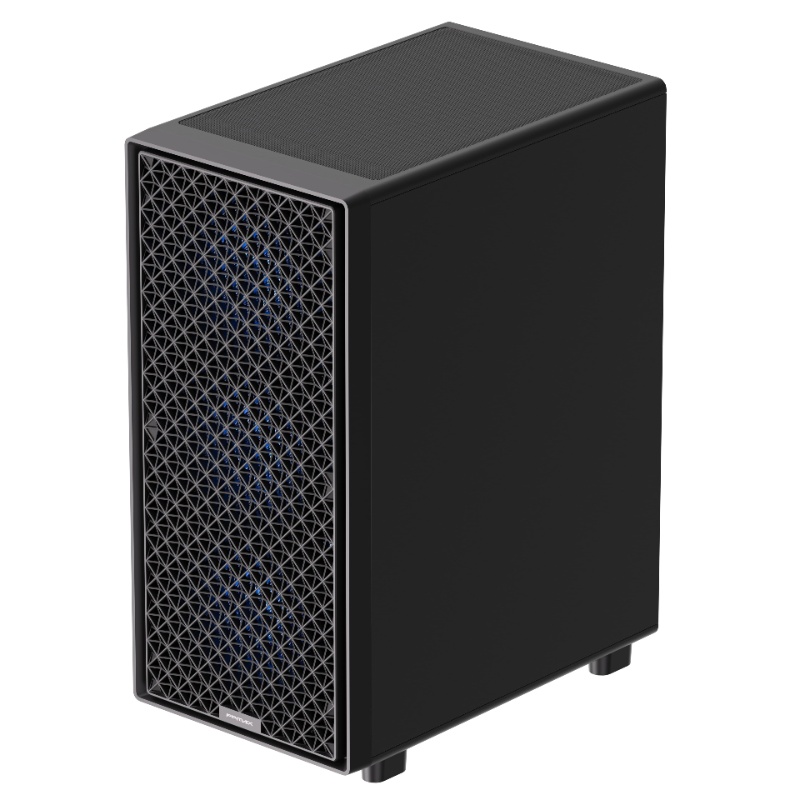

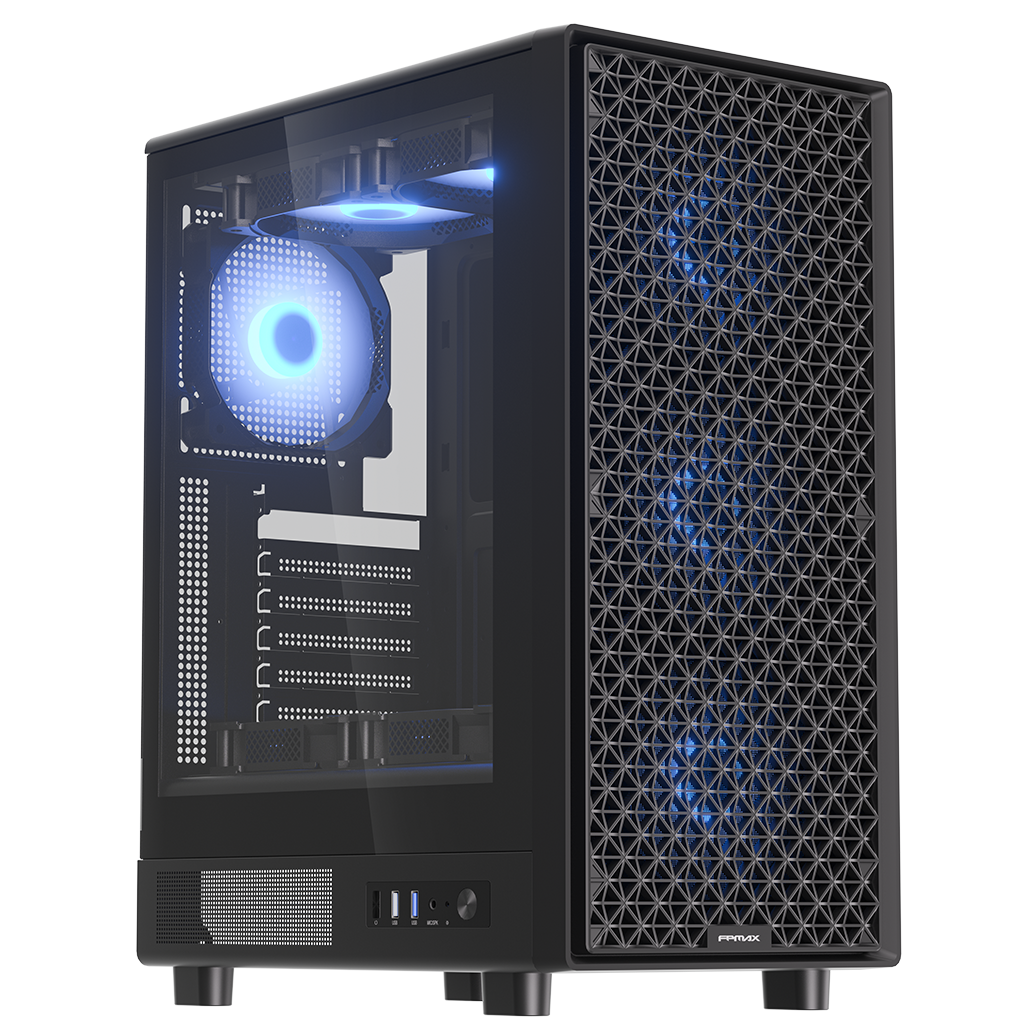

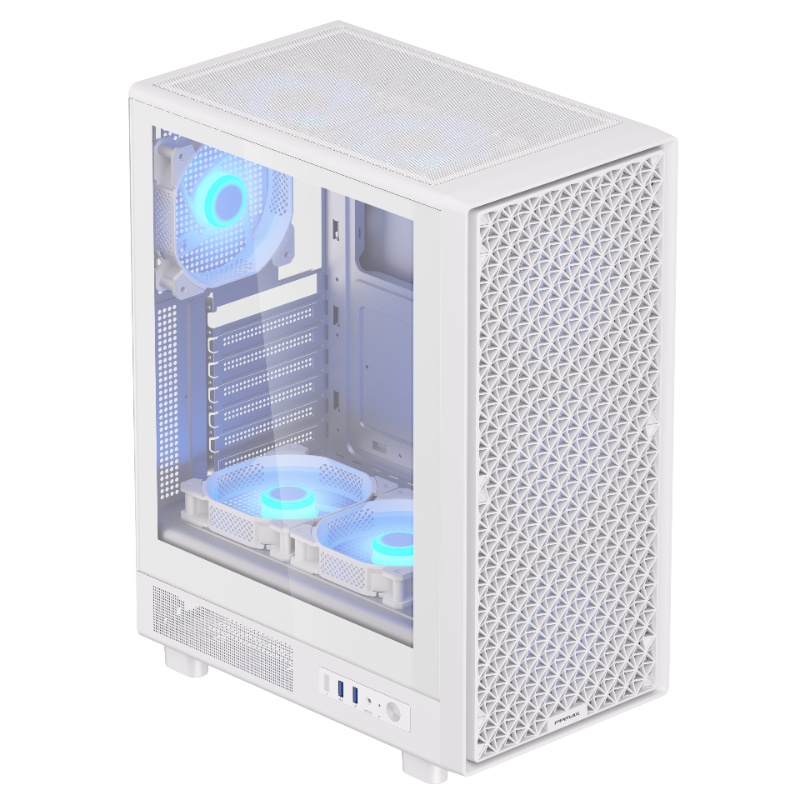

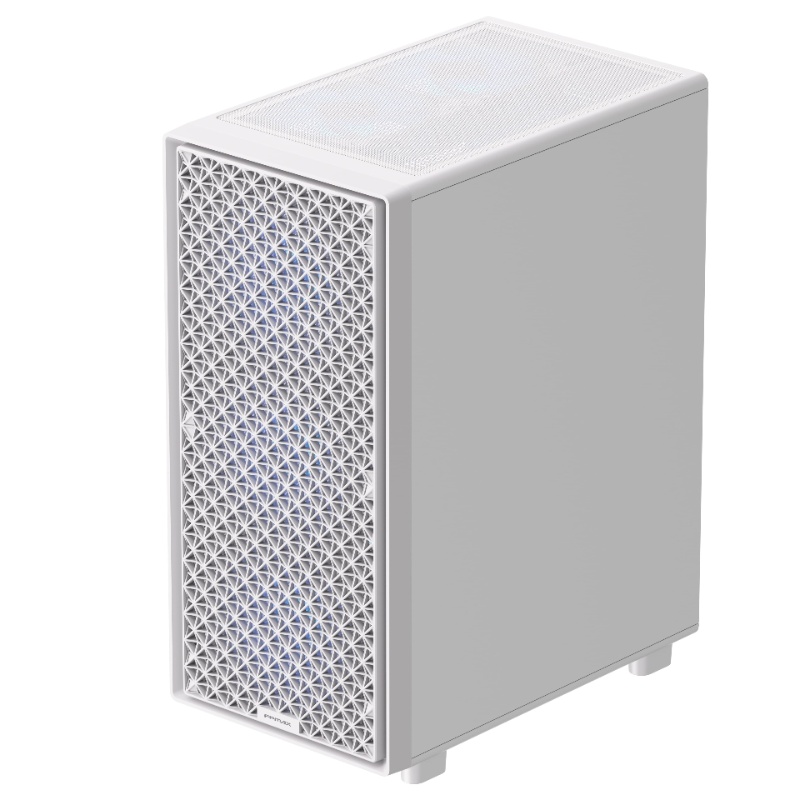

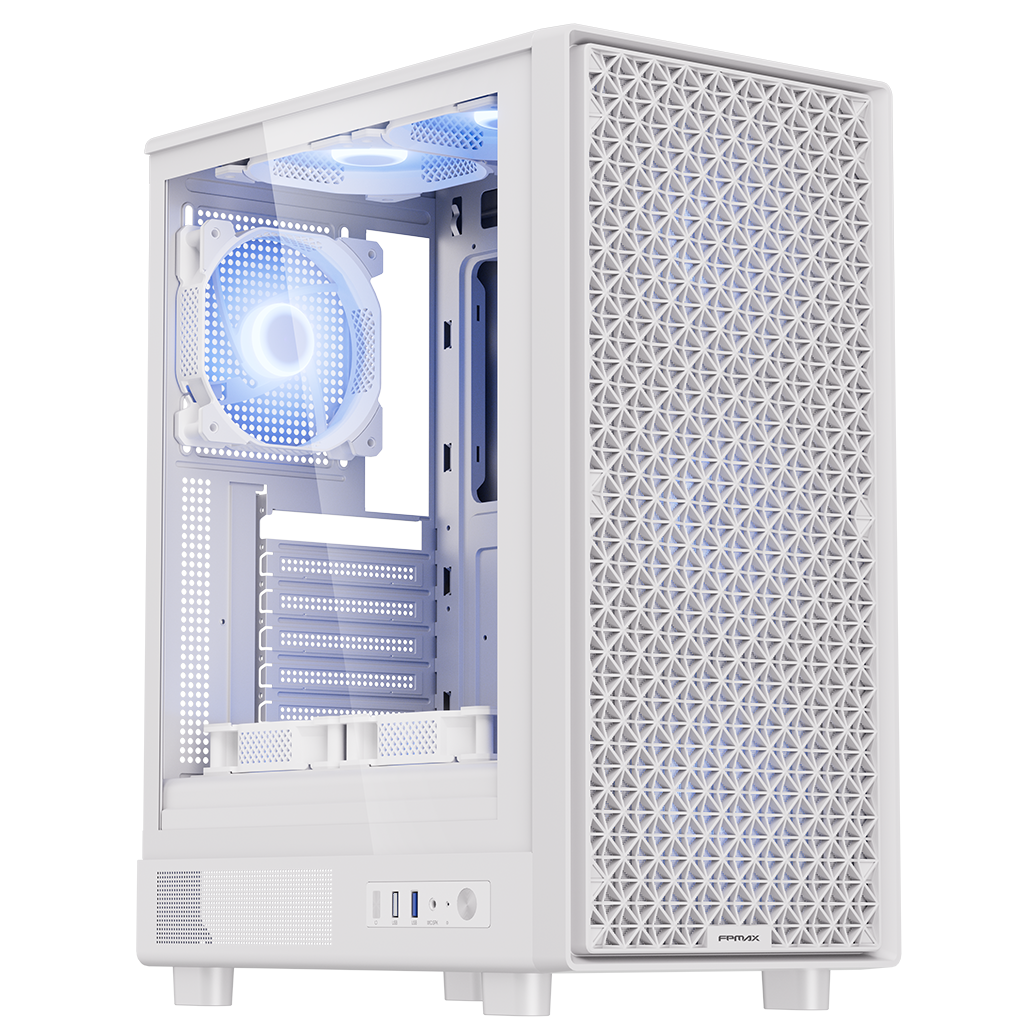

Opt for Pitch Black or Pure White to define your style.

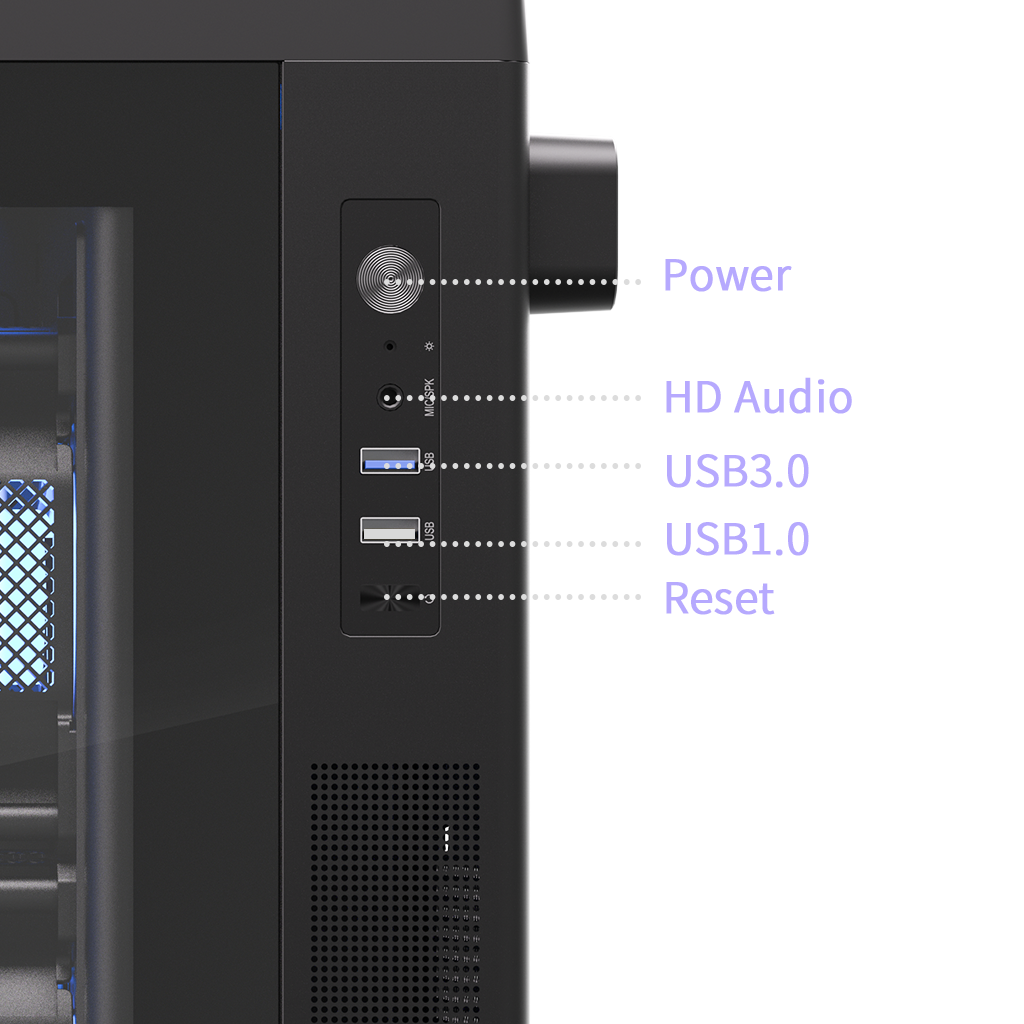

High speed transmission I/O interface
USB3.0*1, USB3.0*1,Power, HD AUDIO
Data transfer is lightning fast, no need to be patient!
Technical Spec
Model NO | Cortex Dynamic | Cortex Dynamic Luma |
Product size | 355*218*465mm(L*W*H) | 355*218*465mm(L*W*H) |
Material | Classs A SPCC 0.50MM | Classs A SPCC 0.50MM |
M/B Support | ATX/M-ATX/Mini-ITX | ATX/M-ATX/Mini-ITX |
I/O port | USB3.0*1, USB1.0*1, HD AUDIO | USB3.0*1, USB1.0*1, HD AUDIO |
3.5'HDD | 2*3.5'HDD | 2*3.5'HDD |
2.5'SSD | 2*2.5'SSD | 2*2.5'SSD |
PCI-E Slots | 7 | 7 |
Air Cooling | Top: 2*120 Front: 3*120mm Bottom: 2*120 or 2*140mm Rear: 1*120mm | Top: 2*120(Option) Front: 3*120mm(Option) Bottom: 2*120 or 2*140mm(Option) Rear: 1*120mm(Option) |
Liquid Cooling | 240mm water-cooling (Top) | 240mm water-cooling (Top) |
FANS HUB | / | / |
CPU Cooler | 180mm | 180mm |
Graphics Cards | 310mm | 310mm |
| Power Supply | ATX | ATX |
| EAN | Cortex Dynamic WH : 6973574164185 Cortex Dynamic BK : 6973574164178 | Cortex Dynamic Luma WH : 6973574164062 Cortex Dynamic Luma BK : 6973574164062 |
