Diamond E1M

Diamond E1M

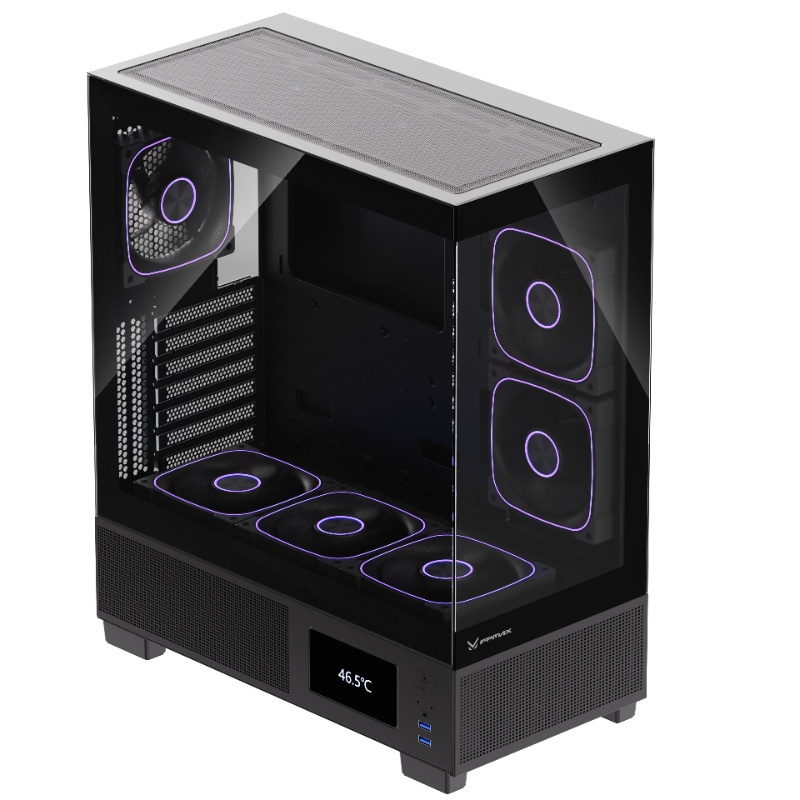

Diamond E1M stands 210mm wide with glass on two faces, meeting at a corner held by a single narrow pillar — a tall, slim tower that reads as a slice of the room rather than a box in it.


Beyond the slim profile, it keeps a full build inside: a 405mm card and a 160mm cooler under a 360mm top radiator, with nine 120mm mounts across four zones for airflow you arrange yourself, a front-bezel readout with its own labels for CPU and GPU temperature for readings taken at a glance, there are three more hard drive bays for storage, and you won't be able to see them through the glass.

Every detail is engineered to combine a narrow footprint, full-length clearance and a live thermal readout in one tall glass-wrapped tower.


Variant

Color

  • facebook
  • instagram
  • youtube
  • linkedin
  • tiktok
videopic

Diamond E1M

productimg

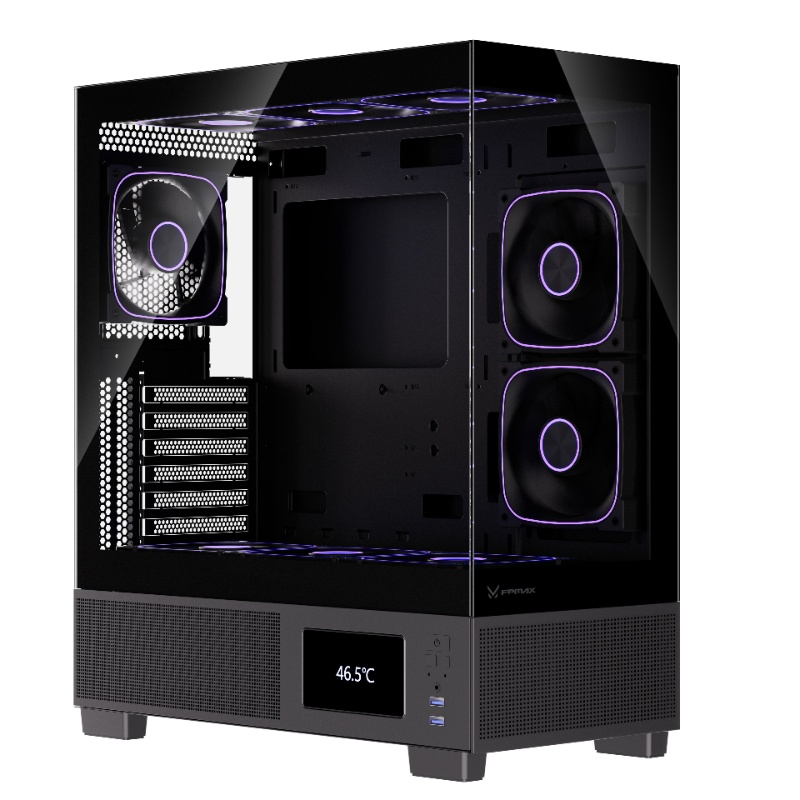

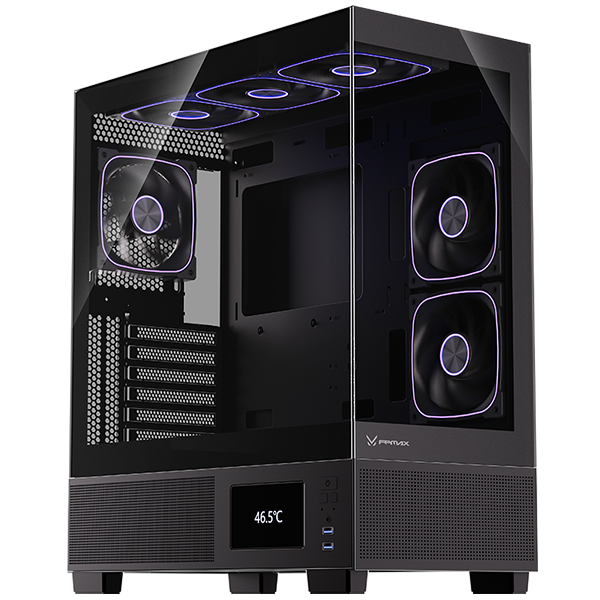

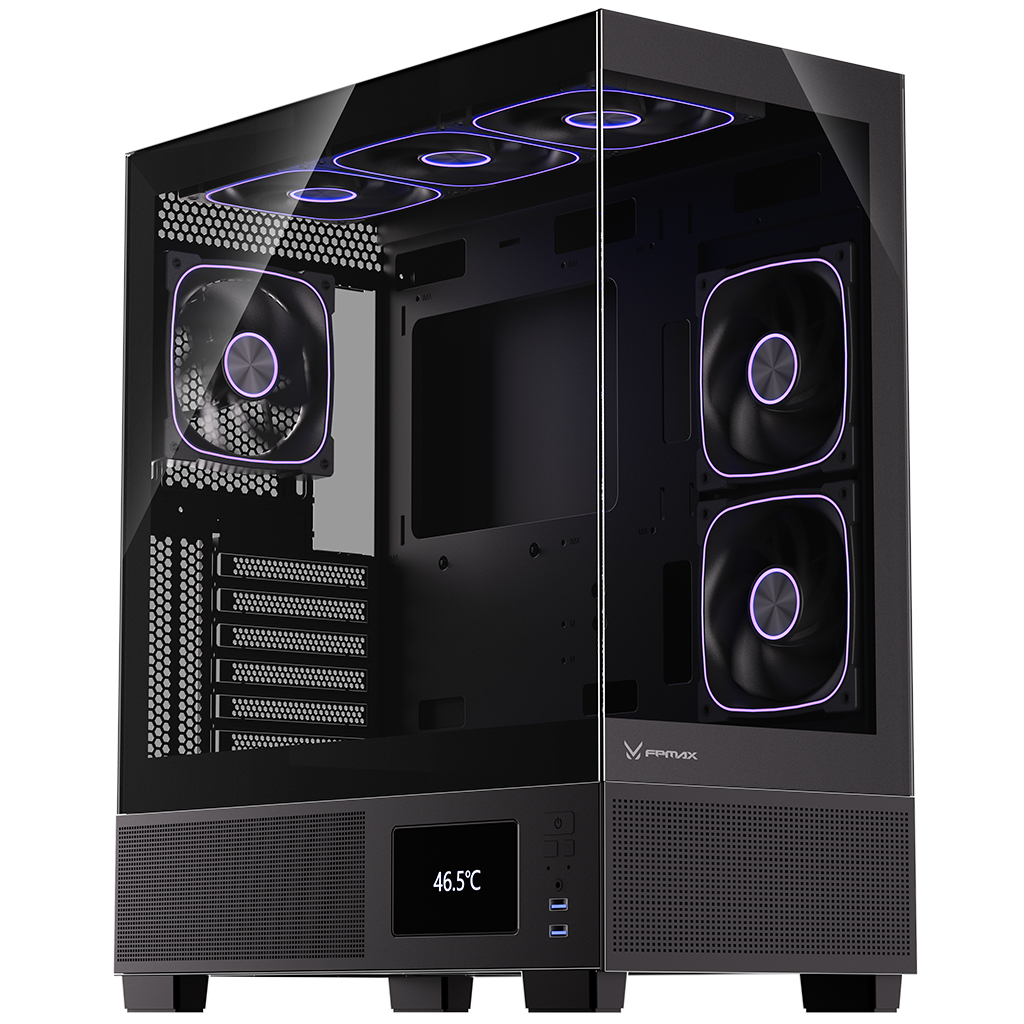

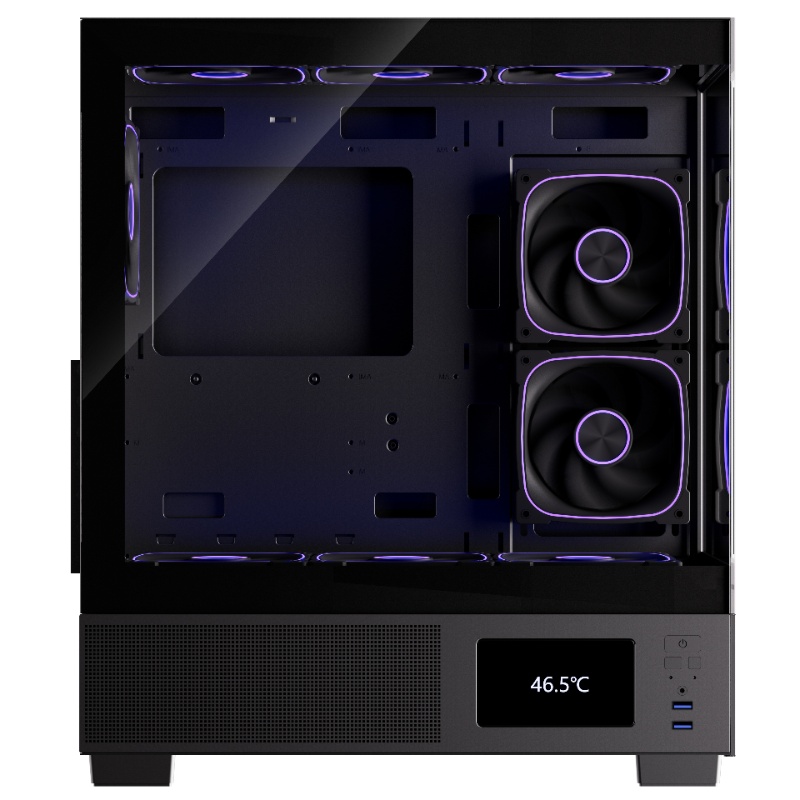

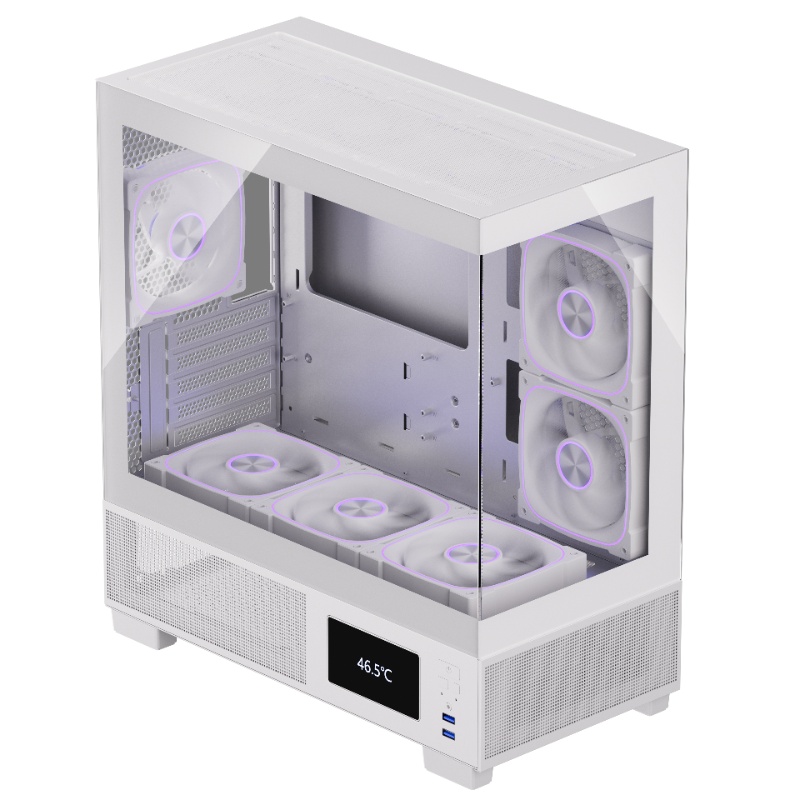

Two Faces of Glass, One Narrow Pillar.

Glass covers the front and the side, meeting at a corner held by one narrow pillar, so the interior reads as a lit room you can look into from either standing position.


Nine Mounts Under a 360

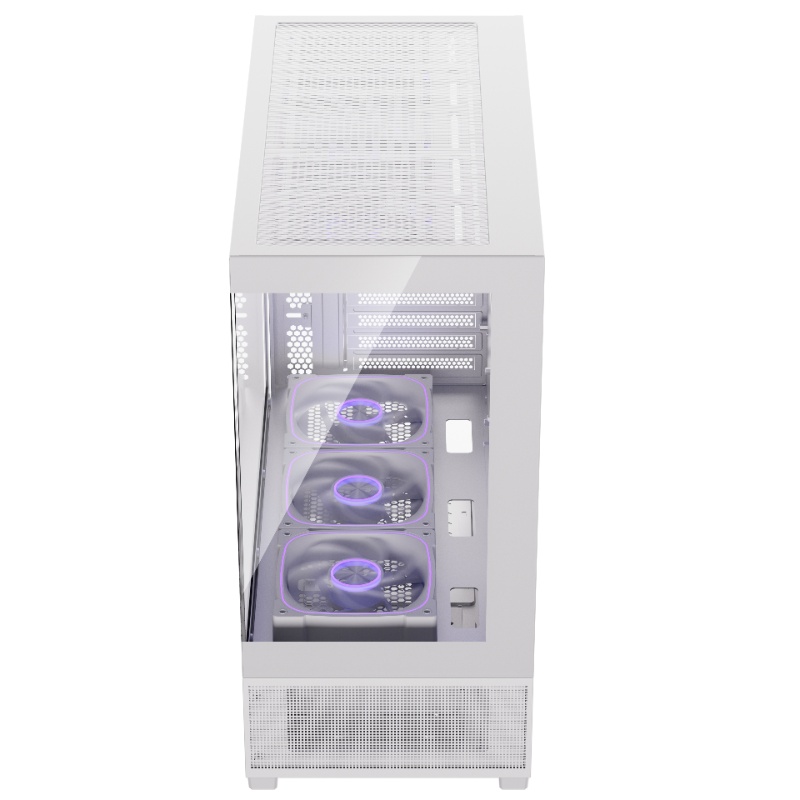

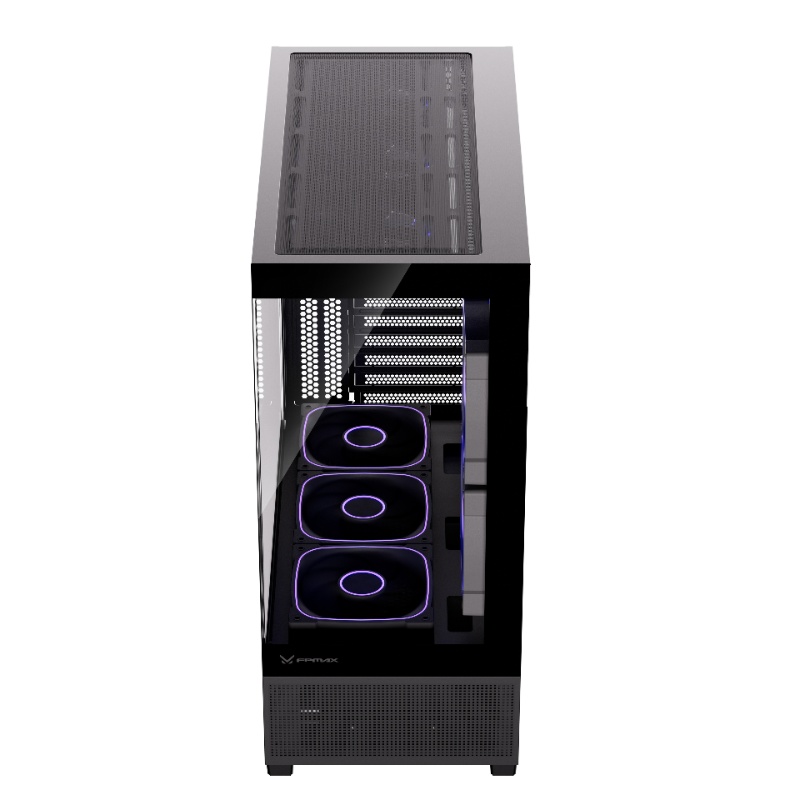

Three 120mm up top, three along the bottom, two on the side and one at the rear — nine positions, with a 360mm radiator accepted across the top of a tower only 210mm wide.


Compact footprint, minimalist luxury

Dimensions: just 413 x 210 x 485mm (L x W x H)


A Mesh Band That Feeds the Floor

The lower bezel opens into a full-width dotted mesh, sitting directly in front of the three floor fans — the intake reads as texture rather than as a gap in the front panel.


Narrow Body

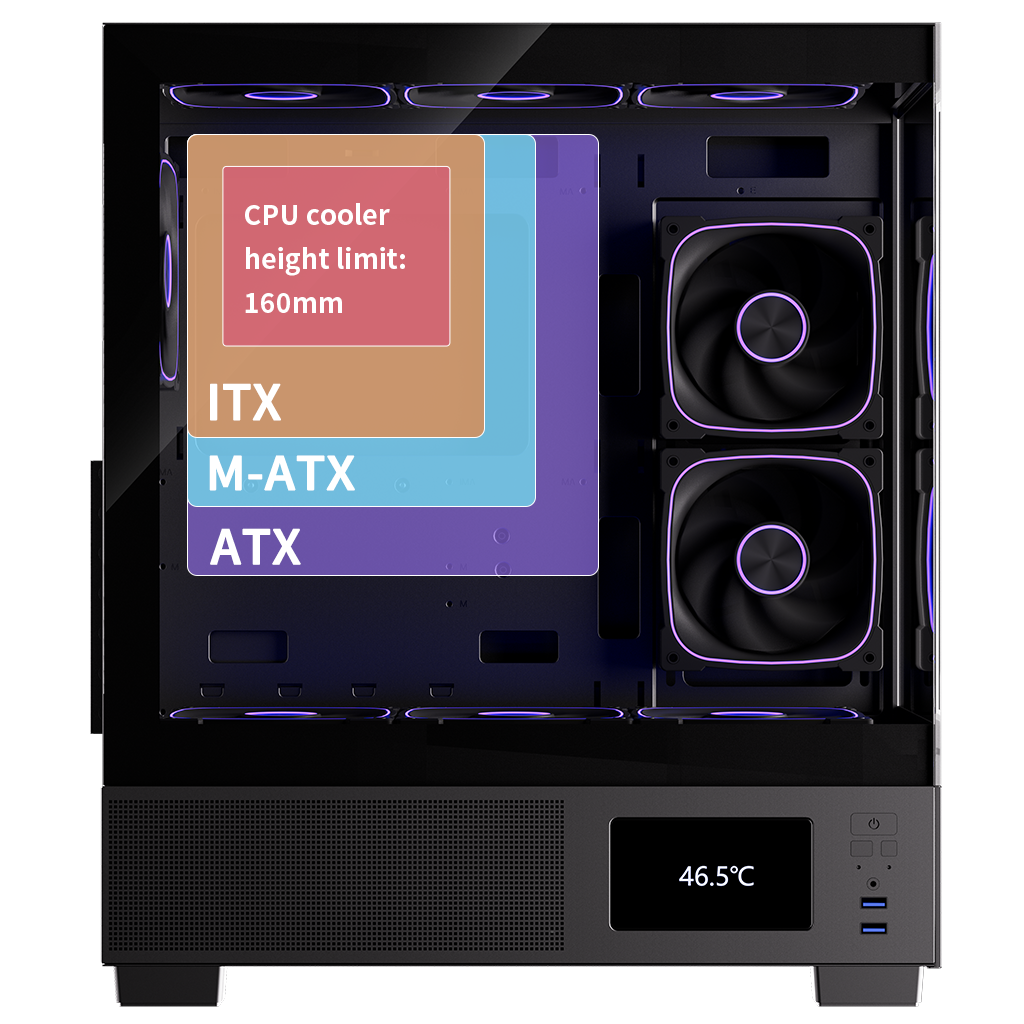

Micro-ATX and Mini-ITX all mount on the same tray, so the widest standard isn't traded away to arrive at a 210mm body.

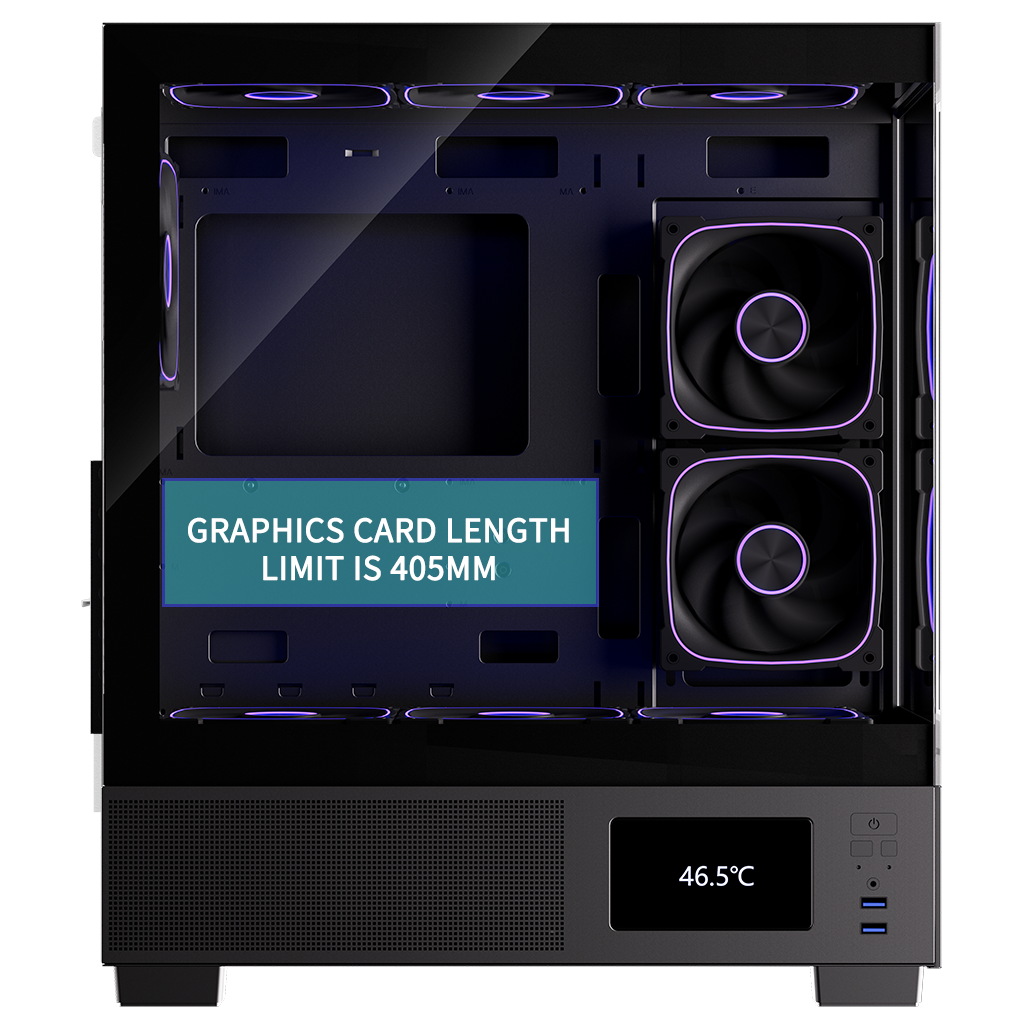

A Card That Runs the Depth

The chassis is 413mm deep and the card allowance is 405mm, so a three-fan flagship spans almost the whole depth without being shortened to fit.

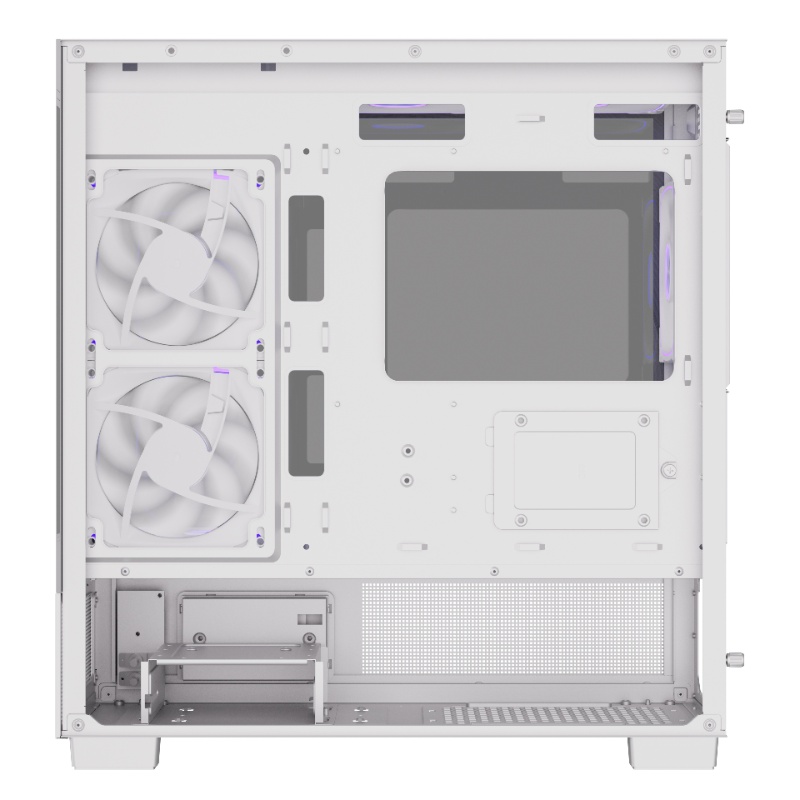

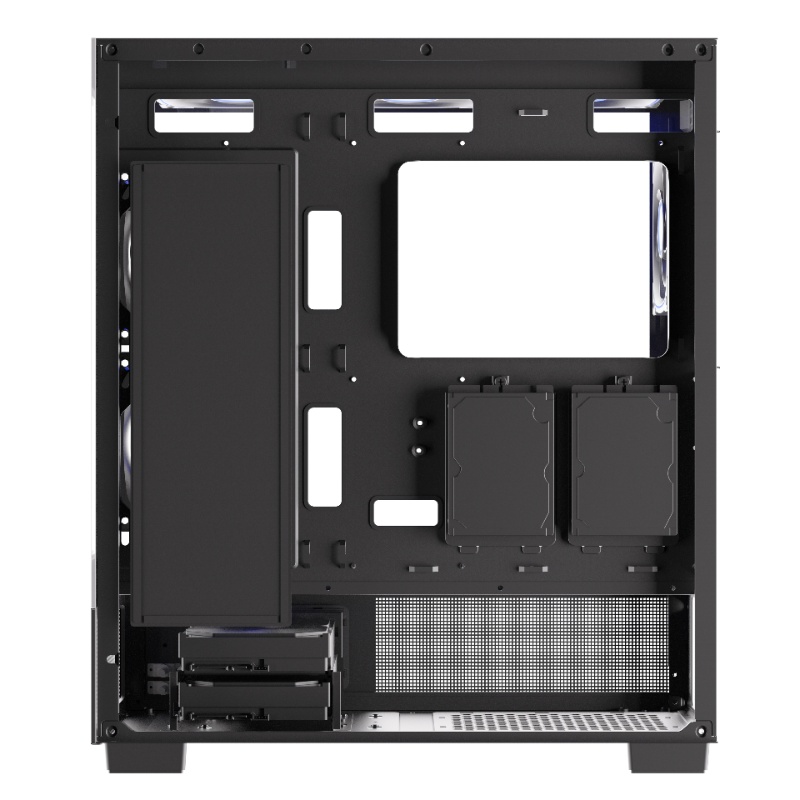

Three Bays, None on Display

Two 3.5-inch and one 2.5-inch mounts sit behind the board, out of the chamber and out of the light.


A Readout With Its Own Labels

The front bezel carries a small screen with its own labels for CPU and GPU temperature, and the numbers update live. Whatever the build is doing, the reading sits at eye level.

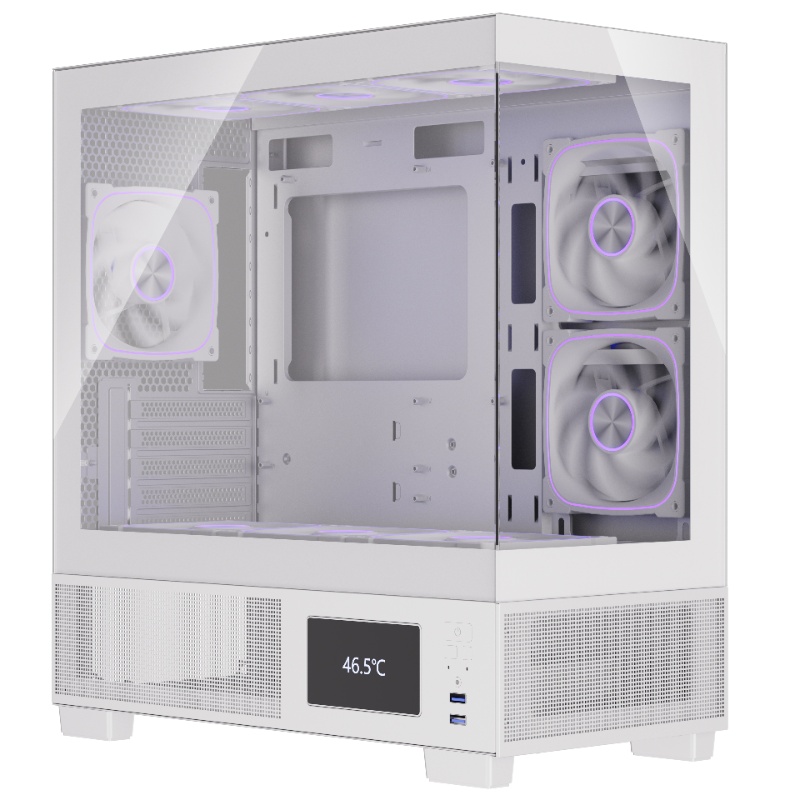

Color Options


Black

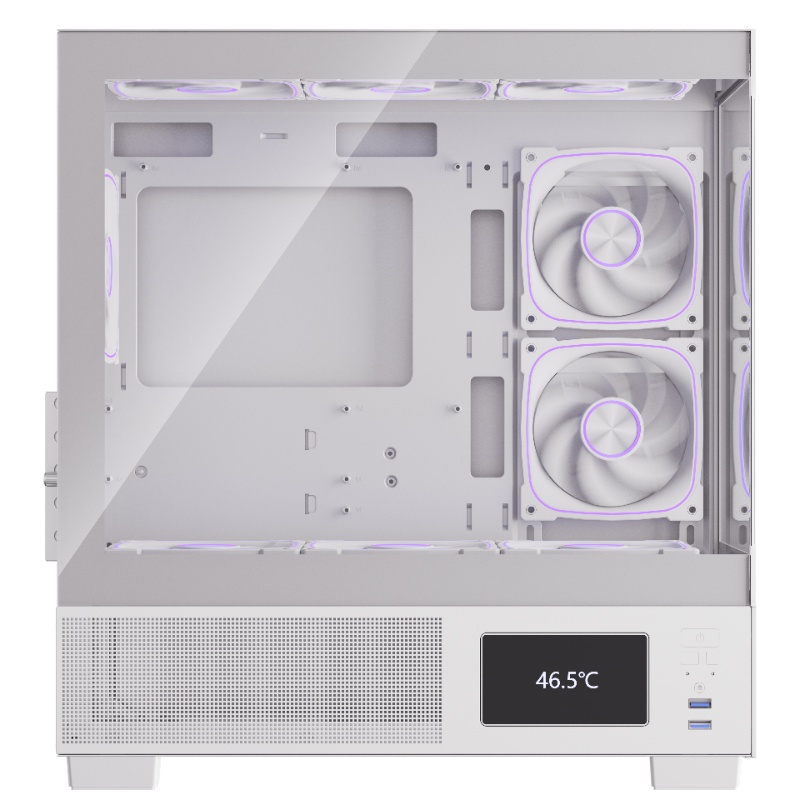

White

Technical Spec

Model NO

Diamond E1M

Diamond E1M PLUS

Product size

413*210*450mm(L*W*H)

413*210*450mm(L*W*H)

Material

Classs A SPCC 0.60MM

Classs A SPCC 0.60MM

M/B Support

M-ATX/Mini-ITX

M-ATX/Mini-ITX

I/O port

USB3.0*2, HD AUDIO

USB3.0*2,  HD AUDIO

3.5'HDD

2*3.5'HDD/1*3.5'HDD

2*3.5'HDD/1*3.5'HDD

2.5'SSD

1*2.5'SSD/2*2.5'SSD

1*2.5'SSD/2*2.5'SSD

PCI-E Slots

5

5

Air Cooling

Top : 3*120mm(Optional)

Bottom : 3*120mm(Optional)

MB Side:2*120mm(Optional)

Rear : 1*120mm(Optional)

Top : 3*120mm(Optional)

Bottom : 3*120mm(Optional)

MB Side:2*120mm ARGB (Pre-installed)

Rear : 1*120mm ARGB (Pre-installed)

Liquid Cooling

360mm water-cooling (Top)

360mm water-cooling (Top)

FANS HUB

/

/

CPU Cooler

160mm

160mm

Graphics Cards

405mm

405mm

Power Supply

ATX

ATX

EAN

Diamond E1 WH: 6973574165090

Diamond E1  BK : 6973574165083

Diamond E1 PLUS WH: 6973574165076

Diamond E1  PLUS BK : 6973574165069


Download

Diamond E1
