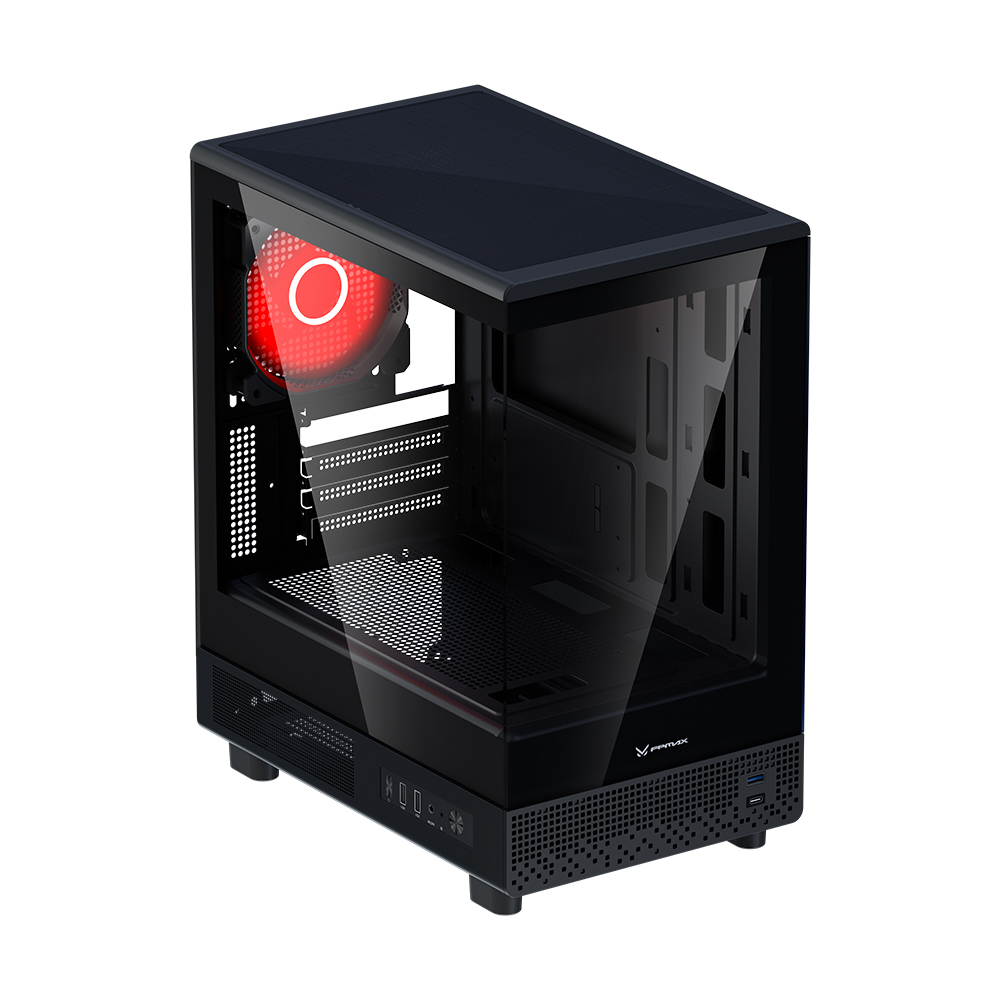

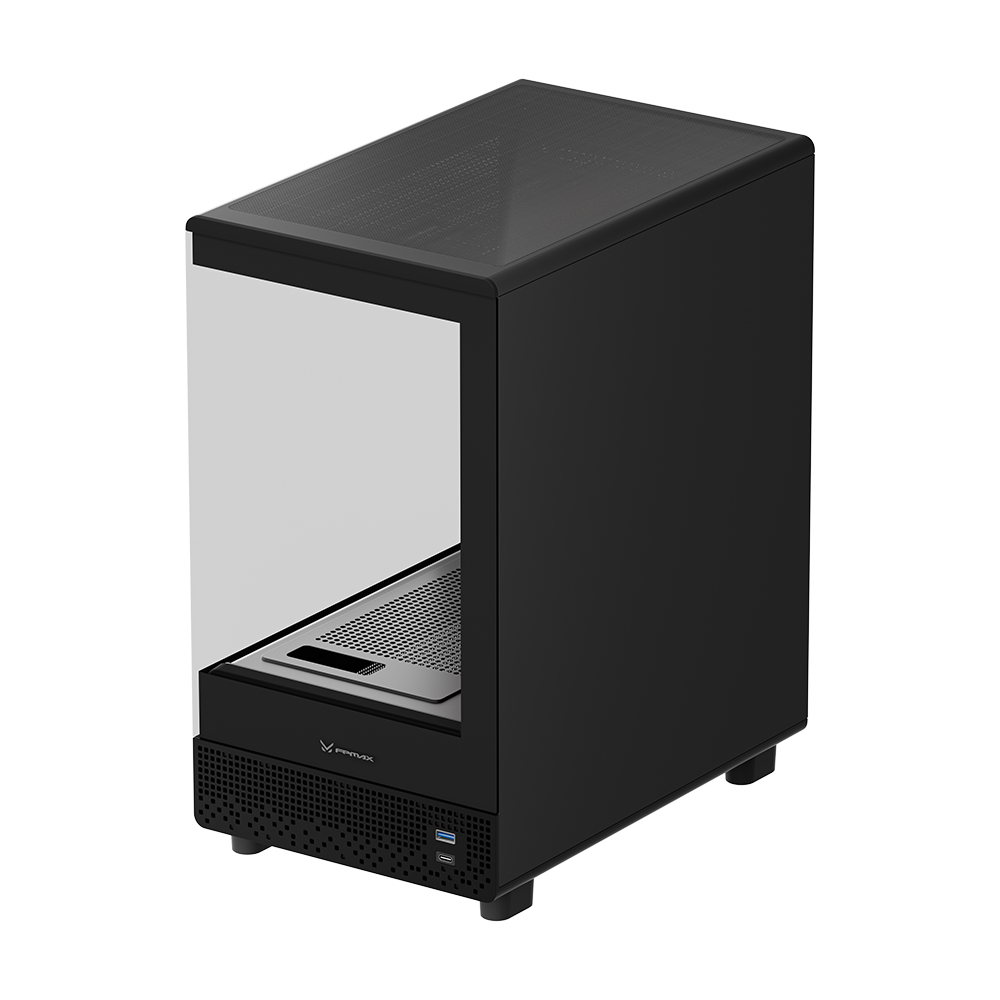

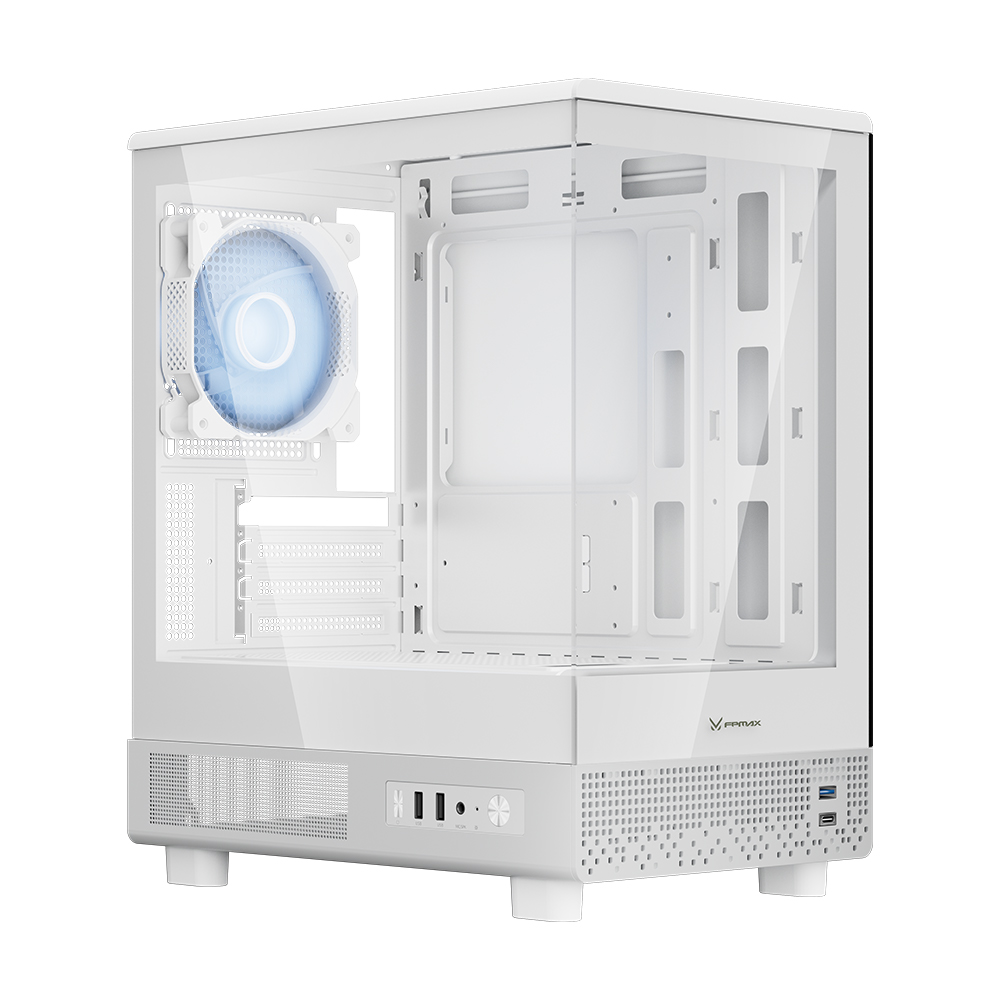

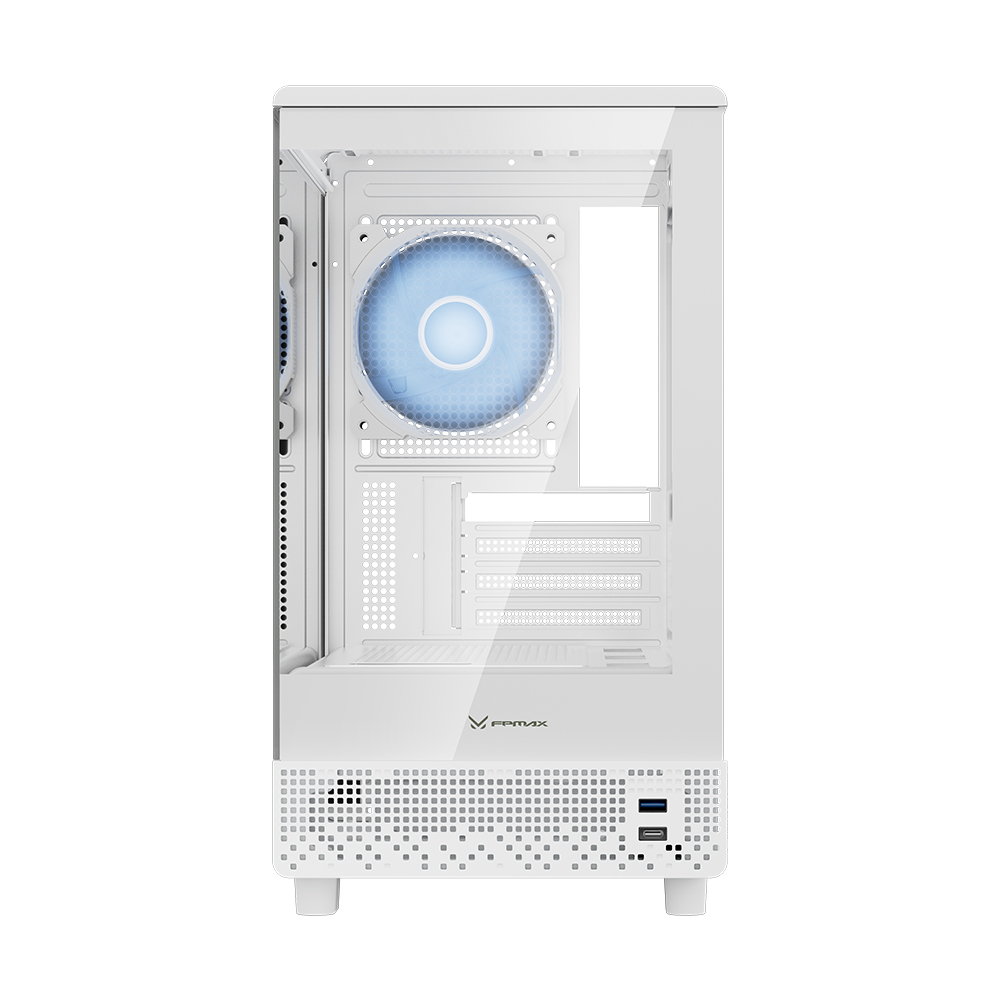

Diamond R3M
Diamond R3M
Mid Tower Case
Sleek and Customizable Aesthetics: Available in black or white colors, our product lets you choose a color that matches your style and preference.
Exceptional Durability: Crafted from a thick 0.5mm SPCC steel plate, our product not only provides exceptional durability but also adds a touch of elegance to your setup.
Optimal Cooling Capabilities: With support for up to 280mm air/water cooling installation at the top and up to 5 fans, our product boasts a fully optimized internal circulation cooling system, ensuring outstanding cooling capabilities for superior performance.
Efficient Heat Dissipation System: The multi-directional heat dissipation and three-dimensional heat dissipation system guarantee efficient cooling from all directions.
Ample Storage Space: With support for 3 SSDs/HDDs, our product provides ample space for all your storage needs.
Experience unrivaled cooling performance, seamless aesthetics, and hassle-free maintenance with our state-of-the-art product!
Color
Diamond R3M
Diamond R3M

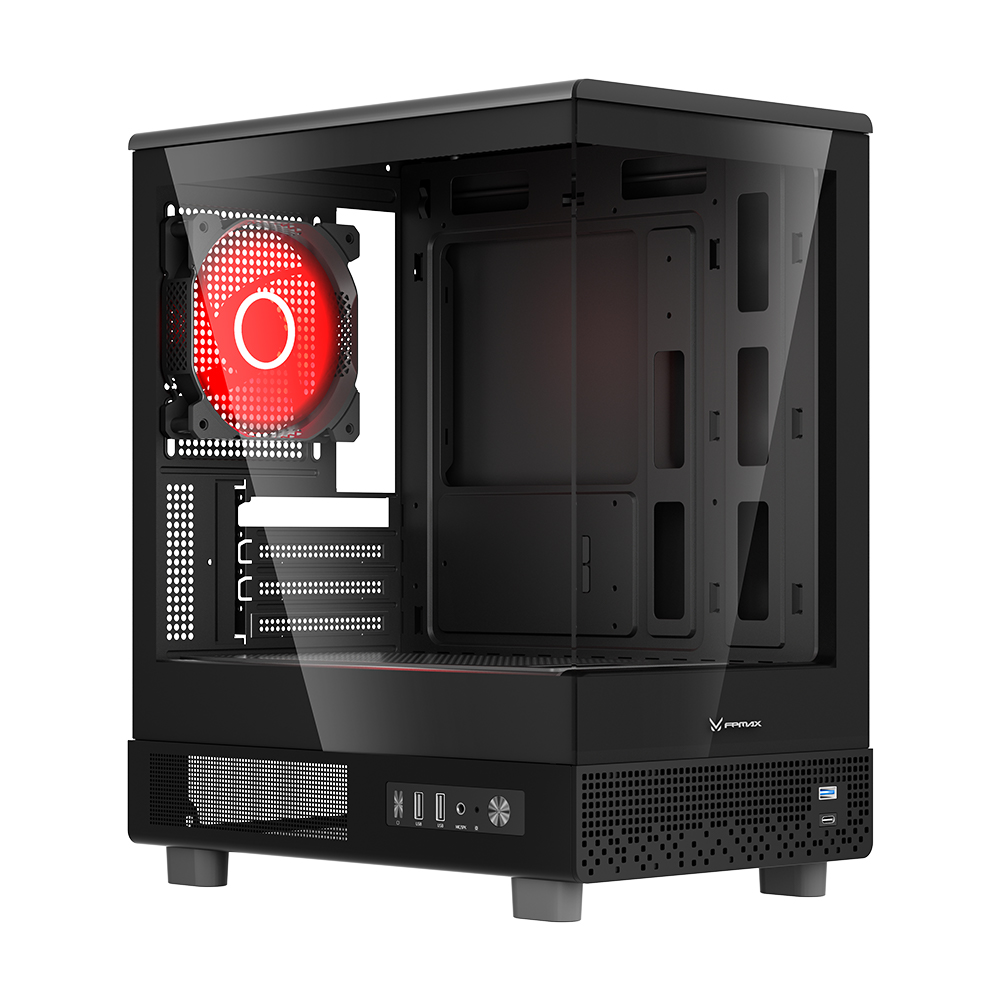

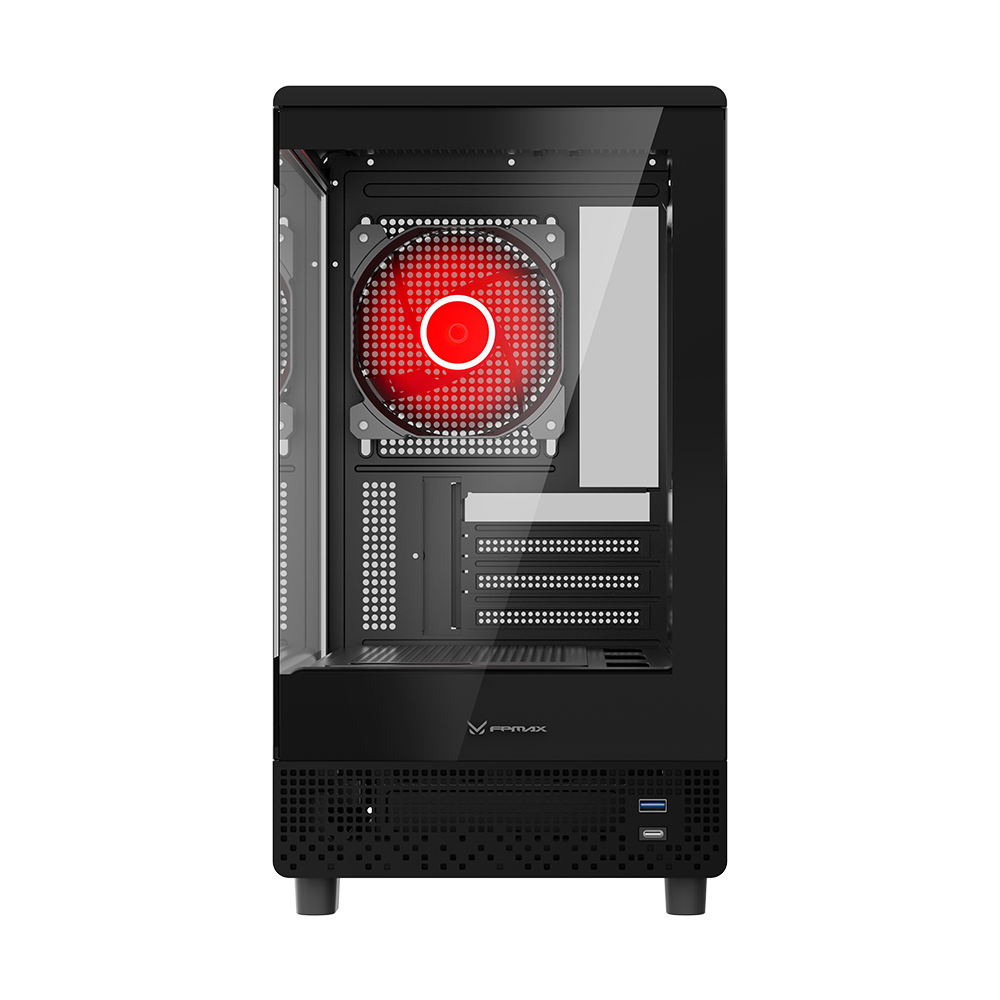

Colourful fans illuminate the internal structure and add more colour to the chassis

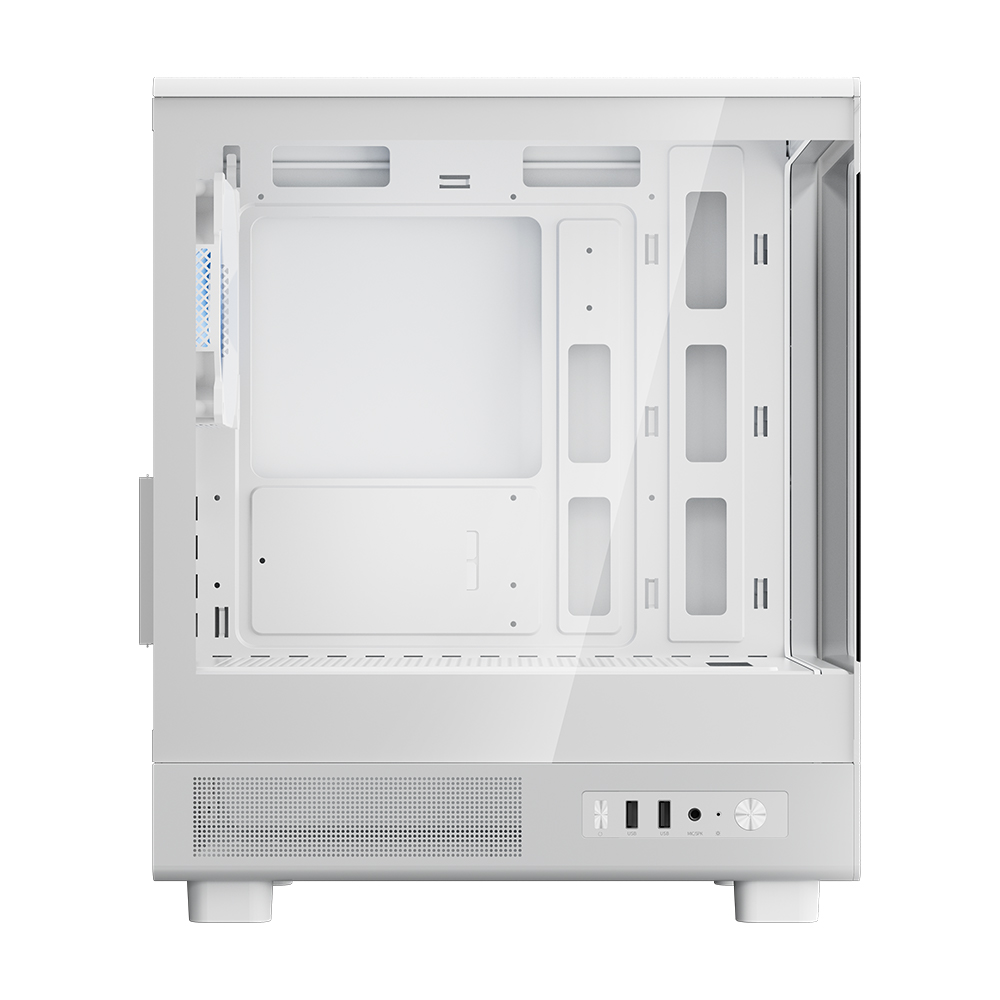

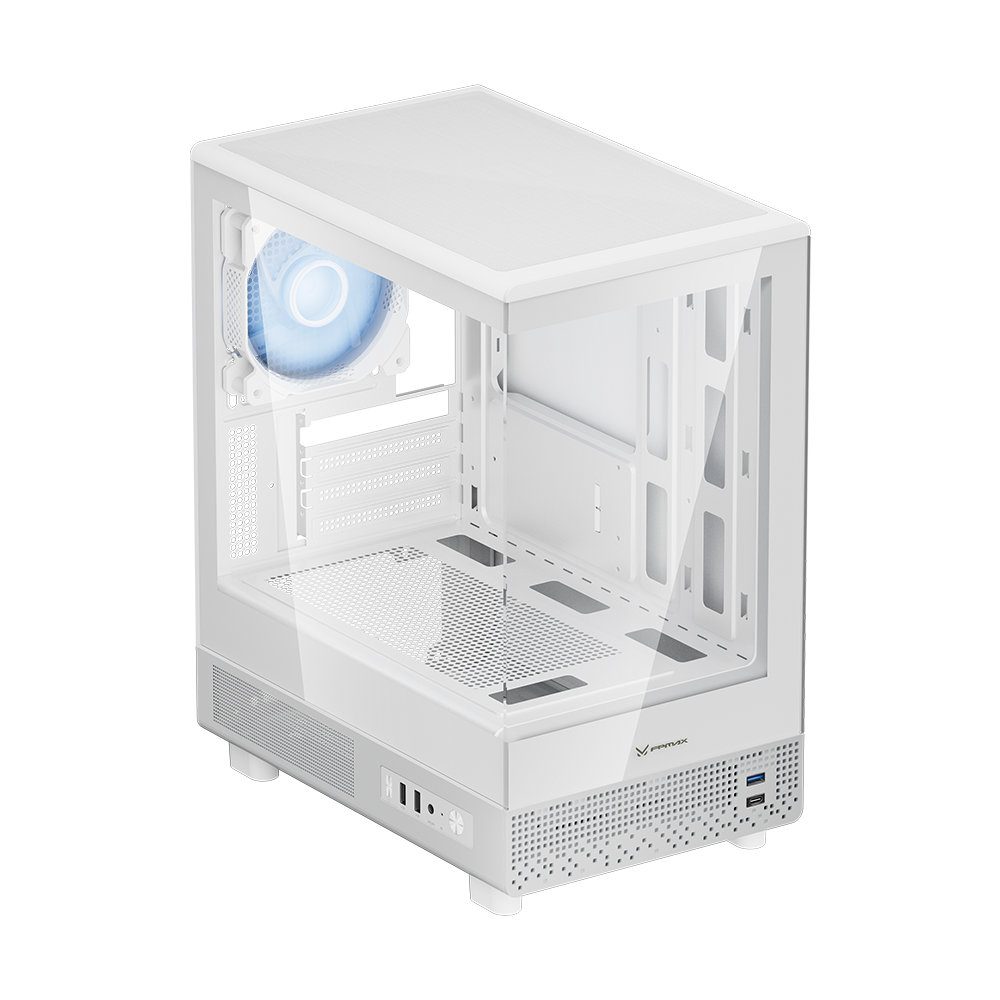

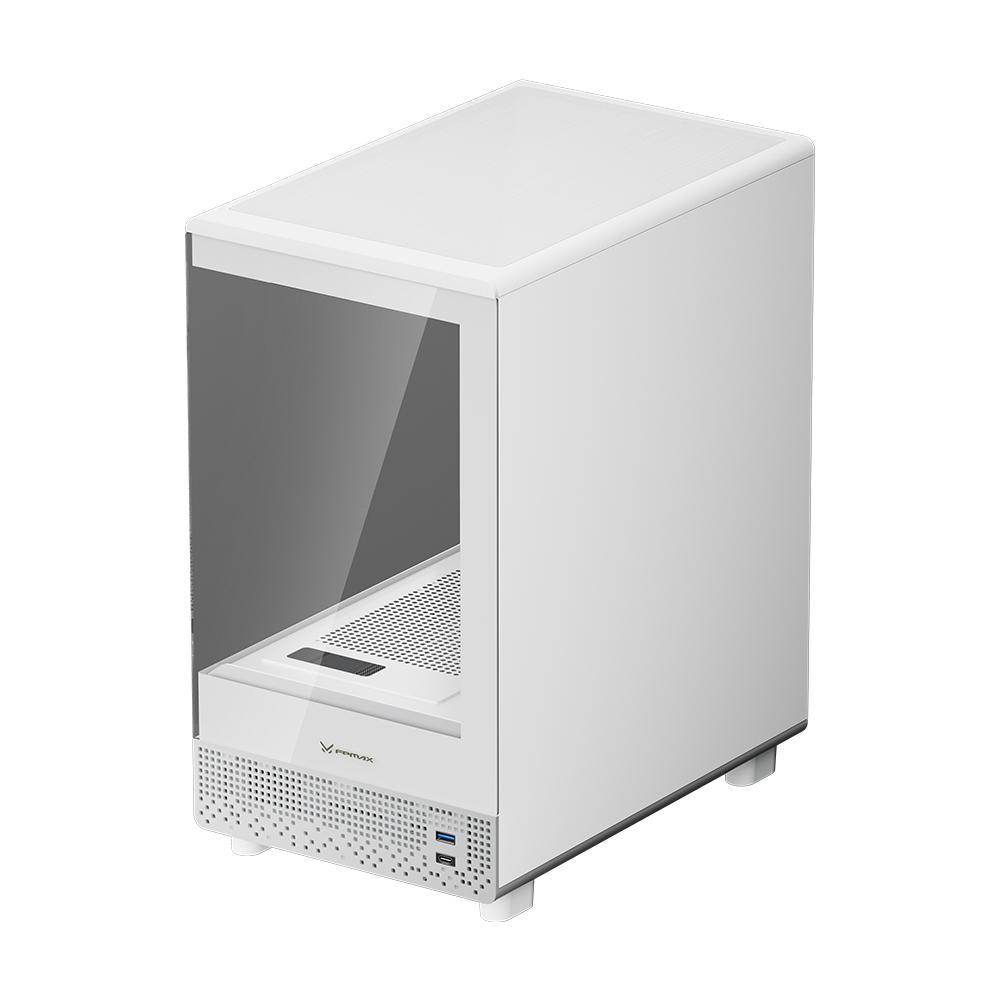

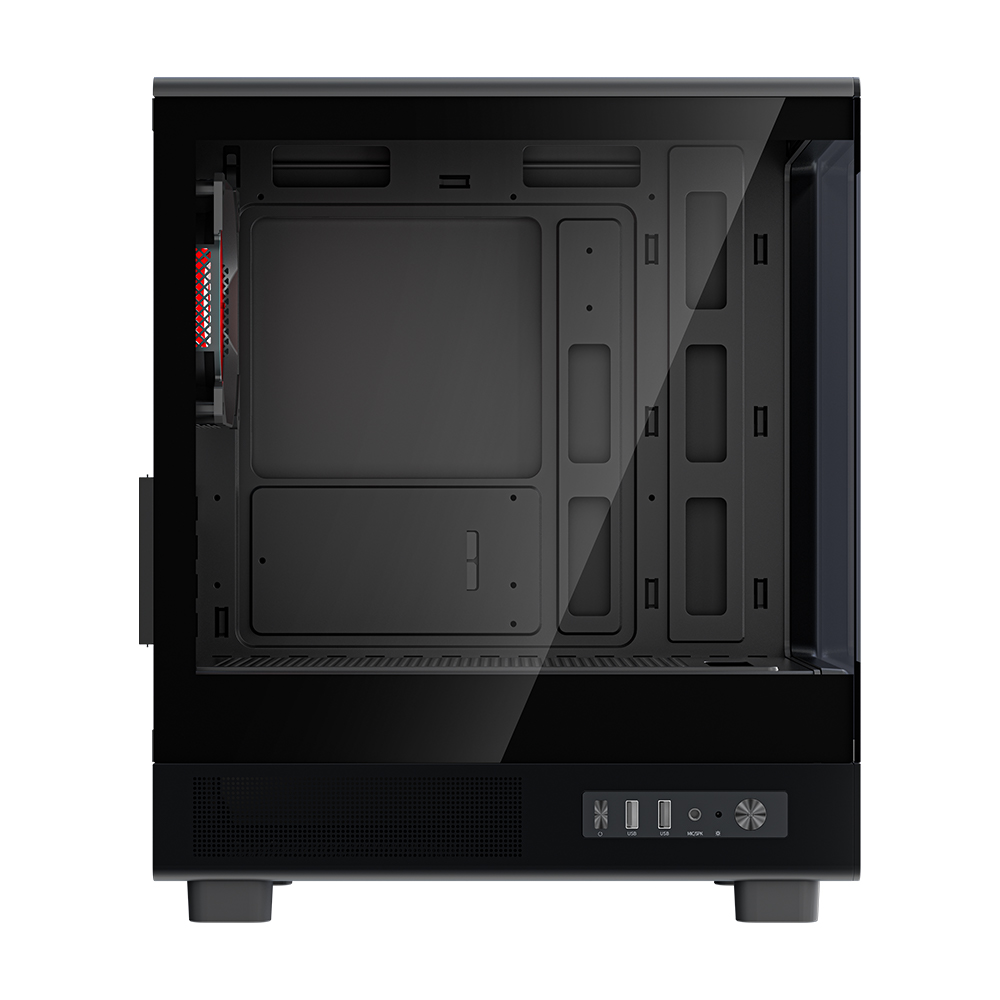

Black or white, make your choice.

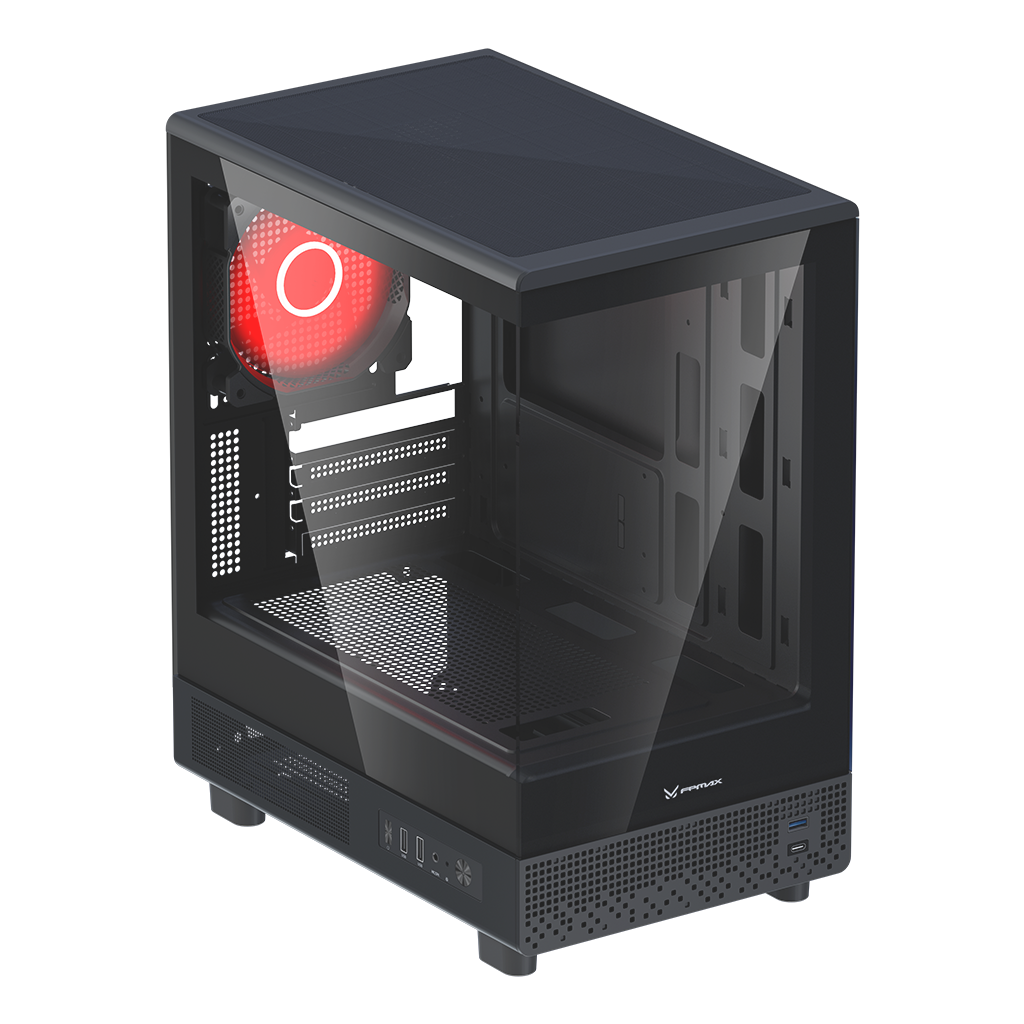

Toughened glass panel
visualisation of chassis fan coloured light

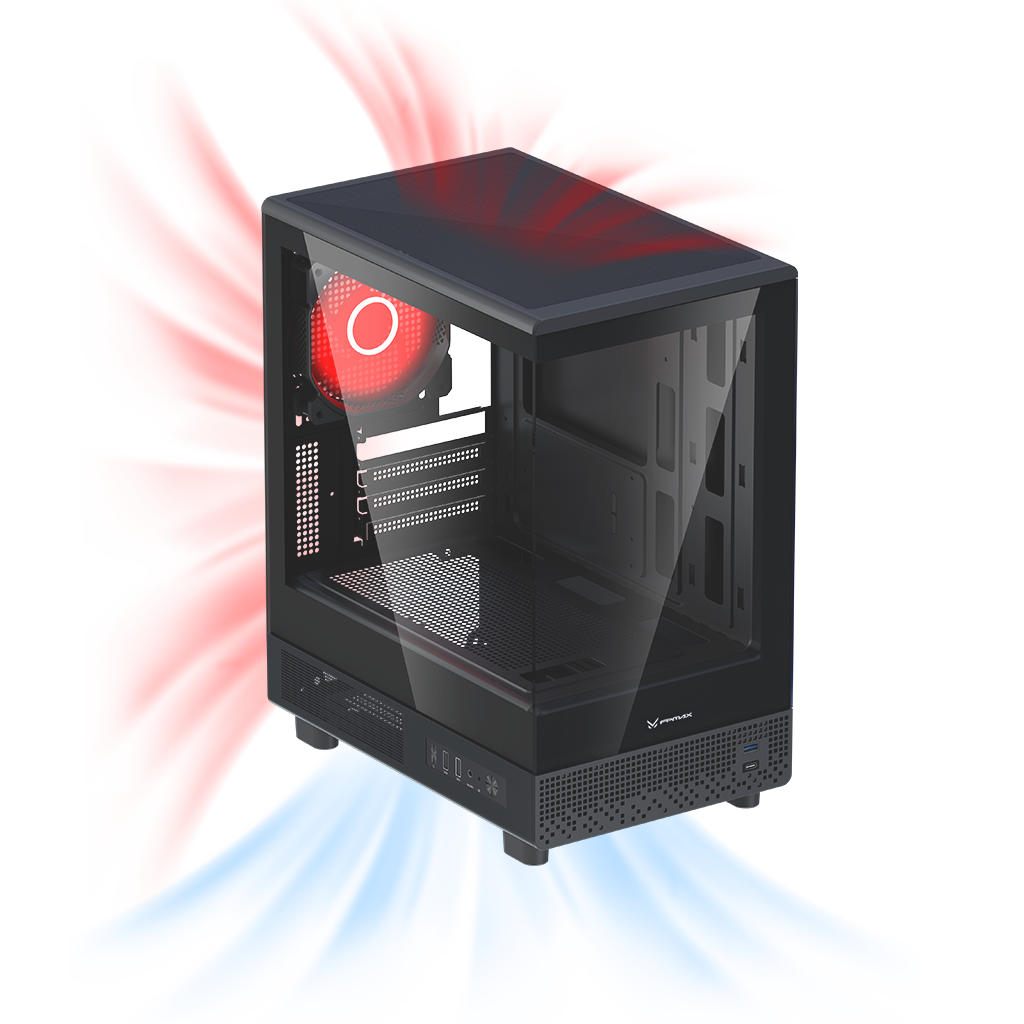

Three-dimensional cooling air ducts for powerful heat dissipation.
Solve the problem of internal heating
Multi-fan, efficient heat dissipation
Professional design, airflow covers the heating hardware
Guides internal heat out quickly
Radiators
240/280 water-cooling (top)
Fans

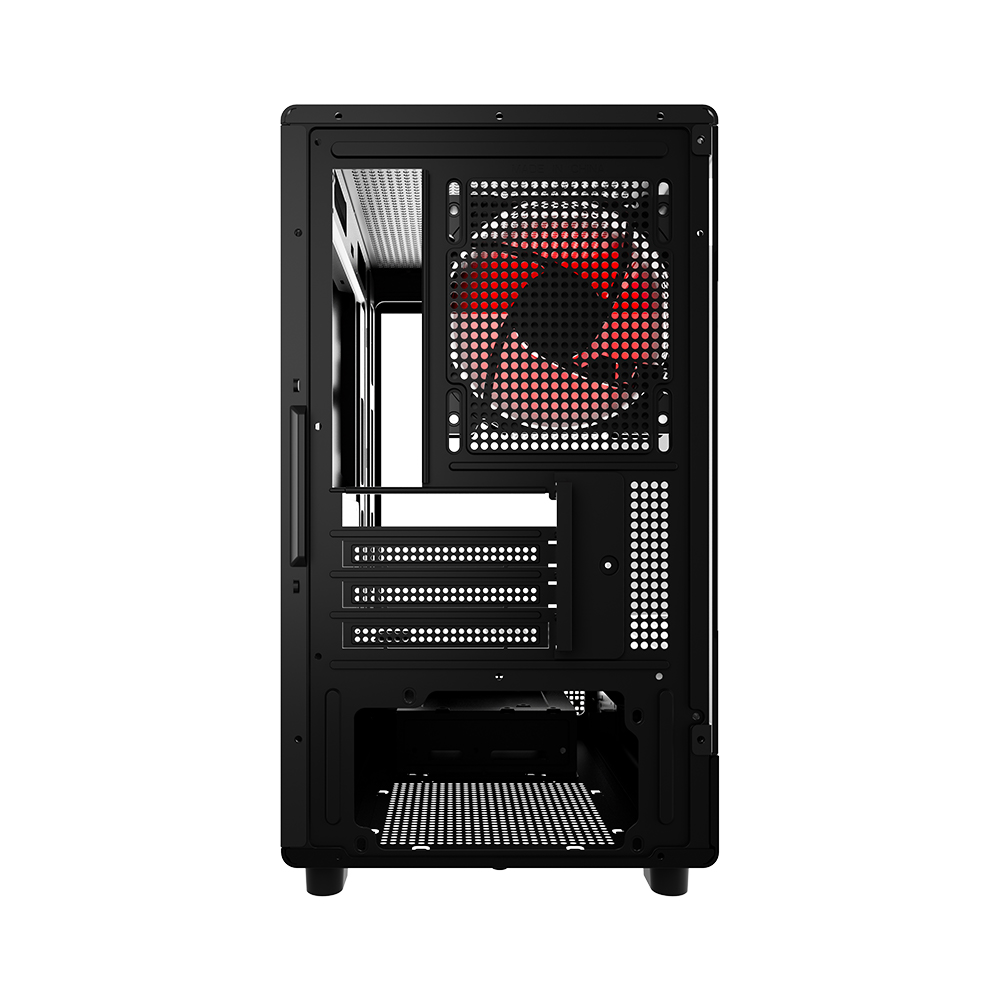

1*120mm (Rear)
2*120mm (Bottom)
2*120/140mm (Top)

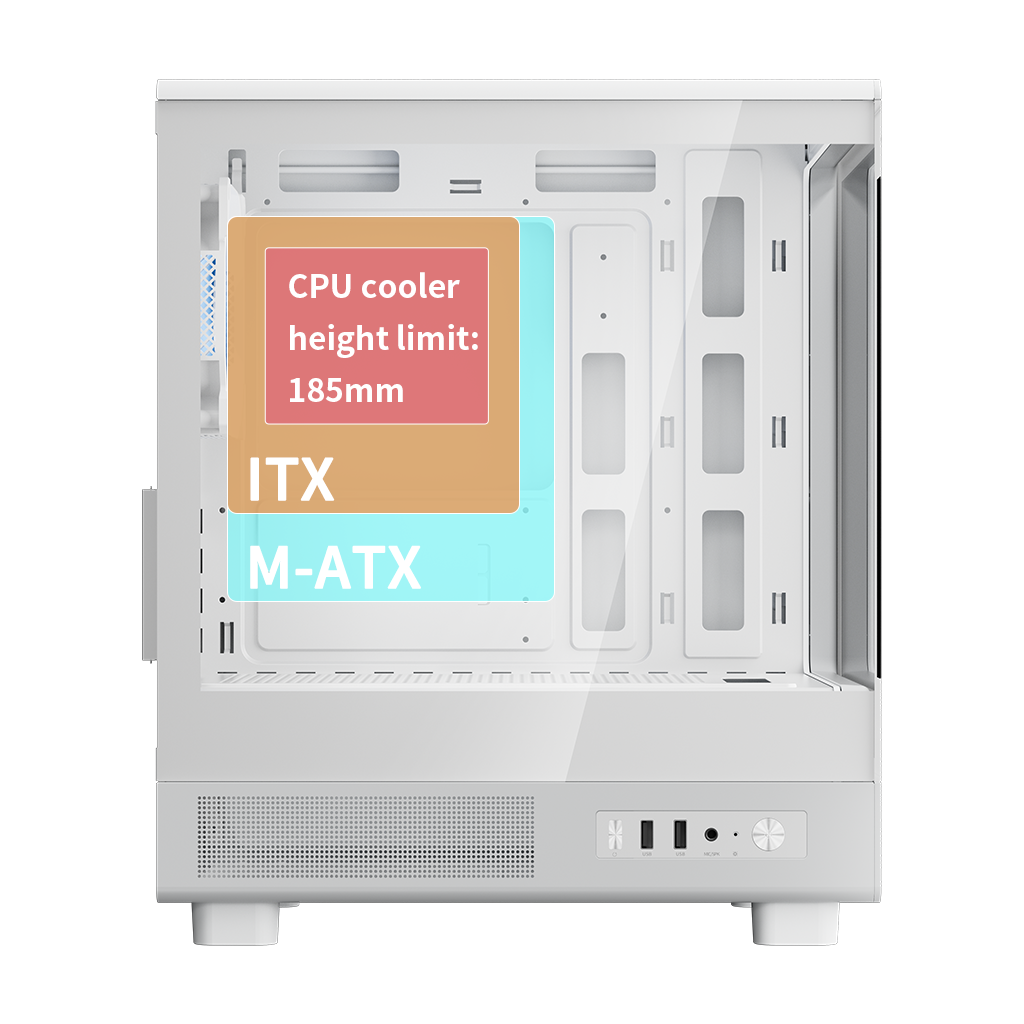

Large internal space
Supports multiple motherboard sizes M-ATX/Mini-ITX
CPU heat sink height limit 185mm
Chassis support for personalisation
Multiple hard drive locations available
3 hard drive bays available

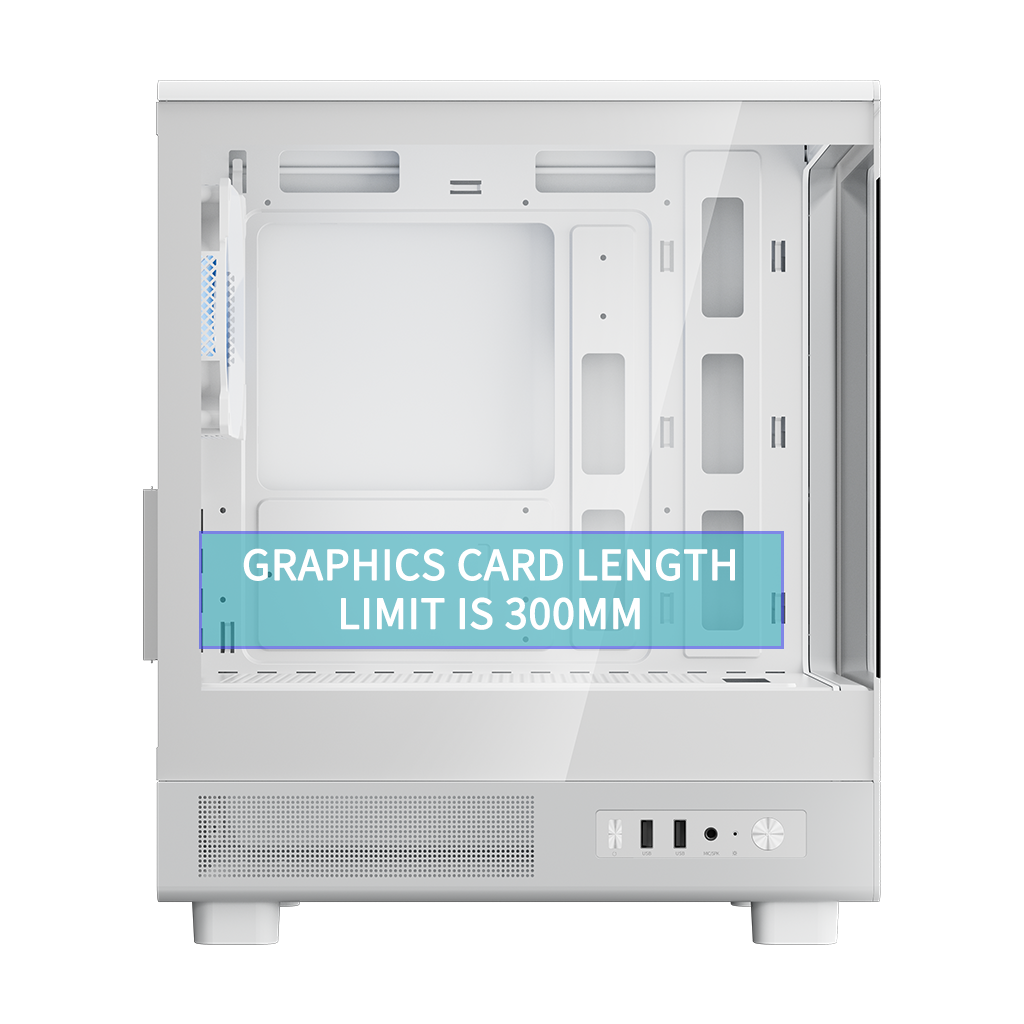

Large enough space for the length of the graphics card
Graphics card length limit is 300mm

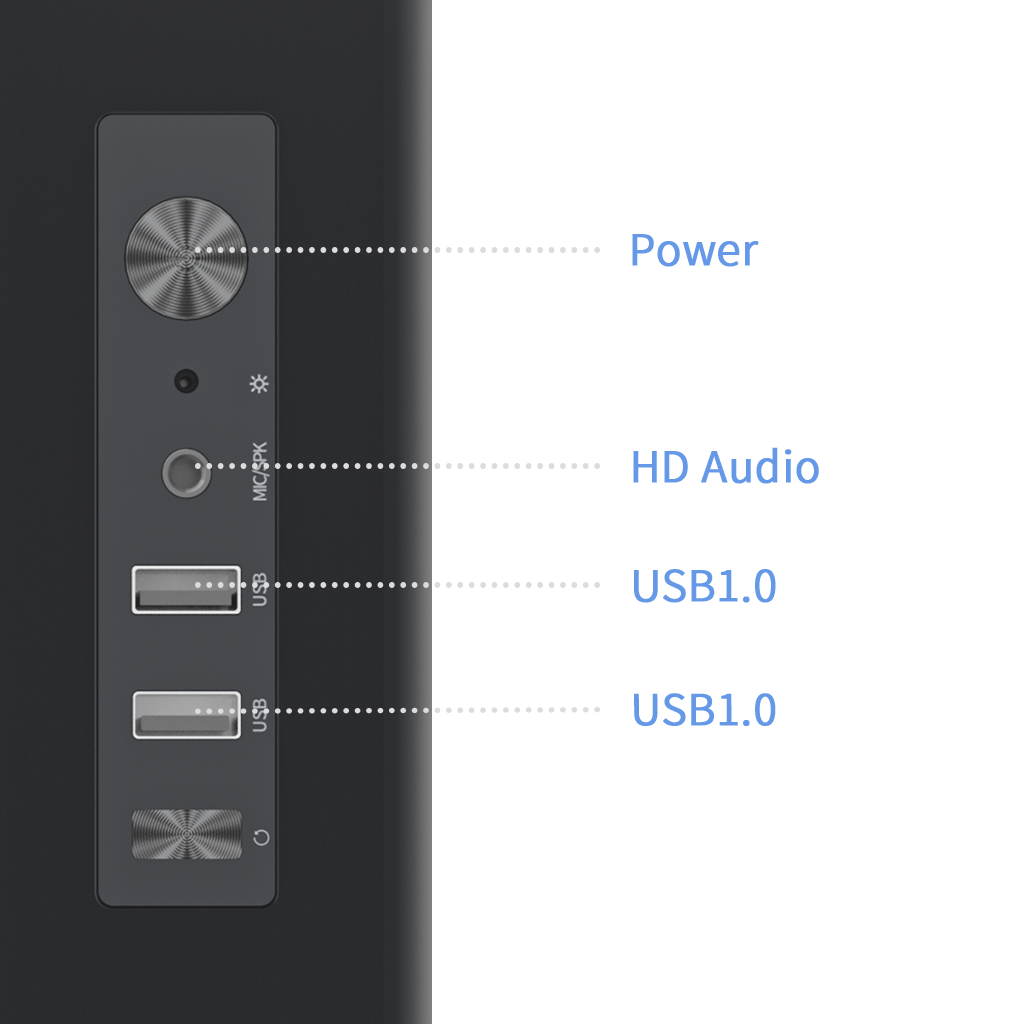

High speed transmission I/O interface
USB1.0*2, HD AUDIO
Data transfer is lightning fast, no need to be patient!
Technical Spec
Model NO | Diamond R3M |
Product size | 345*218*400mm(L*W*H) |
Inner size | 330*218*380mm(L*W*H) |
Material | Classs A SPCC 0.5MM |
M/B Support | M-ATX/MINI-ITX |
I/O port | Type-C , usb3.0*1 , USB2.0*2, HD AUDIO |
3.5'HDD | 2*3.5'HDD |
2.5'SSD | 1*2.5'SSD |
PCI-E Slots | 4 |
Pre-installed Fan(Black) | Rear: 1*120mm ARPW fan+Fan Hub |
Pre-installed Fan(White) | Rear: 1*120mm ARPW fan+Fan Hub |
Air Cooling | 1*120mm (Rear) 2*120mm (Bottom) 2*120/140mm (Top) |
Liquid Cooling | 240/280mm water-cooling (top) 120mm water-cooling (Rear) |
CPU Cooler | 180mm |
Graphics Cards | 300mm |
Accessories | Tempered Glass (Front&Left) |
Power Supply | ATX |
| EAN | Diamond R3M BK : 6973574164123 Diamond R3M WH : 6973574164116 |
