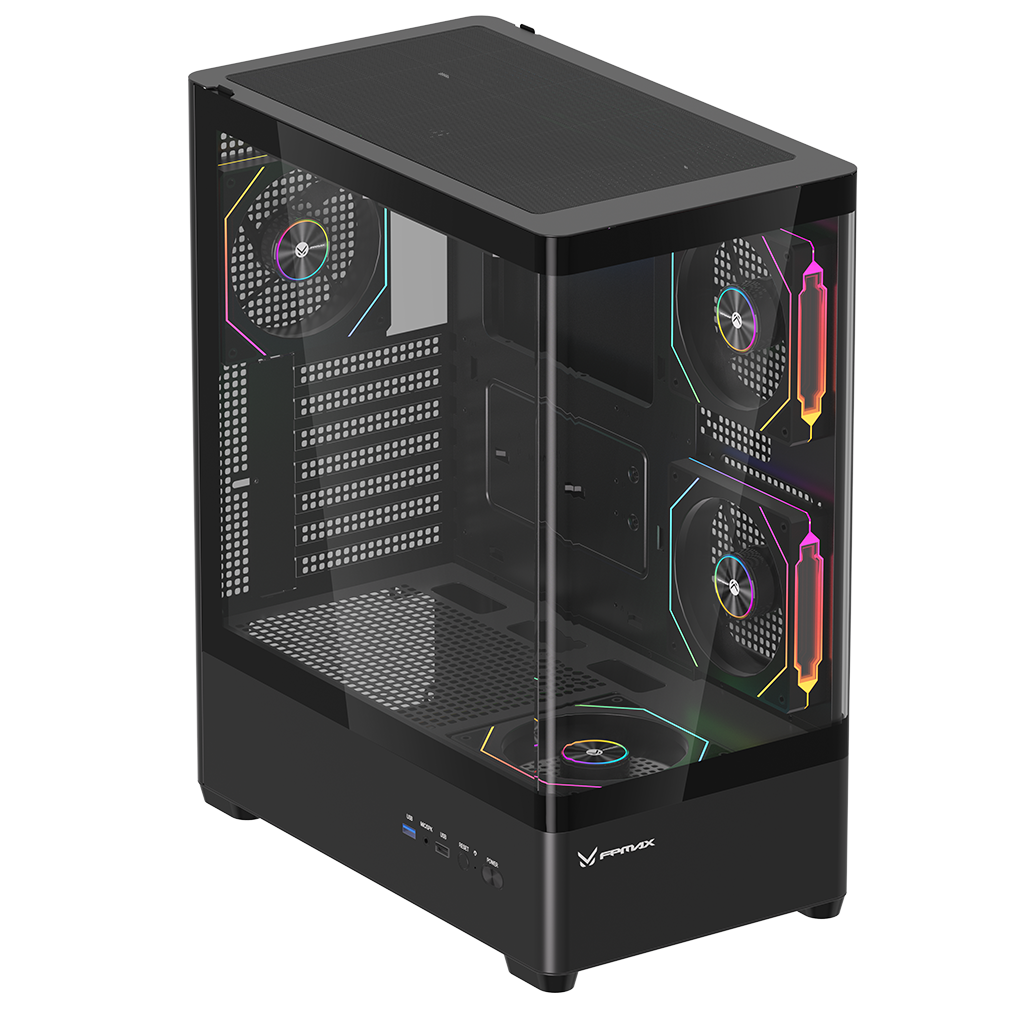

Diamond R4A PRO

Diamond R4A PRO

  • Sleek and Customizable Aesthetics: Available in black or white colors, our product lets you choose a color that matches your style and preference.

  • Exceptional Durability: Crafted from a thick 0.5mm SPCC steel plate, our product not only provides exceptional durability but also adds a touch of elegance to your setup.

  • Optimal Cooling Capabilities: With support for up to 240mm air/water cooling installation at the top and up to 6 fans, our product boasts a fully optimized internal circulation cooling system, ensuring outstanding cooling capabilities for superior performance.

  • Efficient Heat Dissipation System: The multi-directional heat dissipation and three-dimensional heat dissipation system guarantee efficient cooling from all directions.

  • Ample Storage Space: With support for 2 SSDs/HDDs, our product provides ample space for all your storage needs.

  • Experience unrivaled cooling performance, seamless aesthetics, and hassle-free maintenance with our state-of-the-art product!


Variant

Color

  • facebook
  • instagram
  • youtube
  • linkedin
  • tiktok

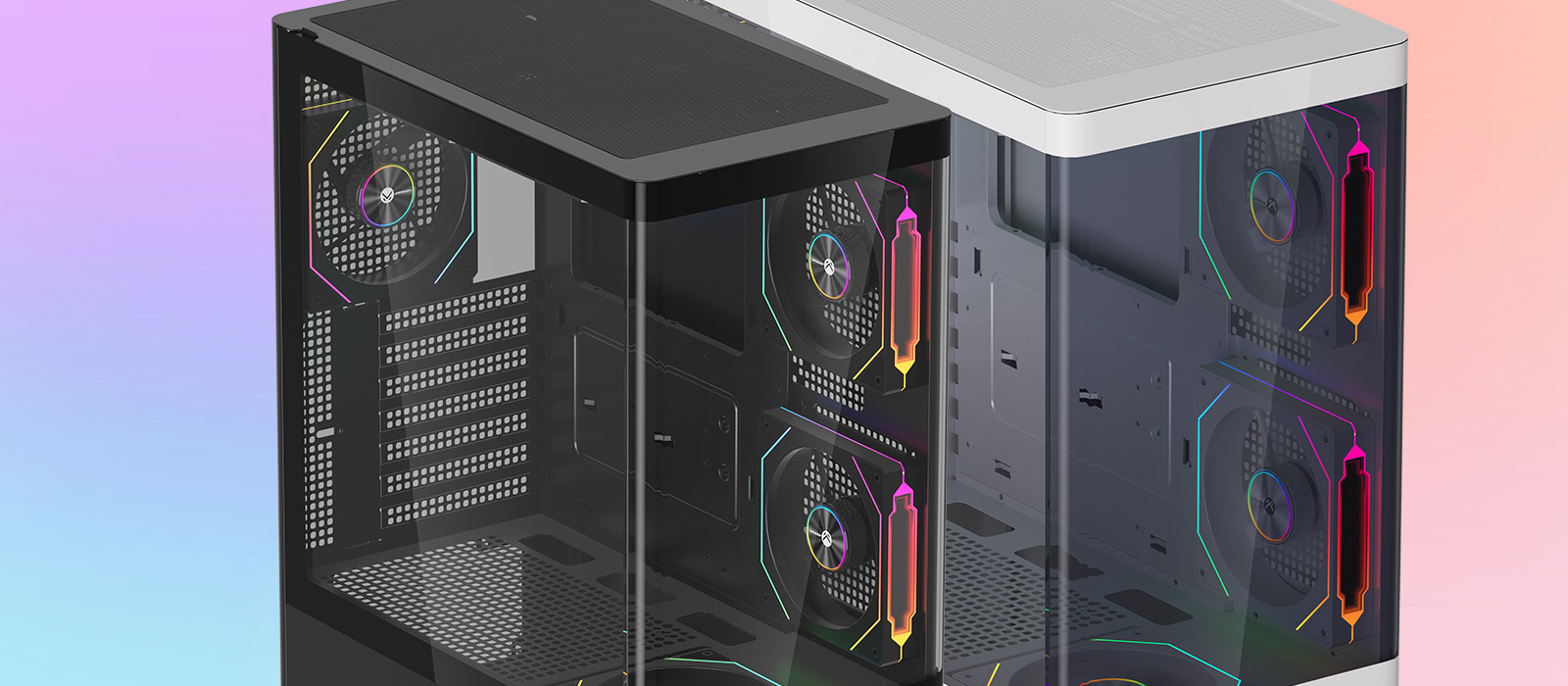

videopic

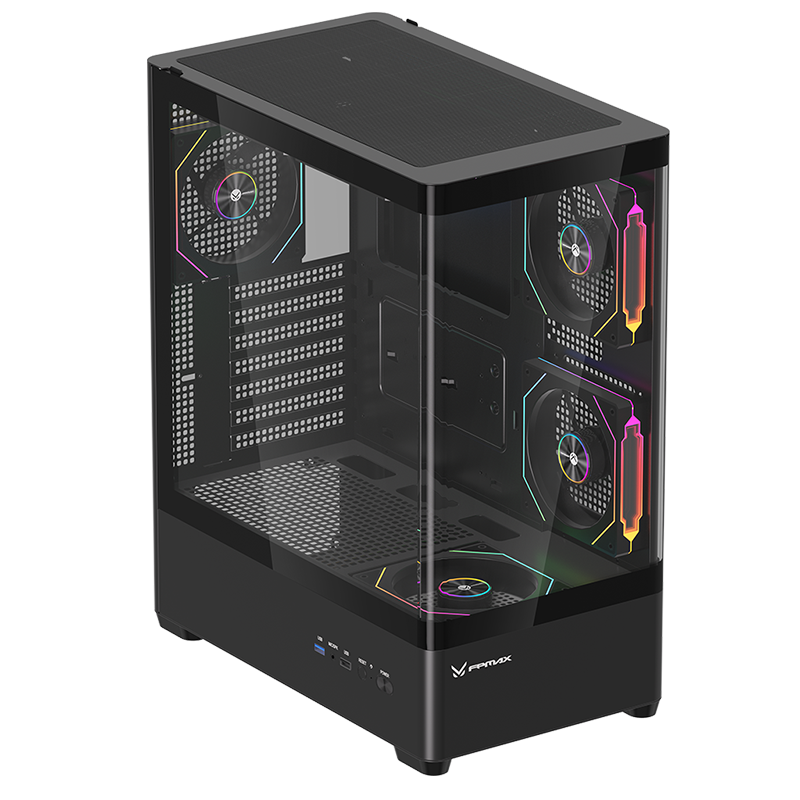

Diamond R4A PRO

productimg

Diamond R4A PRO

Colourful fans illuminate the internal structure and addmore colour to the chassis

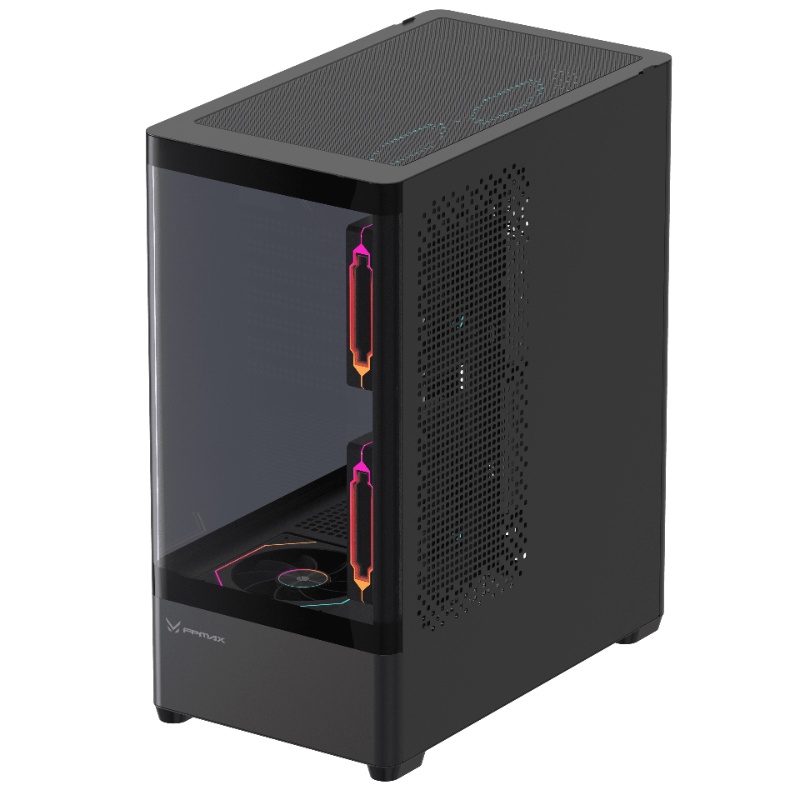

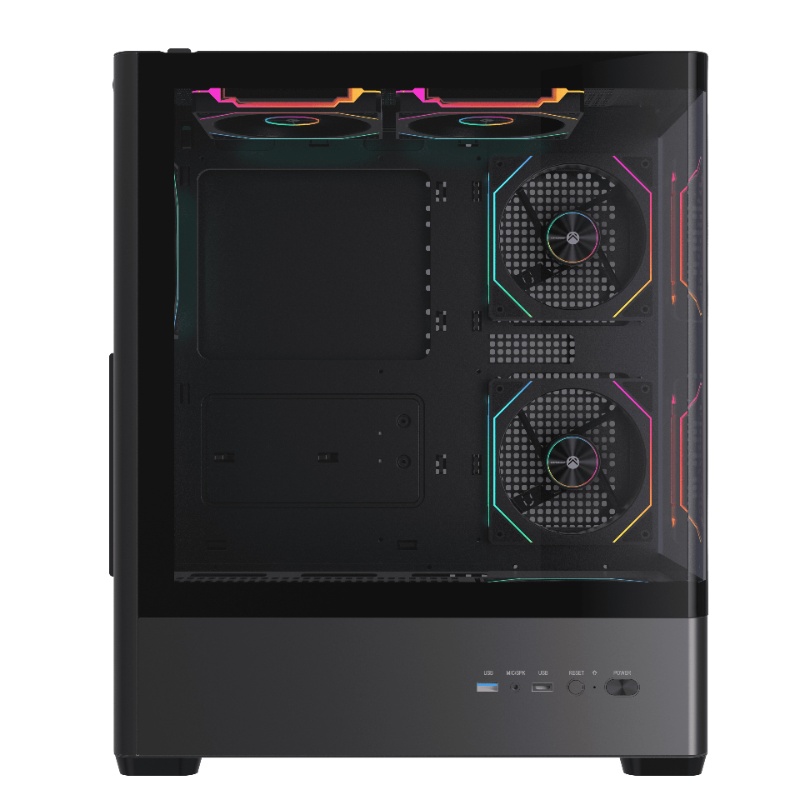

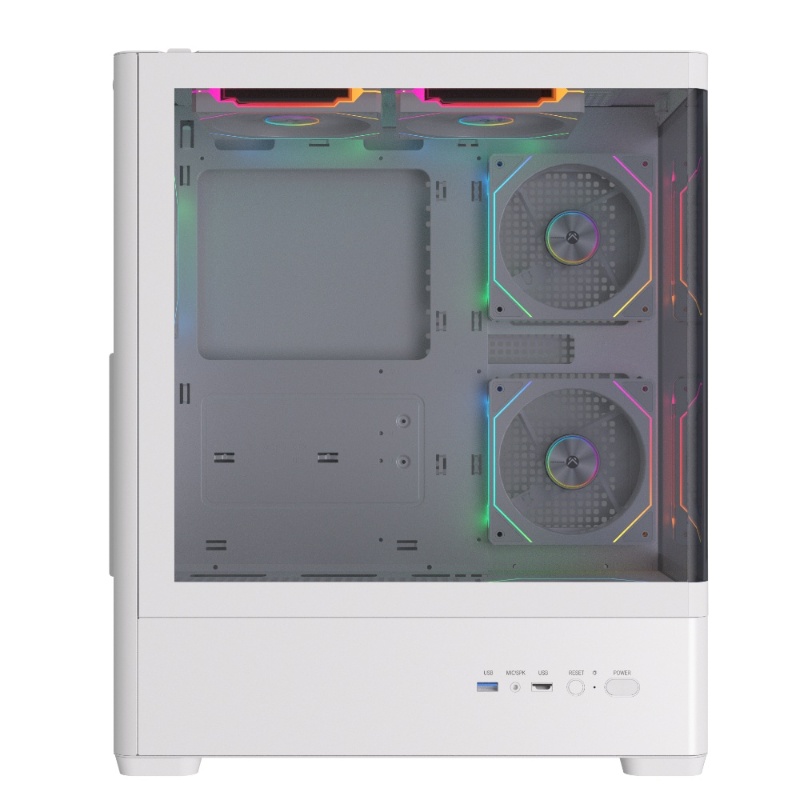

Black or white, make your choice.


Toughened glass panel

Visualisation of chassis fan coloured light

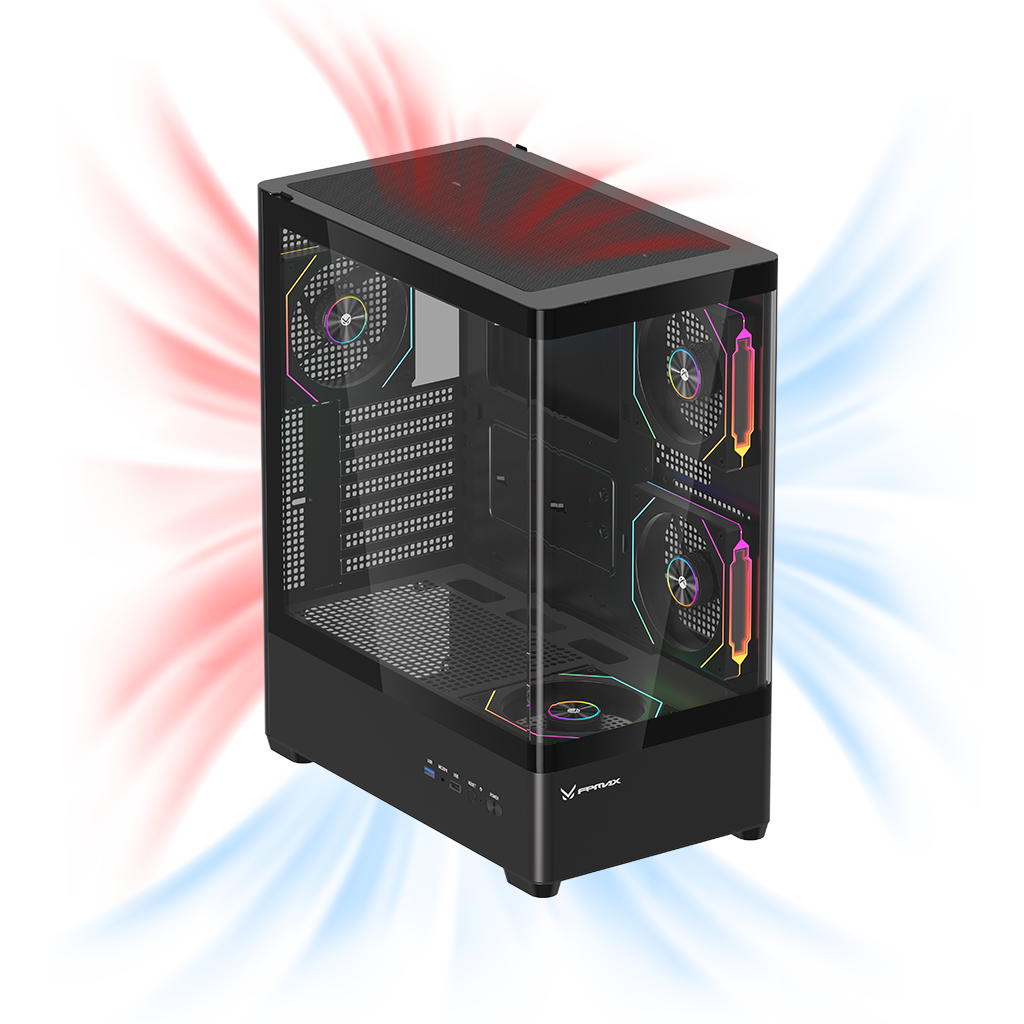

Three-dimensional cooling air ducts for powerful heat dissipation.

Solve the problem of internal heating

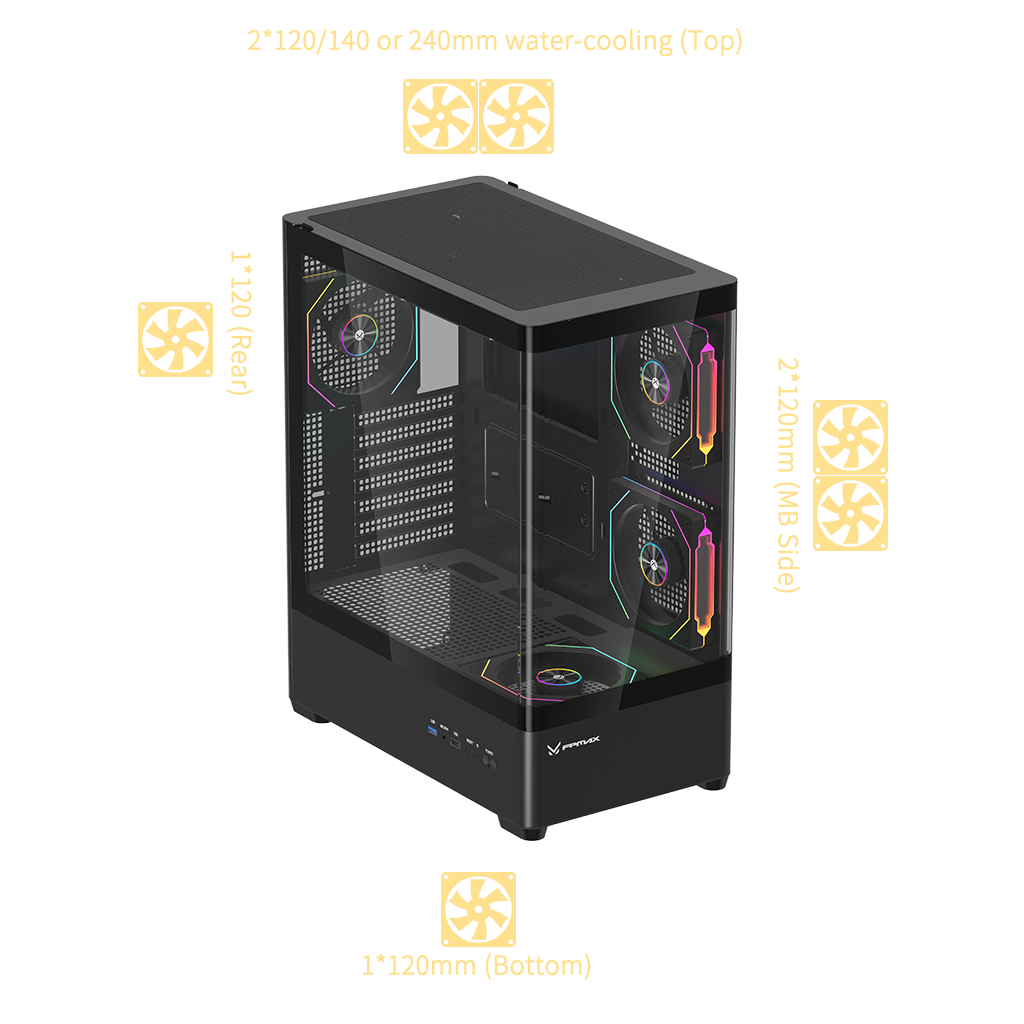

Six Mounts Under a 240

Two 120mm or two 140mm up top, two on the side, one on the floor and one at the rear — six positions, with a 240mm radiator accepted across the top.

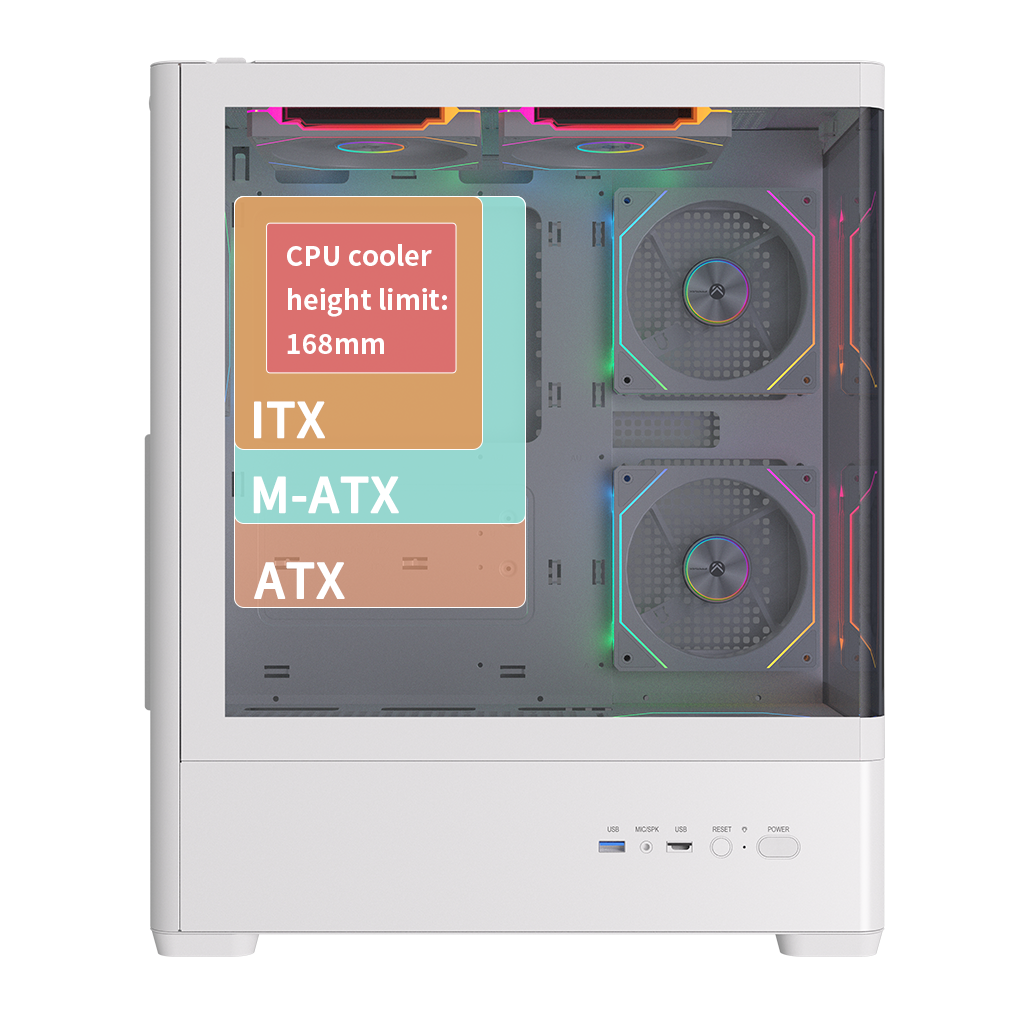

Large internal space

Supports multiple motherboard sizes ATX/M-ATx/Mini-ITX CPU heat sink height limit 168mm.


Two Bays Behind the Tray

One 3.5-inch and one 2.5-inch mount sit behind the motherboard tray, out of the chamber and out of the light.


A Card That Runs the Depth

There are 362mm between the rear bracket and the glass in a 378mm-deep tower.

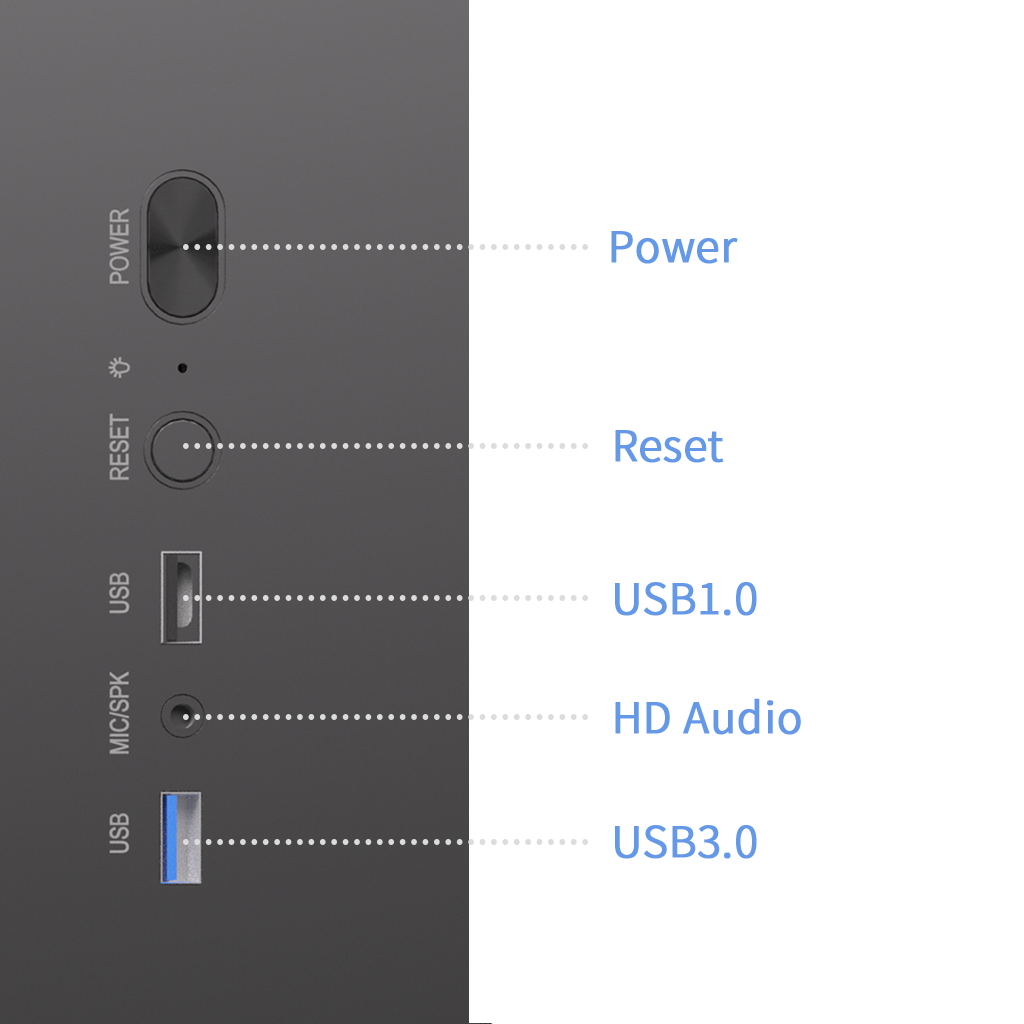

High speed transmission I/O interface

USB3.0*1, USB1.0*1,HD AUDIO

Data transfer is lightning fast, no need to be patient!


Color Options

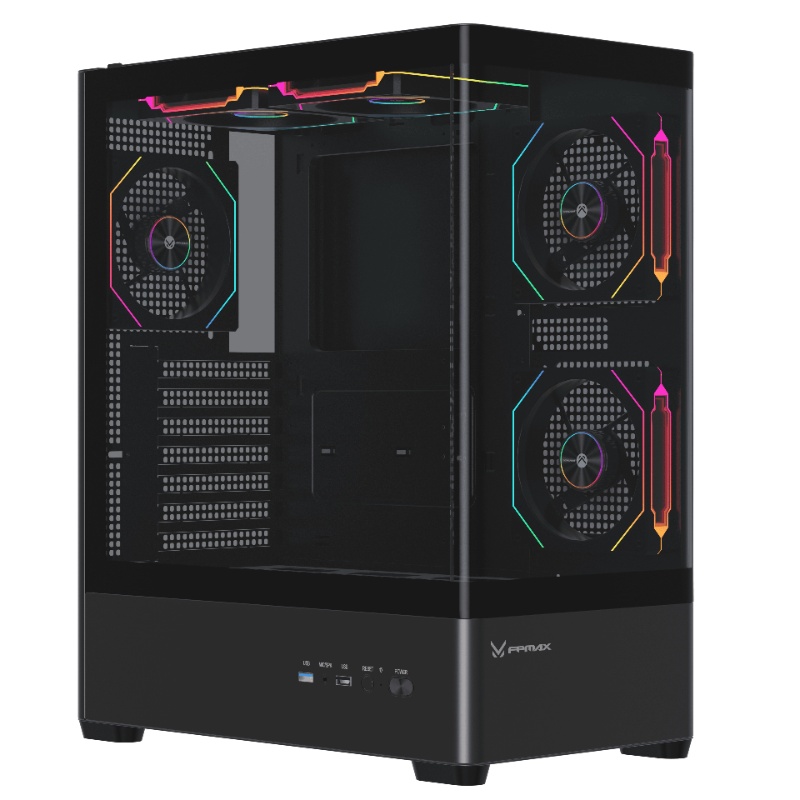

Black

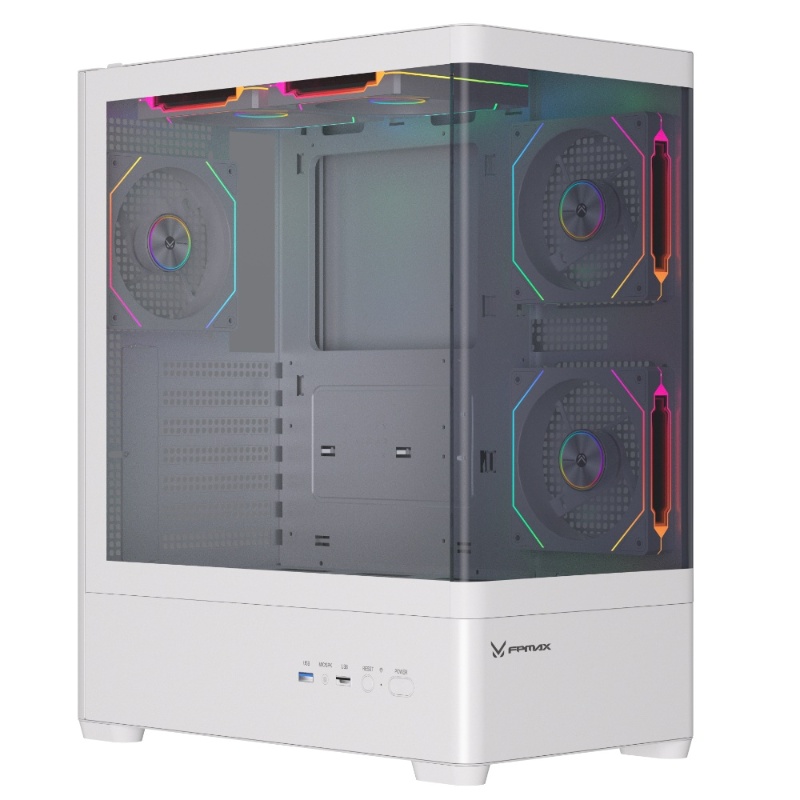

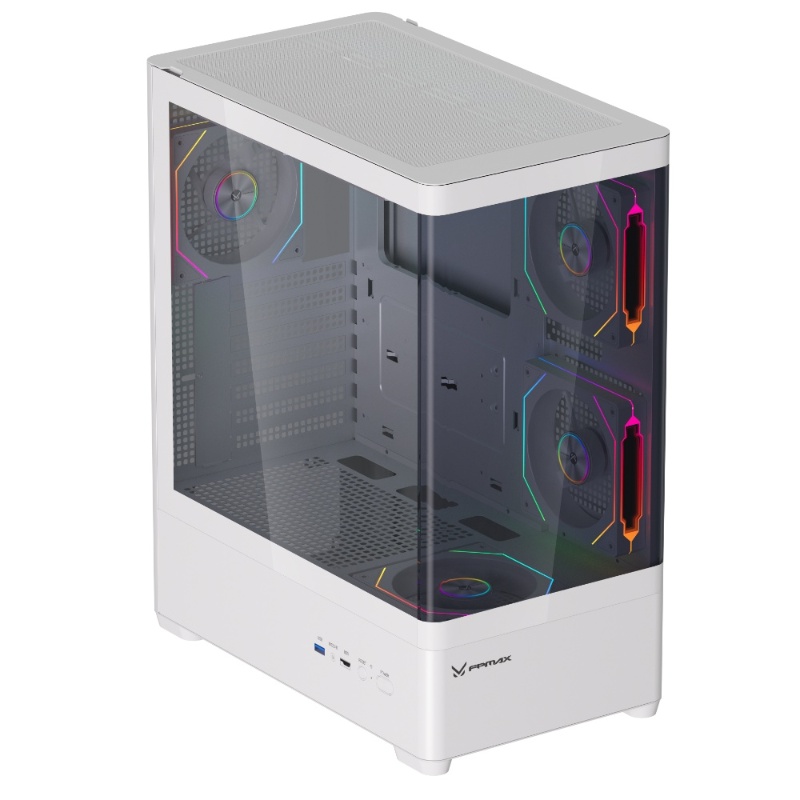

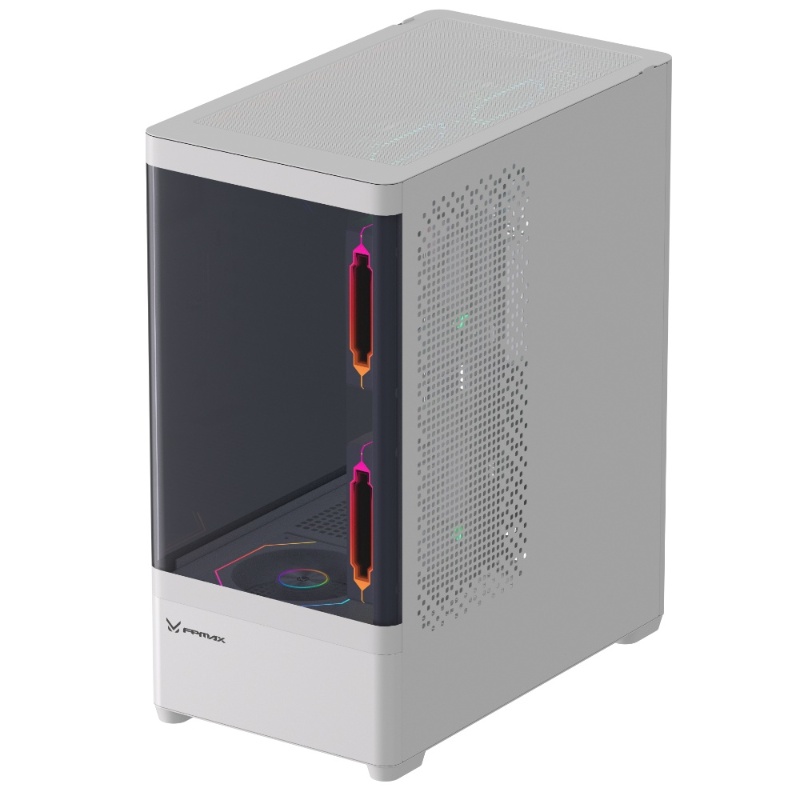

White

Technical Spec

Model NO

Diamond R4A PRO

Diamond R4A PRO LUMADiamond R4A PRO NOVA

Product size

378*220*457mm(L*W*H)

378*220*457mm(L*W*H)378*220*457mm(L*W*H)

Material

Classs A SPCC 0.50MM

Classs A SPCC 0.50MM

Classs A SPCC 0.50MM

M/B Support

ATX/M-ATX/Mini-ITX

ATX/M-ATX/Mini-ITX

ATX/M-ATX/Mini-ITX

I/O port

USB3.0*1, USB1.0*1, HD AUDIO

USB3.0*1, USB1.0*1, HD AUDIO

USB3.0*1, USB1.0*1, HD AUDIO

3.5'HDD

1*3.5'HDD

1*3.5'HDD

1*3.5'HDD

2.5'SSD

1*2.5'SSD

1*2.5'SSD

1*2.5'SSD

PCI-E Slots

7

7

7

Air Cooling

Top: 2*120/140mm (Option)

MB Side: 2*120mm (Option)

Bottom: 1*120mm (Option)

Rear: 1*120mm (Option)

Top: 2*120/140mm (Option)

MB Side: 2*LUMA 12 FRGB (Pre-Installed)

Bottom: 1*LUMA 12 FRGB (Pre-Installed)

Rear: 1*120mm (Option)

Top: 2*120/140mm (Option)

MB Side: 2*NOVA 12 ARPW (Pre-Installed)

Bottom: 1*NOVA 12 ARPW (Pre-Installed)

Rear: 1*120mm (Option)

Liquid Cooling

240mm water-cooling (Top)

240mm water-cooling (Top)

240mm water-cooling (Top)

FANS HUB

/

/

1

CPU Cooler

168mm

168mm

168mm

Graphics Cards

362mm

362mm

362mm

Power Supply

ATX

ATX

ATX

EAN

Diamond R4A PRO BK : 6973574163171

Diamond R4A PRO WH : 6973574163140

Diamond R4A PRO LUMA BK : 6973574163133

Diamond R4A PRO LUMA WH : 6973574163126

Diamond R4A PRO NOVA BK : 6973574163119

Diamond R4A PRO NOVA WH : 6973574163102
