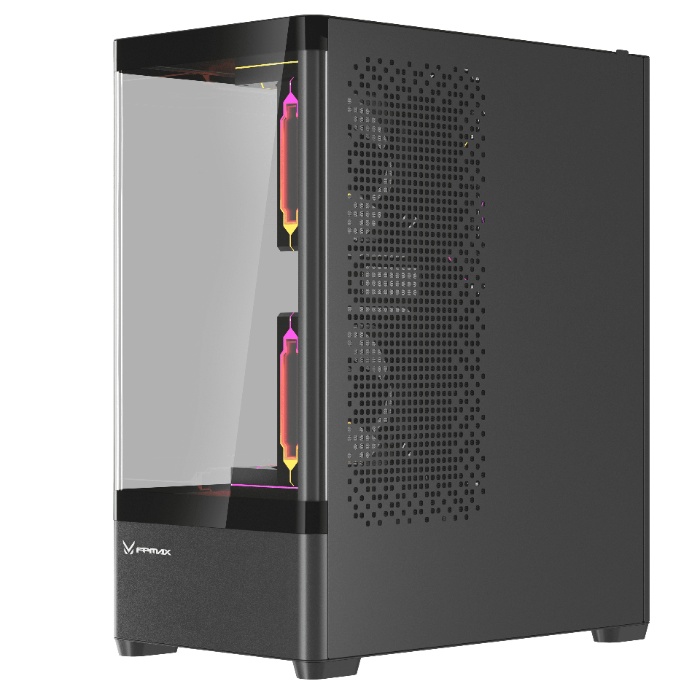

Diamond R4A
Mid Tower Case
Sleek and Customizable Aesthetics: Available in black or white colors, our product lets you choose a color that matches your style and preference.
Exceptional Durability: Crafted from a thick 0.5mm SPCC steel plate, our product not only provides exceptional durability but also adds a touch of elegance to your setup.
Optimal Cooling Capabilities: With support for up to 240mm air/water cooling installation at the top and up to 7 fans, our product boasts a fully optimized internal circulation cooling system, ensuring outstanding cooling capabilities for superior performance.
Efficient Heat Dissipation System: The multi-directional heat dissipation and three-dimensional heat dissipation system guarantee efficient cooling from all directions.
Ample Storage Space: With support for 2 SSDs/HDDs, our product provides ample space for all your storage needs.
Experience unrivaled cooling performance, seamless aesthetics, and hassle-free maintenance with our state-of-the-art product!
Diamond R4A
Diamond R4A
Colourful fans illuminate the internal structure and addmore colour to the chassis

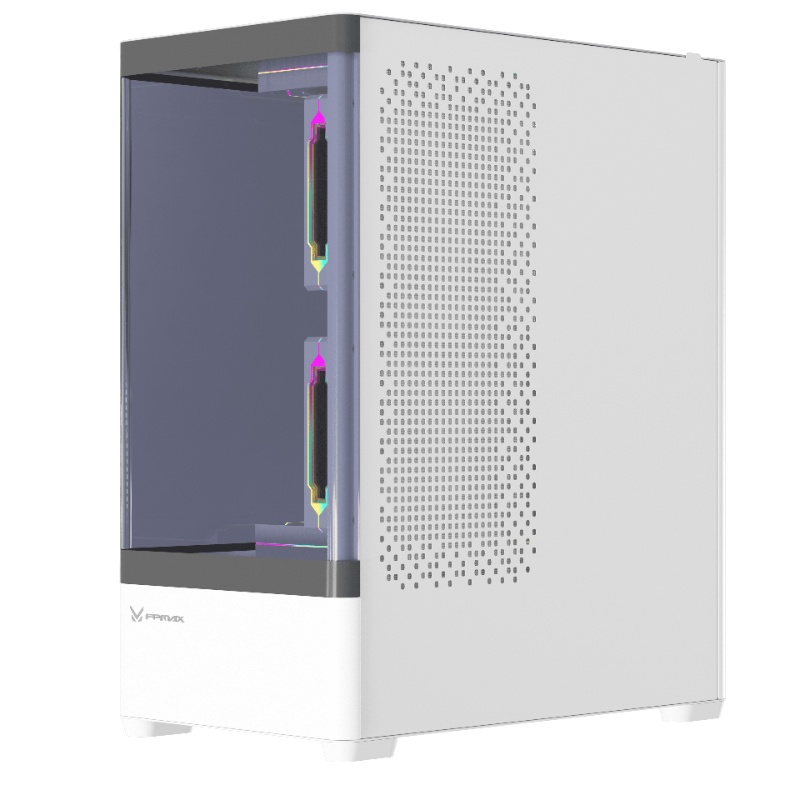

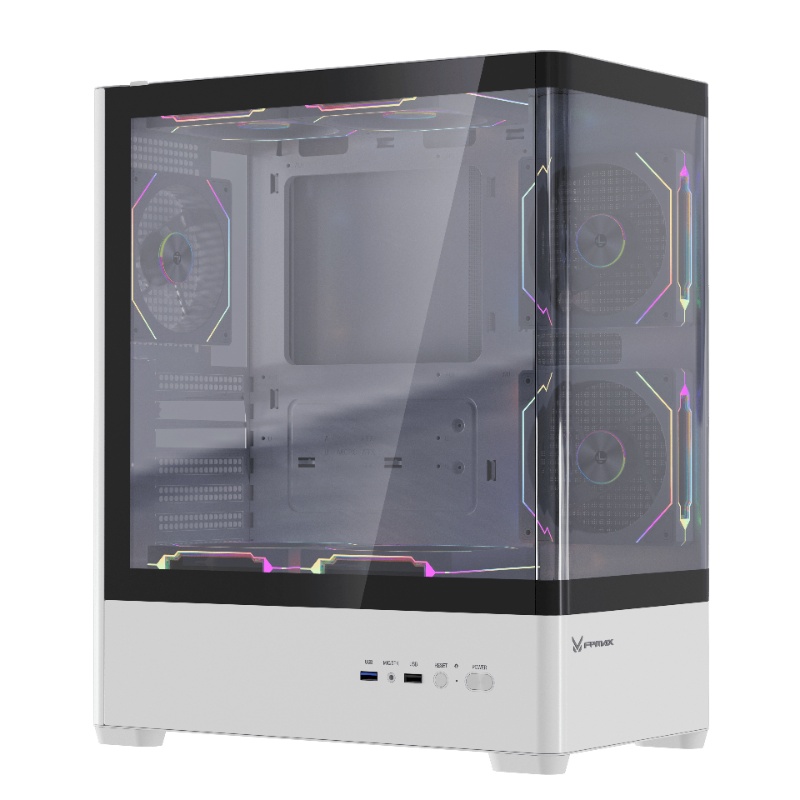

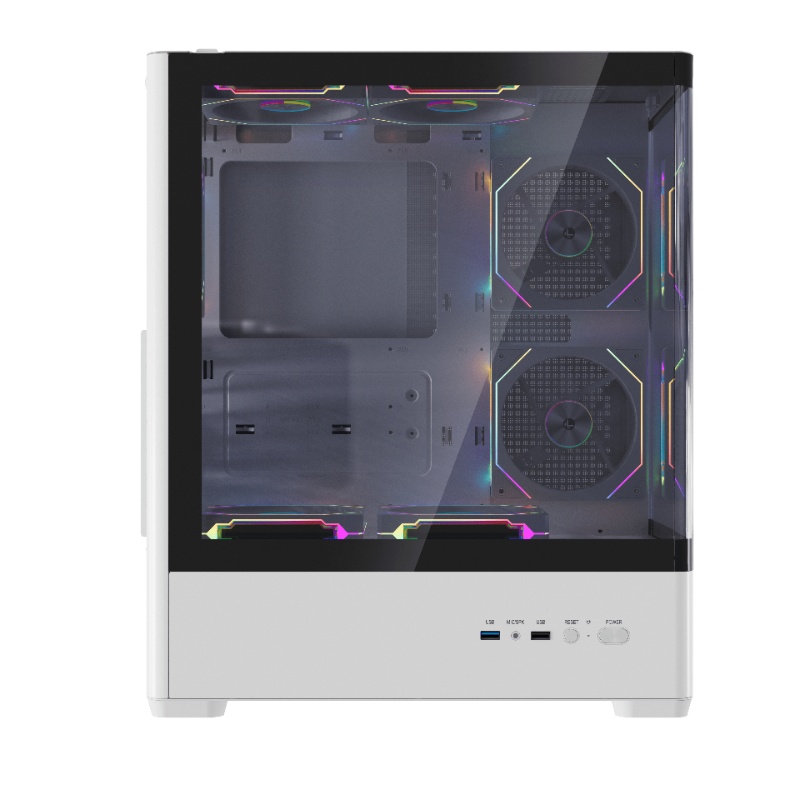

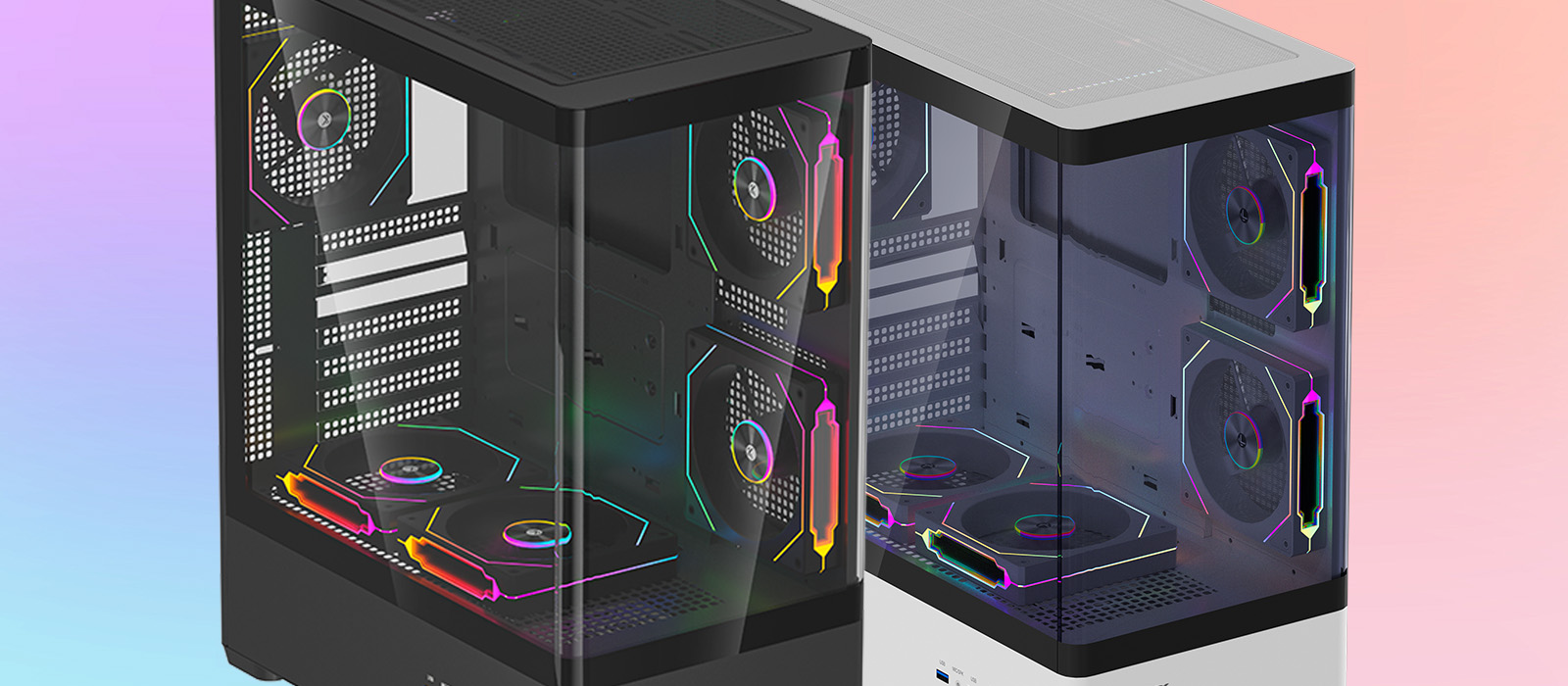

Black or white, make your choice.

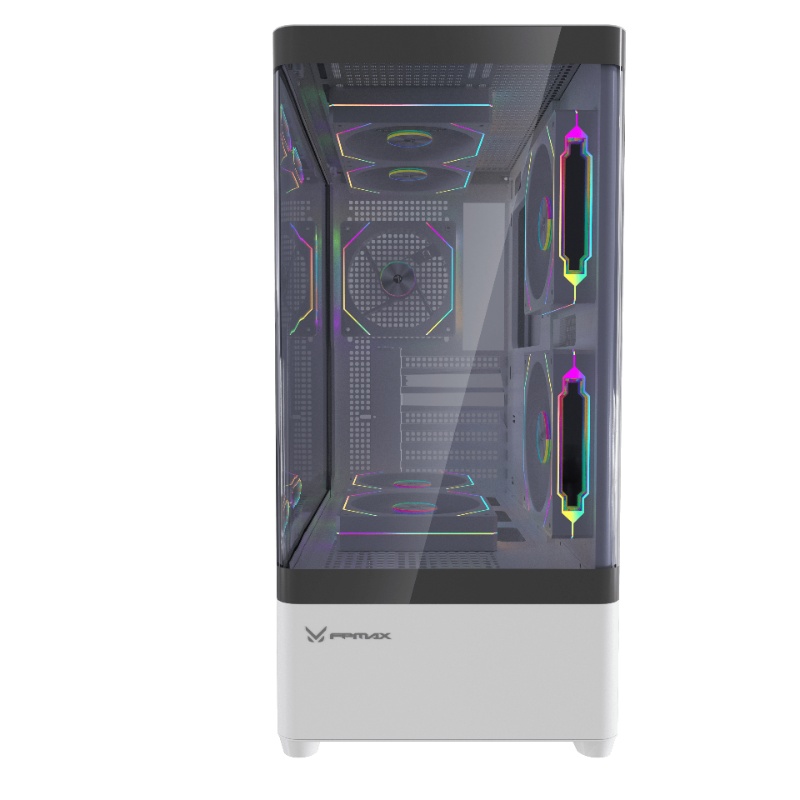

Toughened glass panel

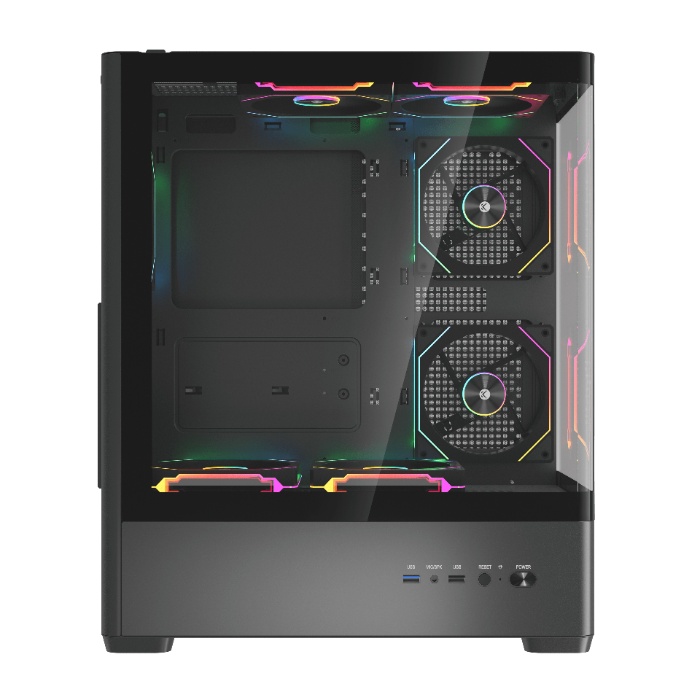

Visualisation of chassis fan coloured light

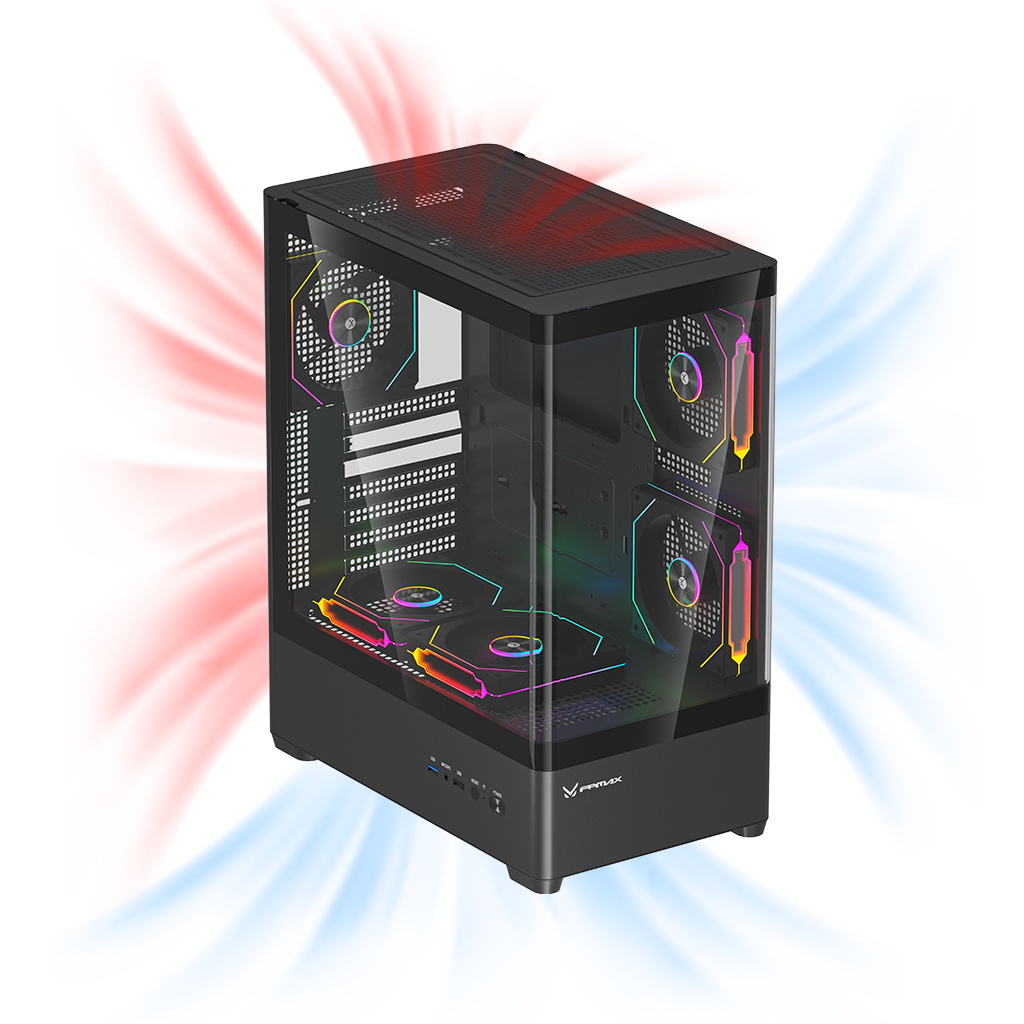

Three-dimensional cooling air ducts for powerful heat dissipation.
Solve the problem of internal heating

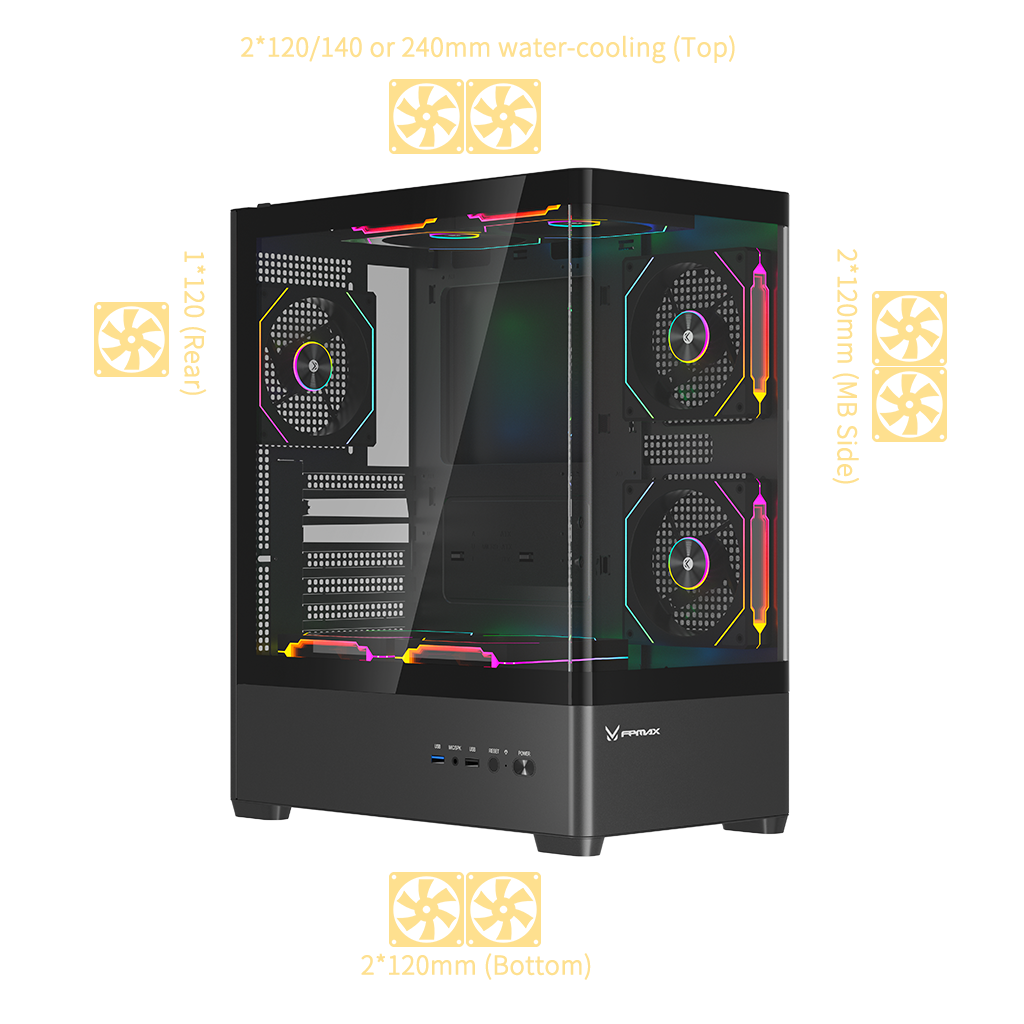

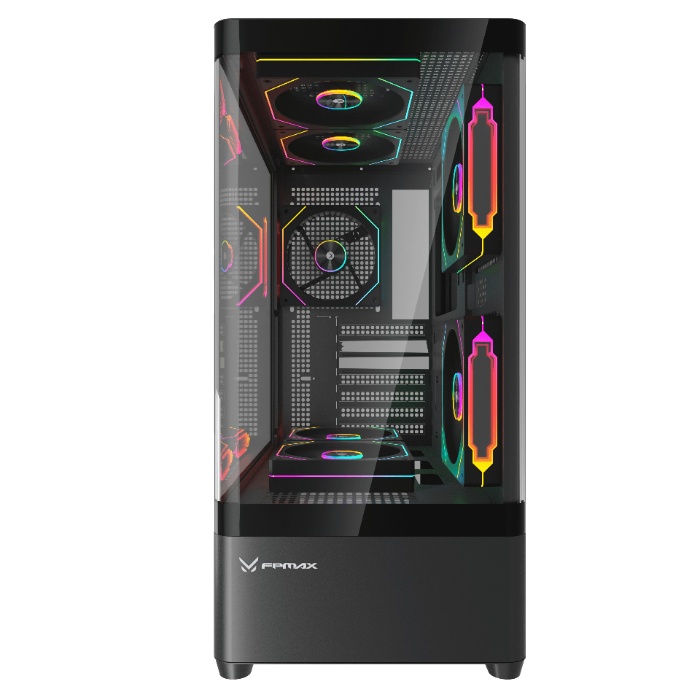

Seven Mounts, One 240
Two 120mm or two 140mm up top, two on the motherboard side, two along the floor and one at the rear — seven positions, with a 240mm radiator accepted across the top.

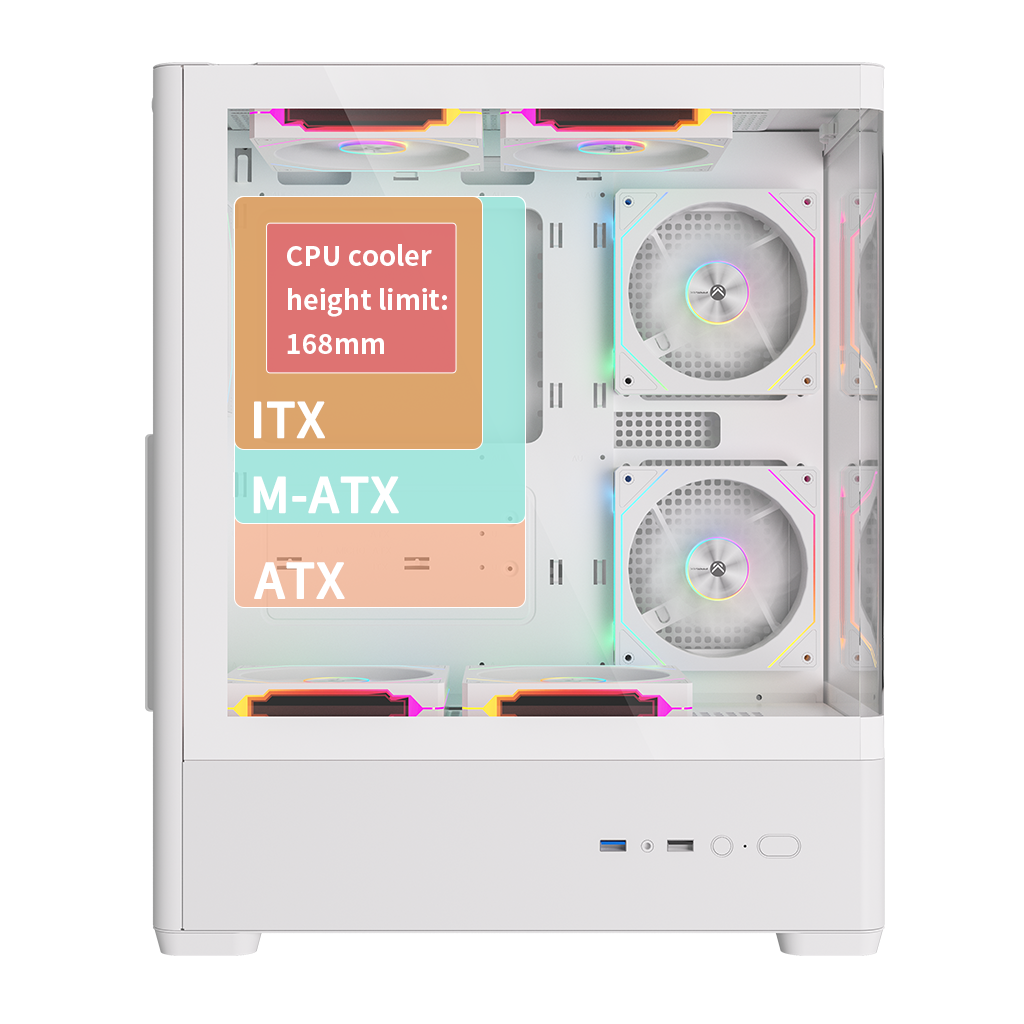

Large internal space
Supports multiple motherboard sizes ATX/M-ATx/Mini-ITX CPU heat sink height limit 168mm.

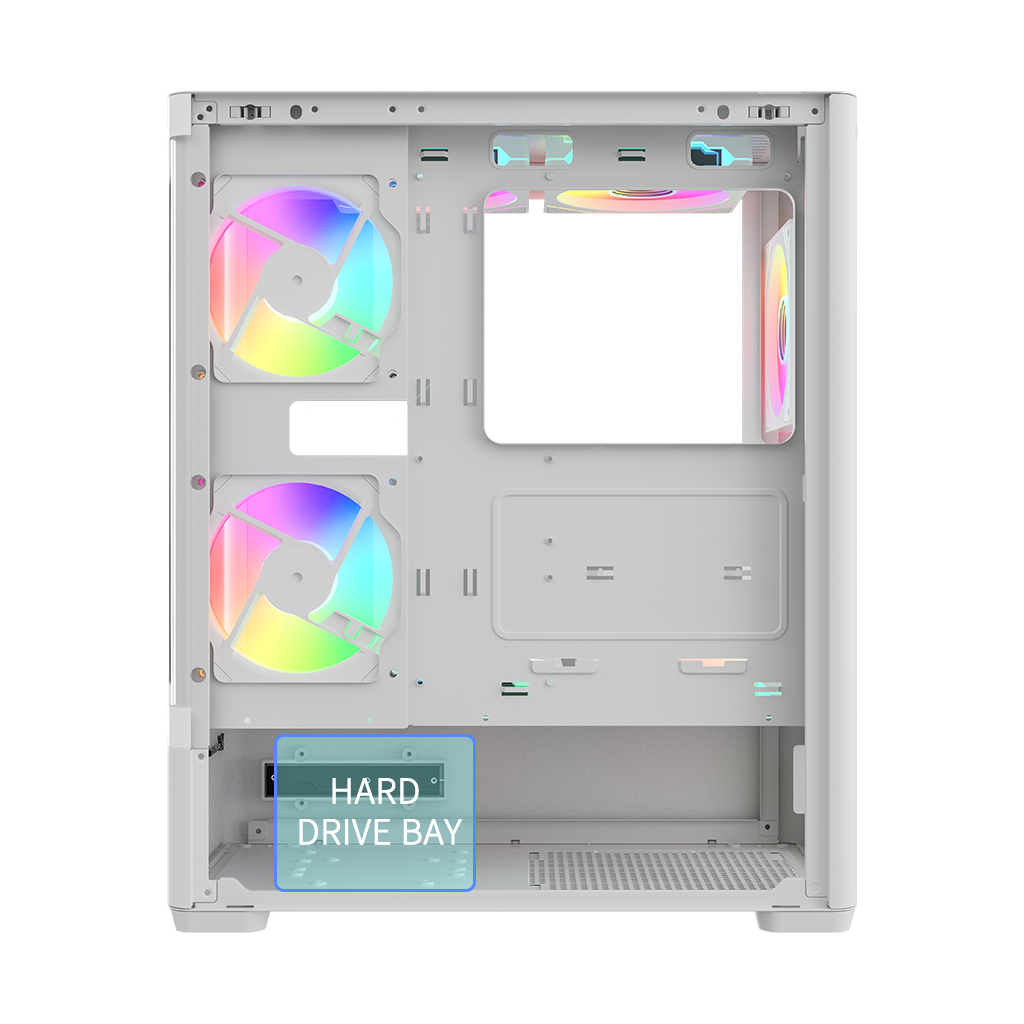

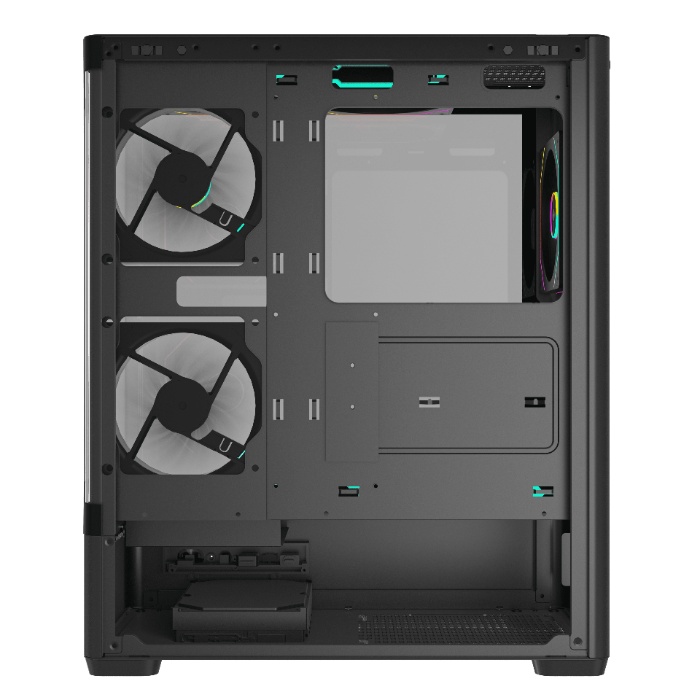

Two Bays Behind the Tray
One 3.5-inch and one 2.5-inch mount sit behind the motherboard tray, out of the chamber and out of the light.

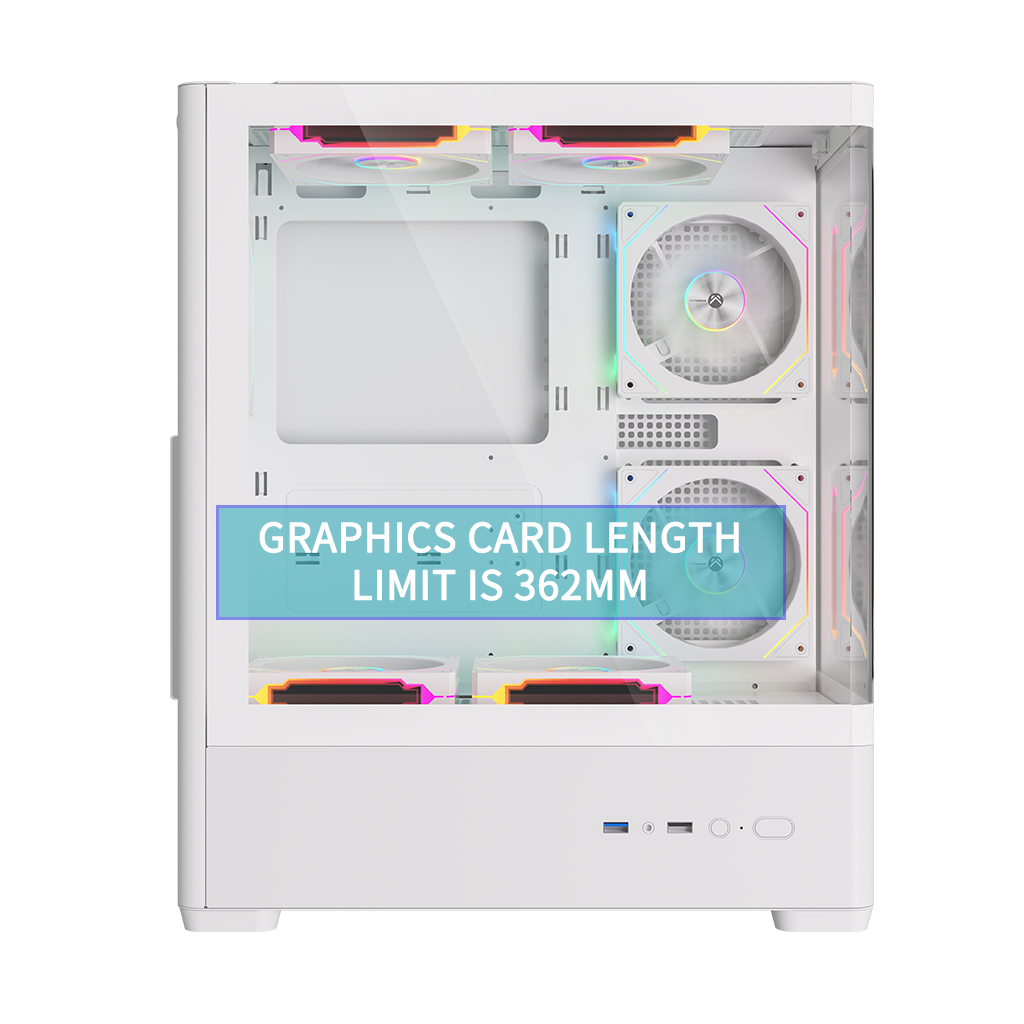

A Card That Runs the Depth
There are 362mm between the rear bracket and the glass in a 378mm-deep tower.

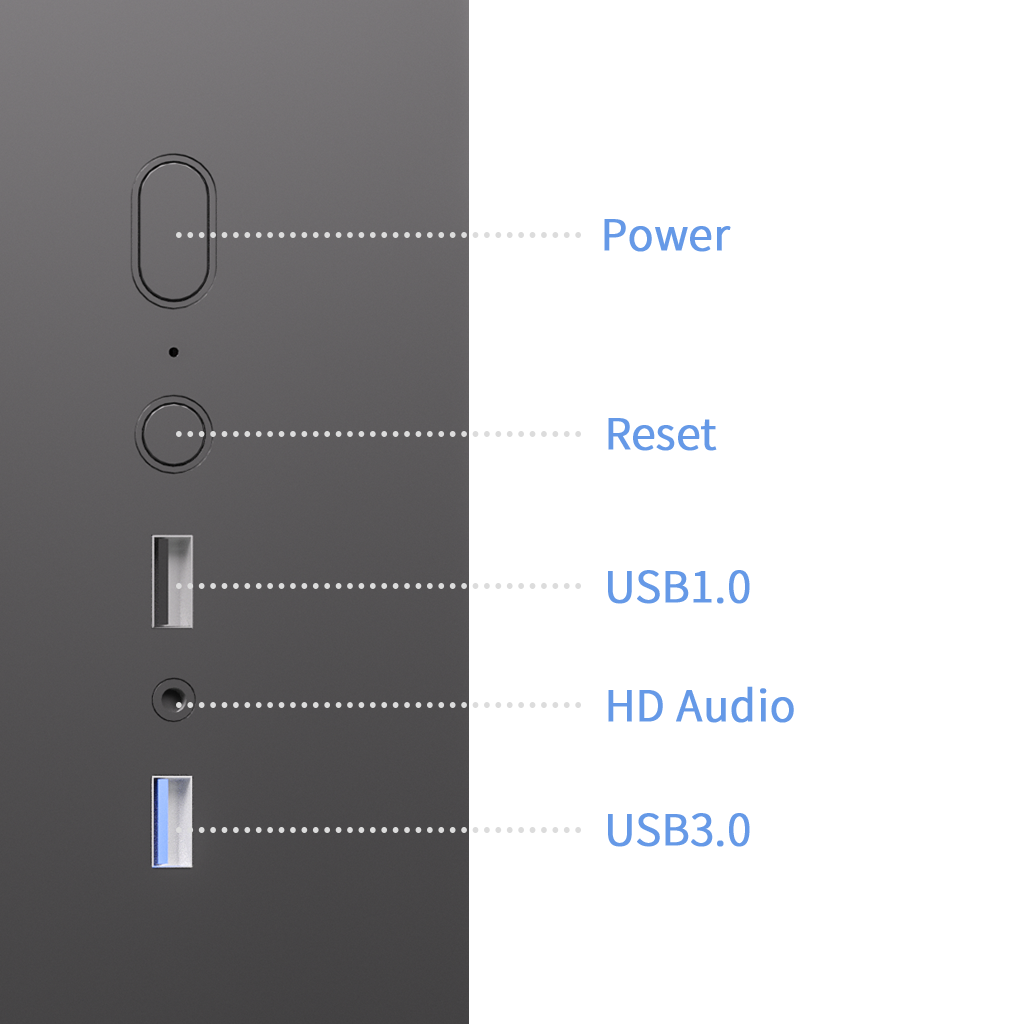

High speed transmission I/O interface
USB3.0*1, USB1.0*1, HD AUDIO
Data transfer is lightning fast, no need to be patient!


Color Options

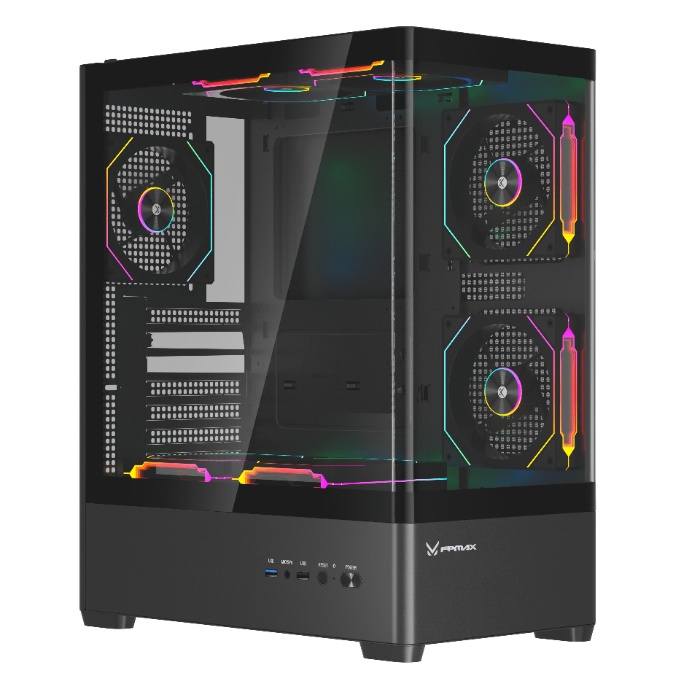

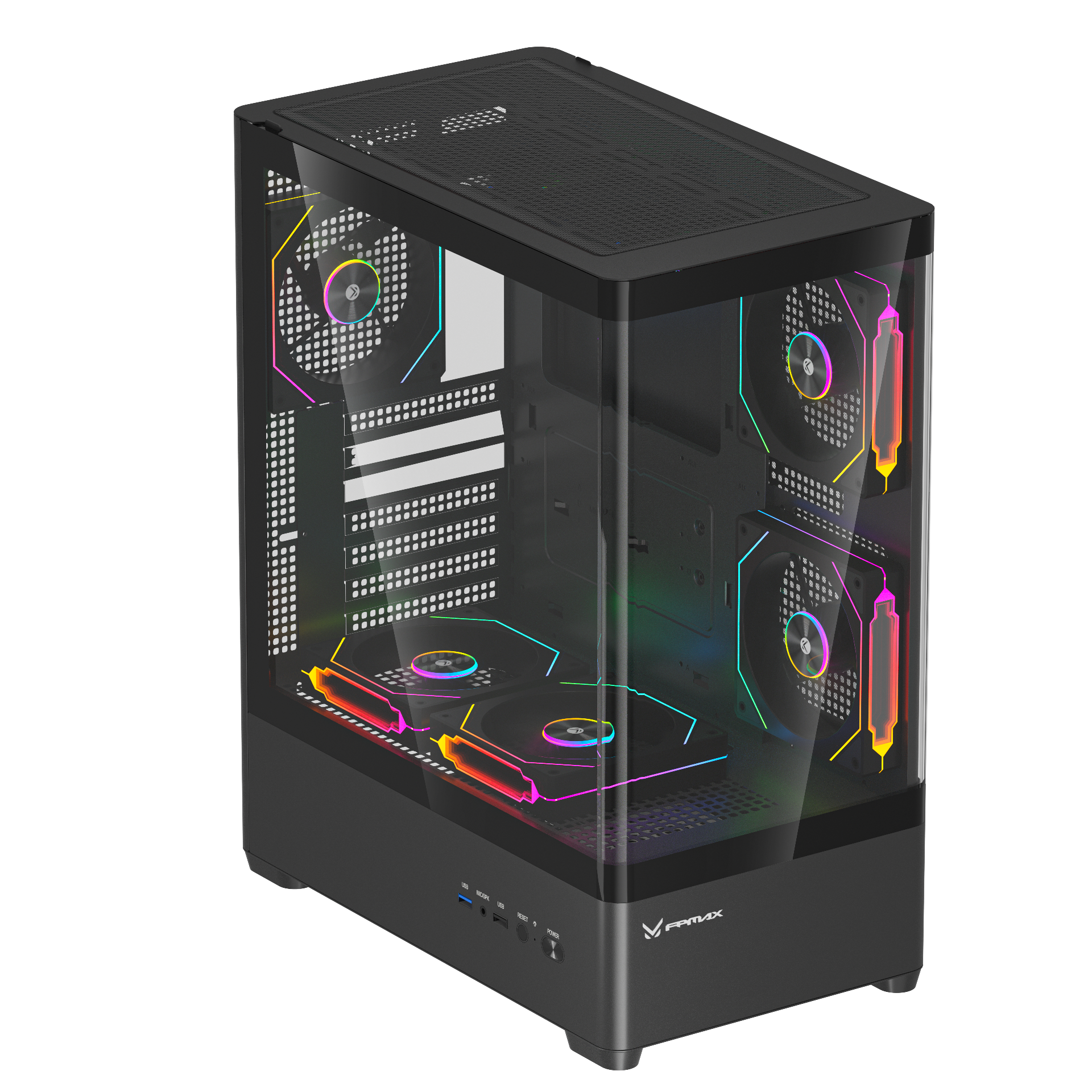

Black

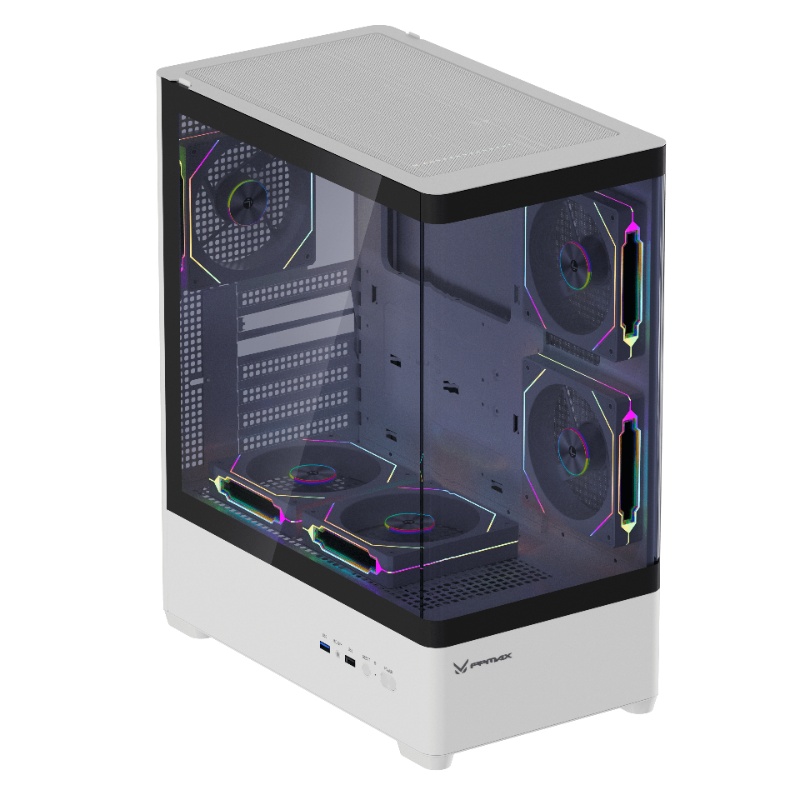

White
Technical Spec
Model NO | Diamond R4A | Diamond R4A LUMA | Diamond R4A NOVA |
Product size | 378*220*457mm(L*W*H) | 378*220*457mm(L*W*H) | 378*220*457mm(L*W*H) |
Material | Classs A SPCC 0.50MM | Classs A SPCC 0.50MM | Classs A SPCC 0.50MM |
M/B Support | ATX/M-ATX/Mini-ITX | ATX/M-ATX/Mini-ITX | ATX/M-ATX/Mini-ITX |
I/O port | USB3.0*1, USB1.0*1, HD AUDIO | USB3.0*1, USB1.0*1, HD AUDIO | USB3.0*1, USB1.0*1, HD AUDIO |
3.5'HDD | 1*3.5'HDD | 1*3.5'HDD | 1*3.5'HDD |
2.5'SSD | 1*2.5'SSD | 1*2.5'SSD | 1*2.5'SSD |
PCI-E Slots | 7 | 7 | 7 |
Air Cooling | Top: 2*120/140mm (Option) MB Side: 2*120mm (Option) Bottom: 2*120mm (Option) Rear: 1*120mm (Option) | Top: 2*120/140mm (Option) MB Side: 2*LUMA 12 FRGB (Pre-Installed) Bottom: 2*120mm (Option) Rear: 1*LUMA 12 FRGB (Pre-Installed) | Top: 2*120/140mm (Option) MB Side: 2*NOVA 12 ARPW (Pre-Installed) Bottom: 2*120mm (Option) Rear: 1*NOVA 12 ARPW (Pre-Installed) |
Liquid Cooling | 240mm water-cooling (Top) | 240mm water-cooling (Top) | 240mm water-cooling (Top) |
FANS HUB | / | / | 1 |
CPU Cooler | 168mm | 168mm | 168mm |
Graphics Cards | 362mm | 362mm | 362mm |
Power Supply | ATX | ATX | ATX |
| EAN | DIAMOND R4A BK : 6973574163065 DIAMOND R4A WH : 6973574163041 | DIAMOND R4A LUMA BK : 6973574163034 DIAMOND R4A LUMA WH : 697354163027 | DIAMOND R4A NOVA BK : 6973574163010 DIAMOND R4A NOVA WH : 6973574163188 |
