Diamond R5ATR

Diamond R5 ATR

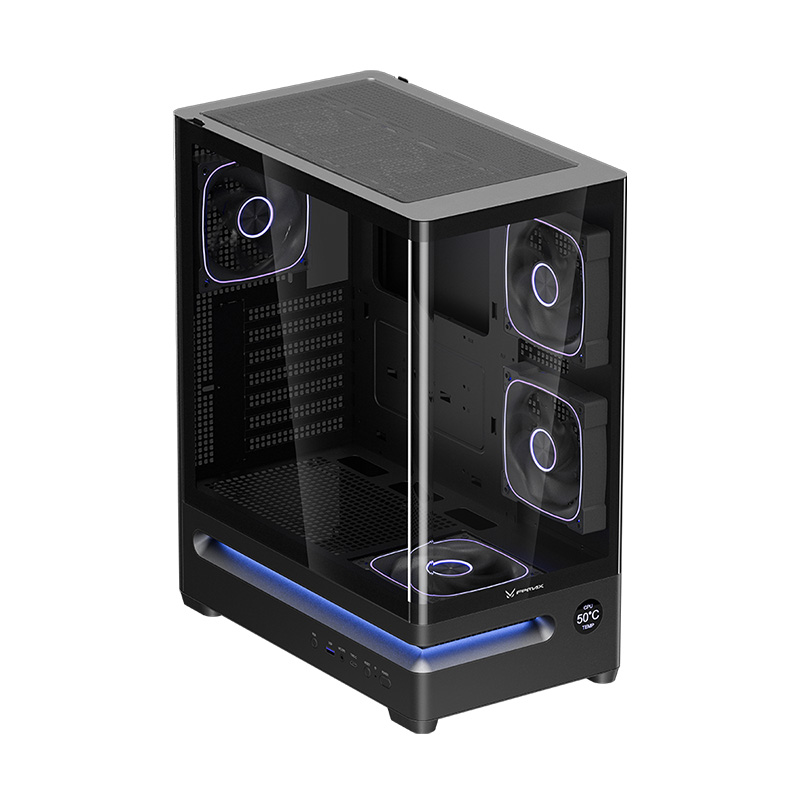

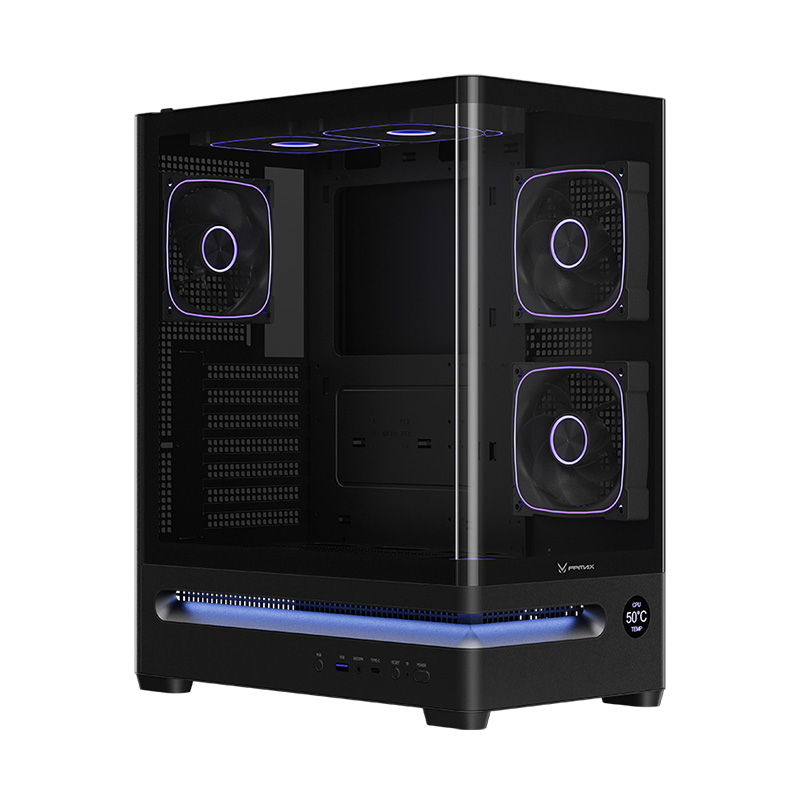

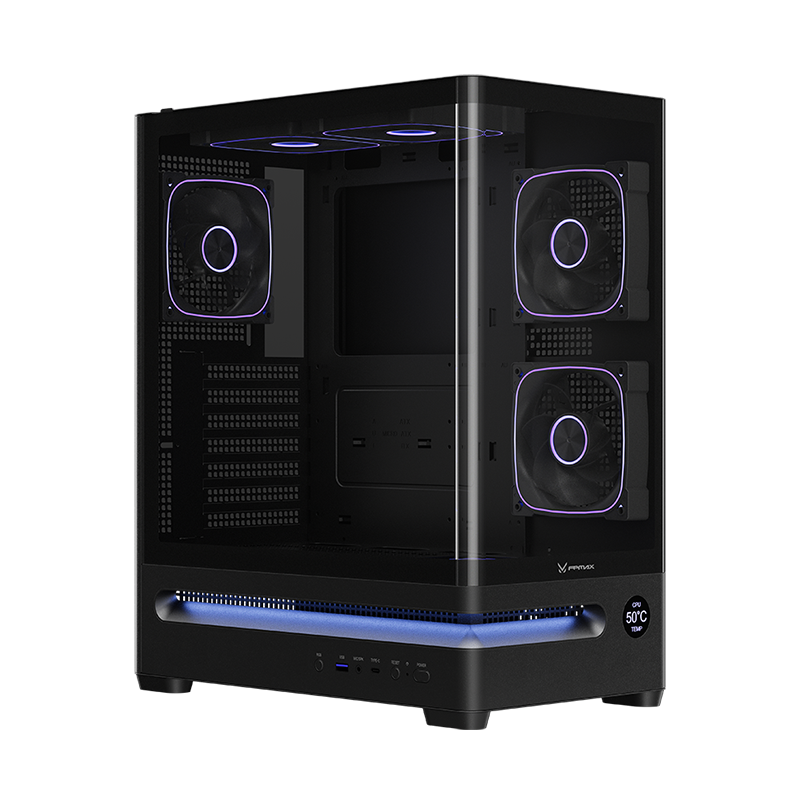

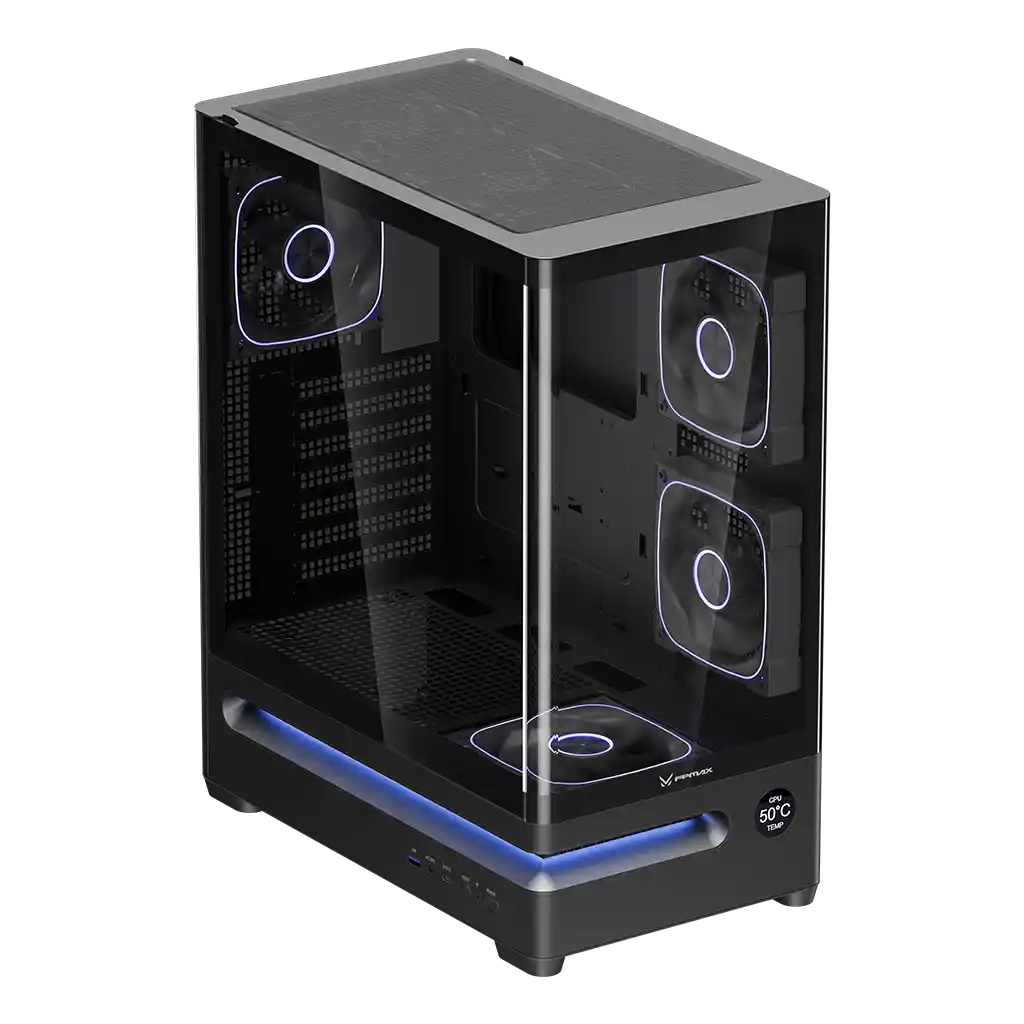

Diamond R5 ATR draws a curved tempered-glass front over its chamber and puts the lighting where the airflow begins — a strip across the basement that turns the intake into a band of colour.


Beyond the curve, it puts the numbers where you can see them: a circular CPU temperature readout on the front bezel for thermals you can read from across the room, three CYCLONIC 12 ARGB fans pre-installed at the side and on the floor with a six-port ARGB hub for lighting that arrives already wired, and a 362mm card plus 168mm cooler envelope for the parts you actually bought.


Every detail is engineered to combine a curved front, a lit basement and a live thermal readout in one narrow ATX tower.


Variant

Color

  • facebook
  • instagram
  • youtube
  • linkedin
  • tiktok
videopic

Diamond R5ATR

productimg

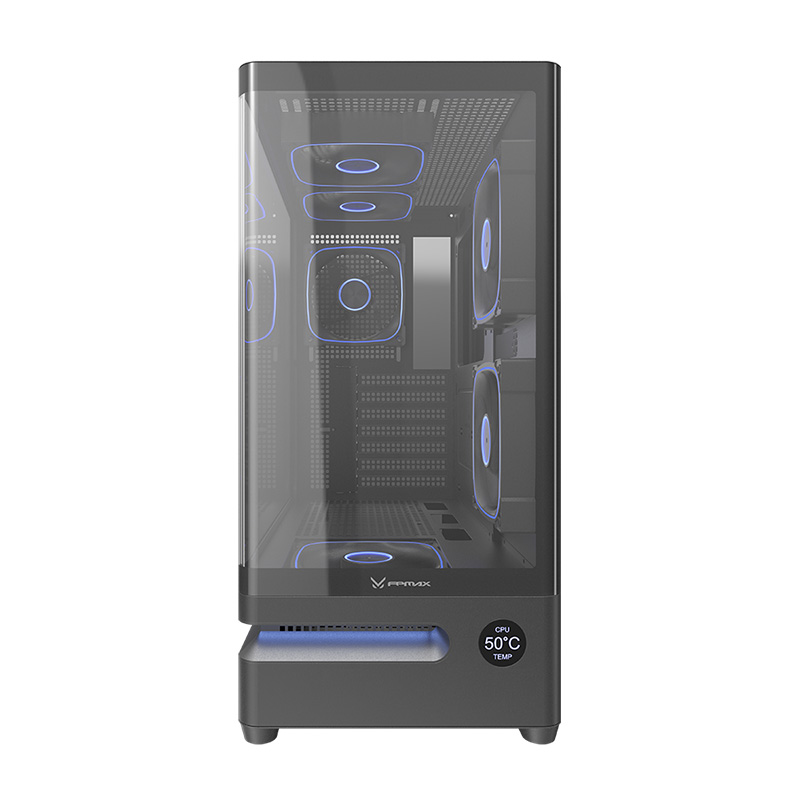

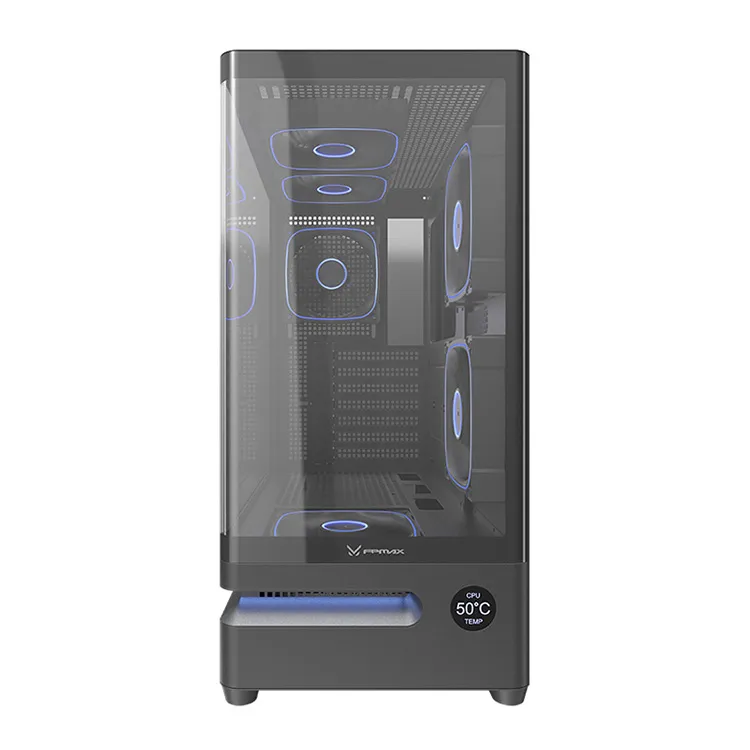

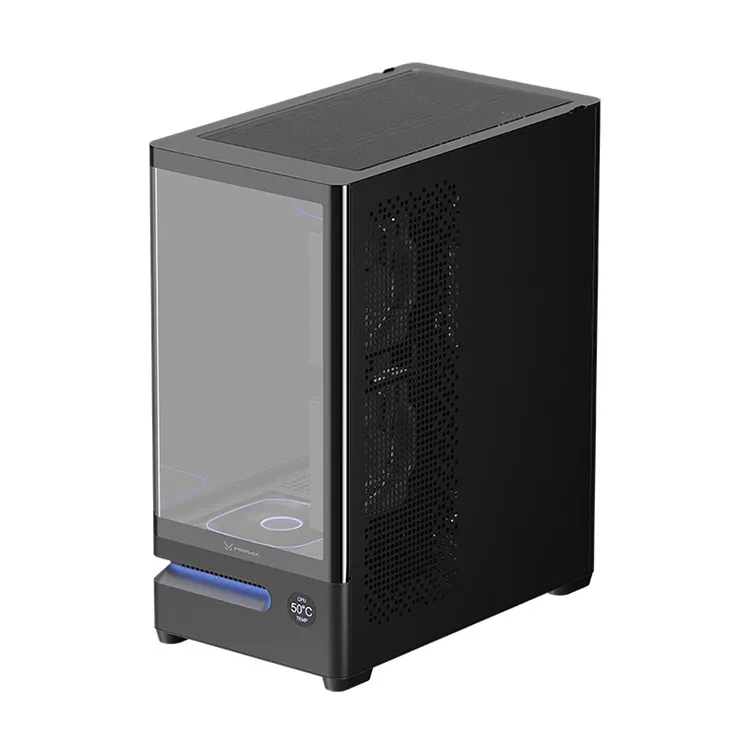

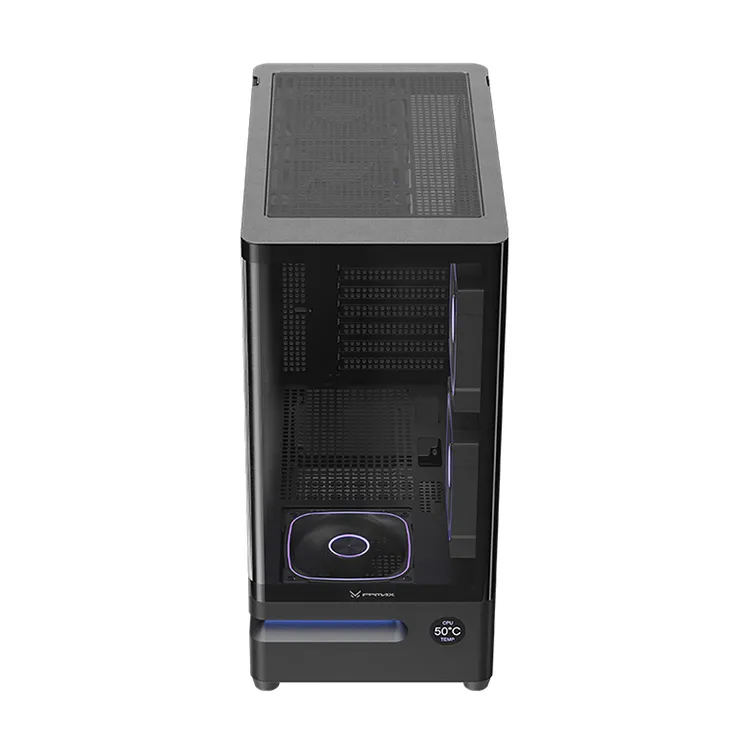

A Front That Bends

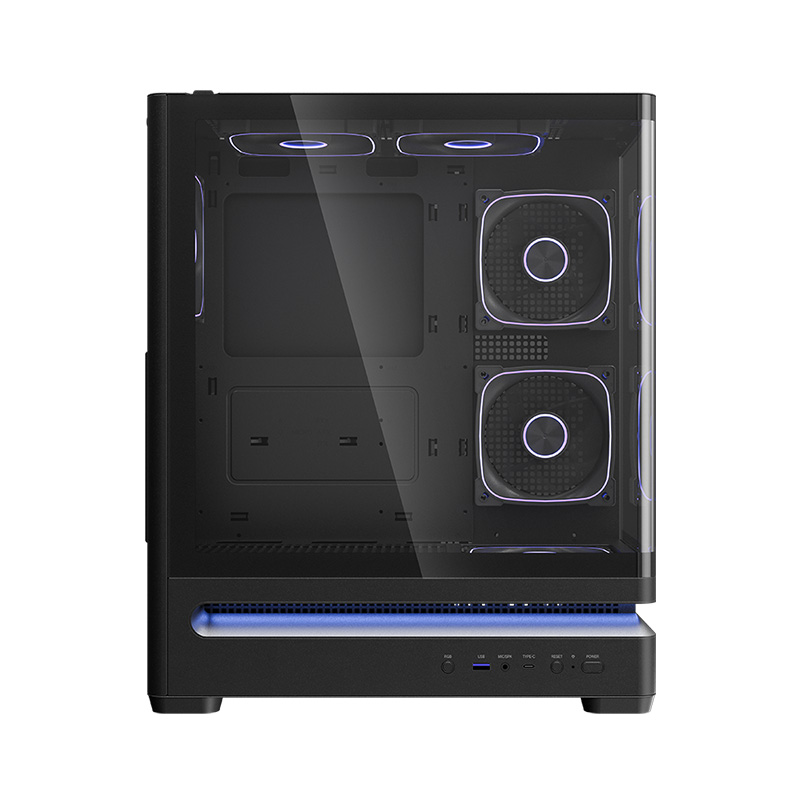

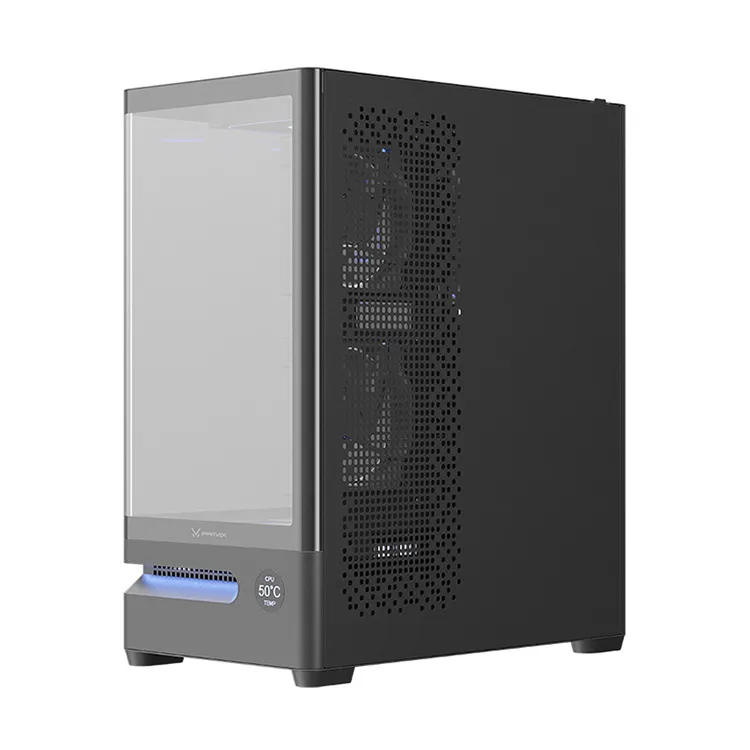

The front is curved tempered glass, so the panel takes light in a sweep instead of in one flat plane. Seen from the side, the curve keeps the chamber in view while the edge falls into shadow.

800x800 01.jpg

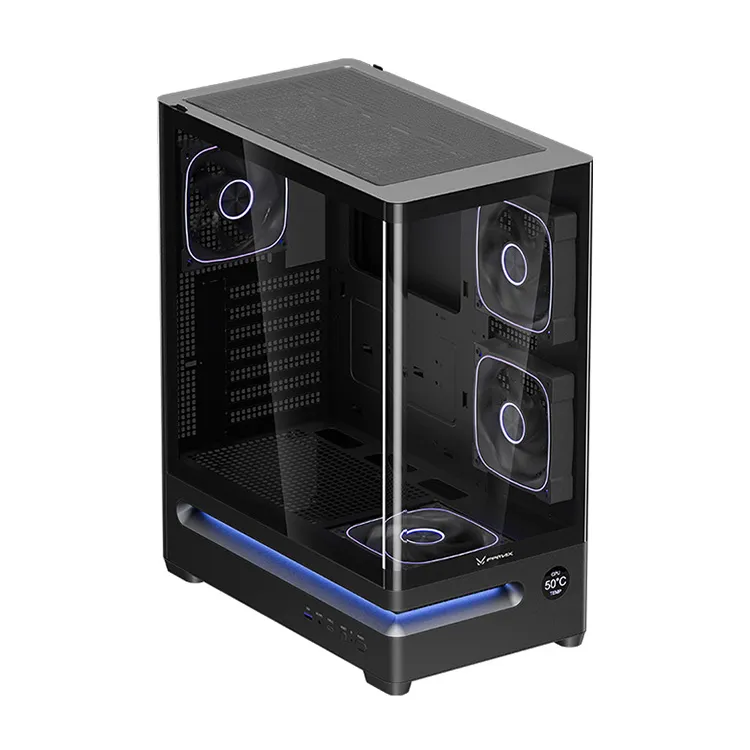

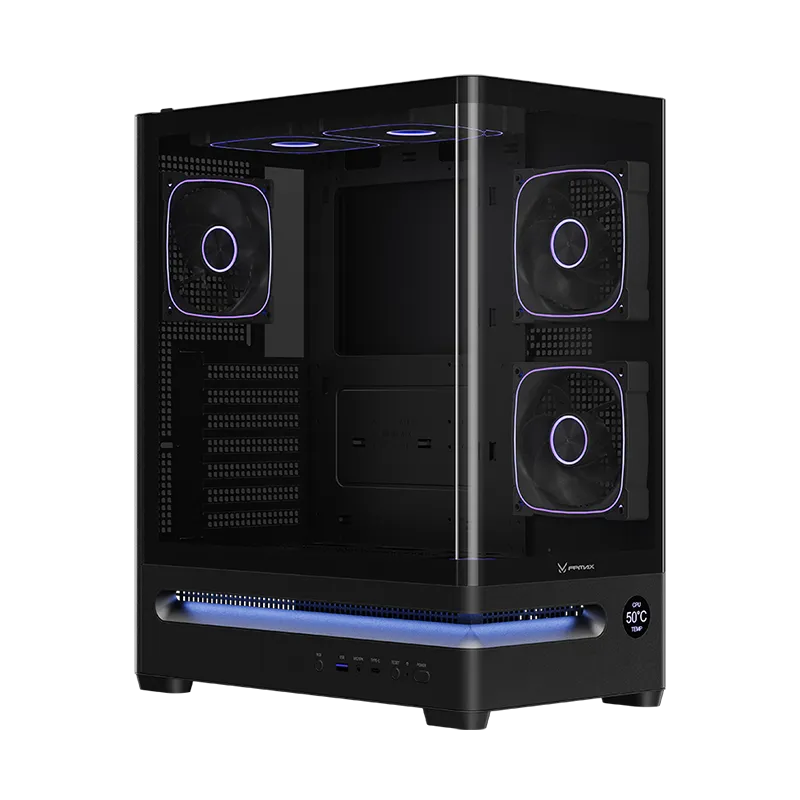

Temperature and Light

Bottom ARGB light strip supports motherboard sync, creating an immersiveambient glow.

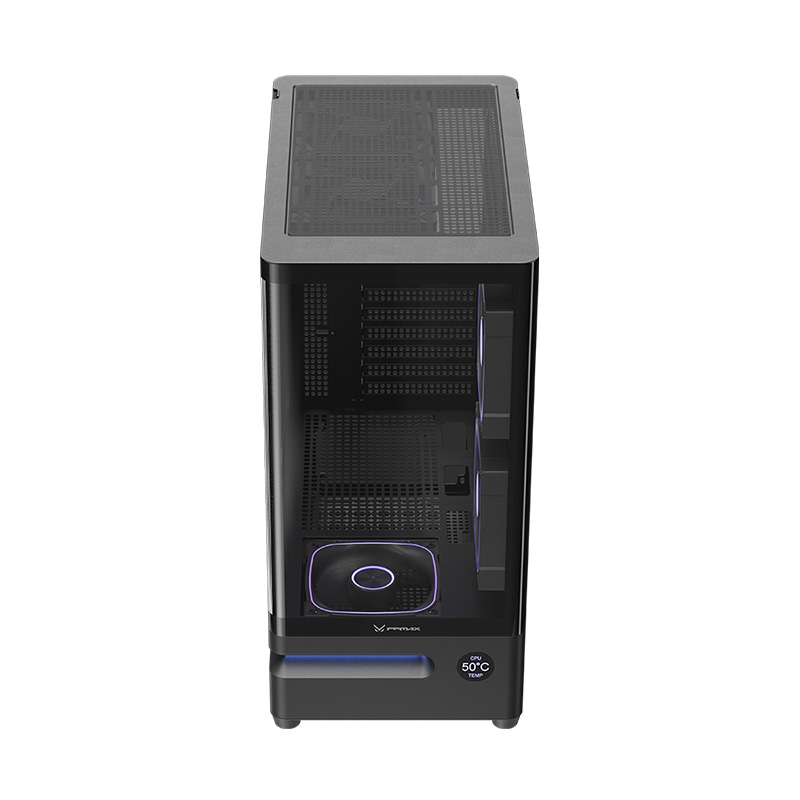

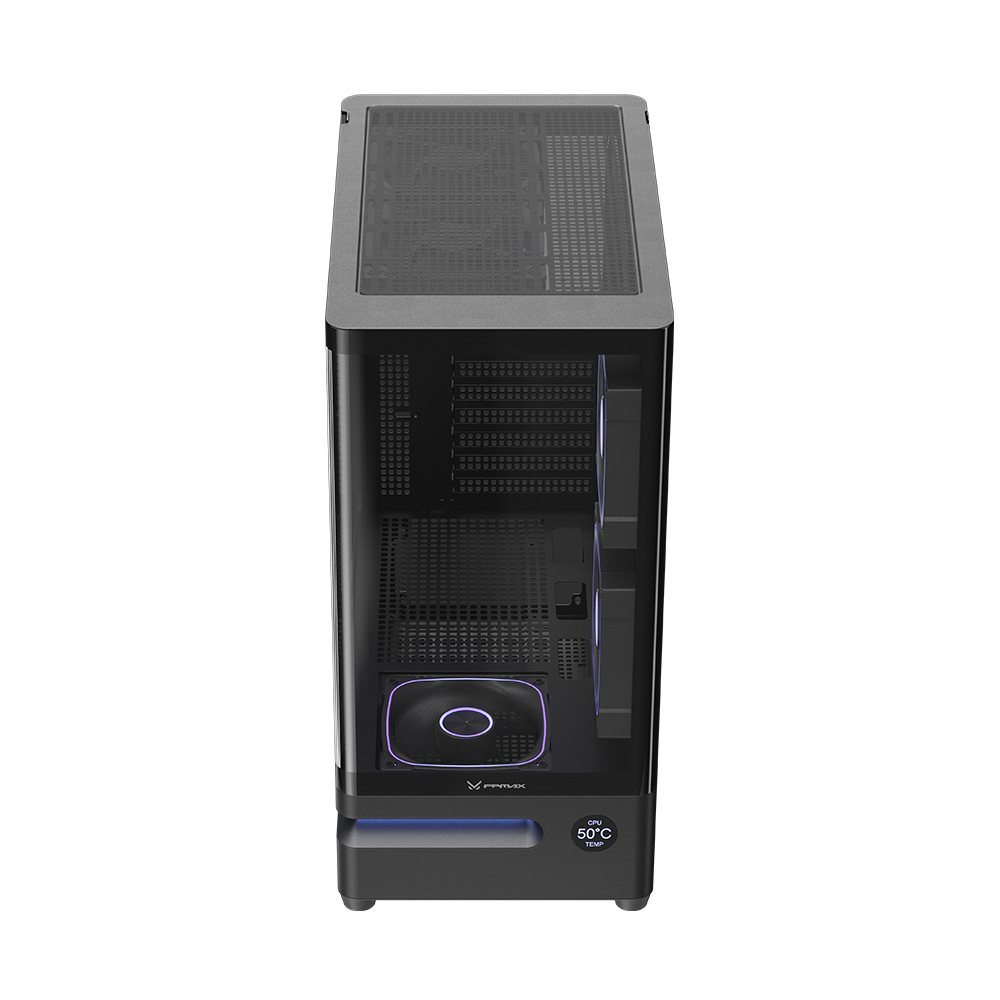

Integrated digital displayinstant monitoring.shows real-time CPU temperature for instant monitoring.

800x800 02.jpg

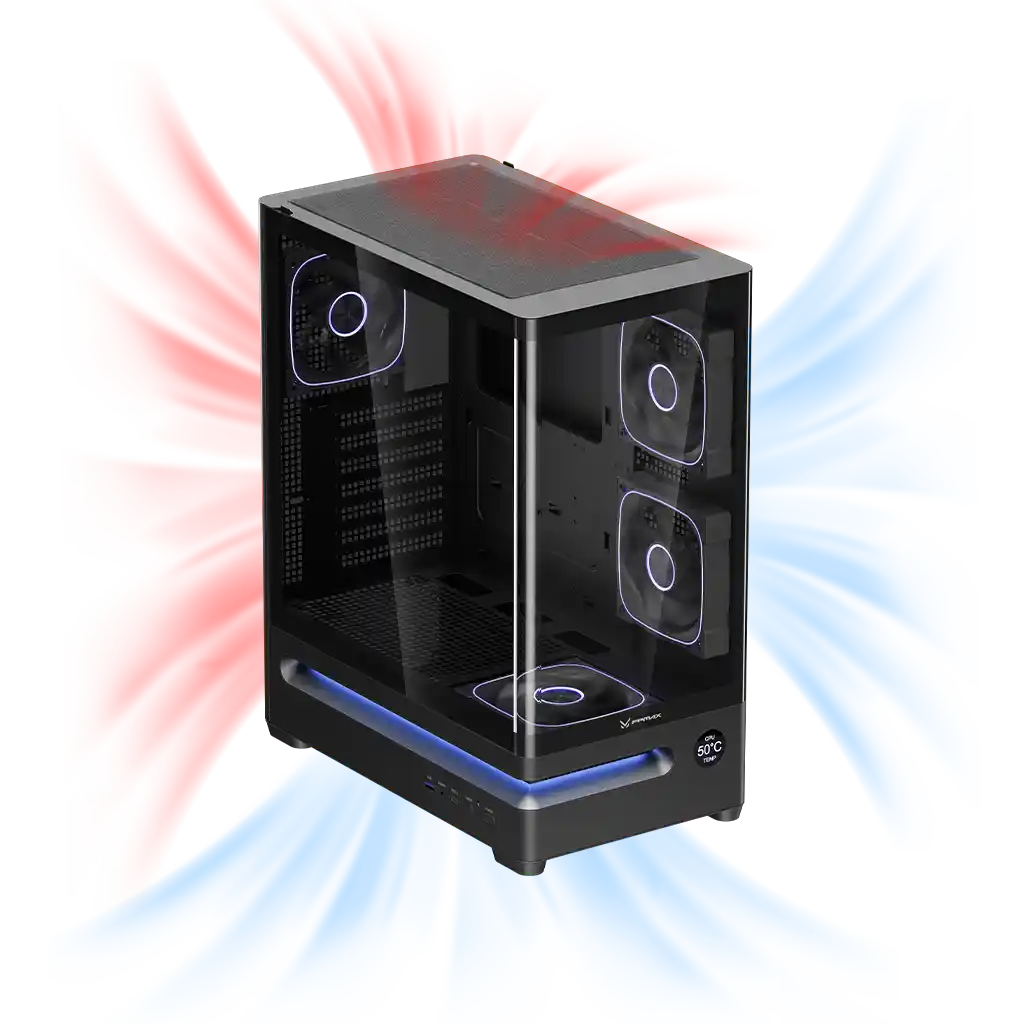

Top Ventilation

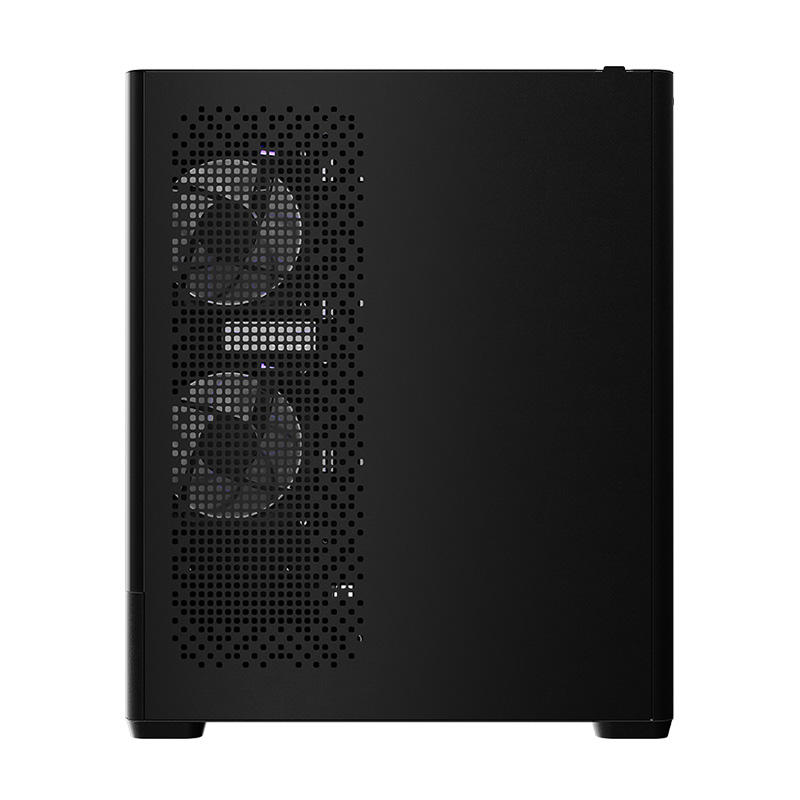

Top exhaust and right-side intake for efficient thermal flow

800x800 03.jpg

Four Zones, One Narrow Tower

Two 120mm or two 140mm up top, two on the side, one at the floor and one at the rear, with a 240mm radiator accepted across the top and a 120mm at the back.

800x800 04.jpg

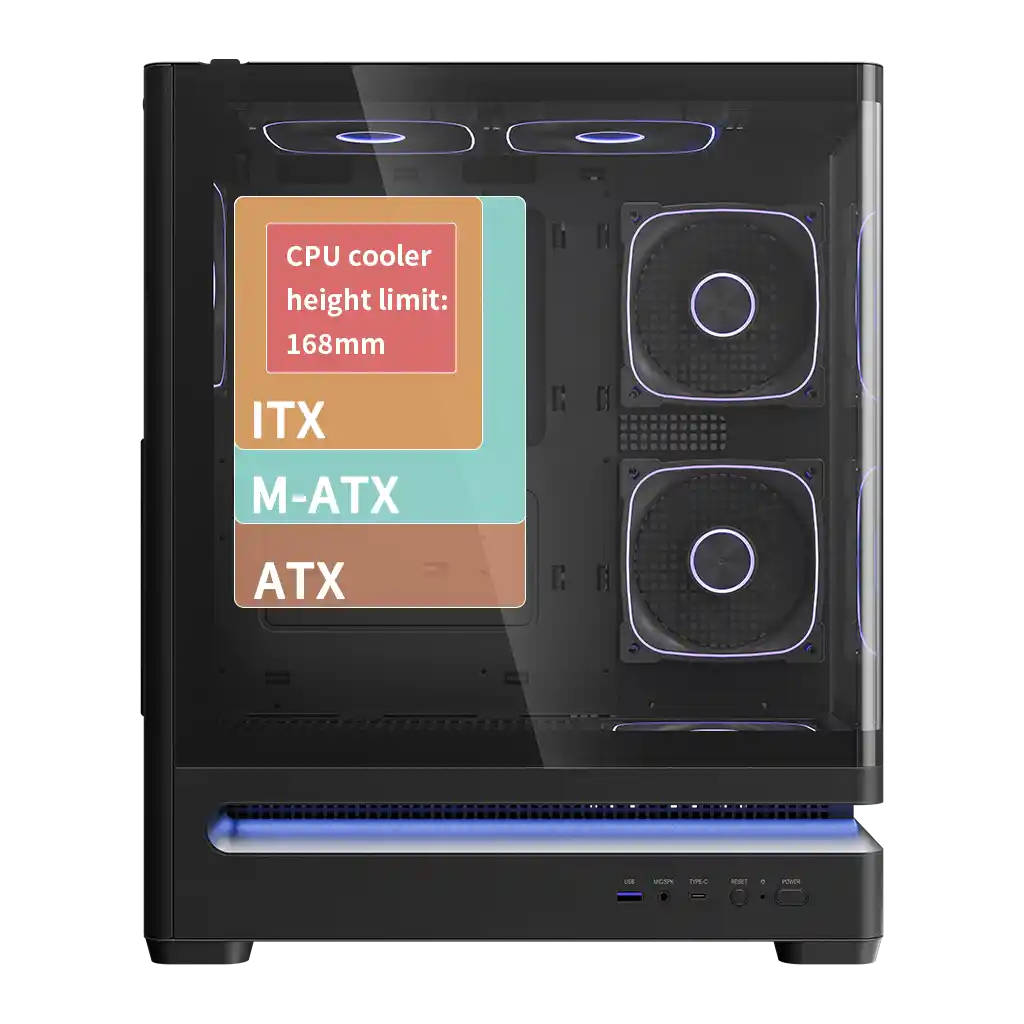

Narrow in the Room, Wide Inside

Broad motherboard compatibility ATX, Micro-ATX, and ITX supported

800x800 05.jpg

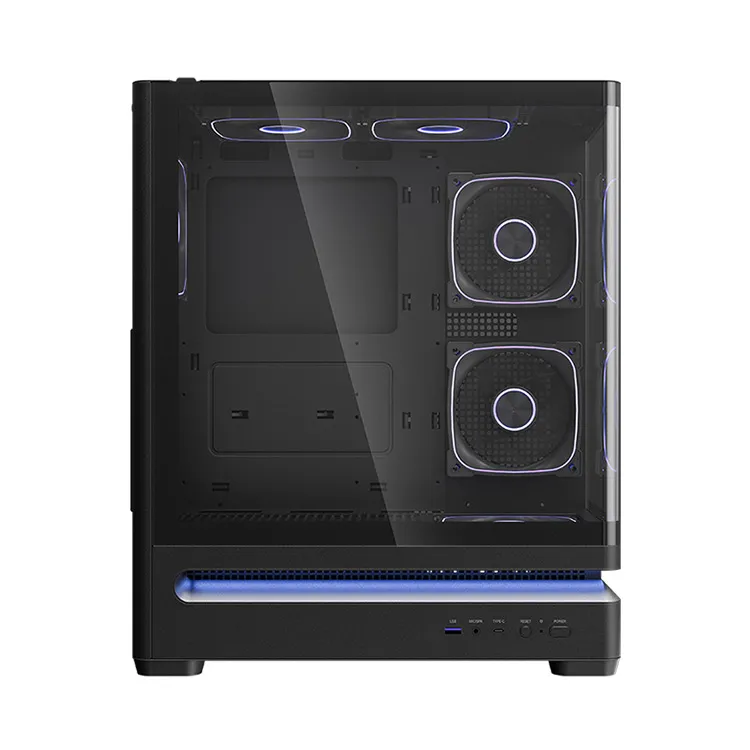

Two on the Side, Aimed at the Board

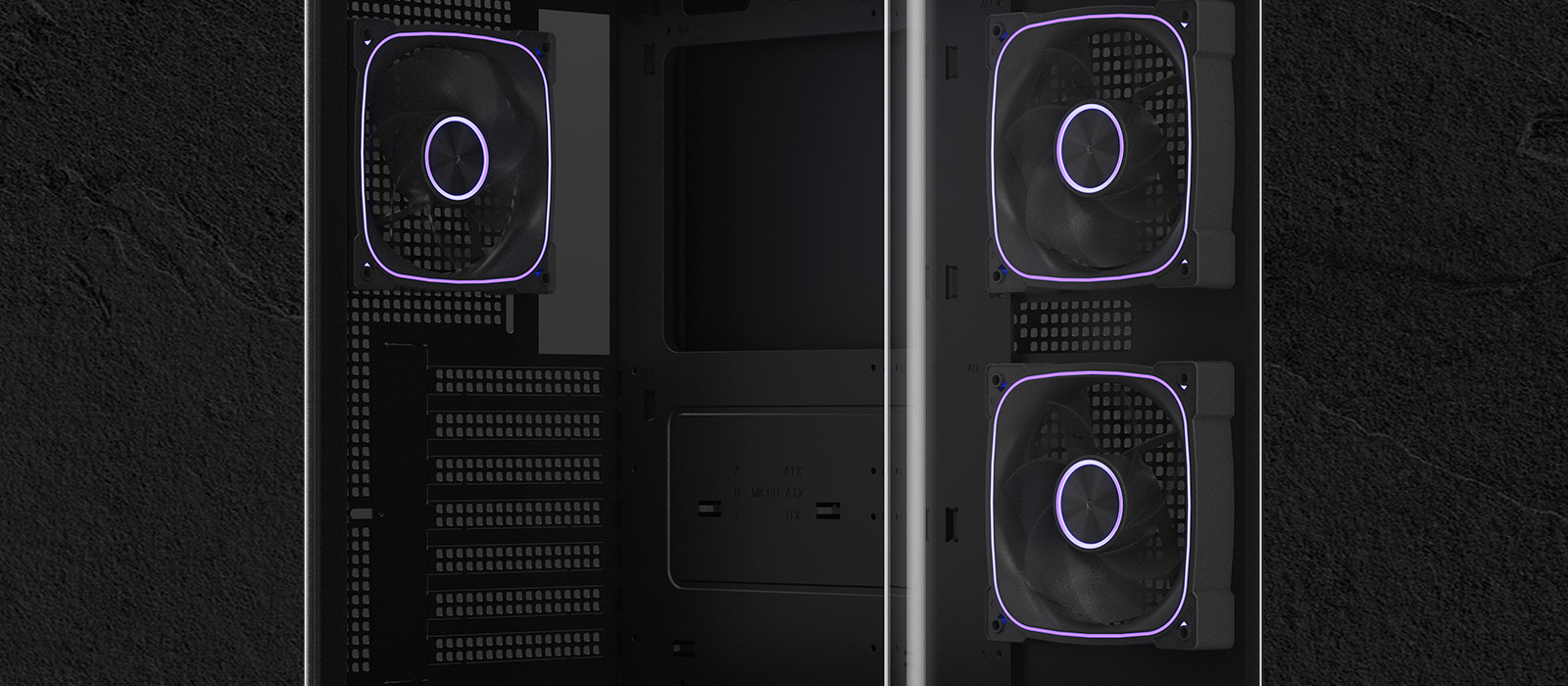

The pair of side fans does two jobs at once: their rings carry the RGB into the chamber, and their flow is aimed straight at the board and the card rather than into open air.

800x800 06.jpg

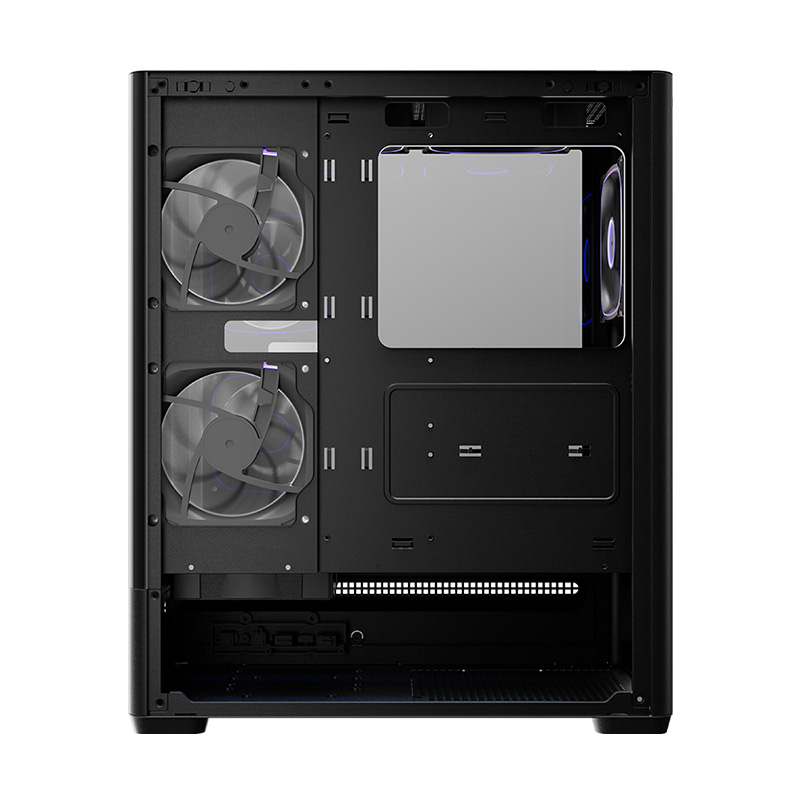

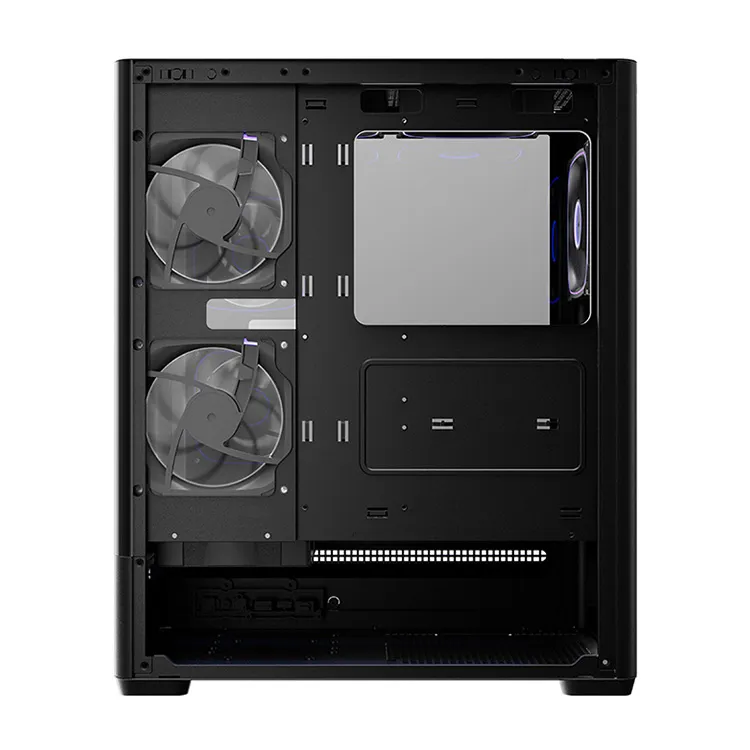

The Back of the Board Does the Work

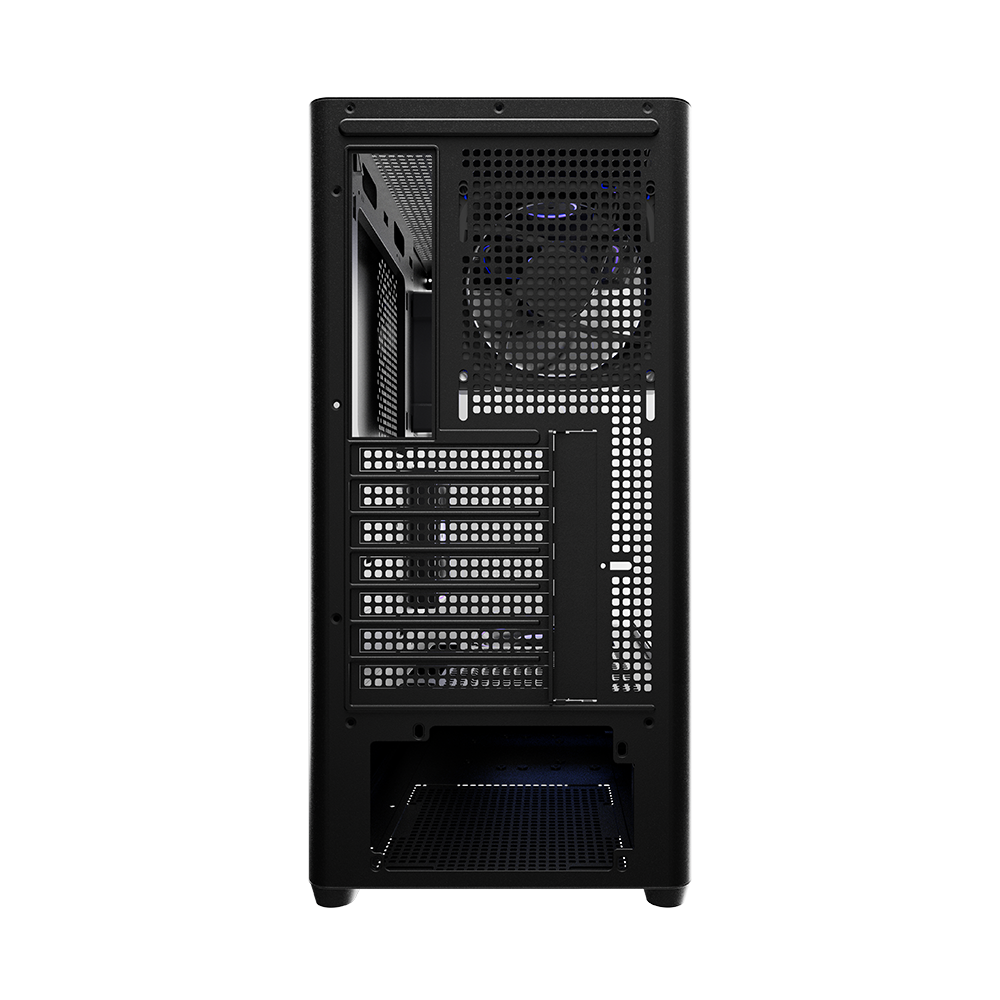

Routing cut-outs and tie points sit behind the tray, so the 24-pin, the GPU leads and the fan cables pass out of sight — the chamber stays a display rather than a wiring diagram.

800x800 07.jpg

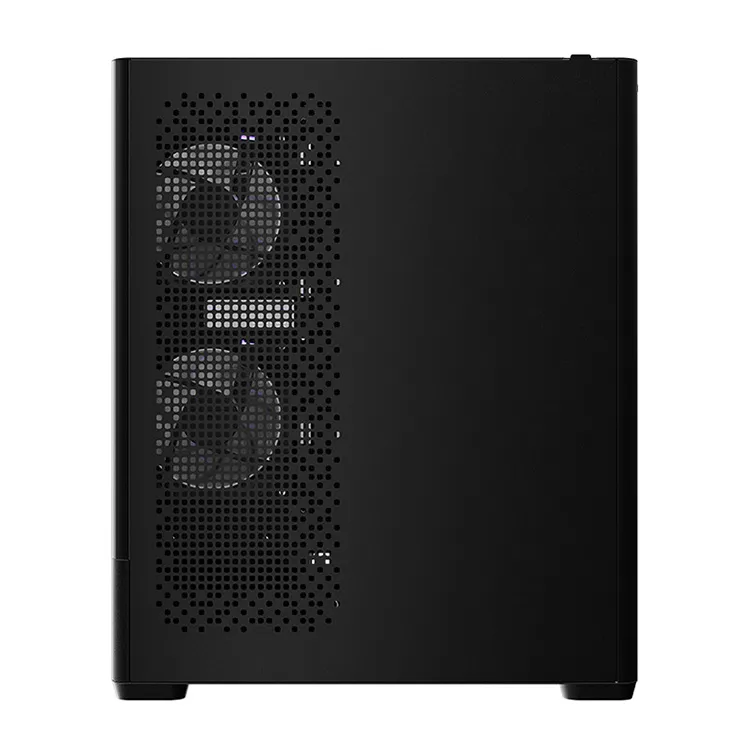

Panels That Lift Off Without a Tool

The side panels seat on a mortise-and-tenon joint and release by hand — no screws to chase, and no panel to hold while you reach for a driver.

800x800 08.jpg

Color Options


Black


White

Technical Spec

Model NO

Diamond R5ATR

Diamond R5ATR AR

Product size

378*220*457mm(L*W*H)

378*220*457mm(L*W*H)

Material

Classs A SPCC 0.50MM

Classs A SPCC 0.50MM

M/B Support

ATX/M-ATX/Mini-ITX

ATX/M-ATX/Mini-ITX

I/O port

USB3.0*1, Type-C*1, HD AUDIO

USB3.0*1, Type-C*1, HD AUDIO

3.5'HDD

1*3.5'HDD

1*3.5'HDD

2.5'SSD

1*2.5'SSD

1*2.5'SSD

PCI-E Slots

7

7

Air Cooling

Top: 2*120/140mm (Option)

MB Side: 2*120mm (Option)

Bottom: 1*120mm (Option)

Rear: 1*120mm (Option)

Top: 2*120/140mm (Option)

MB Side: 2*120mm ARGB (Pre-Installed)

Bottom: 1*120mm ARGB (Pre-Installed)

Rear: 1*120mm (Option)

Liquid Cooling

Top:Up to 240mm

Rear:Up to 120mm

Top:Up to 240mm

Rear:Up to 120mm

FANS HUB

/

/

CPU Cooler

168mm

168mm

Graphics Cards

362mm

362mm

Power Supply

ATX

ATX

EAN

Diamond R5 ATR WH : 6973574163515

Diamond R5 ATR BK : 6973574163508

Diamond R5 ATR AR WH : 6973574164444

Diamond R5 ATR AR BK : 6973574164437
