Diamond R7Mini

Diamond R7Mini

Mid Tower Case

  • Sleek and Customizable Aesthetics: Available in black or white colors, our product lets you choose a color that matches your style and preference.

  • Exceptional Durability: Crafted from a thick 0.45mm SPCC steel plate, our product not only provides exceptional durability but also adds a touch of elegance to your setup.

  • Optimal Cooling Capabilities: With support for up to 240mm air/water cooling installation and up to 7 fans, our product boasts a fully optimized internal circulation cooling system, ensuring outstanding cooling capabilities for superior performance.

  • Efficient Heat Dissipation System: The multi-directional heat dissipation and three-dimensional heat dissipation system guarantee efficient cooling from all directions.

  • Ample Storage Space: With support for 3 SSDs/HDDs, our product provides ample space for all your storage needs.

  • Experience unrivaled cooling performance, seamless aesthetics, and hassle-free maintenance with our state-of-the-art product!


Color

  • facebook
  • instagram
  • youtube
  • linkedin
  • tiktok

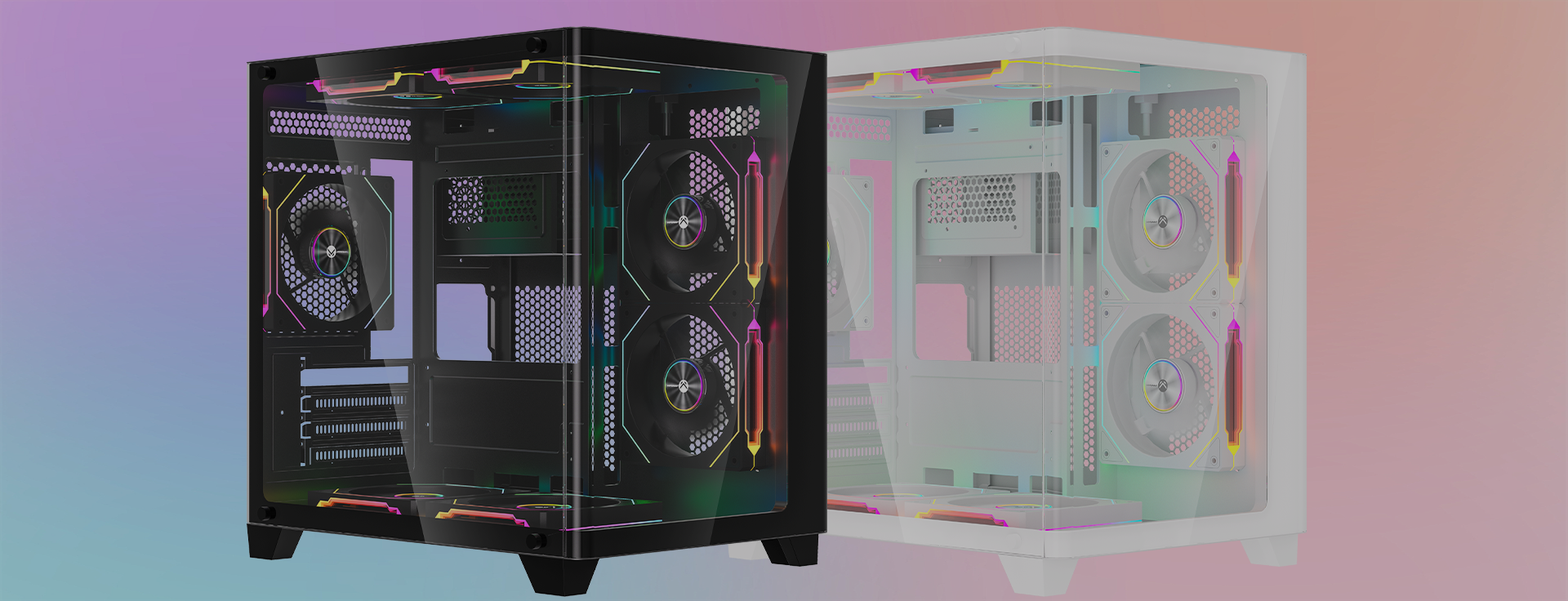

videopic

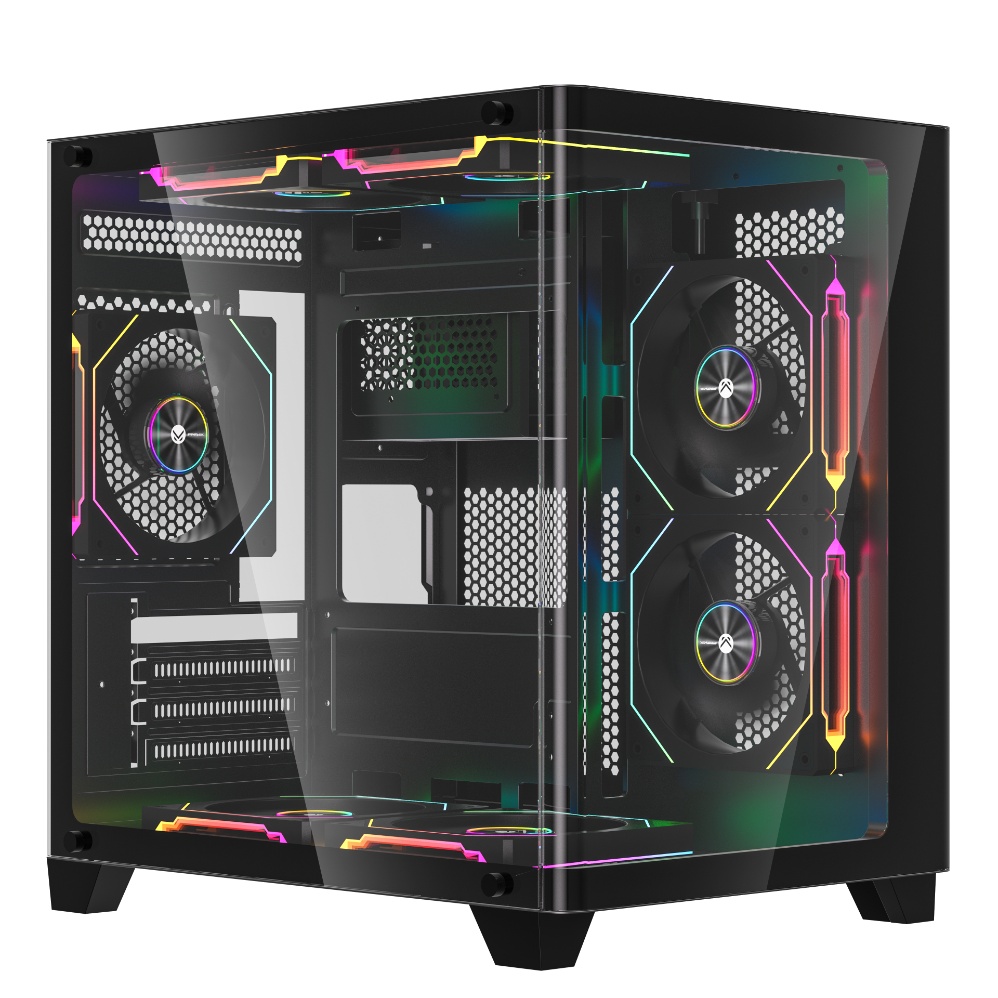

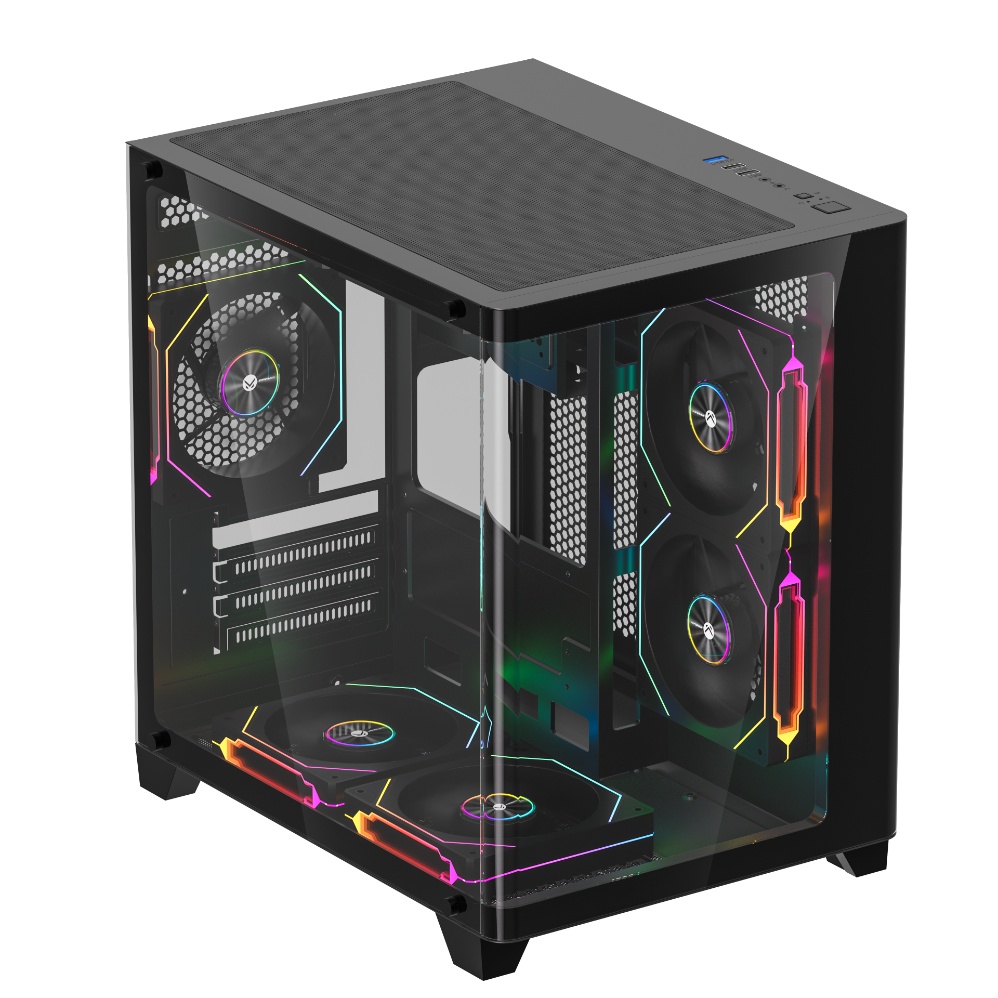

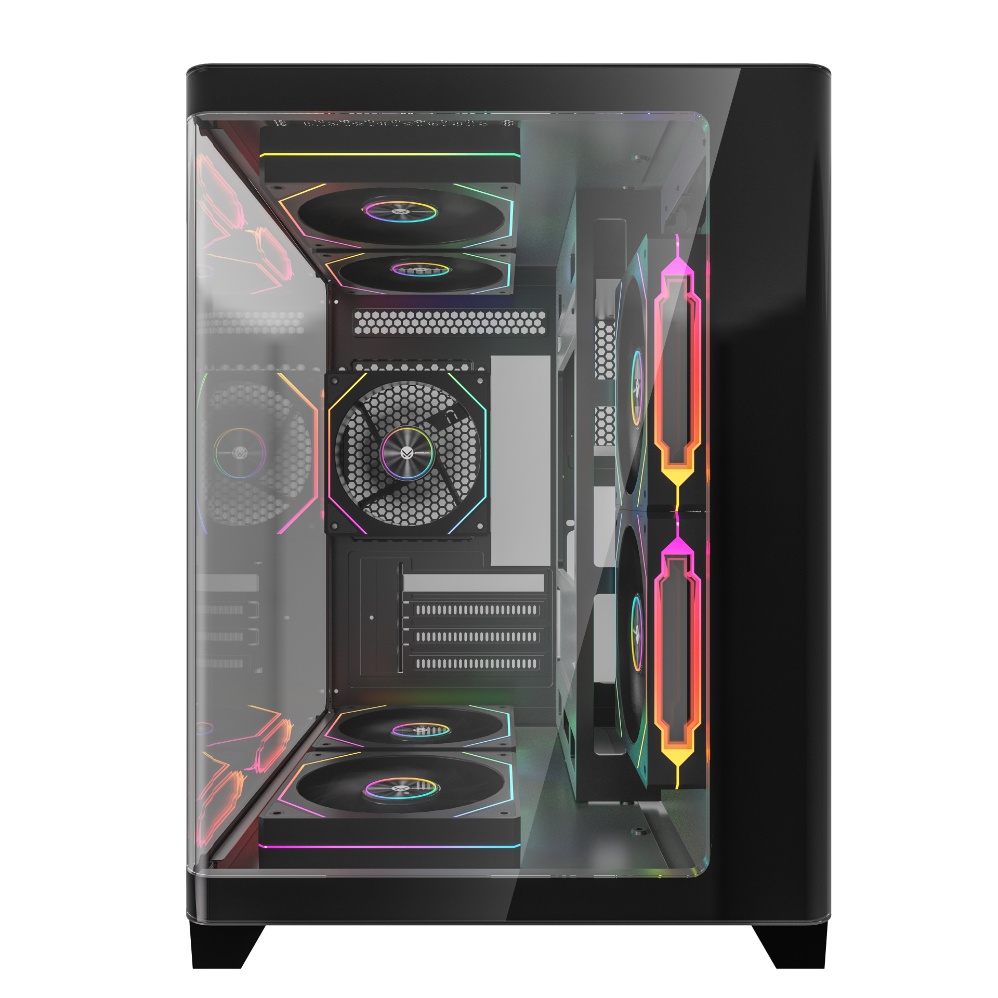

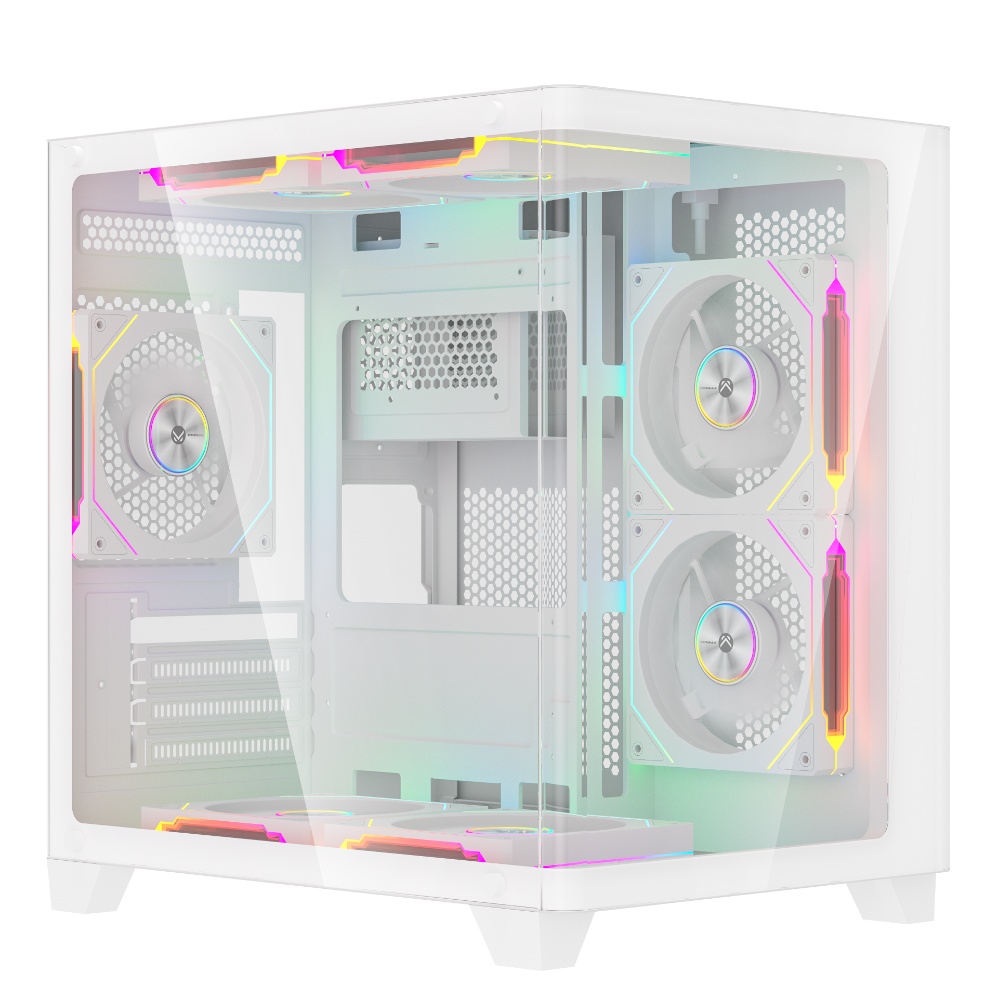

Diamond R7Mini

productimg

Diamond R7Mini

Colourful fans illuminate the internal structure and add more colour to the chassis

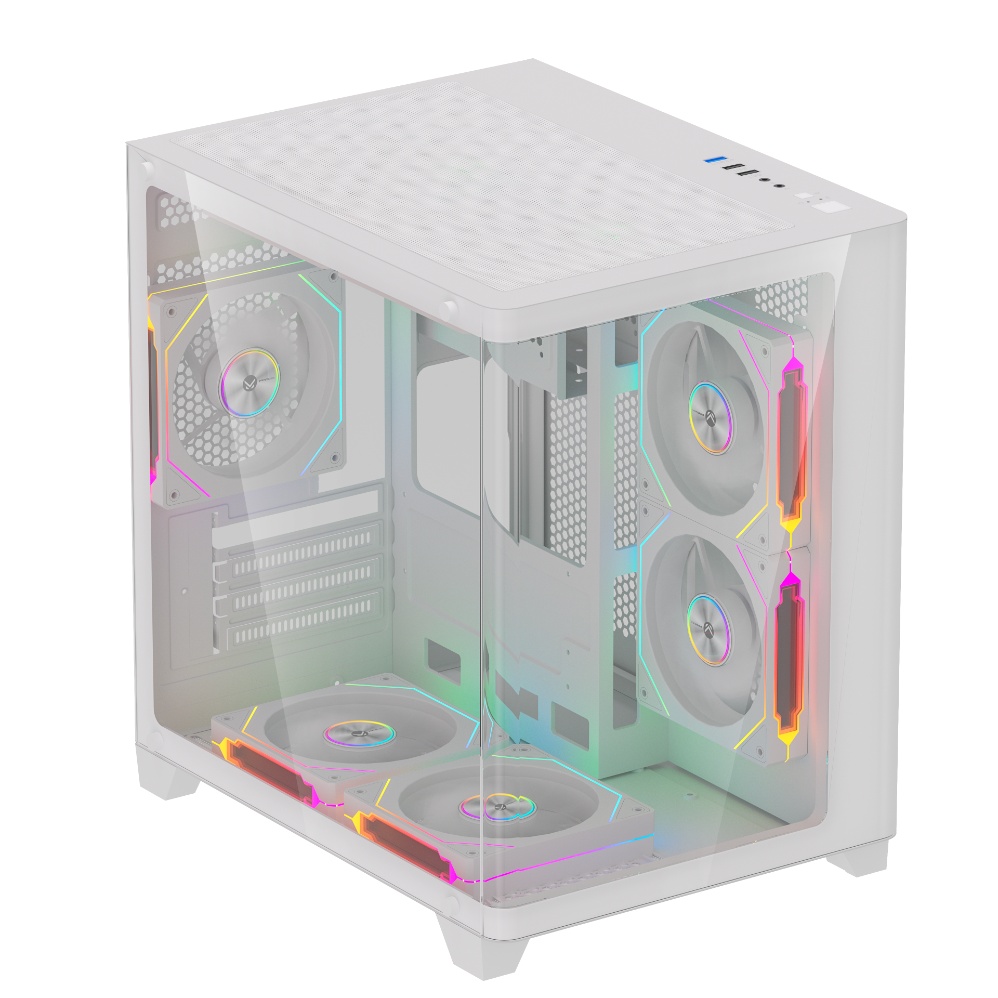

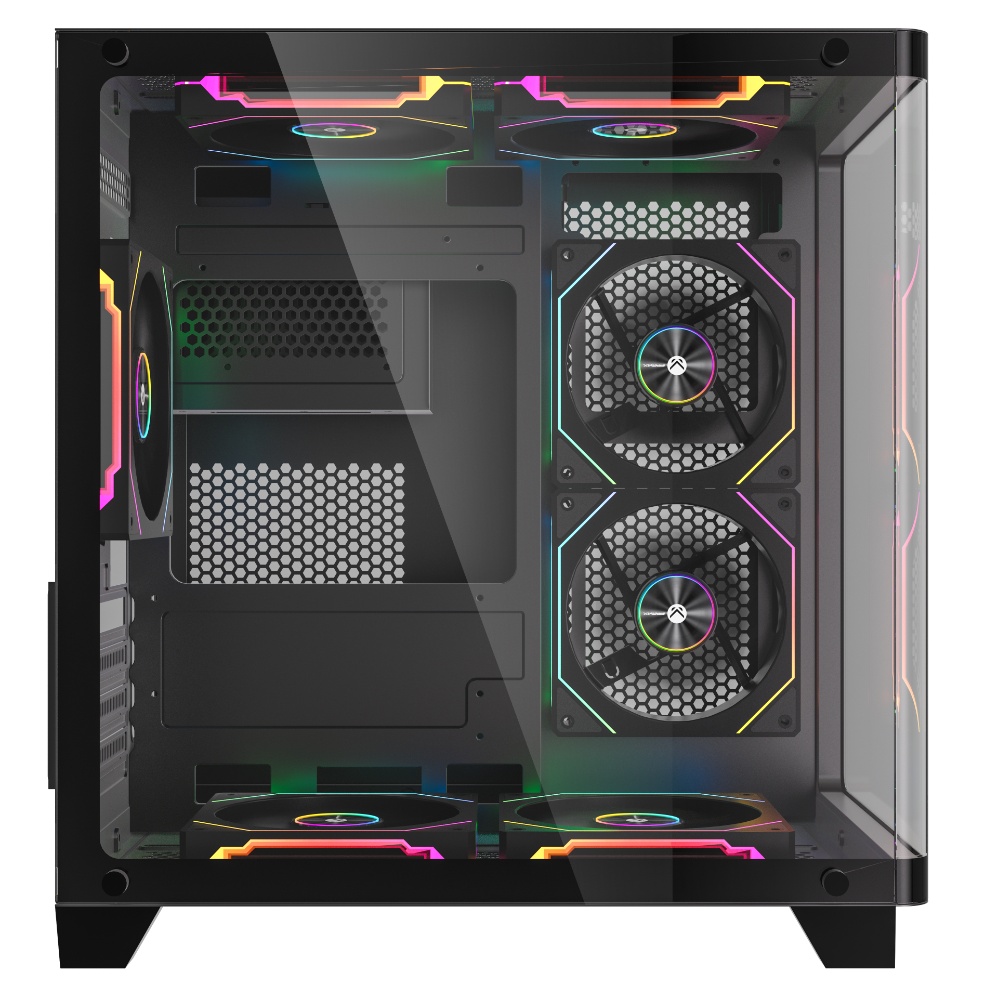

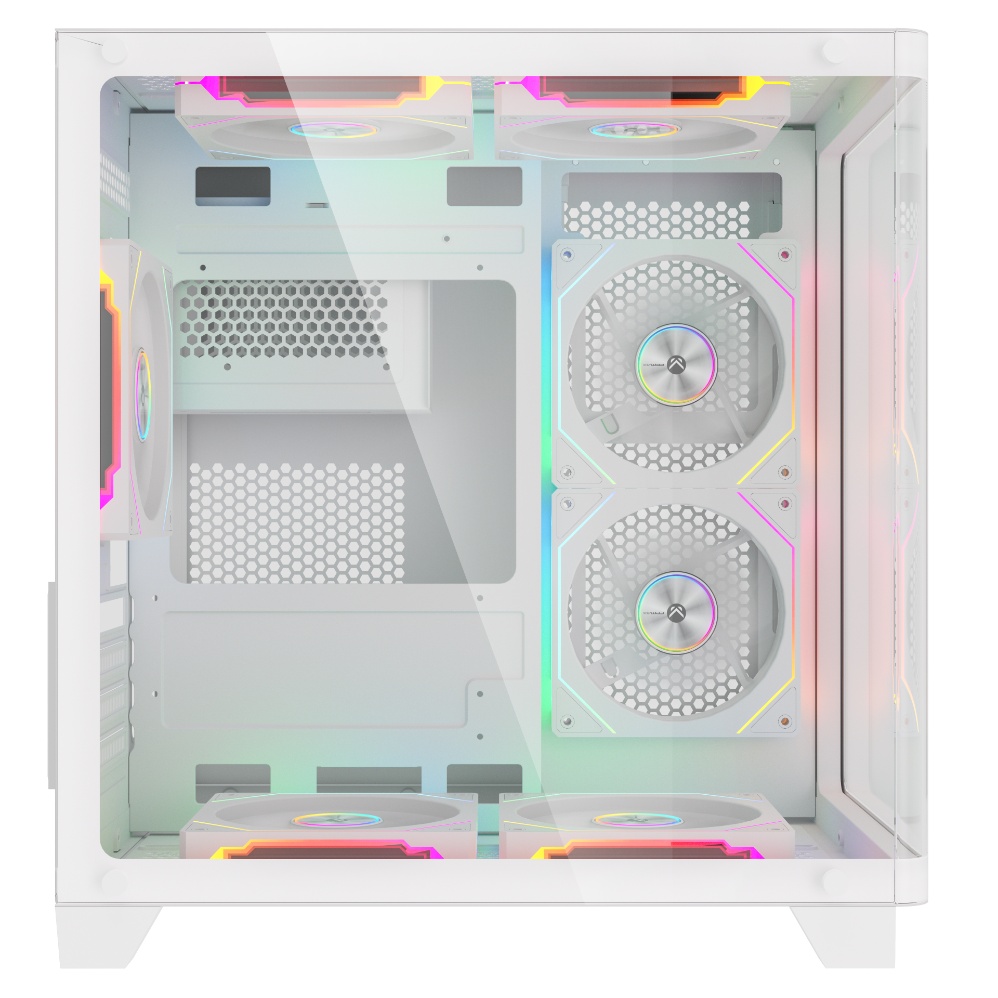

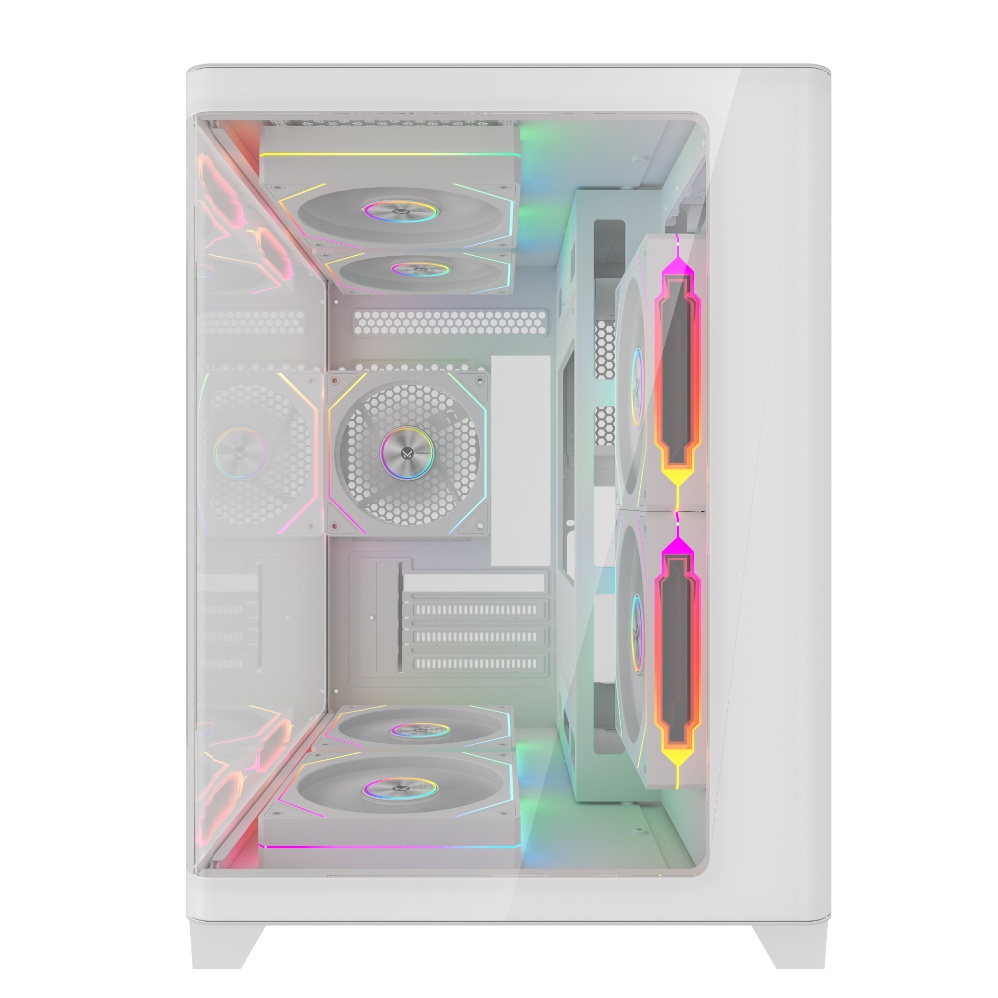

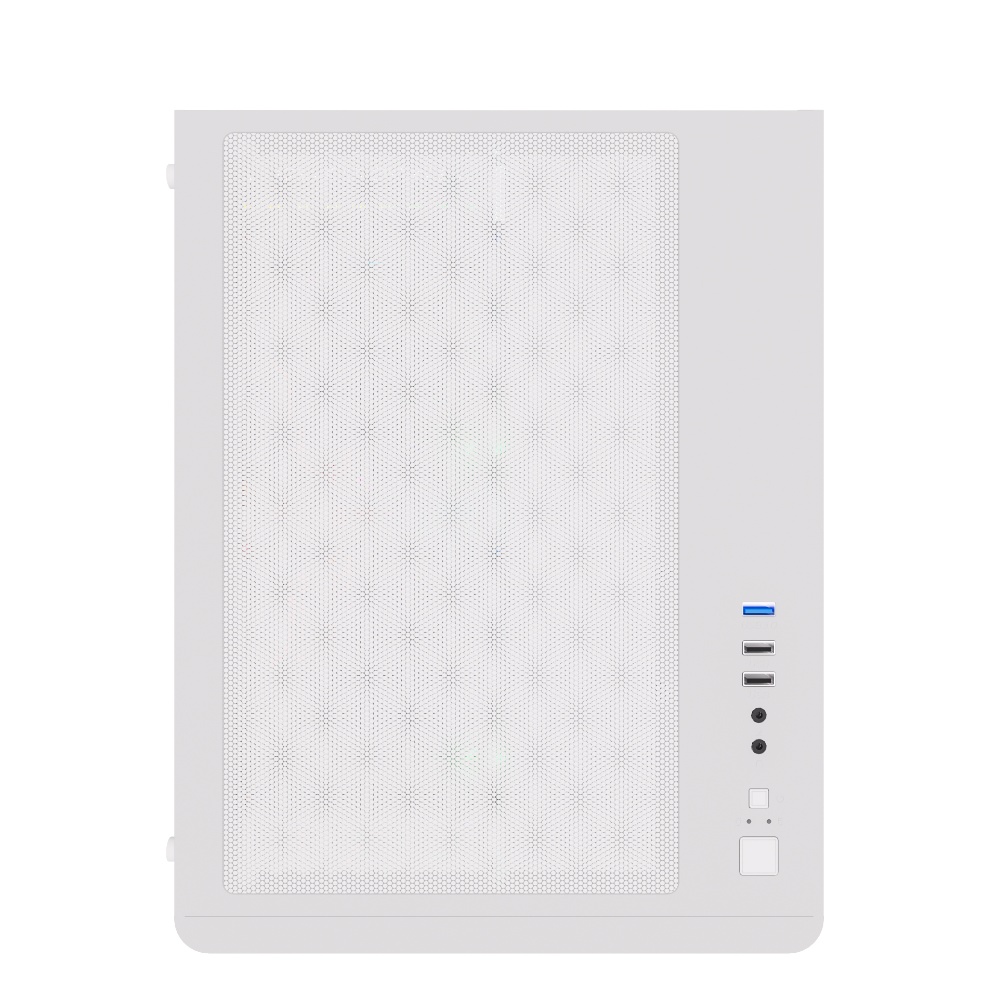

Black or white, make your choice.

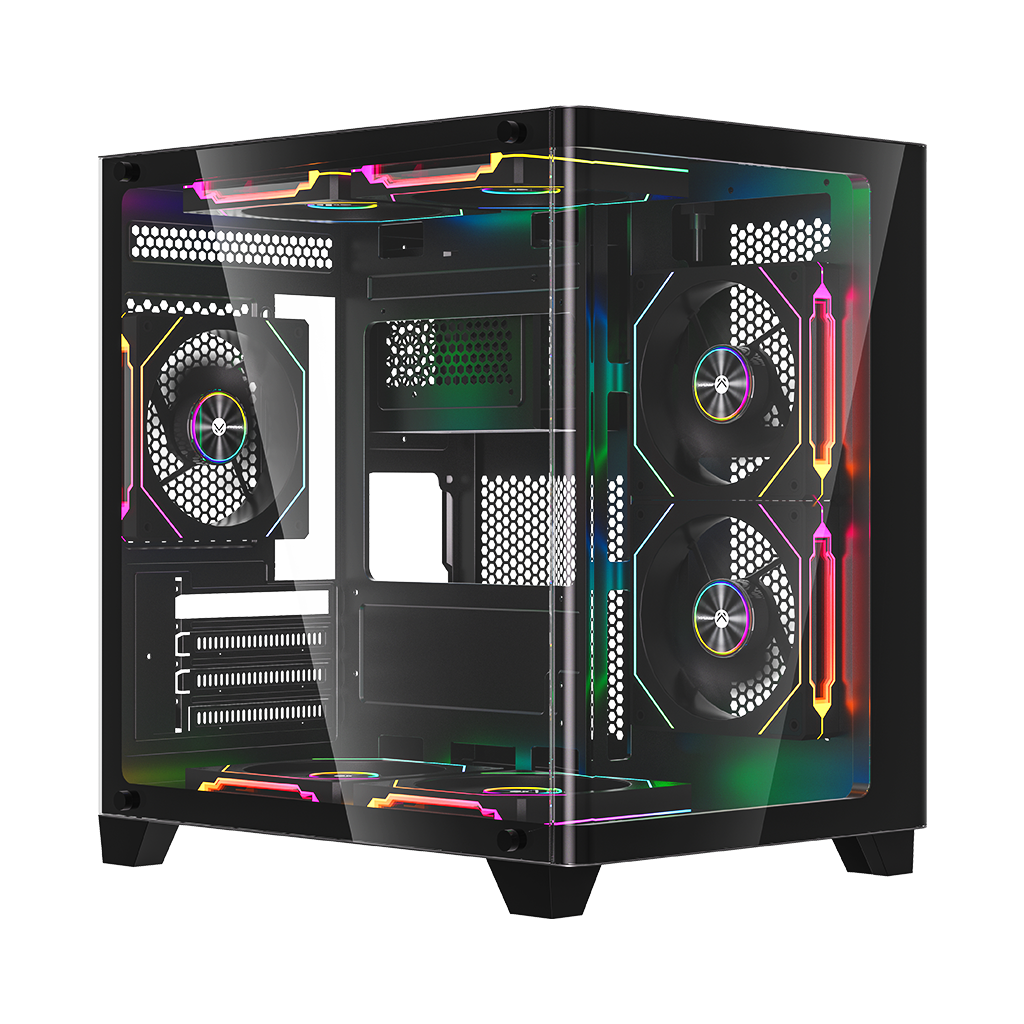

DIAMOND R7Mini.png

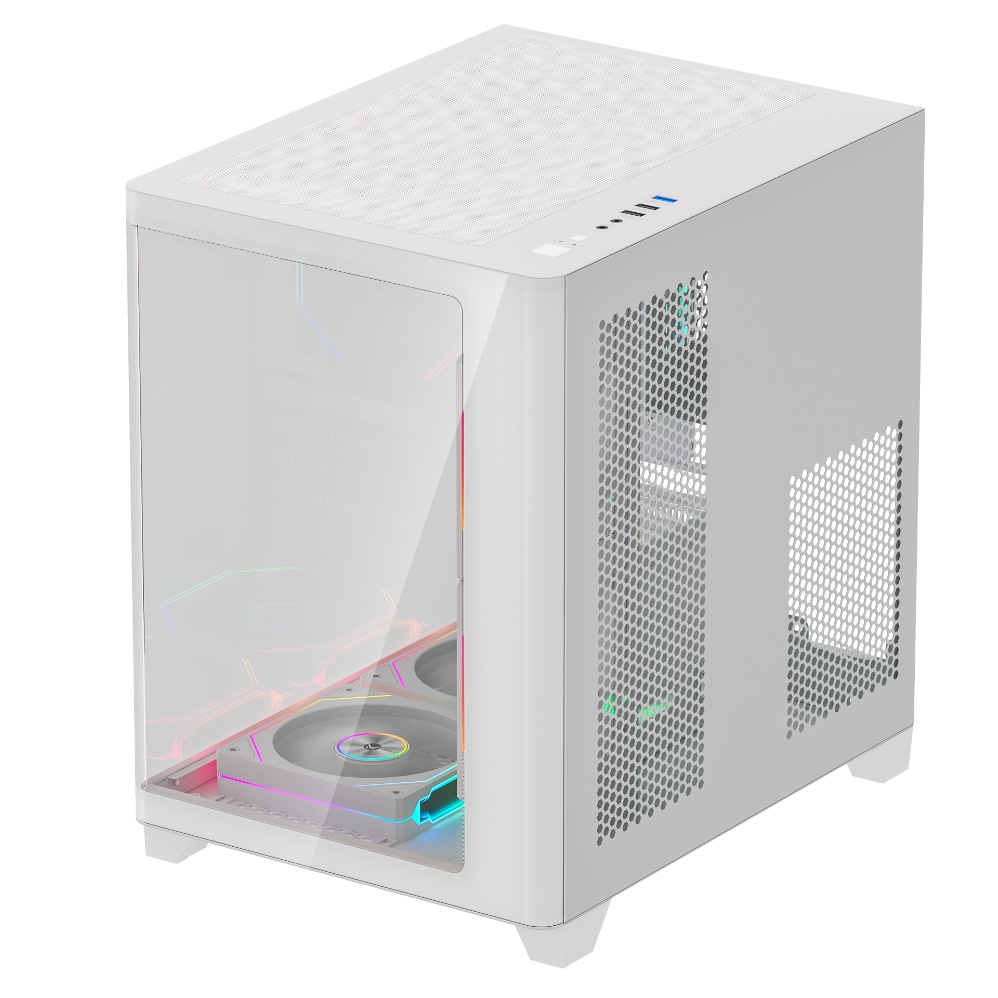

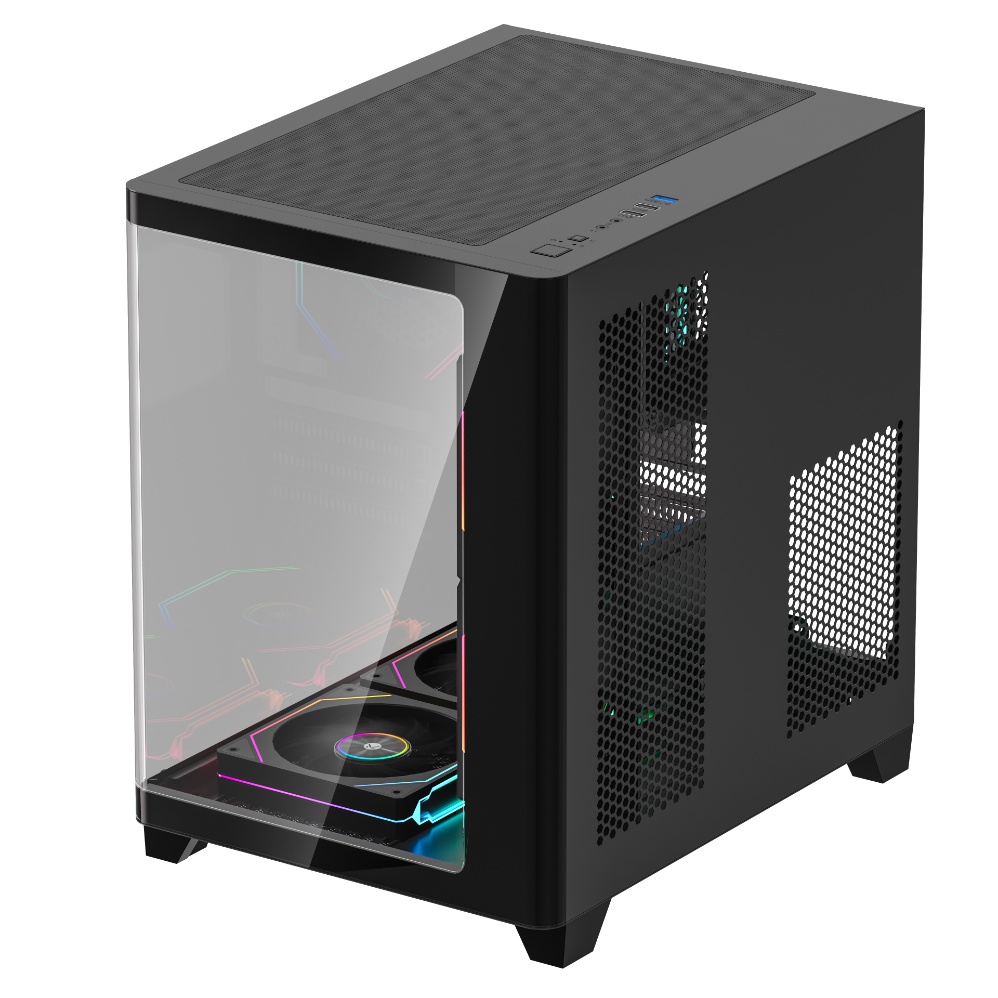

Toughened glass panel

visualisation of chassis fan coloured light

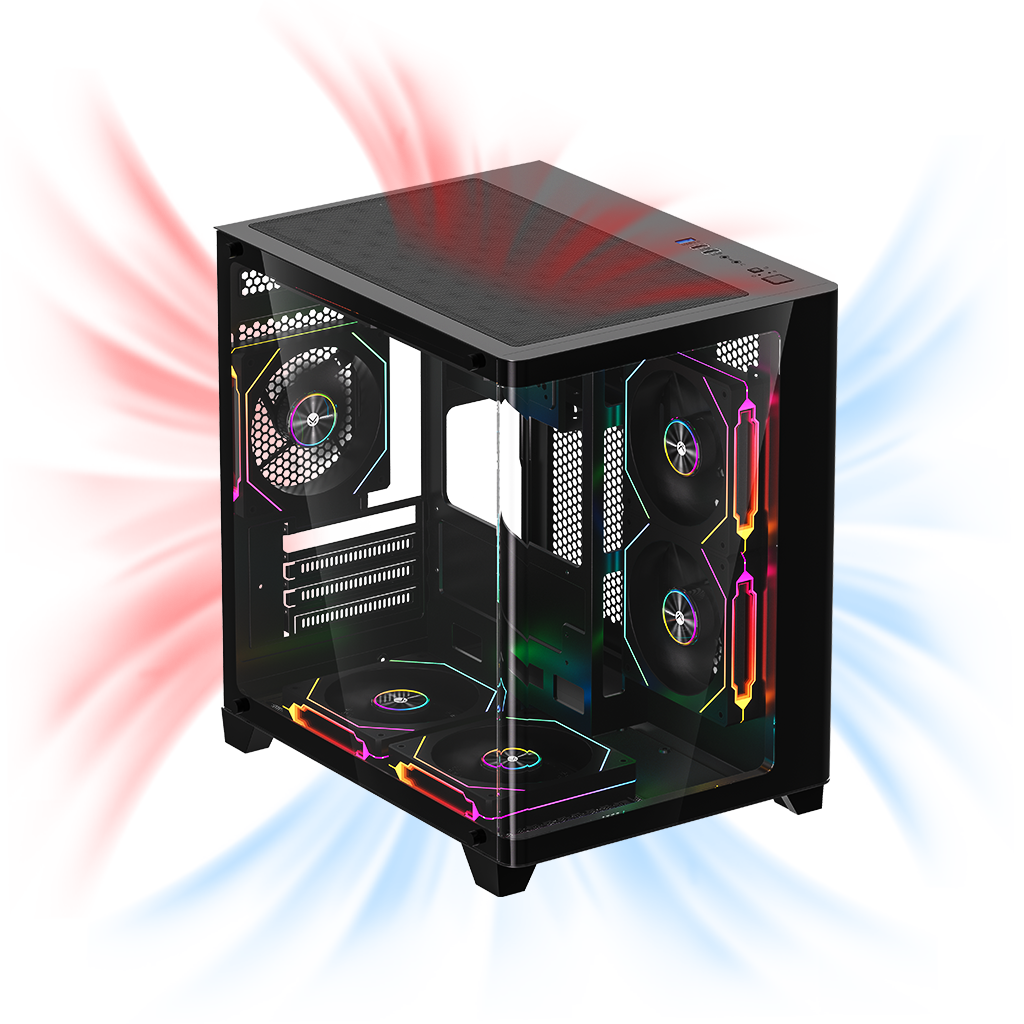

Three-dimensional cooling air ducts for powerful heat dissipation.

Solve the problem of internal heating


Multi-fan, efficient heat dissipation

Professional design, airflow covers the heating hardware

Guides internal heat out quickly

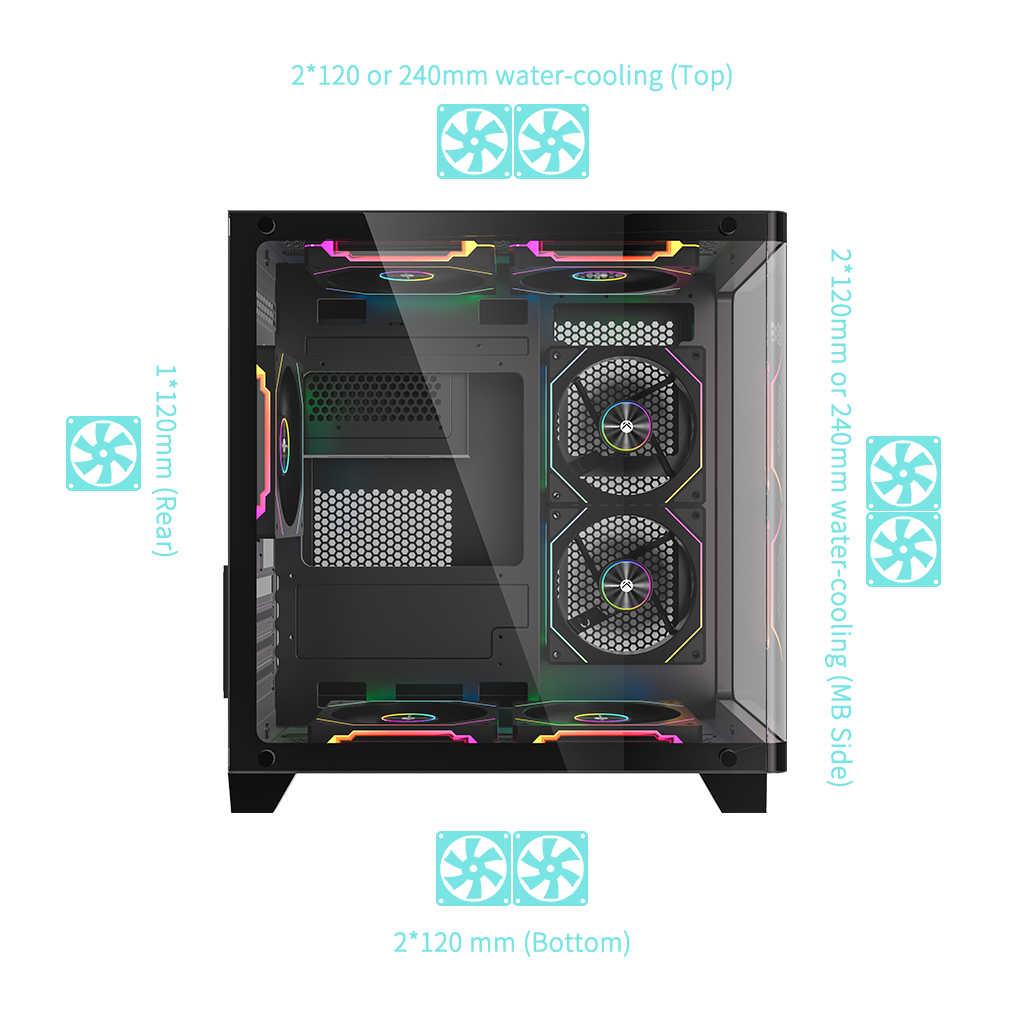

Radiators

240 water-cooling (top)

240 water-cooling (MB Side)


Fans

1*120mm (Rear)

2*120mm (MB Side)

2*120mm (Bottom)

2*120mm (Top)

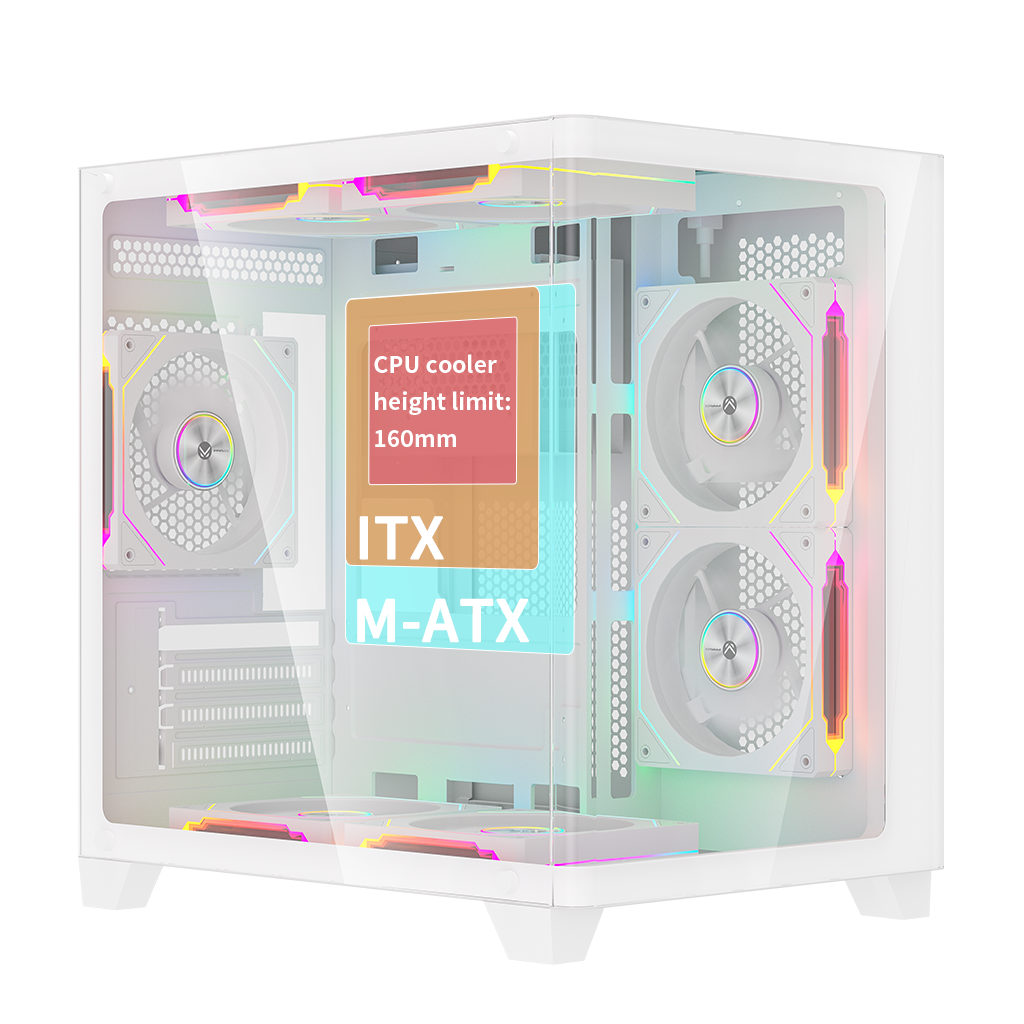

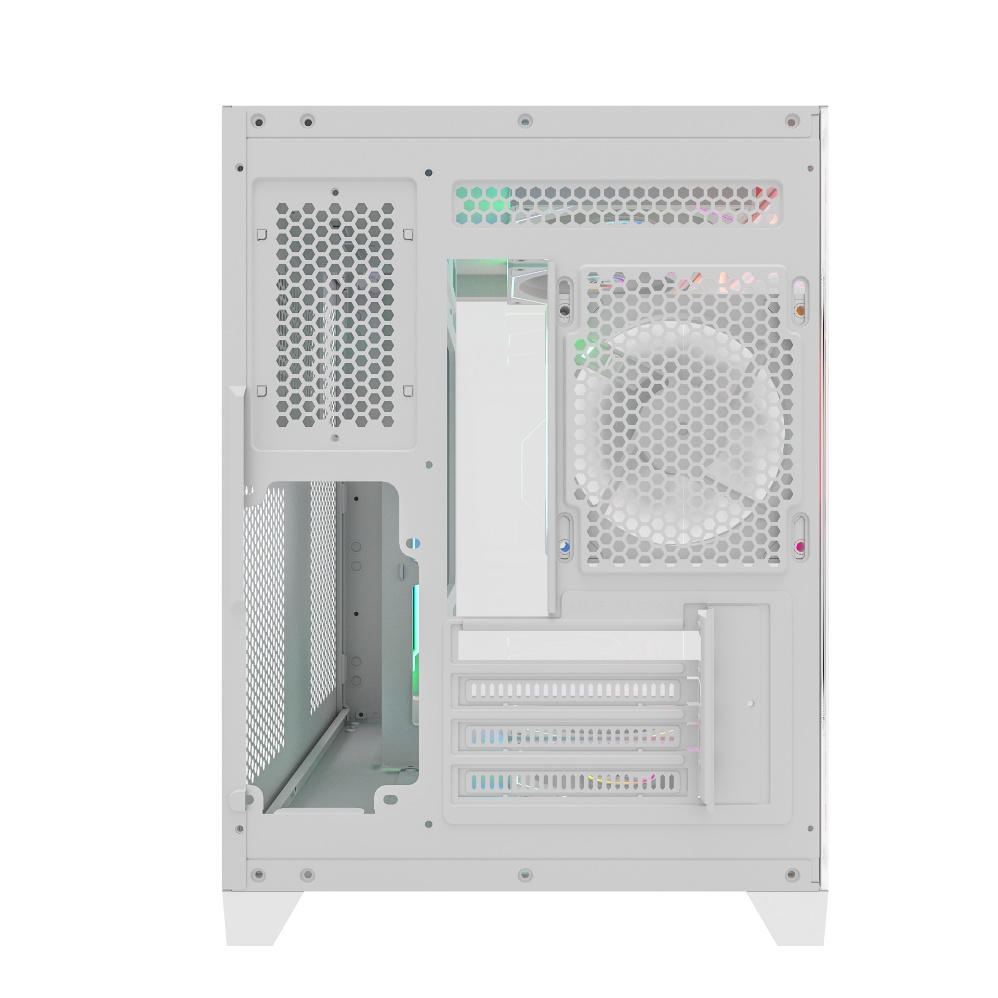

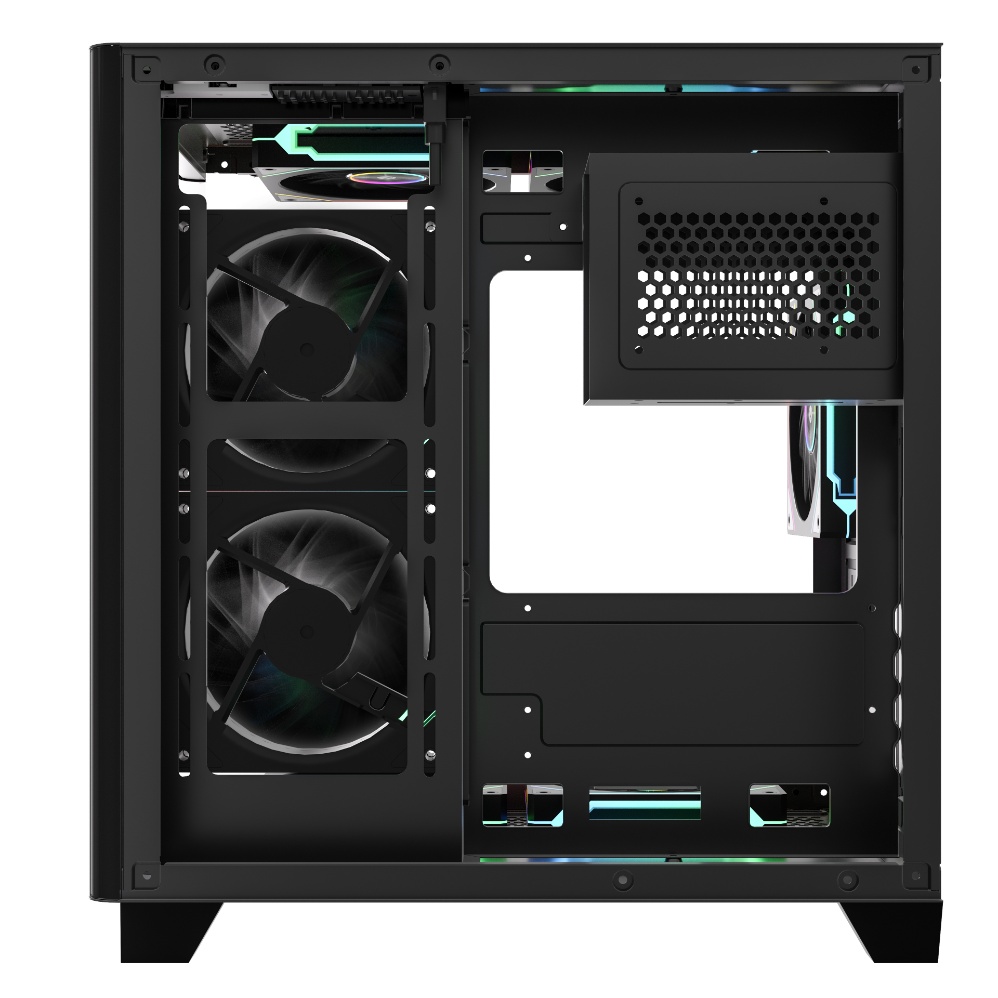

Large internal space

Supports multiple motherboard sizes M-ATX/Mini-ITX

CPU heat sink height limit 160mm


Chassis support for personalisation

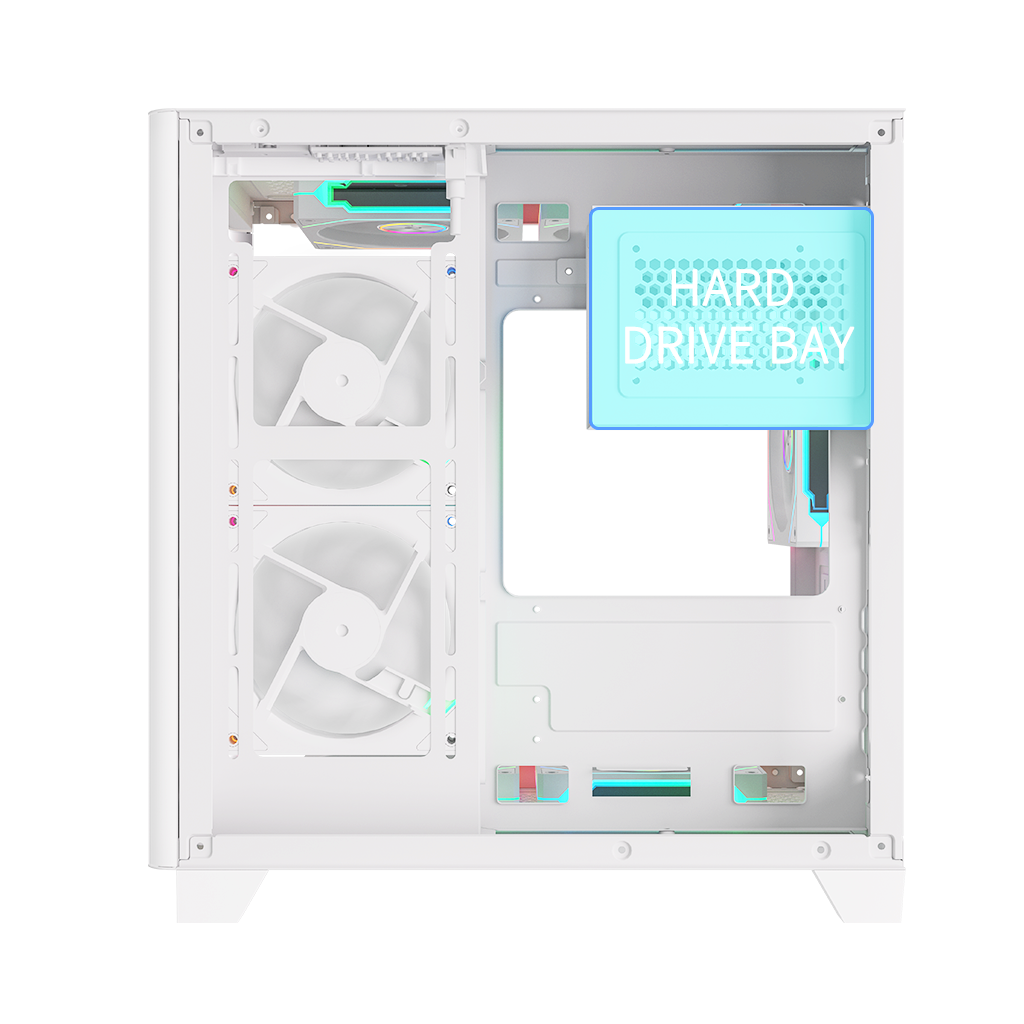

Multiple hard drive locations available

3 hard drive bays available

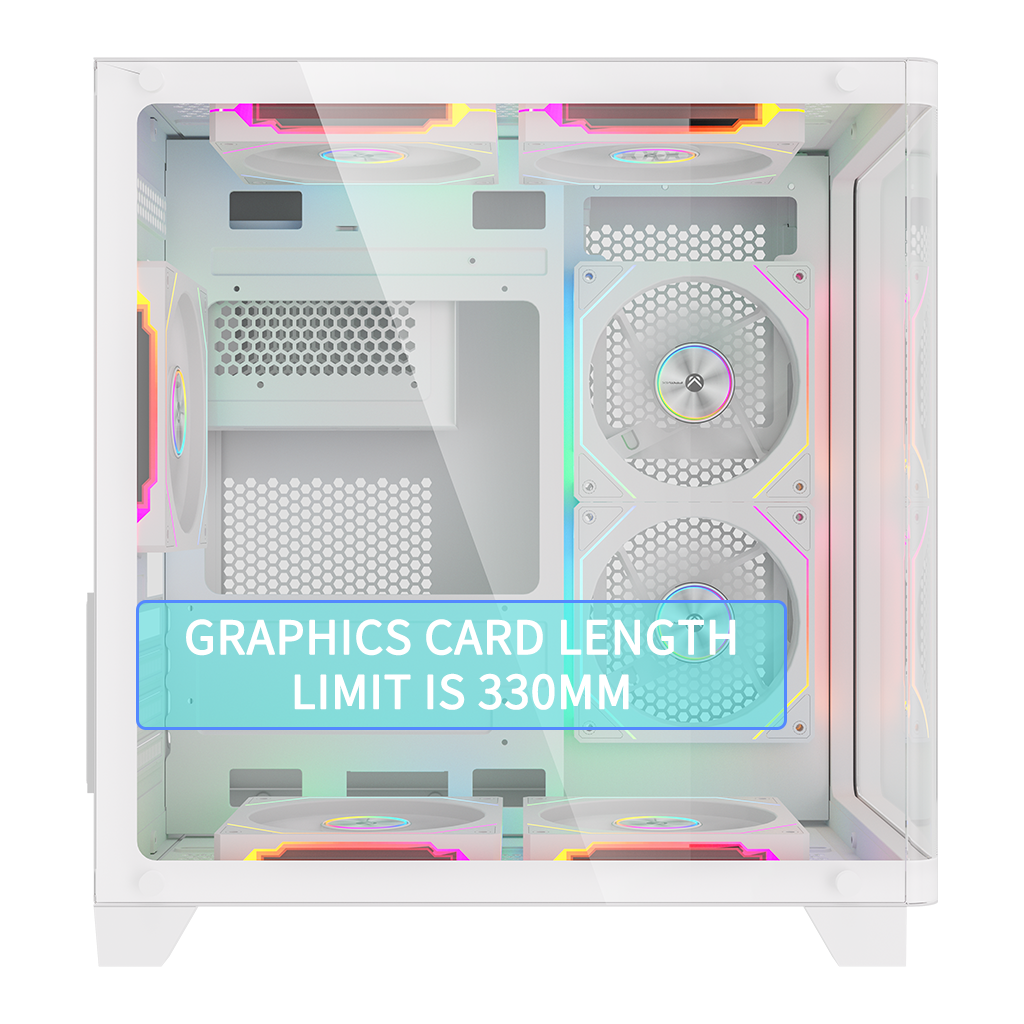

Large enough space for the length of the graphics card

Graphics card length limit is 330mm

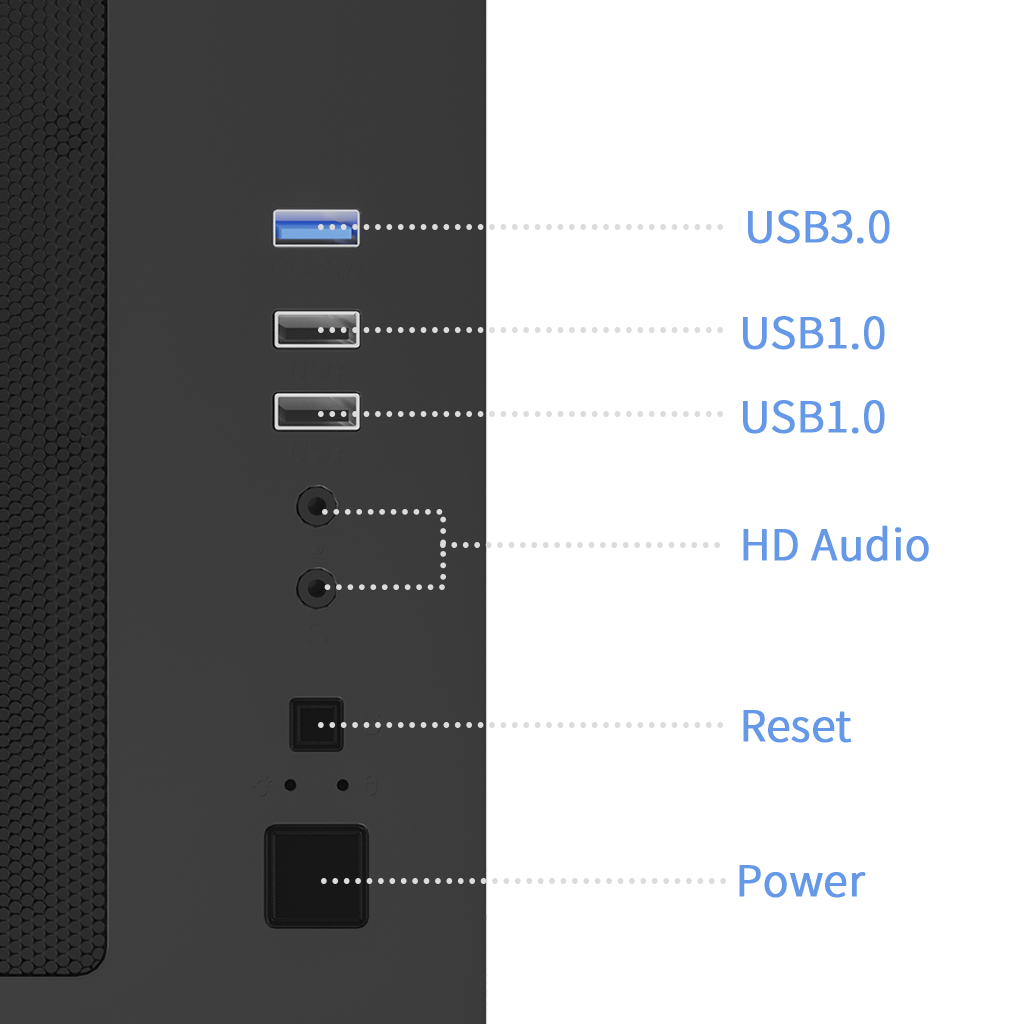

High speed transmission I/O interface

USB3.0*1, USB1.0*2, HD AUDIO

Data transfer is lightning fast, no need to be patient!


Technical Spec

Model NO

Diamond R7MINI

Diamond R7MINI NOVA

Product size

352*270*375mm(L*W*H)

352*270*375mm(L*W*H)

Material

Classs A SPCC 0.50MM

Classs A SPCC 0.50MM

M/B Support

M-ATX/Mini-ITX

M-ATX/Mini-ITX

I/O port

USB3.0*1, USB1.0*2, HD AUDIO

USB3.0*1, USB1.0*2, HD AUDIO

3.5'HDD

1*3.5'HDD

1*3.5'HDD

2.5'SSD

2*2.5'SSD

2*2.5'SSD

PCI-E Slots

5

5

Air Cooling

Top: 2*120mm (Option)

MB Side: 2*120mm (Option)

Bottom: 2*120mm (Option)

Rear: 1*120mm (Option)

Top: 2*120mm (Option)

MB Side: 2*120mm (Option)

Bottom: 2*NOVA 12 ARPW (Pre-Installed)

Rear: 1*NOVA 12 ARPW (Pre-Installed)

Liquid Cooling

Top: 240mm water-cooling

MB Side: 240mm water-cooling

Top: 240mm water-cooling

MB Side: 240mm water-cooling

FANS HUB

/

1

CPU Cooler

160mm

160mm

Graphics Cards

330mm

330mm

Power Supply

ATX

ATX

EAN

Diamond R7MINI BK : 6973574162952

Diamond R7MINI WH : 6973574162945

Diamond R7MINI NOVA BK : 6973574162938

Diamond R7MINI NOVA WH : 6973574162921
