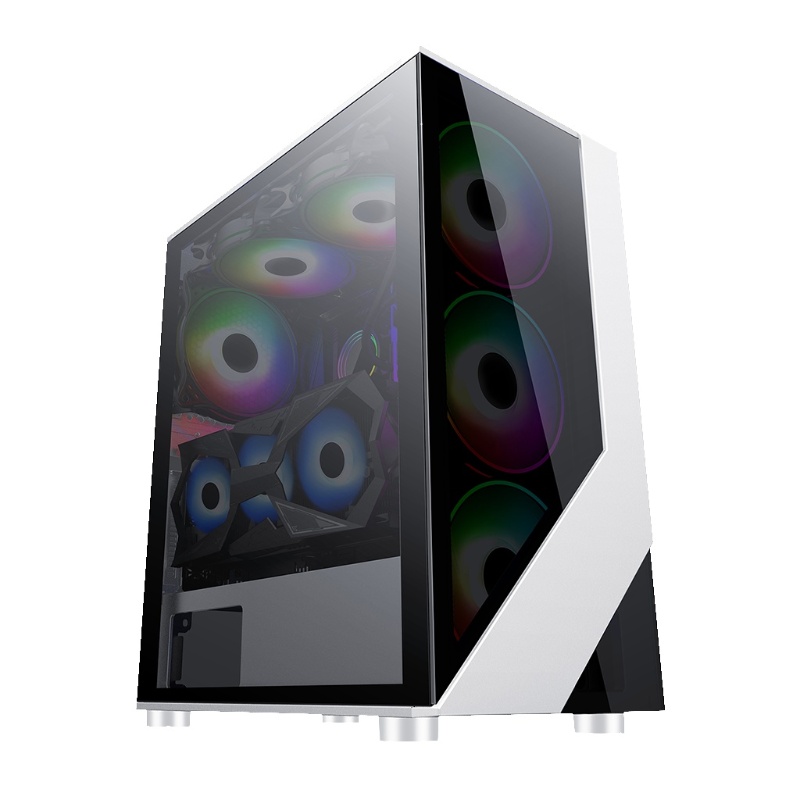

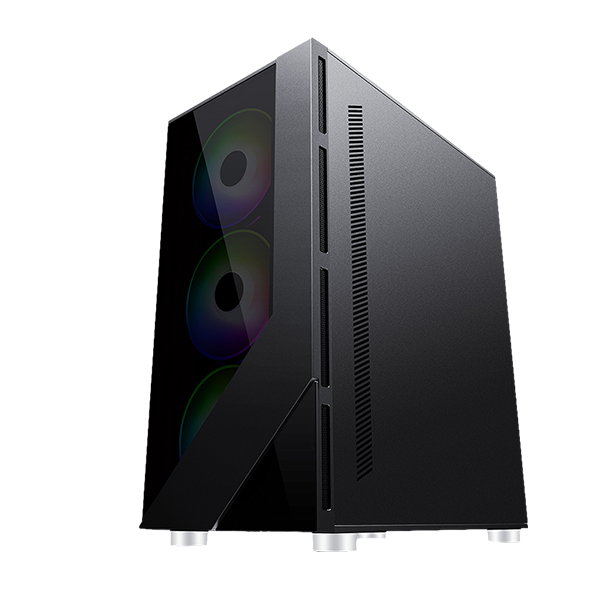

Diamond Z7
Diamond Z7
Mid Tower Case
Unmatched Heat Dissipation Performance: Our excellent heat dissipation design,ensures superior airflow and cooling performance, keeping your components running at optimal temperatures.
Sleek and Customizable Aesthetics: Available in black or white colors, our product lets you choose a color that matches your style and preference.
Exceptional Durability: Crafted from a thick 0.7mm SPCC steel plate, our product provides exceptional durability.
Optimal Cooling Capabilities: With support for 360mm liquid cooling installation and 7 fans, our product boasts a fully optimized internal circulation cooling system, ensuring outstanding cooling capabilities for superior performance.
Efficient Heat Dissipation System: The multi-directional heat dissipation and three-dimensional heat dissipation system guarantee efficient cooling from all directions.
Ample Storage Space: With support for 4 SSDs/HDDs, our product provides ample space for all your storage needs.
Experience unrivaled cooling performance, seamless aesthetics, and hassle-free maintenance with our product. Upgrade your gaming setup to the next level today!

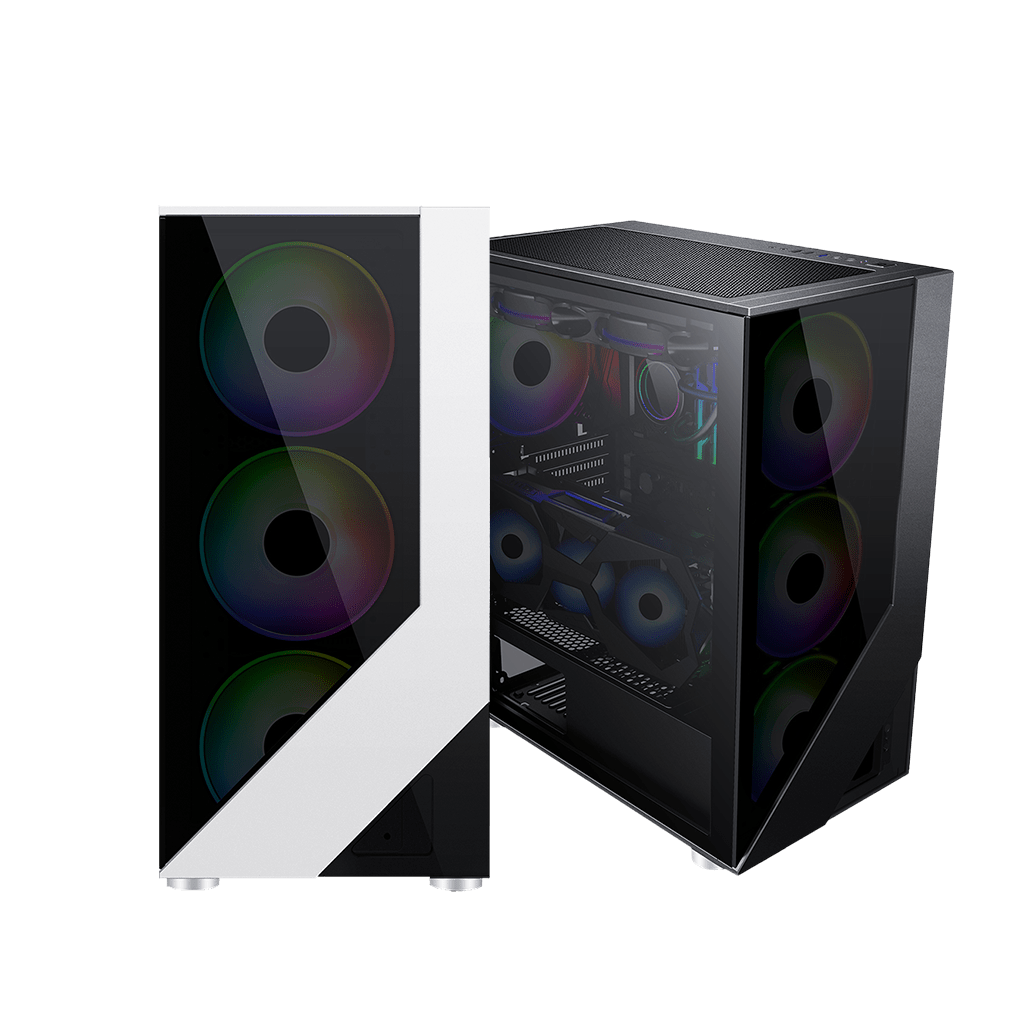

Color
Diamond Z7
Diamond Z7

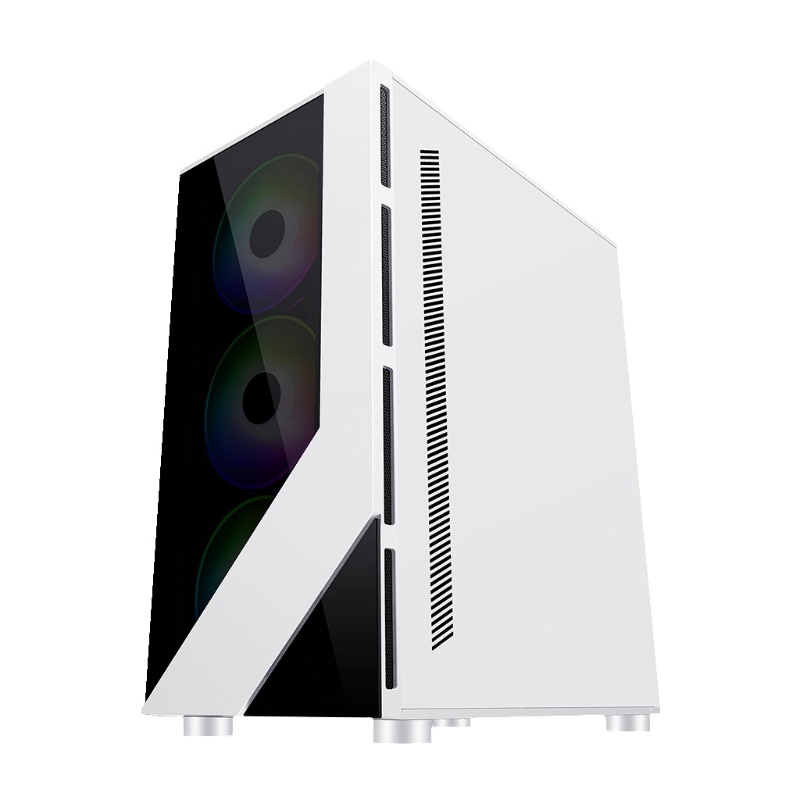

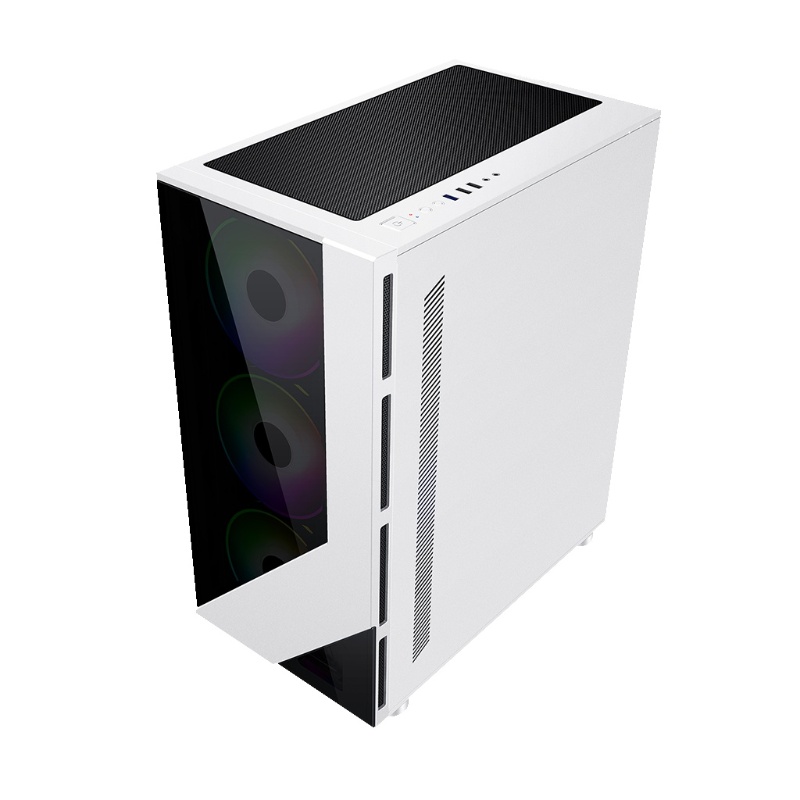

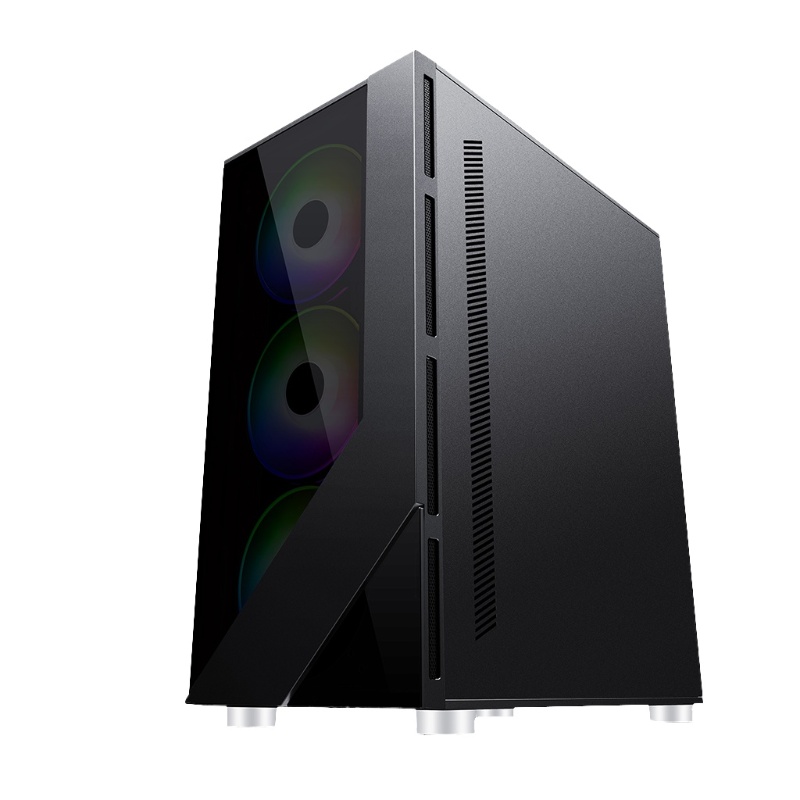

Porous ventilation design.
Three-dimensional cooling air ducts for powerful heat dissipation.

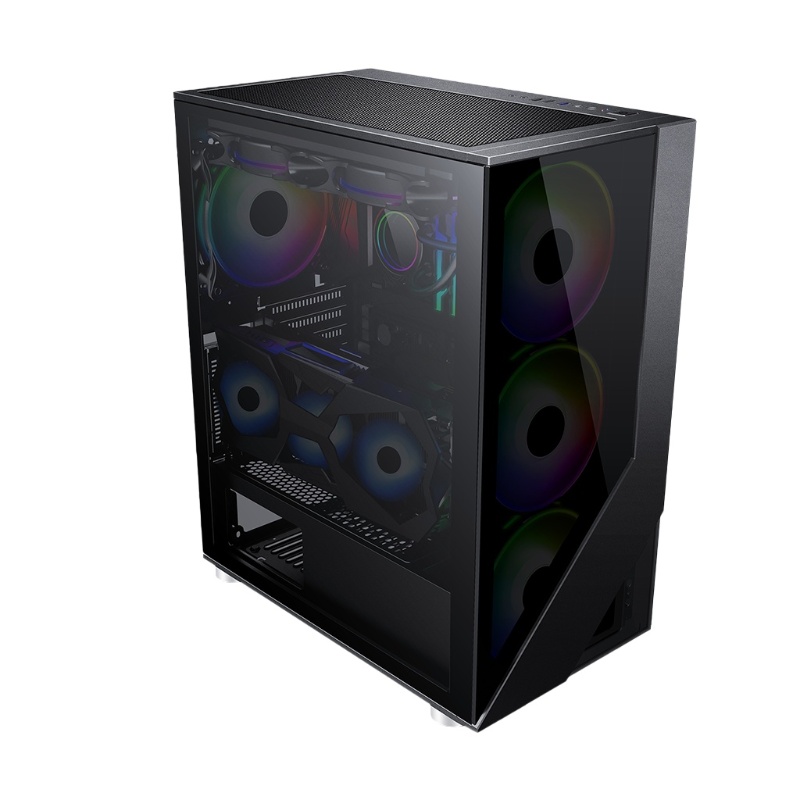

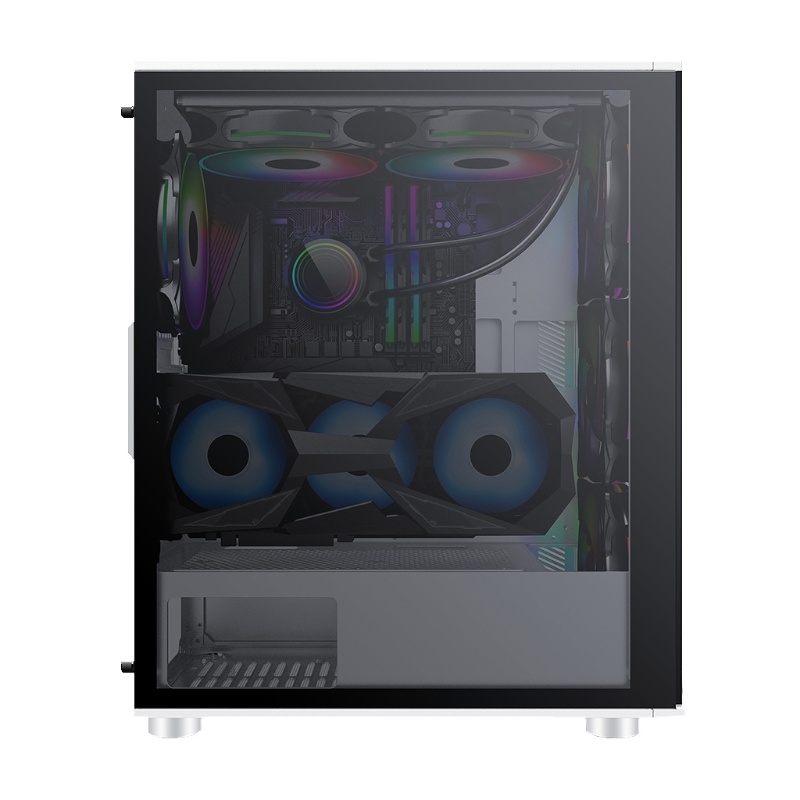

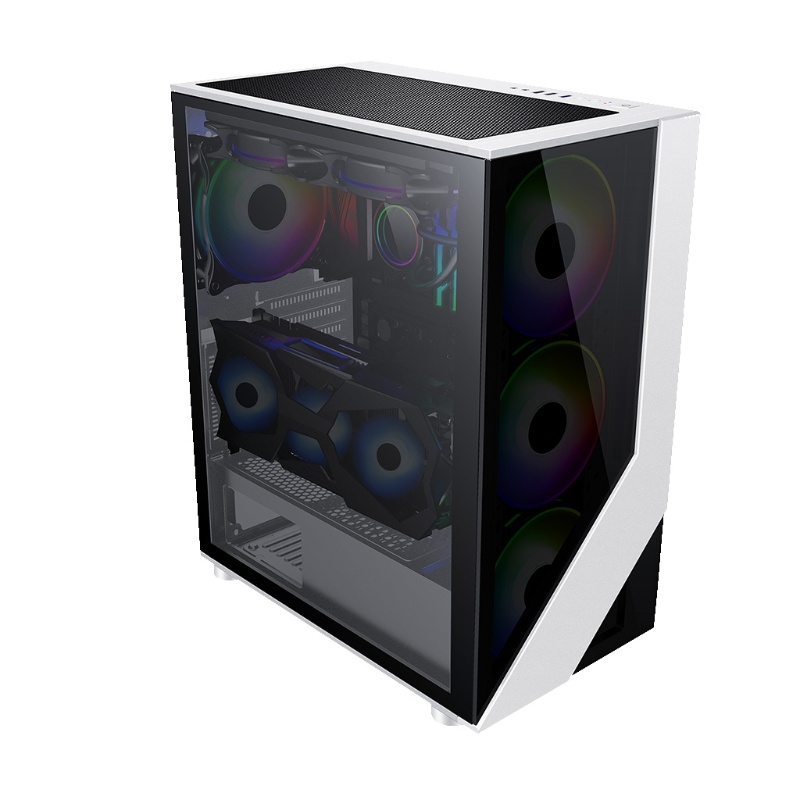

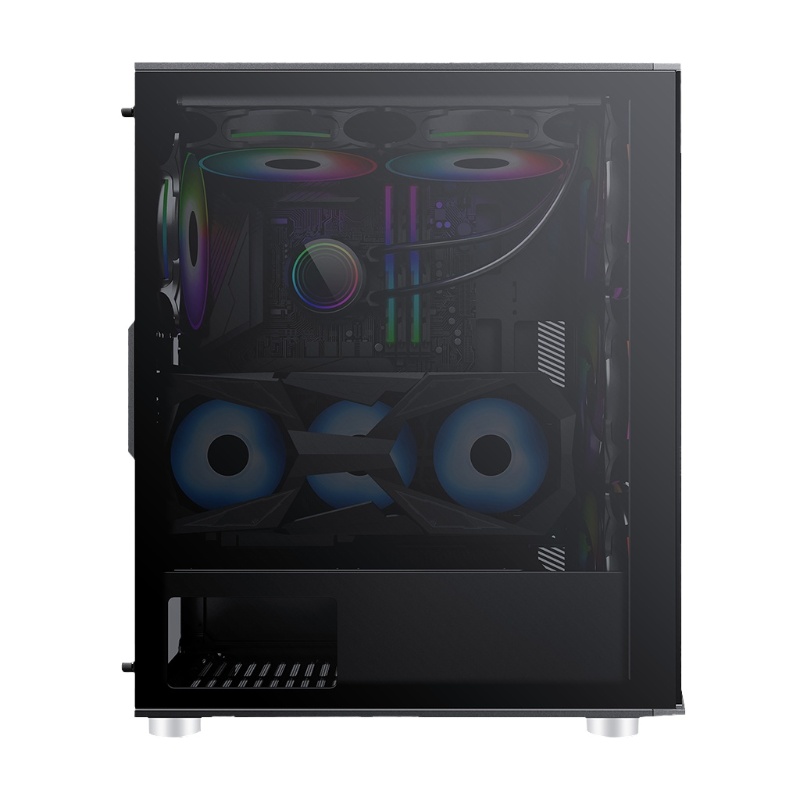

Glass side panel to show off the interior.

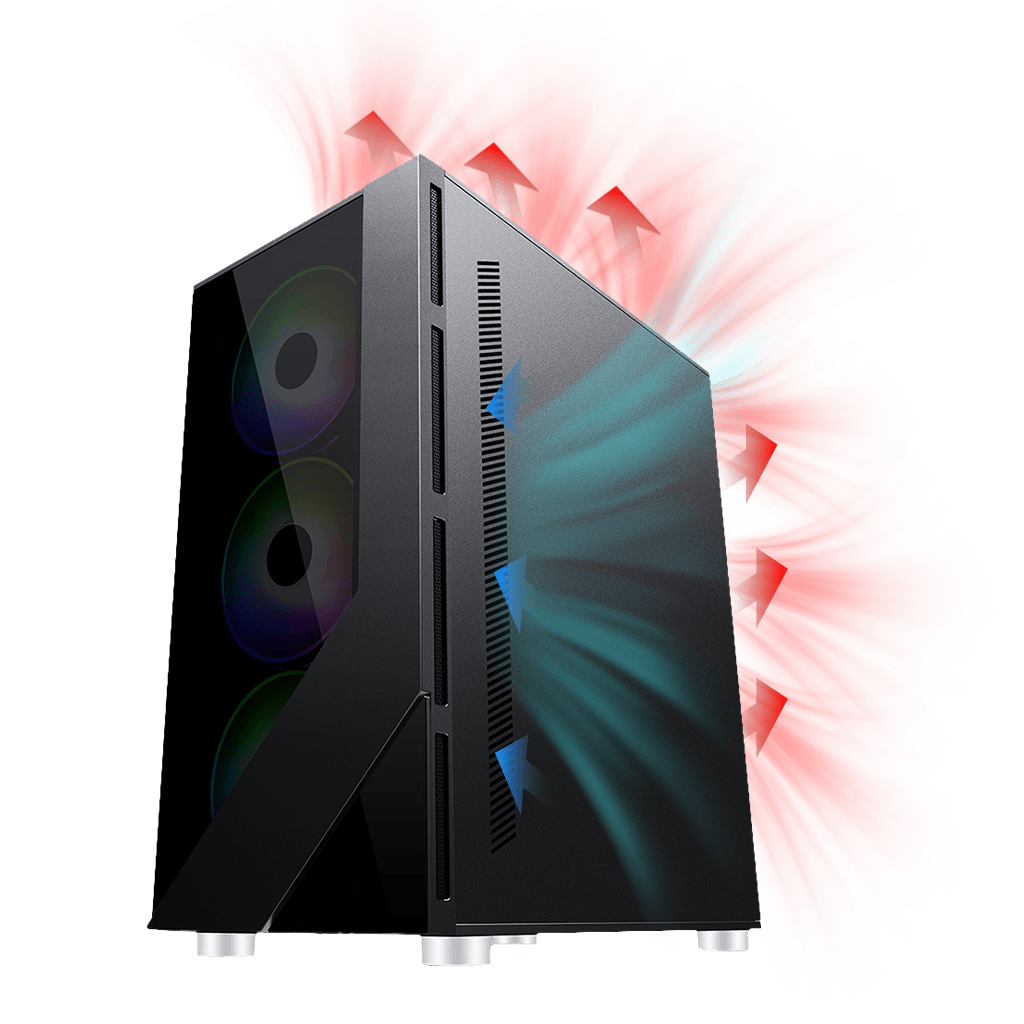

3D cooling duct
Different from the traditional, new design air channel.
Lead the heat discharged quickly and efficiently.
Multi-fan, efficient heat dissipation
3D cooling air duct provides more air sources for internal hardware.
Solve the problem of internal heating

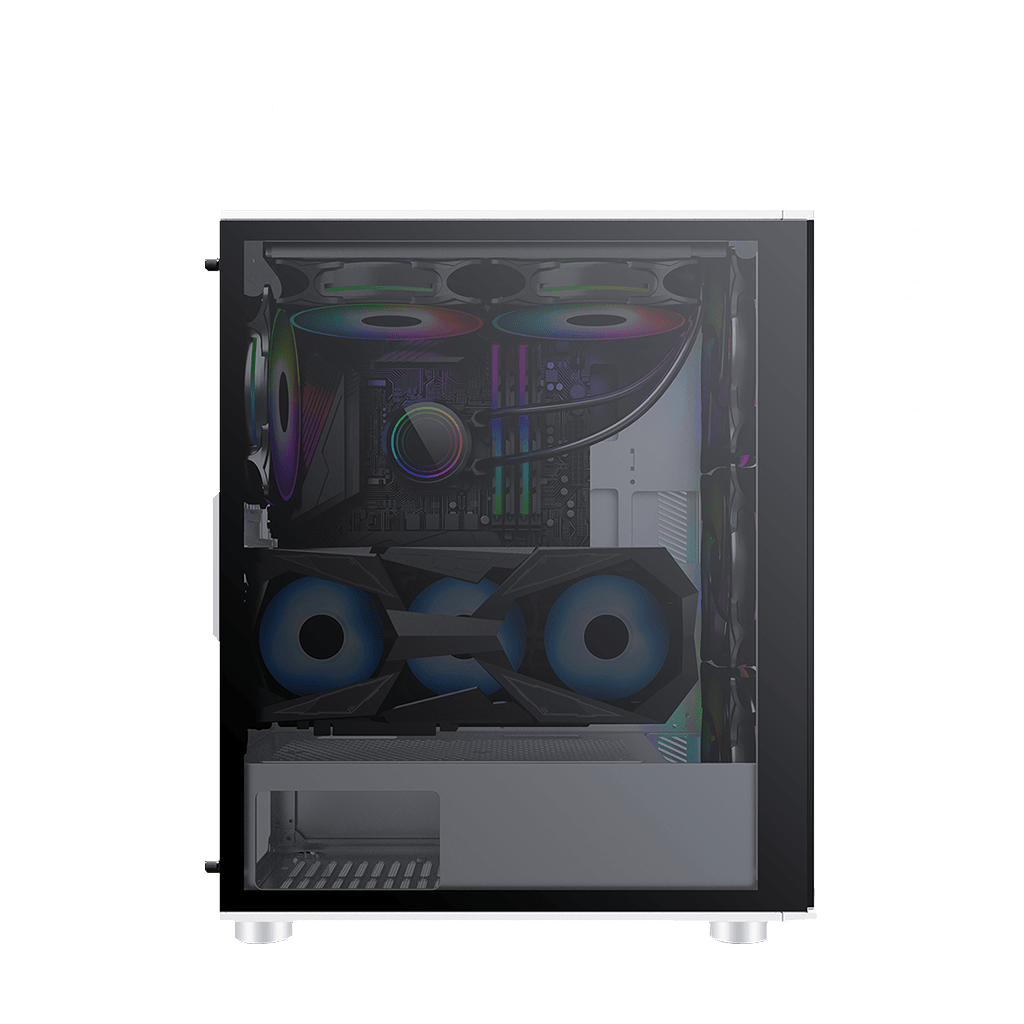

Radiators
240/280/360mm water-cooling (Front)
240/280mm water-cooling (Top)
Fans
1*120mm (Rear)
3*120/3*140mm (Front)
3*120/3*140mm (Top)
Chassis support for personalisation

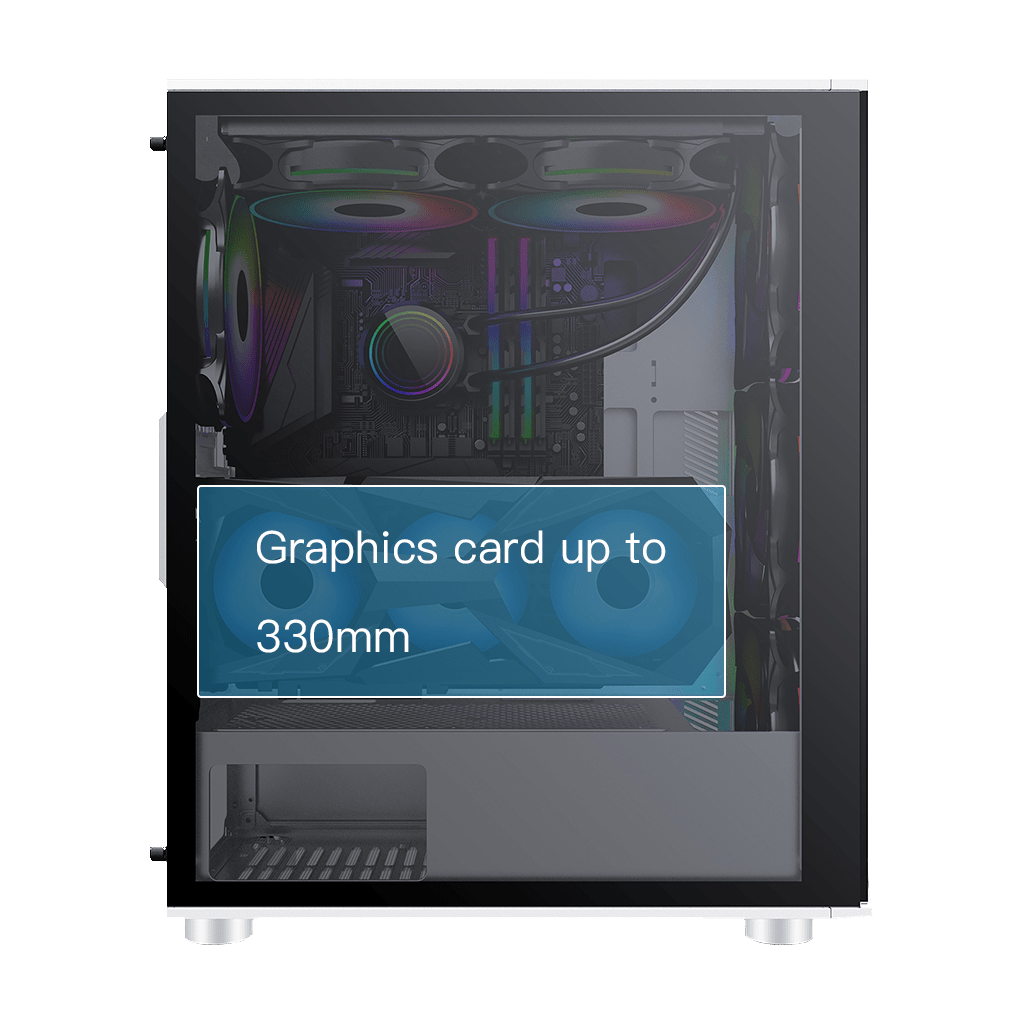

Large enough space for the length of the graphics card
Graphics card length limit is 330mm

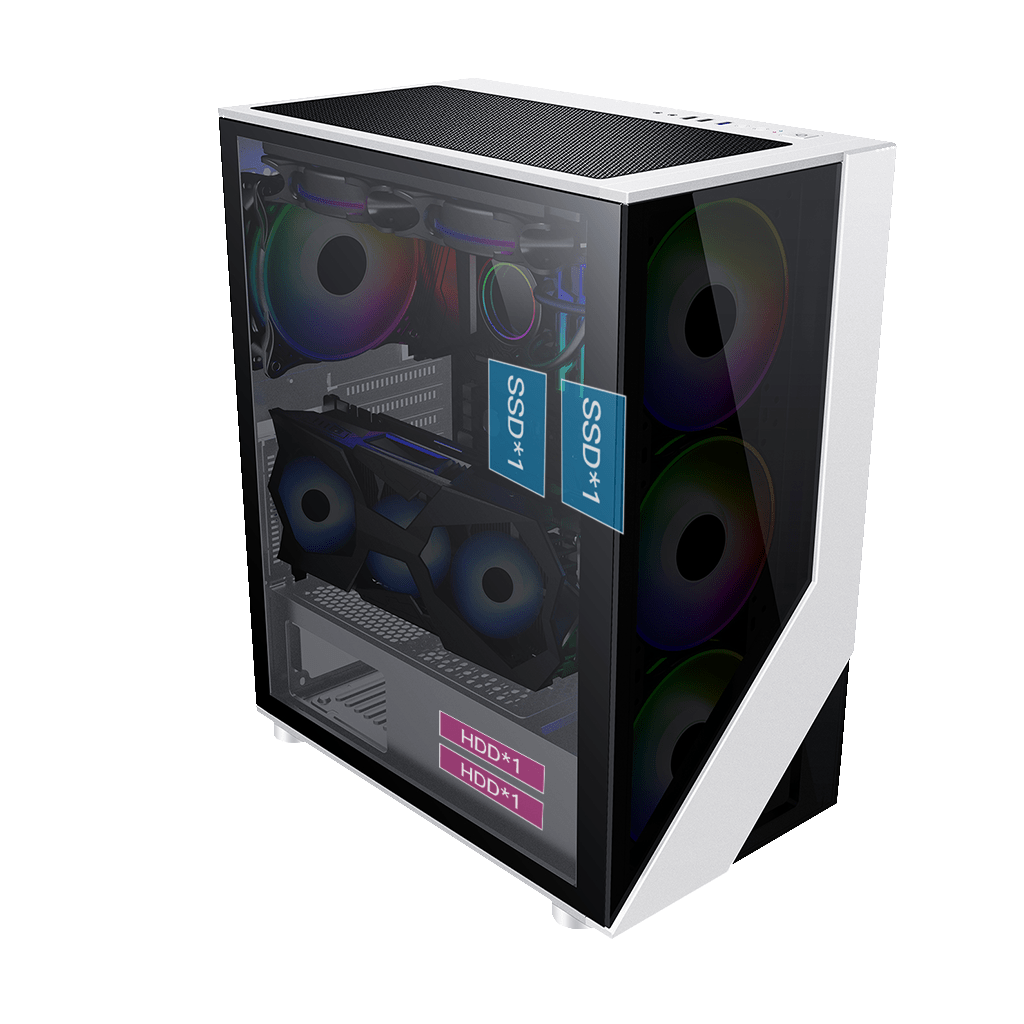

Multiple hard drive locations available
Four hard drive bays, SSD*2 and HDD*2

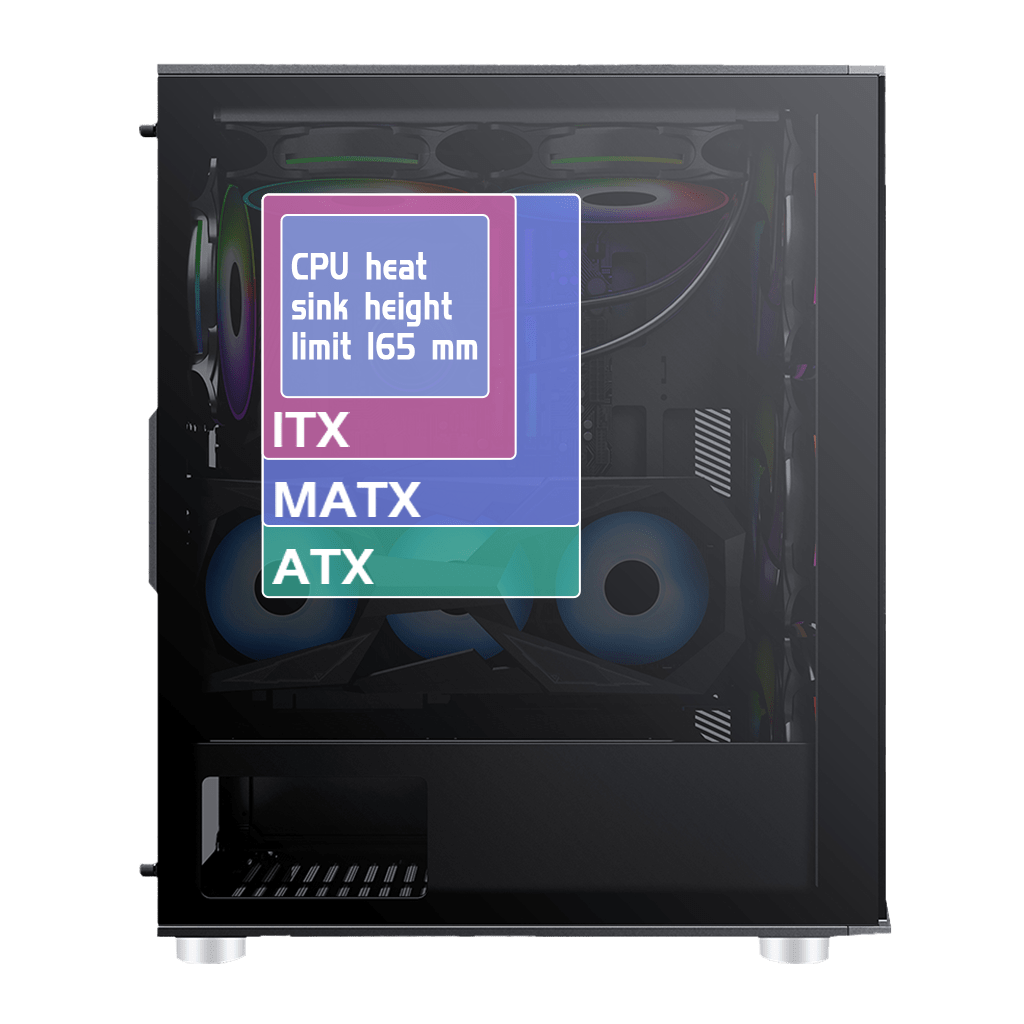

Large internal space
Supports multiple motherboard sizes ATX/M-ATX/Mini-ITX
CPU heat sink height limit 165mm

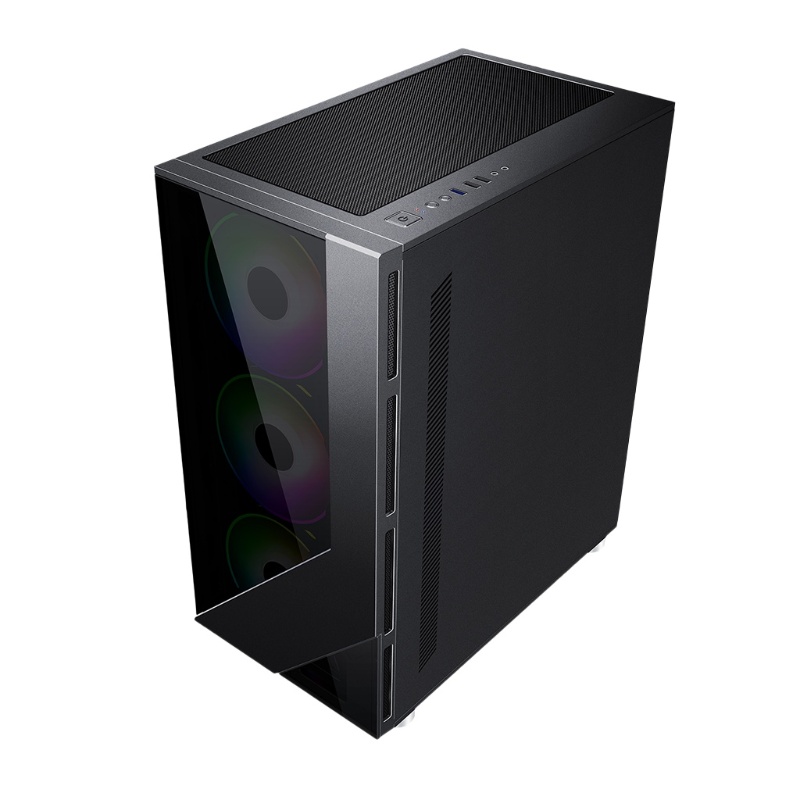

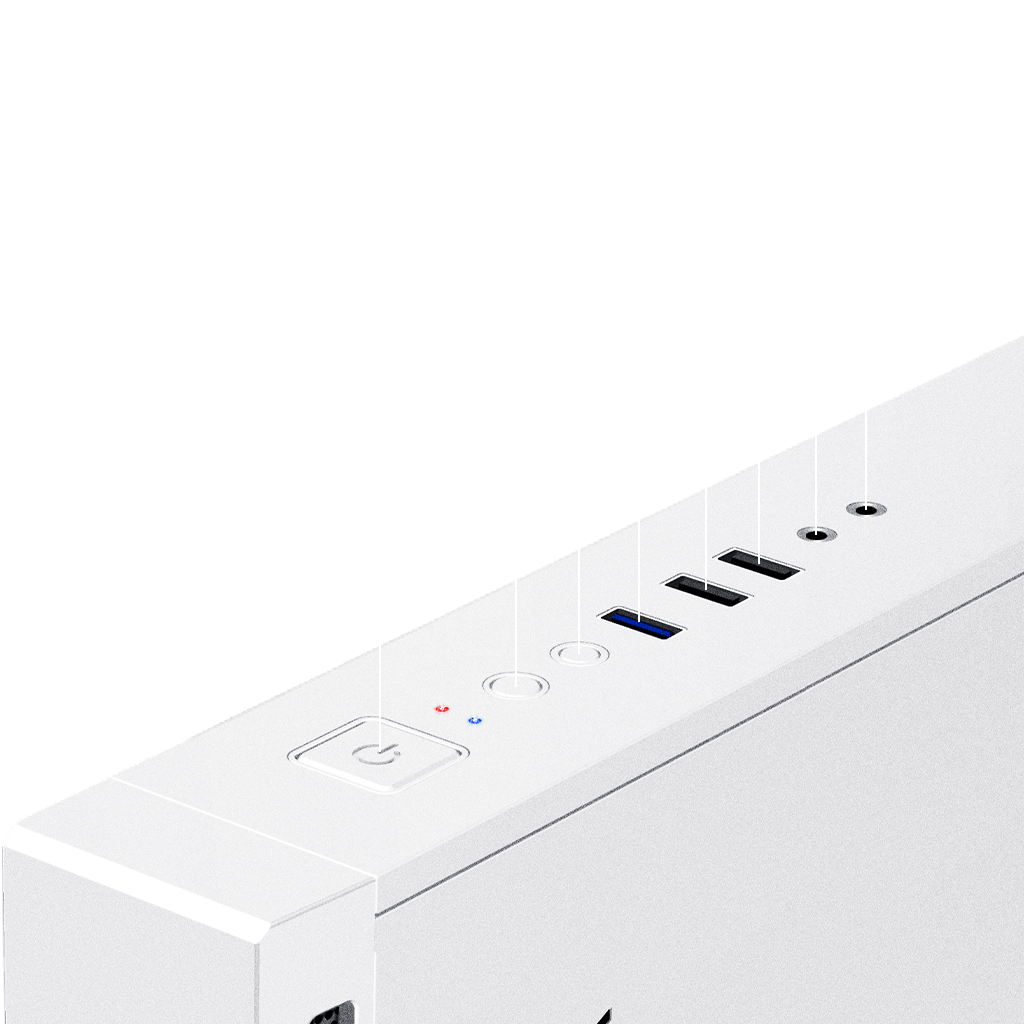

High speed transmission I/O interface
USB3.0*1, USB2.0*2, HD AUDIO
Power, Reset Controller
Technical Spec
Model NO | Diamond Z7 |
Product size | 385*225*470mm(L*W*H) |
Inner size | 360*225*455mm(L*W*H) |
Net Weight | 6kg |
Material | Classs A SPCC 0.70MM |
M/ Support | ATX/M-ATX/Mini-ITX |
I/O port | USB3.0*1, USB2.0*2, HD AUDIO |
3.5'HDD | 2*3.5'HDD |
2.5'SSD | 2*2.5'SSD |
PCI-E Slots | 7 |
Pre-installed Fan(Black) | 1*12cm(Rear) Fan With Rainbow color |
Pre-installed Fan(White) | / |
Air Cooling | 1*120 (Rear) 3*120/3*140mm (Front) 3*120/3*140mm (Top) |
Liquid Cooling | 240/280/360mm water-cooling (Front) 240/280mm water-cooling (Top) |
CPU Cooler | 165mm |
Graphics Cards | 330mm |
Accessories | Tempered Glass |
Power Supply | ATX |
| EAN | Diamond Z7 WH : 6973574163980 Diamond Z7 BK : 6973574163973 |
