FOX 1000W
FOX 1000W
FOX series power supply 80plus gold certification, all Japanese capacitors, maintain stable operation of equipment and extend product life.
High standard power supply
The FOX series meets the 80 PLUS Gold standard, with an efficiency of more than 90.0% at 230VAC 50% typical load conditions, which significantly improves conversion efficiency and effectively saves power loss.
FOX Serie Full modular Gold PSU
Low noise fan
The fan uses hydraulic bearings to reduce friction and vibration, reducing noise and lengthening life.

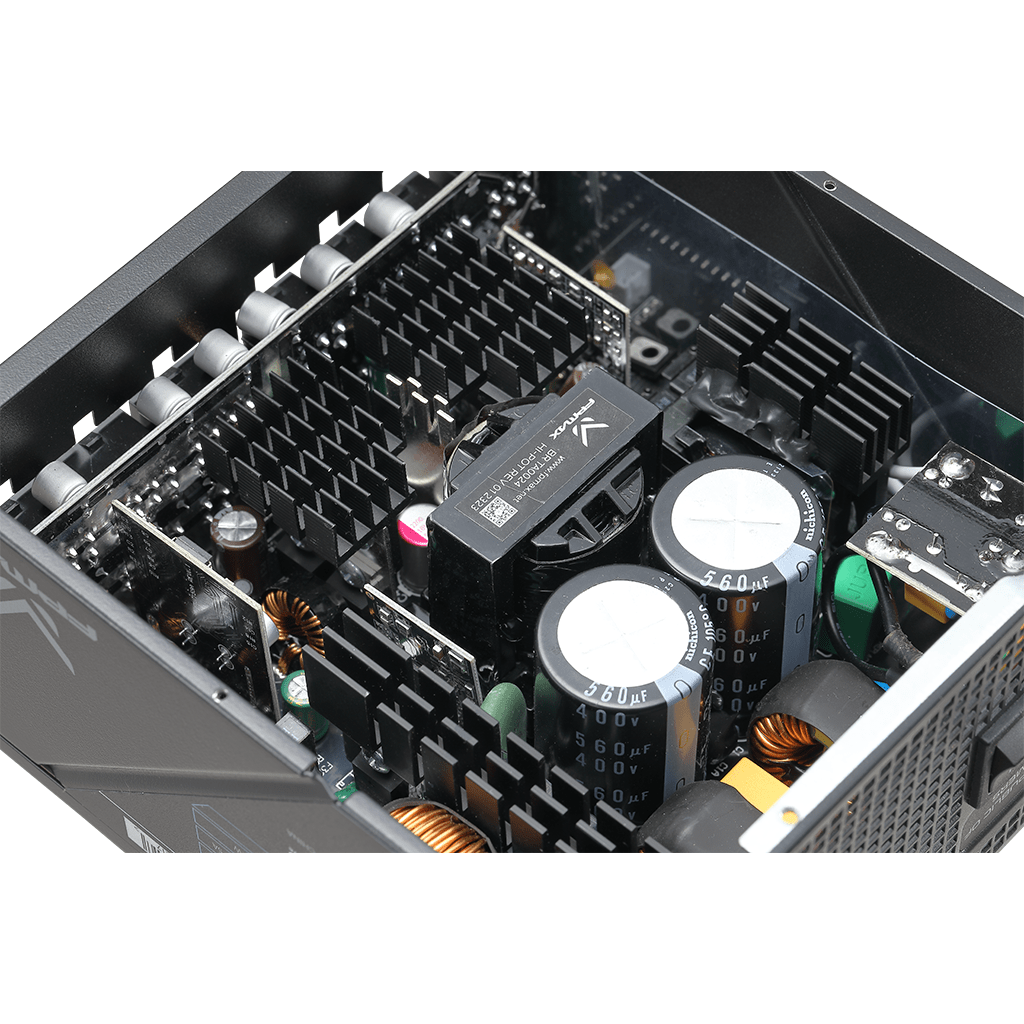

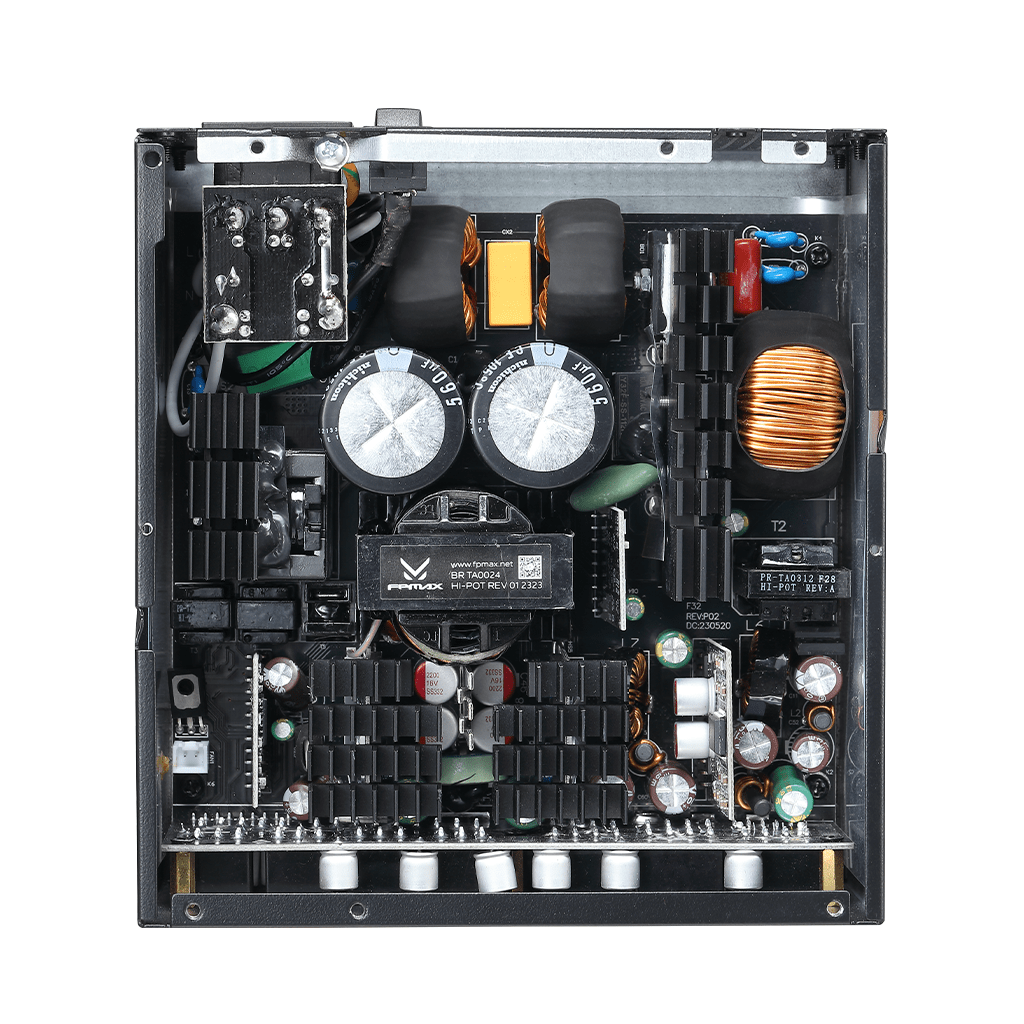

Japanese capacitors
Main capacitors: Japanese capacitors and the capacitor can withstand temperatures of 105°
Multiple circuit protection
Use over-voltage protection(OVP), under-voltage protection(UVP), over-power protection(OPP) and short-circuit protection(SCP) to cope with various problems.
Over Voltage Protection
Under Voltage Protection
Over Power Protection
Short Circuit Protection
ATX20+4
4+4 PIN
PIC-E 6+2
PIC-E 12+4
PIC-E5.1
SATA
MOLEX
Technical Spec
| Model NO | FOX 1000W |
| Ac Input | AC110-240V / 12A / 50Hz |
Product Dimensions(L x W x H) | 160*150*86mm |
Efficiency Certification | 80 Plus Gold 115V |
Fan Size | 135mm |
Fan Bearing | Hydro Bearing |
Topology | Active PFC+LLC |
Capacitors | Japanese Capacitor/105° |
Power Good Signal | 100-500 ms |
Hold Up Time | ≥16ms |
Conversion Efficiency | ≥90% Under Typical Load(50% Loading) |
Protection | OVP、UVP、OPP、SCP |
Operation Temperature | 0 ℃ to 50 ℃ |
Authentication | CCC、CE |
Erp Regulation | ErP 2013 |
Environmental Protection Label | RoHS |
MTBF | 100,000 hrs minimum (at 25 ℃) |
EAN | 6973574160248 |
