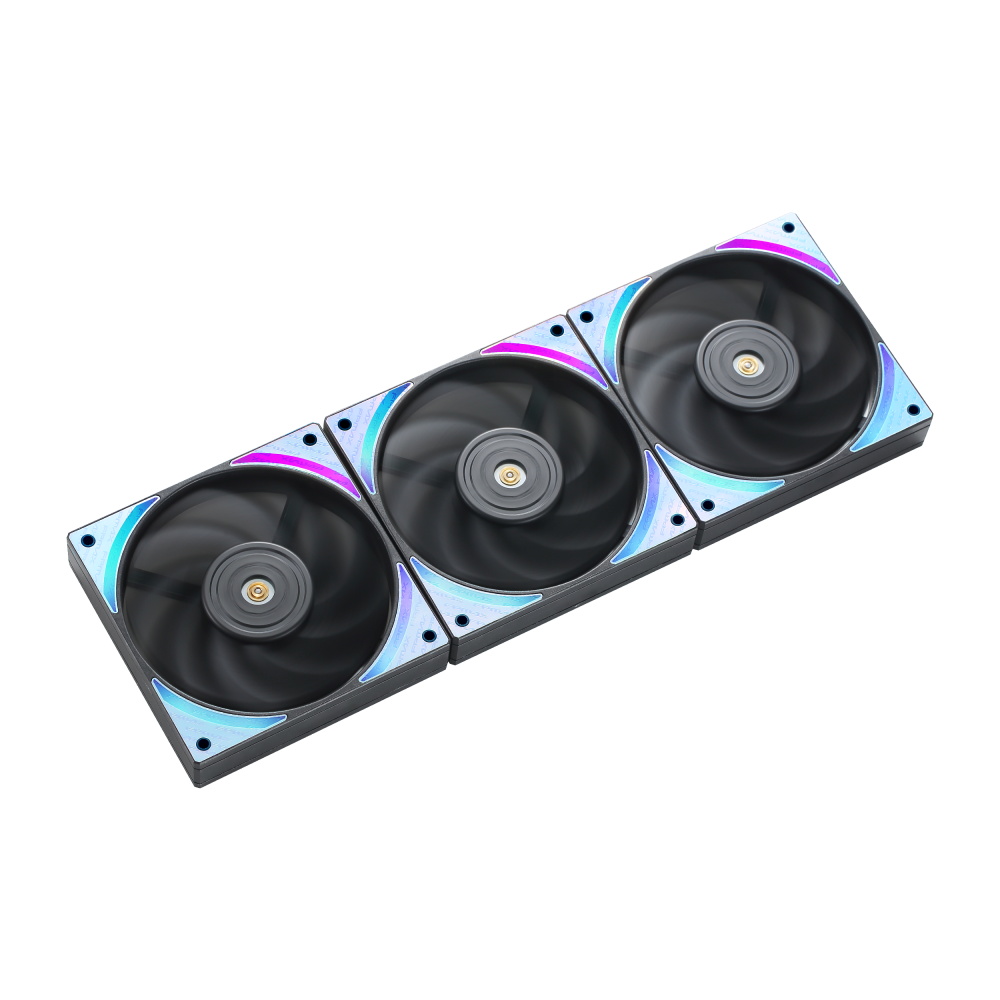

Wind Dock PLUS WH/BK
Wind Dock PLUS WH/BK
COOLING FANS

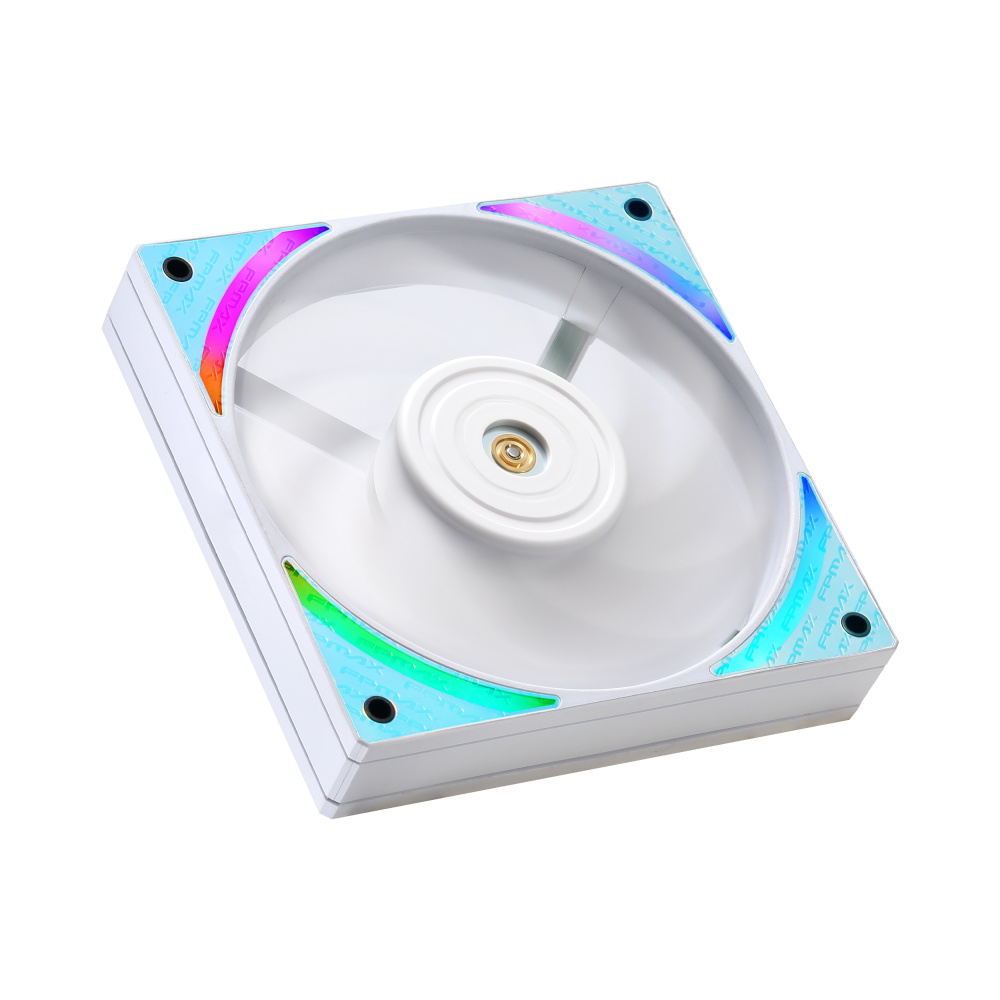

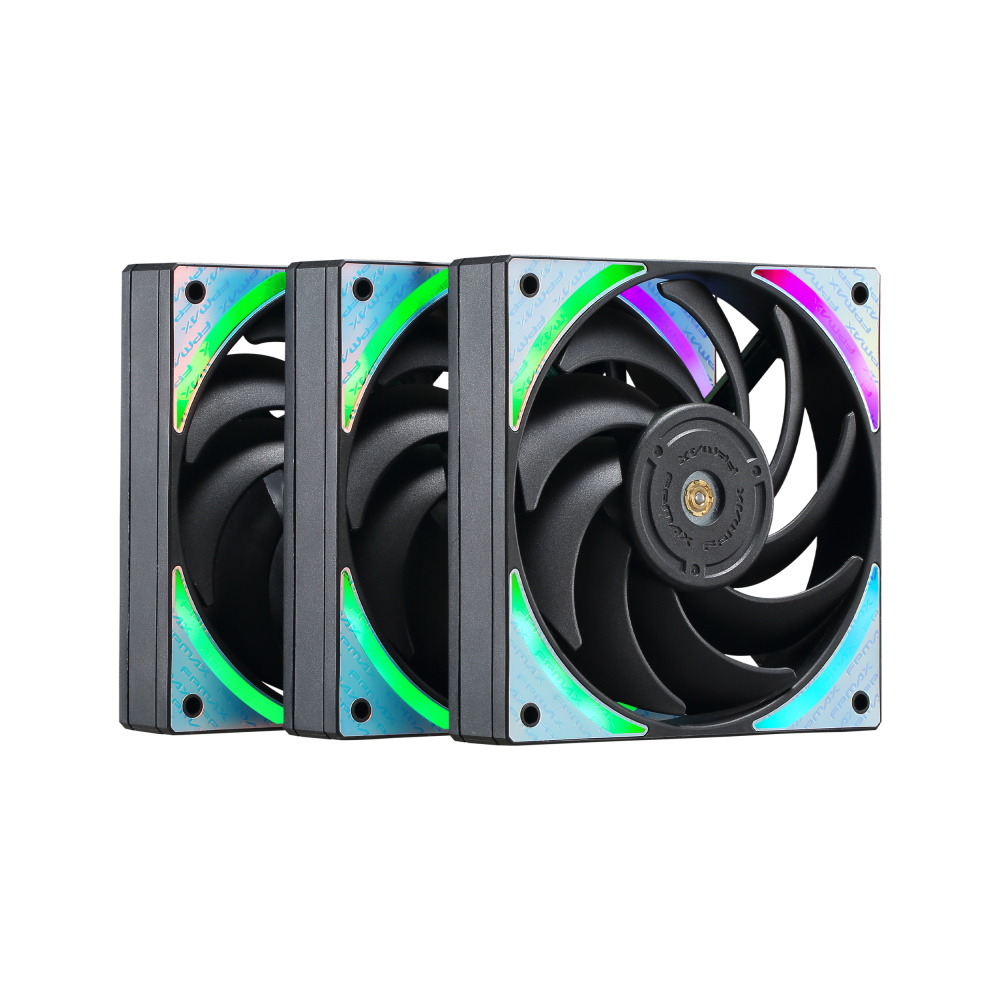

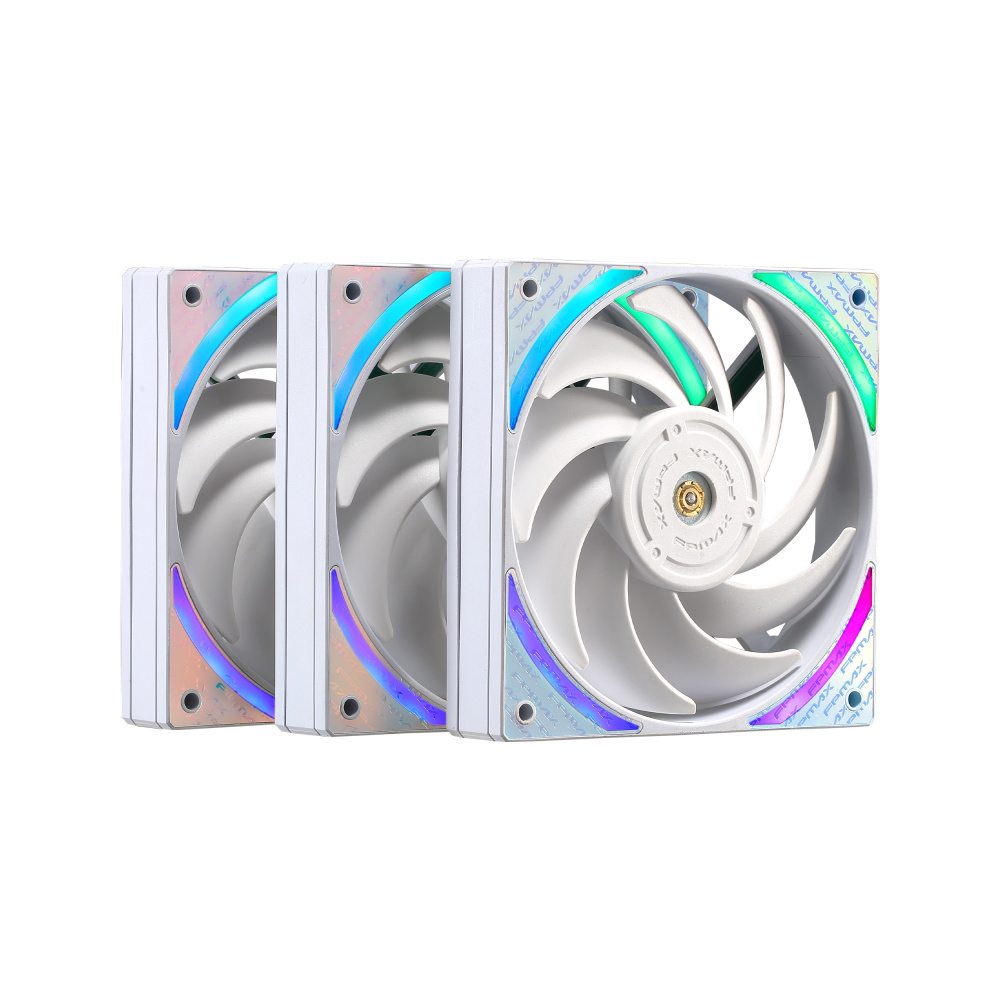

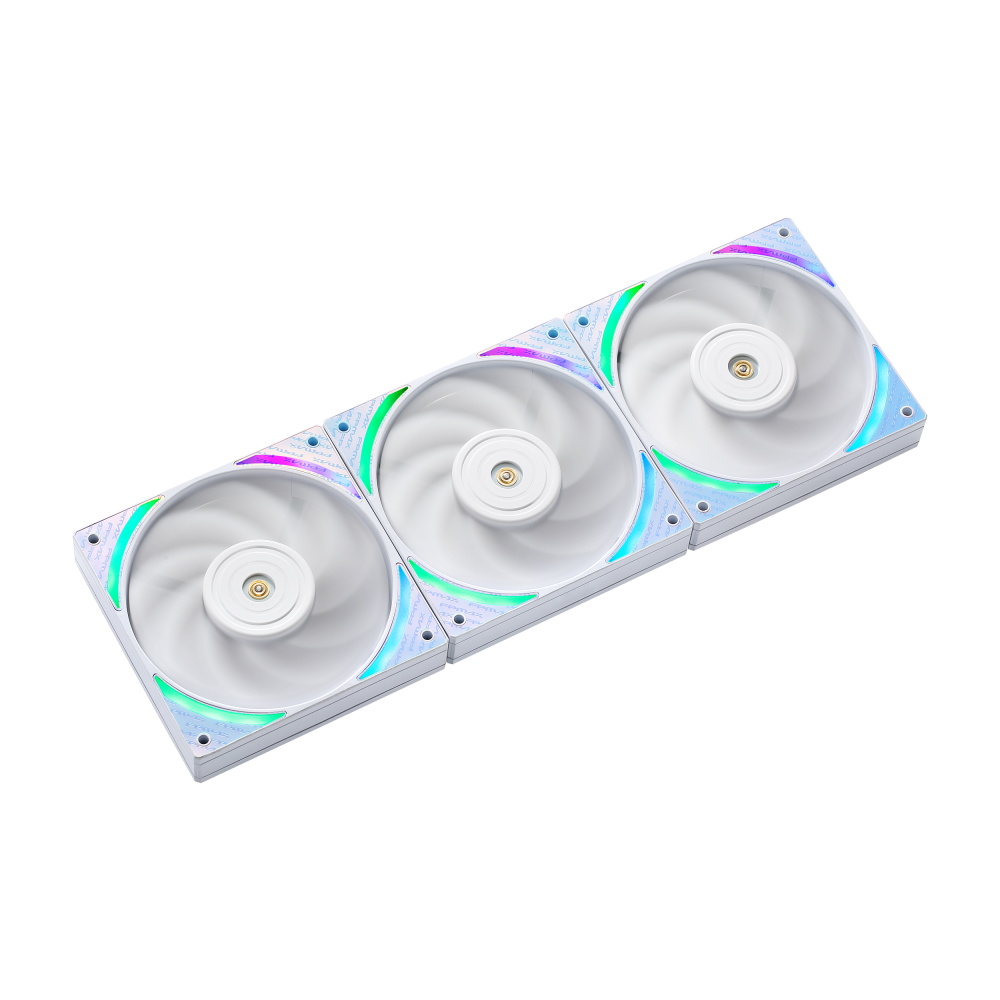

Black or White, choose the color that fits your style and preference.

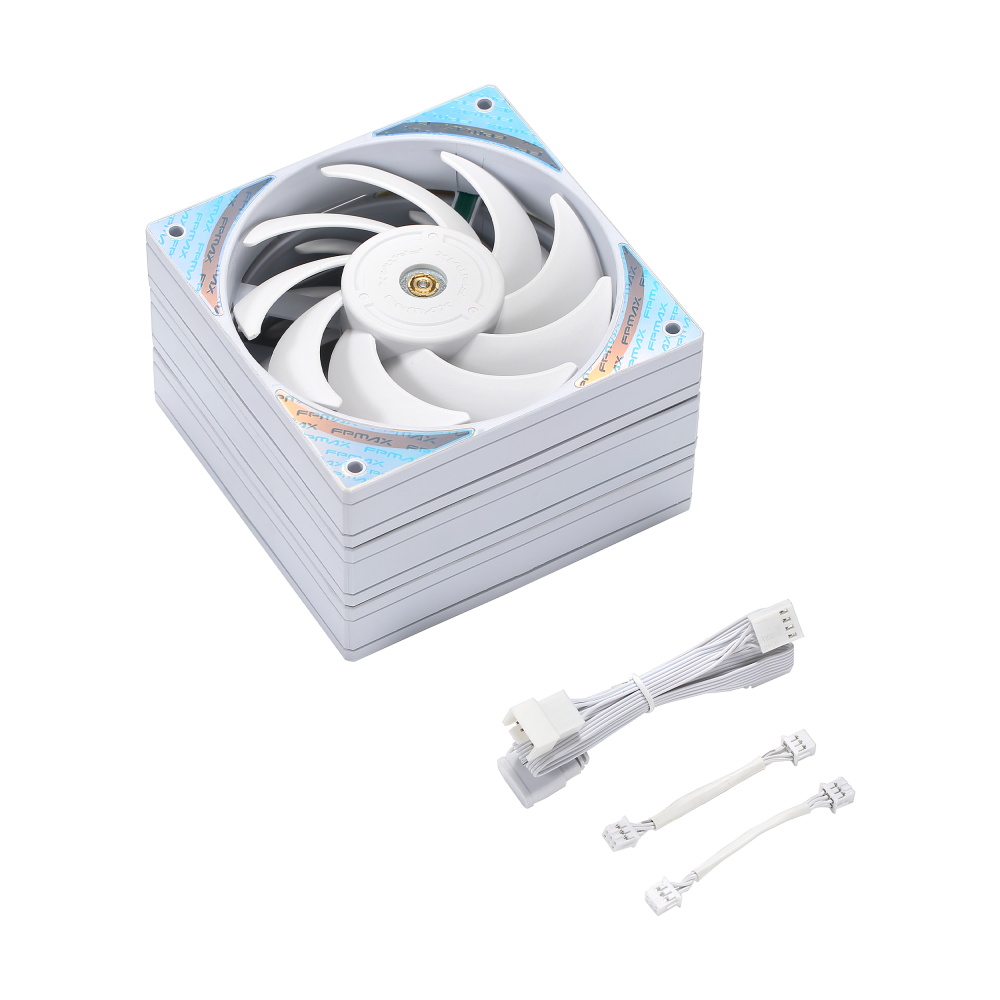

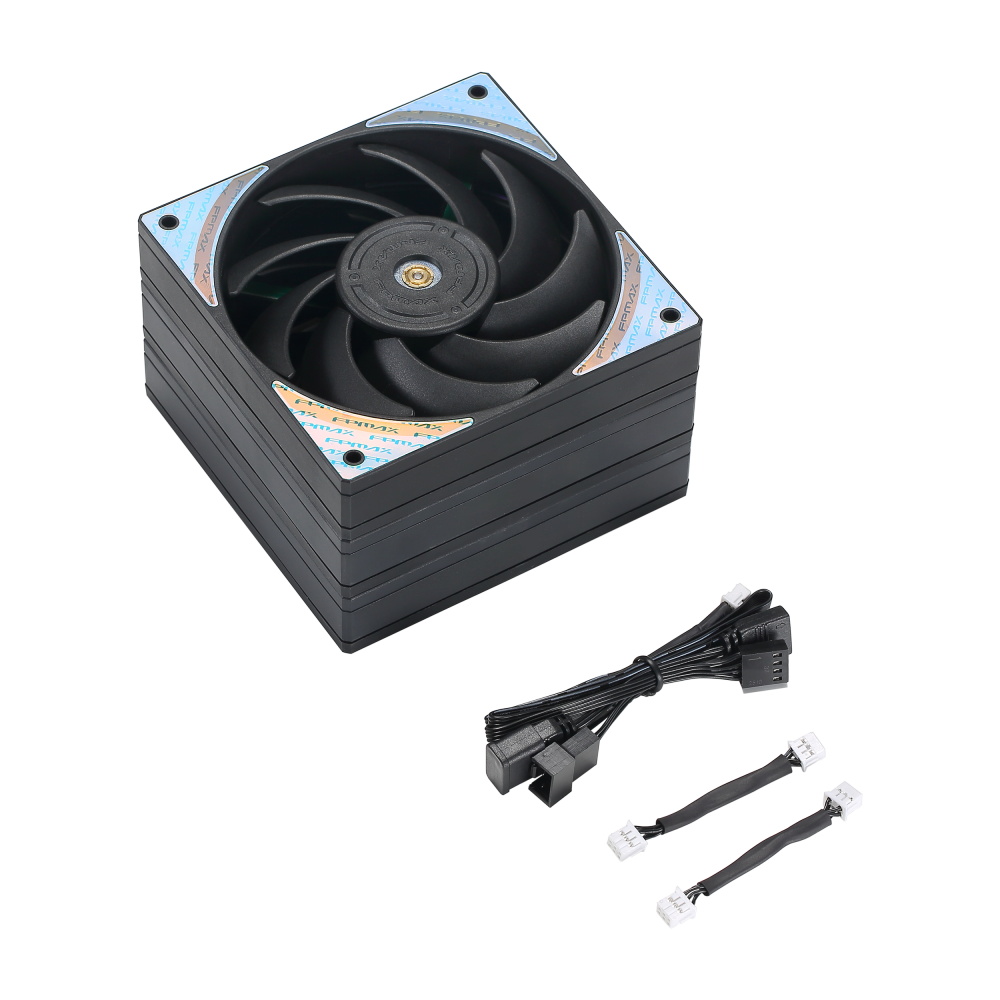

Quick-release connection structure provides seamless integration, enabling faster assembly and ensuring optimal airflow efficiency.
Tool-free quick-release design simplifies the installation process, achieving a flexible modular system.

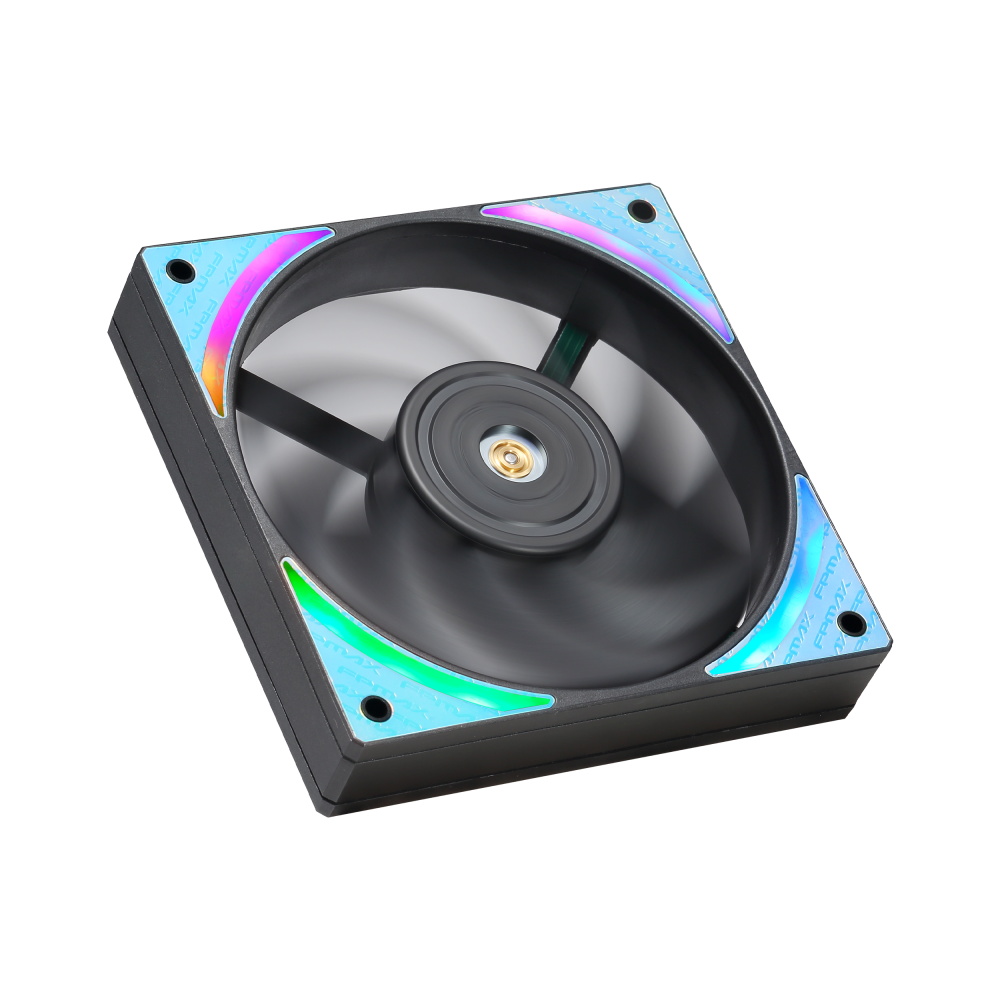

The design of the light bar position ensures perfect viewing of ARGB lighting effects.
Hydraulic bearing enhances lifespan and reduces noise; PWM function improves speed control.
Color

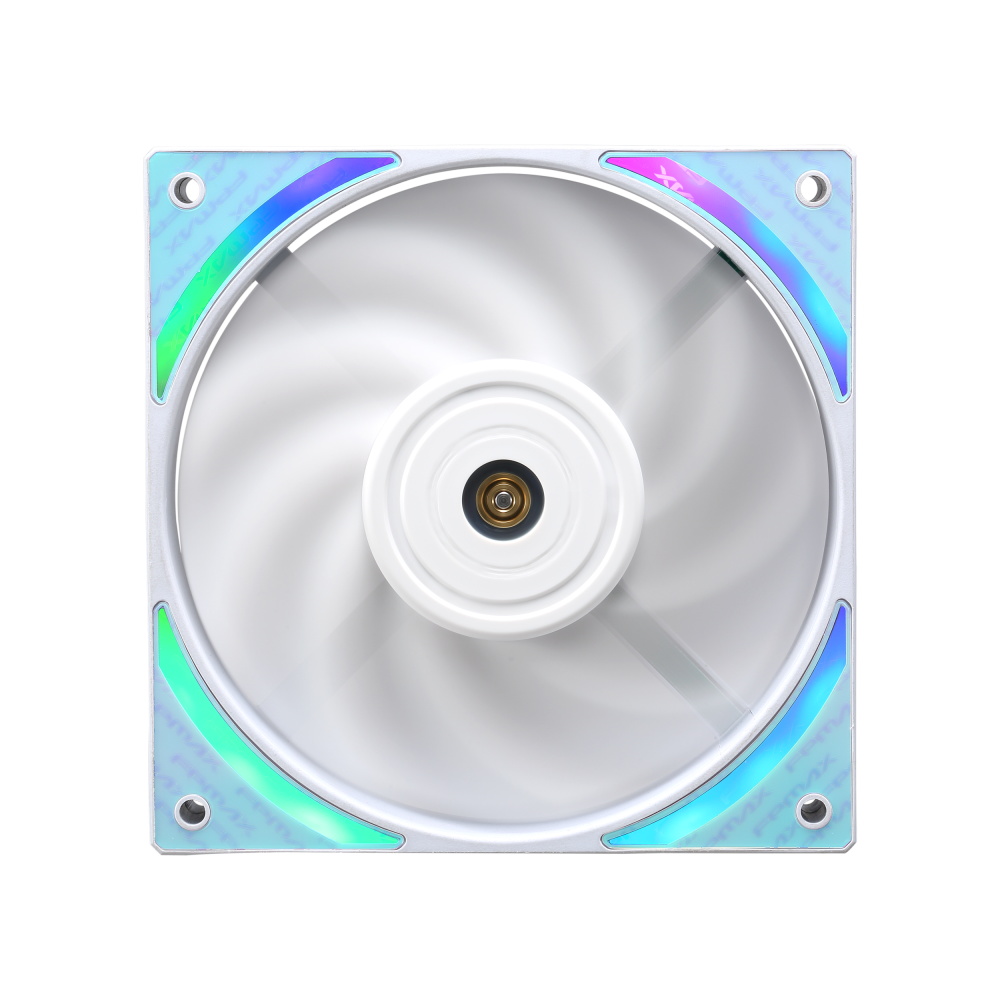

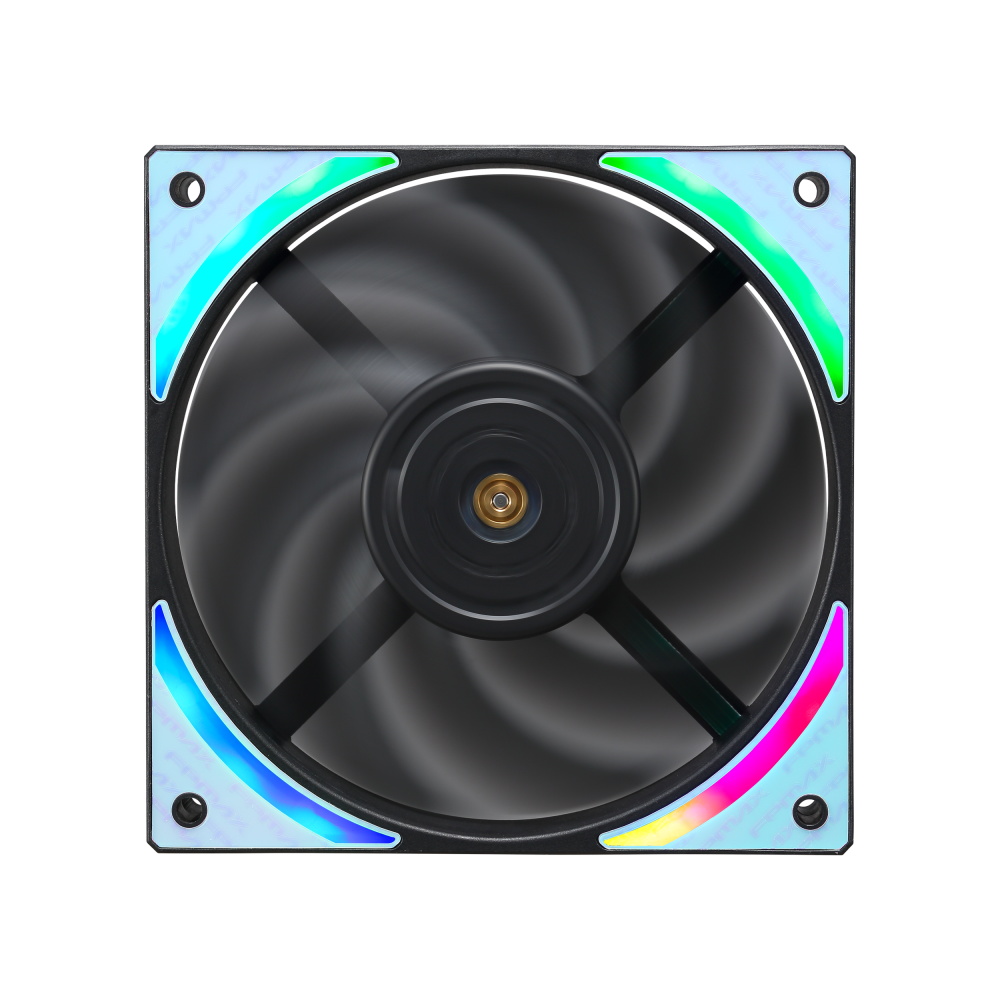

Wind Dock PLUS WH/BK

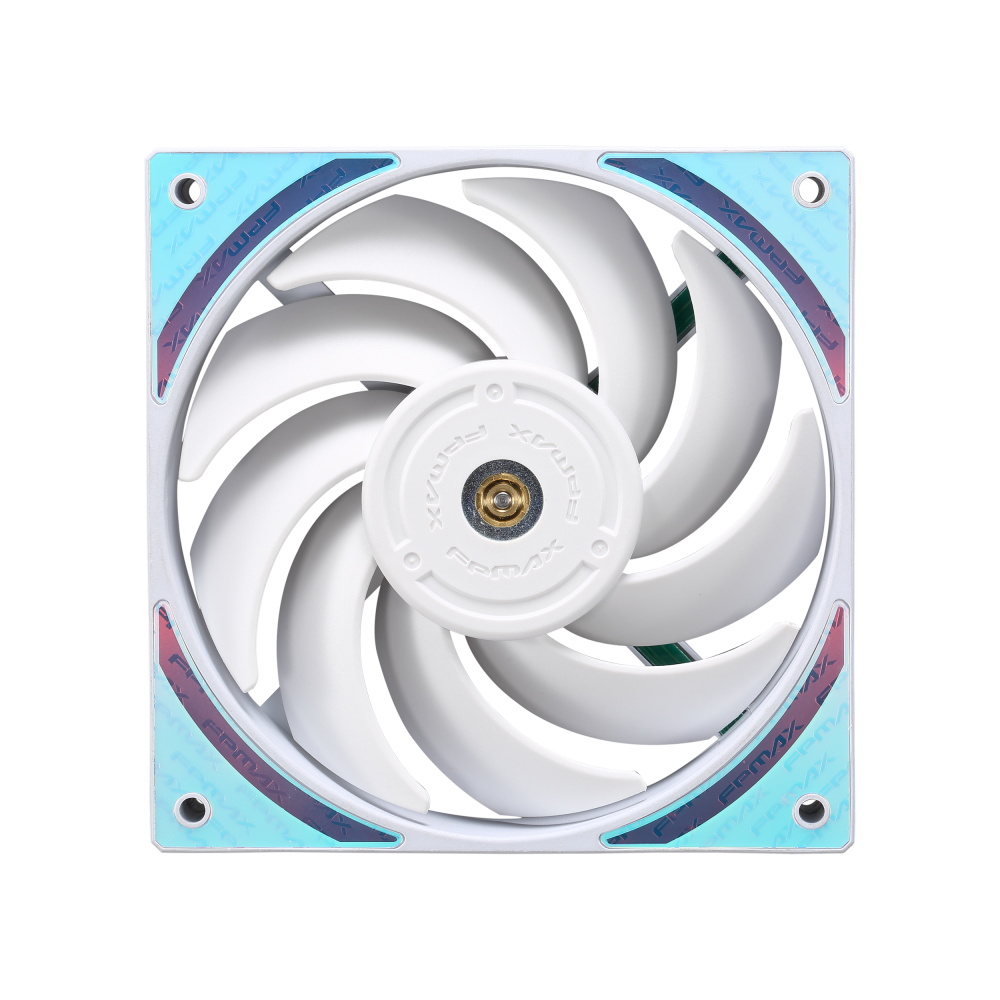

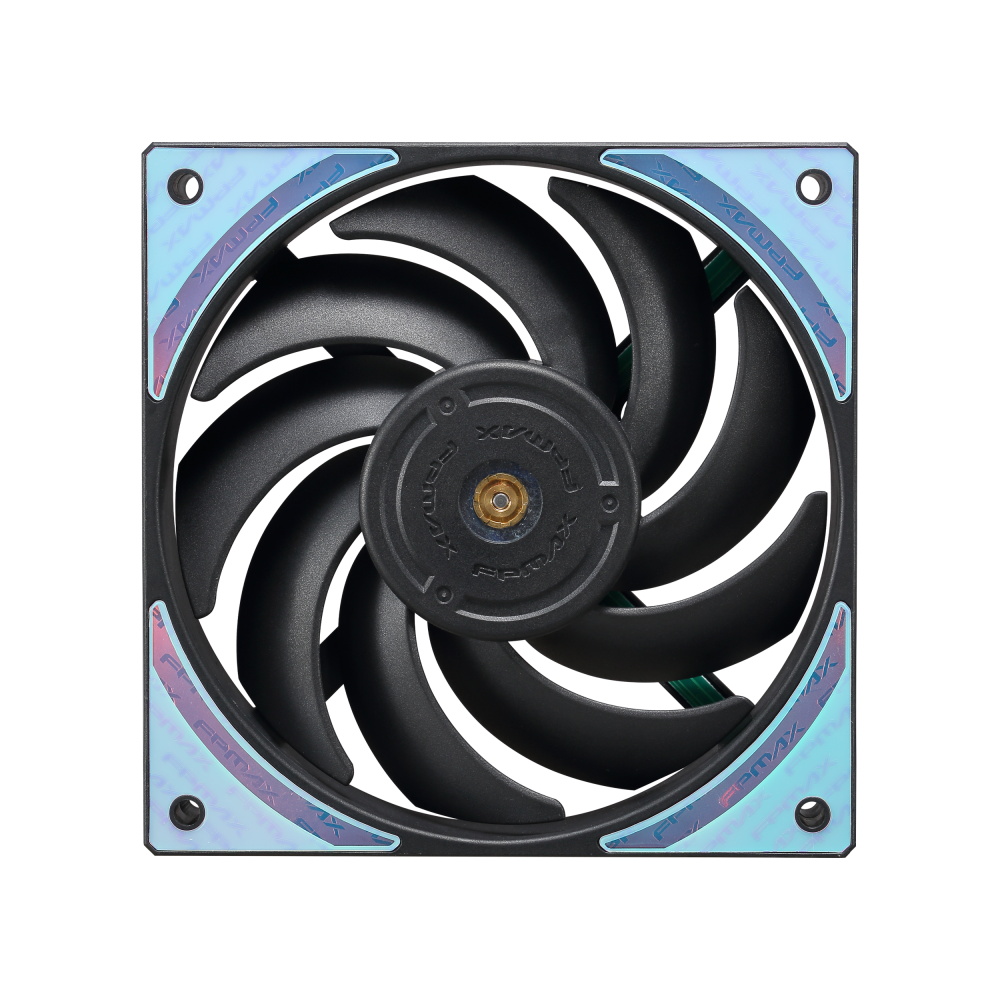

Air Bridge PLUS WH/BK
Technical Spec
Model | Wind Dock PLUS WH/BK |
Dimension | 120*120*25mm |
Bearing | Hydraulic Bearing |

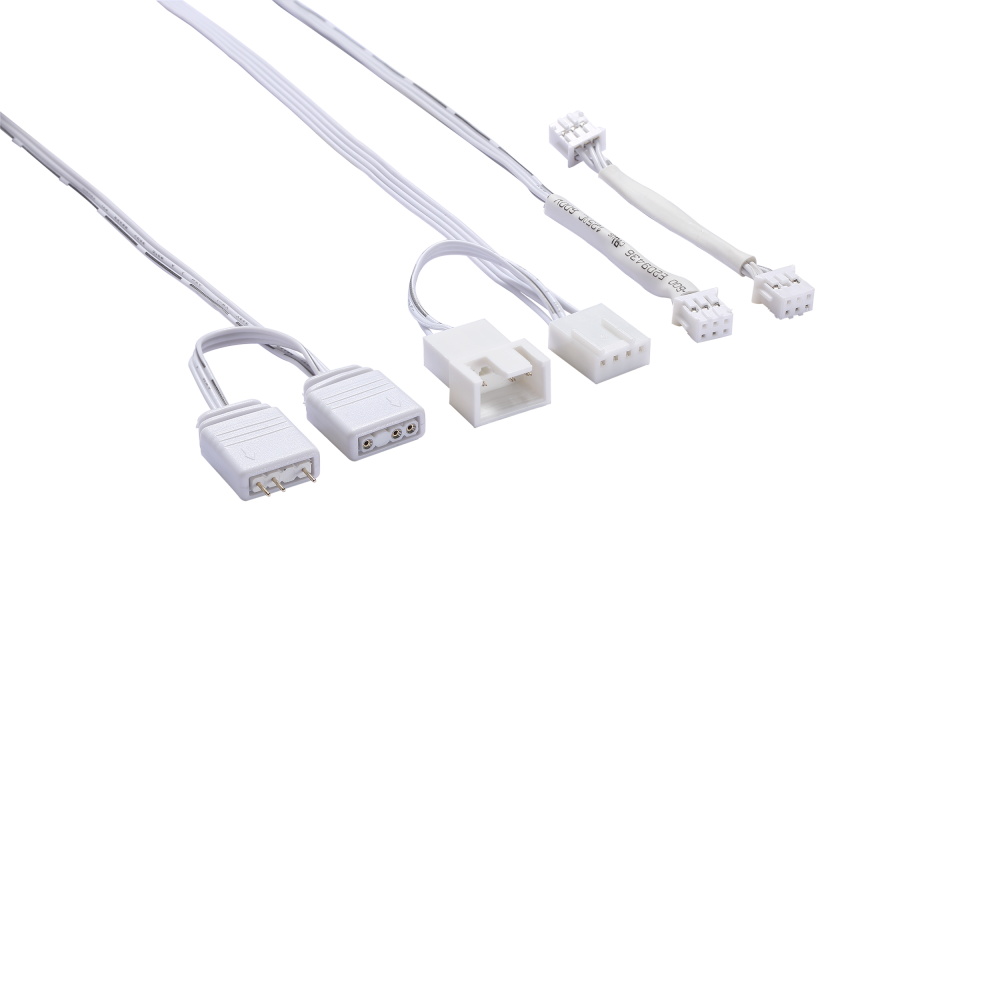

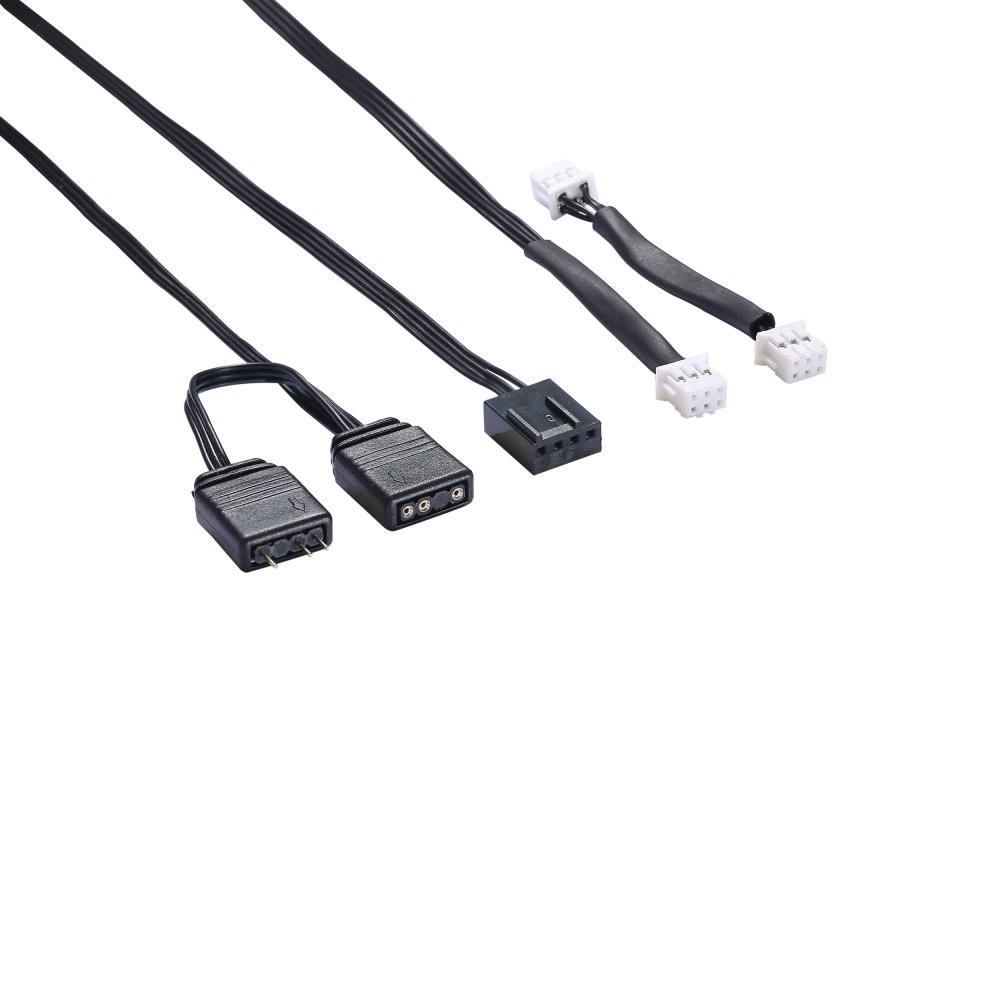

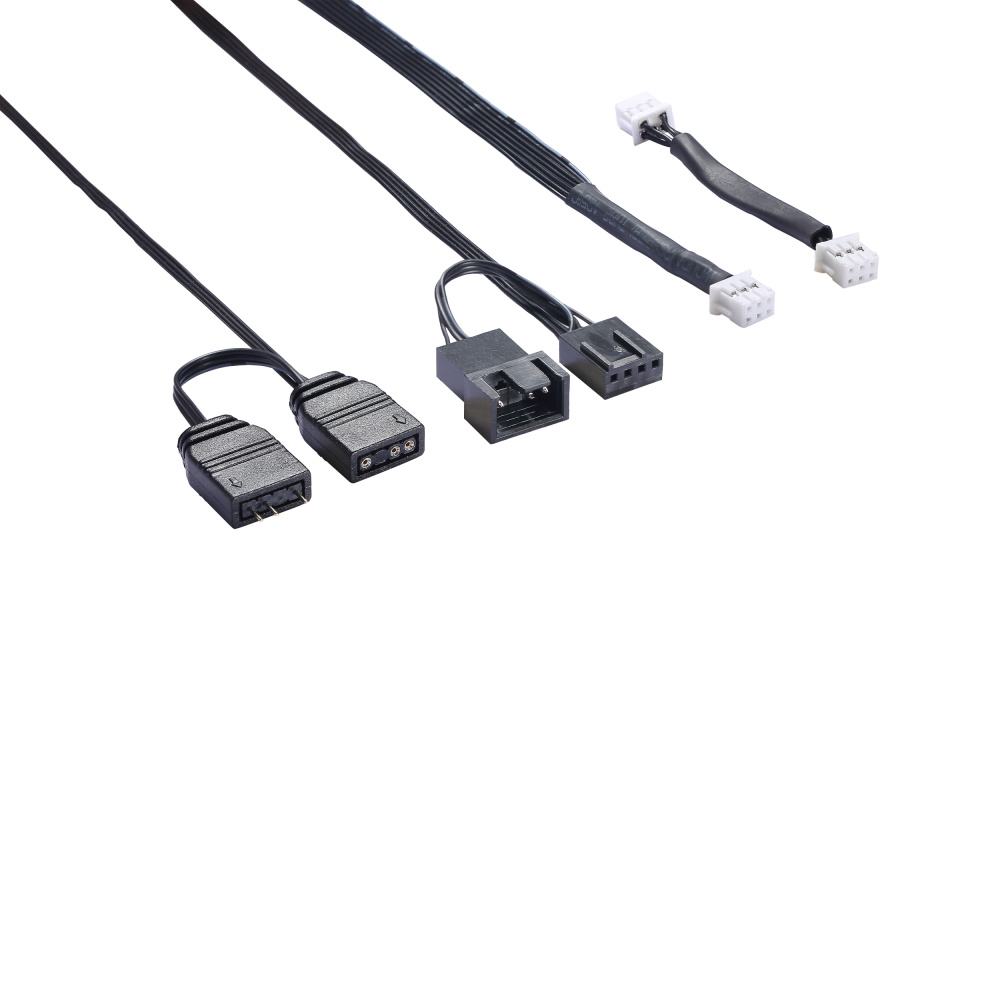

Connector Type | Modular fans/ARBG 3pin +PWM 4pin |
Fan Speed | 300-1300 PRM |
Air Pressure | 0.94mm/H2O |
Air Flow | 33.71 CFM |
Noise Level | 24.5dB(A) |
MTBF | 40000 hrs |
Remarks | with retail box 3 into 1 box |
With LED | ARGB+PWM |
Qty/CTN | 20set each carton |
Colorbox Size (cm) | 14.2*0.78*12.2CM |
Carton Size (cm) | 41*30*27.5CM |
MOQ | 1000 set (3pcs each unit) |
Rated Voltage | 12V |
Rated Current | / |
